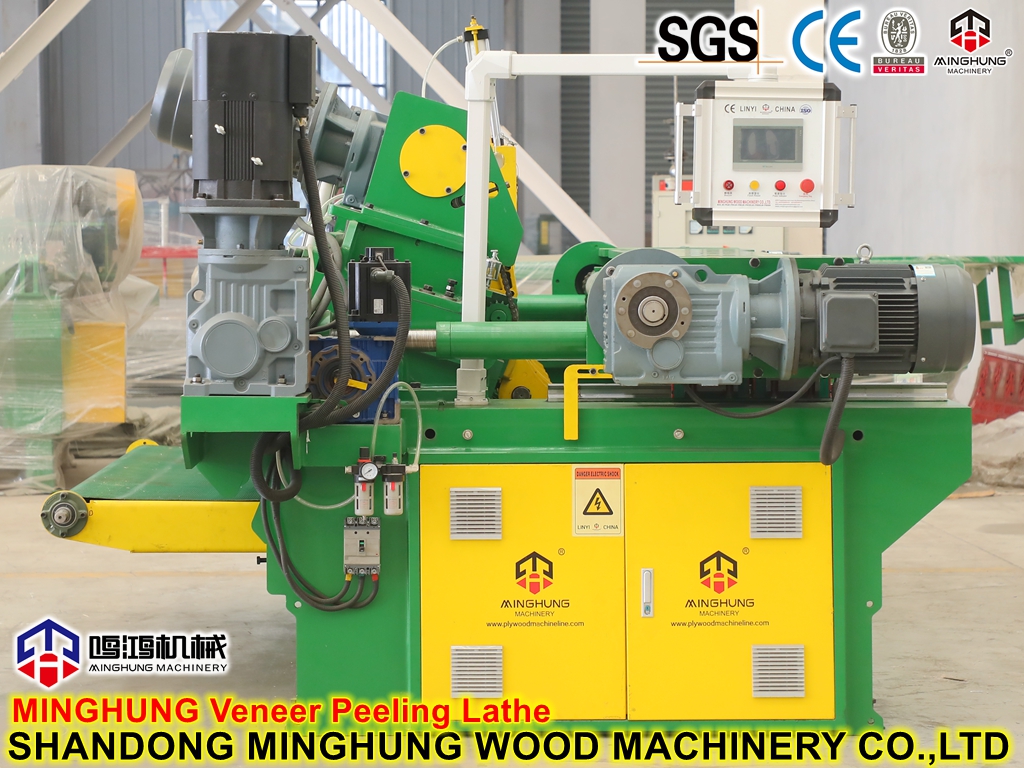

2.CNC Peeling Lathe (Main Unit)
Heavy-Duty Bed Structure: Made from high-quality cast iron or welded steel to ensure extreme stability and vibration resistance during high-speed peeling, guaranteeing uniform veneer thickness.
Servo/Hydraulic Drive System: The main drive (spindle rotation) and feed drive (knife carriage movement) employ precise closed-loop control for fast response and accurate speed matching.
Precision Tool Rest and Pressure Bar System: Equipped with wear-resistant alloy knives and a precisely adjustable pressure bar mechanism. This ensures the optimal cutting angle and pressure on the wood during peeling, resulting in high-quality veneer with a smooth surface and minimal backside checks.
3. Automatic Veneer Handling and Reeling/Shearing System
Guide Rolls and Tension Control: The continuous ribbon of peeled veneer is smoothly guided out through a series of rollers while maintaining proper tension to prevent pile-ups or breaks.
Online Inspection and Shearing: Features a laser thickness gauge and surface defect detection camera for real-time monitoring of veneer thickness and quality. Based on preset lengths or detected defects, it automatically triggers a high-speed shear for length cutting or defect removal.
Dual Reelers or Stackers: The sheared veneer can be automatically wound into rolls (for subsequent continuous processing) or neatly stacked via a conveyor and stacker for easy handling and storage.
4. Intelligent Central Control System (The Brain)
Industrial-Grade CNC Touchscreen: An intuitive operator interface allows for presetting and storing processing programs for various wood species, veneer thicknesses, and lengths.
One-Touch Operation: The operator simply selects the program and starts the cycle. The system then automates the entire process from a single log to finished output.
Data Management and Diagnostics: The system records production data (e.g., output, yield, runtime) and features fault self-diagnosis, providing maintenance prompts. This greatly simplifies operation and upkeep.
 | Workflow |
1. Preparation: The operator selects the production recipe on the control screen (e.g., Poplar, thickness 1.5mm, length 1300mm).
2. Feeding and Centering: The system automatically grabs a log, feeds it into the main unit, and the laser centering system completes calculation and alignment within 2-3 seconds.
3. Clamping and Peeling: The spindles automatically clamp the log. The knife carriage rapidly advances according to the set thickness parameter, initiating high-speed peeling.
4. Handling and Output: The peeled veneer ribbon is automatically guided out, inspected, sheared according to set length or quality requirements, and then reeled or stacked.
5. Cycle: After one log is completely peeled, the spindles automatically release, the remaining core drops out, and the system immediately begins the feeding process for the next log with almost no interruption.

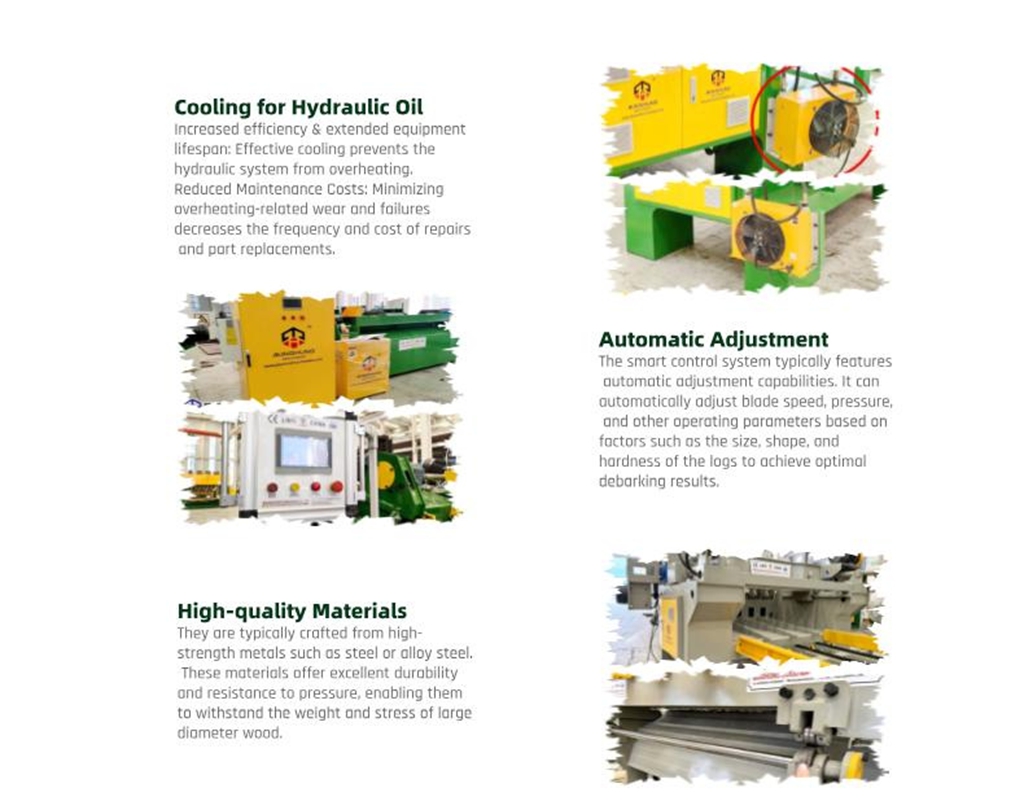

| Details of the veneer peeling machine |
| Core Advantages and Value Proposition |
Ultimate Efficiency, Leap in Productivity: Continuous automated production eliminates waiting time between processes. Productivity can be increased by over 50% compared to traditional standalone machines (which rely on manual feeding, centering, and sheet receiving).
Superior Precision and Consistency: Intelligent centering and the CNC system ensure minimal thickness tolerance for every veneer sheet (up to ±0.05mm) and highly stable quality across the entire log and between different batches. This provides a perfect foundation for subsequent plywood sanding or laminating processes.
Significantly Improved Yield: The high-precision centering system maximizes the utilization of the log diameter. Compared to traditional methods reliant on an experienced operator's eye, the yield can be increased by 3%-8%, translating directly into substantial raw material cost savings.
Greatly Reduced Reliance on Labor: The entire process requires only 1-2 operators for monitoring, replenishing raw material, and handling finished products. This reduces dependence on skilled workers and lowers labor costs.
Simplified Operation and Maintenance: Despite the complexity of the equipment, daily operation and troubleshooting become very intuitive through the intelligent control and HMI (Human-Machine Interface). Modular design also facilitates easier maintenance and replacement of key components.
Digitalization and Traceability: Automatic recording of production data facilitates production analysis, cost accounting, and quality traceability, enabling lean management.
