Double Sides Calibrating Machine for Sanding Plywood Thickness
You are here: Home » Plywood Machine Series » Plywood Sanding Machine » Plywood Calibrating for Sanding and Polishing Plywood » Double Sides Calibrating Machine for Sanding Plywood Thickness

PRODUCT CATEGORY

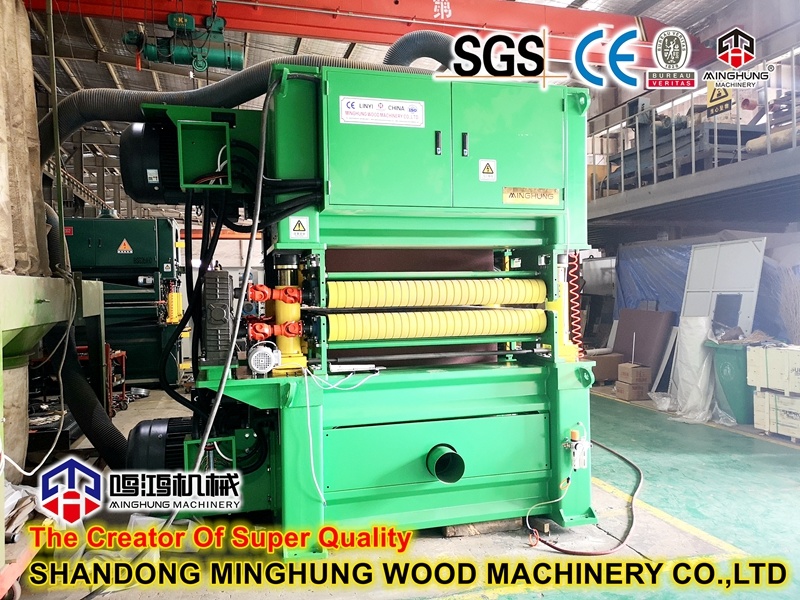

Double Sides Calibrating Machine for Sanding Plywood Thickness

Availability:
Quantity:
sharethis sharing button
  • Qingdao, China

  • 200sets/Year

  • L/C, T/T

Sanding Machine for Plywood Board

Dear friend, for save your precious time, please directly send message to me about your requires, i will offer you the suitable machine details.
                                                                              -------Lucinda/Sales Manager
The Instruction of Sanding Machine:

Sanding machine is the last step for producing plywood, for make plywood thickness more accurate and balance, surface more smooth and bright, we have different types, for example, there has 1 head, 2 heads, 3 heads, single side, double sides, light weight and heavy duty, some wants calibrating the thickness very accurate, some wants keep the surface very smooth, so we will offer you the most suitable sanding machine.

This is Double sides calibrating machine:

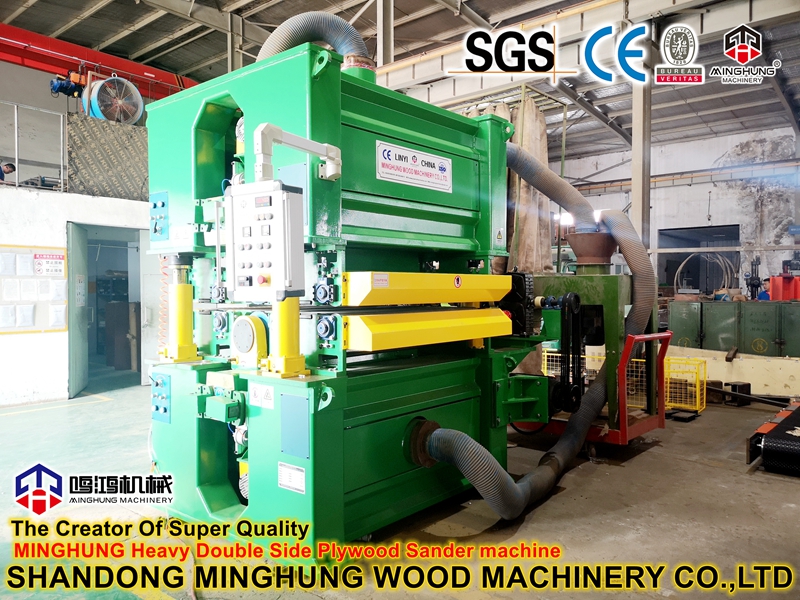

sander detail MINGHUNG heavy double side plywood sander machine_副本



Max Sanding board width

40-1300mm

40-1300mm

Sanding board thickness

5-150mm

5-150mm

Sanding board length

>500mm

>700mm

Abrasive belt speed

25m/min

25m/min

Abrasive belt size

1350*2800mm

1350*2800mm

Voltage

380v

380v

Frequency

50hz

50hz

Main motors power

75kw; 75kw

75kw; 75kw

Convey feeding motor power

11kw

11kw

Feeding speed

10-30m/min

10-30m/min

Lifting motor

0.75kw

0.75kw

Brushing motor

0.75kw

0.75kw*2

Total power

162.49kw

163.25kw

Working pressure of compress air

0.6mpa

0.6mpa

The capacity of dust collection

24000m³/h

24000m³/h

size

2100*3100*3050mm

2200*3100*3050mm

Weight

10000kg

14500kg

Note: if your plywood size is special, like the width is 1500mm, 1700mm or more, please tell me, we can customize sanding machine.


MINGHUNG sanding machine_副本 MINGHUNG SANDER MACHINE details_副本


ADVANTAGES:

sander machine plywood sander MINGHUNG SANDER MACHINE details_副本


FACTORY:
Double Sides Calibrating Machine for Sanding Plywood Thickness

>Machine we produce:
wood debarker, veneer peeling machine, veneer stacker, knife grinder, veneer dryer machine, glue spreader,
plywood veneer lay-out machine, core composer, plywood cold press machine, plywood hot press machine,
plywood DD saw, sanding machine, lift table.

>Principle:
through many years improvment and development, we have had our own company value, that is offer good and suitable plywood machine to every our client forever, and help their business create much value.
Because we know this, so we insist make our machine well, from the beginning, choose machine material and spare parts, our experienced purchasing manager choose the better one through company different, then our designer will discuss and design machine, then our professional workers will start produce machine, each production step will be responsible by different workers.
the whole production line will be tested at least 5 times to make sure our machine in good conditions.

>Certification:
All our plywood machine have CE, and test report.



FACTORY EXISTING SPARE PARTS:
Double Sides Calibrating Machine for Sanding Plywood Thickness

whatever our sanding machine, or other plywood machinery, we all choose the good one, and after our designer finish the drawings, our workers will seriously and responsible treat each production step, different production steps will be responsible by different professional and experienced workers, make sure our machine quality is very good and stable.




CLIENTS:
Double Sides Calibrating Machine for Sanding Plywood Thickness


With our clients, we are not just partners, we are friends.
So, we will always think of the problem standing on your position, think how to help you save cost and create benefits.
We welcome you come to visit our factory and check machine by yourself, and produce machine according to your needs.



DELIVERY:
MINGHUNG SANDIGN DELIVERYMINGHUNG SANDIGN MACHINE DELIVERYPLYWOOD DELIVERY_副本plywood sander_副本
Before loading, we will test machine and send you videos.
When loading, we will share loading pictures with you.
After ship leave, we will offer container and ship information to you, and prepare all documents for your custom clearance.



RELATED MACHINE:
Double Sides Calibrating Machine for Sanding Plywood Thickness



RFQ:

> Production Time:
  1 month after receive your deposit.

>Payment terms:
 30% deposit, 70% before delivery.
 100% L/C.

>Warranty:
 2 years for main parts.

>MOQ:
 1set

> Installation:
  when machine reach your factory, our engineer go to install.

> After-sales service:
  Any problem that your worker can not solve, we will reply you at the first time, help you solve it.



CONTACTS:

whatsapp:

MARK: +8618769900191

ALI: +86155589105786

LUCINDA: +8615805493072
