Türkiye'de Film Kaplı Kontrplak Sıcak Pres Makinesi

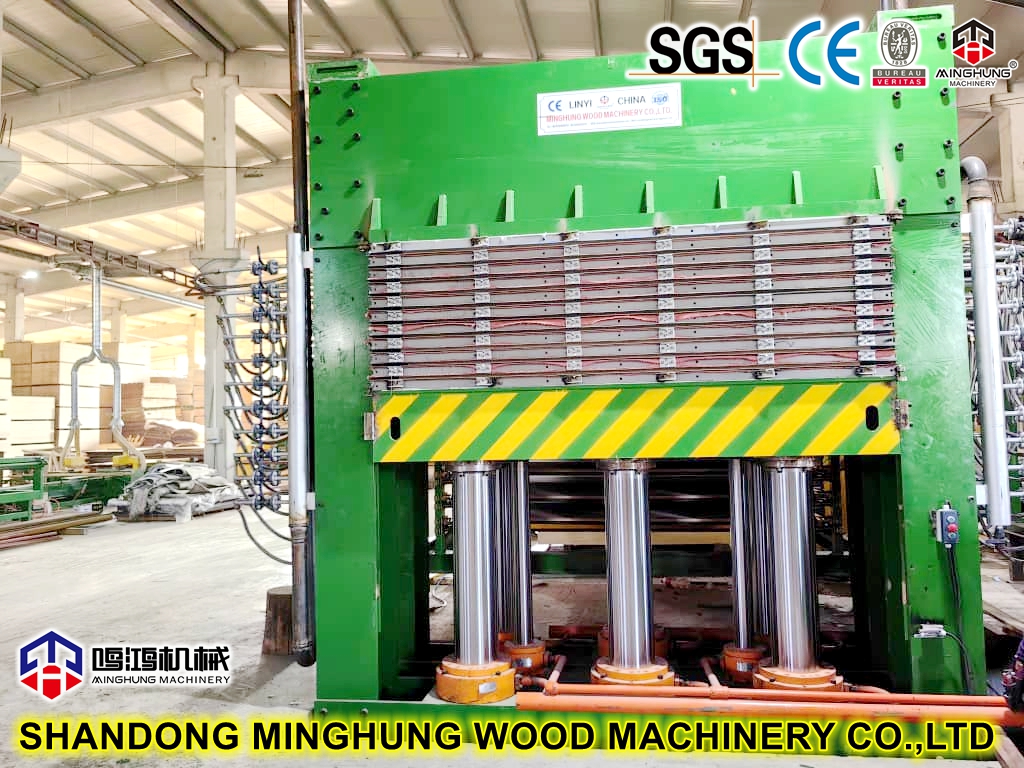

Film laminating hot press machine is one important machine for laminating film paper on plywood surface, for making Film faced plywood /Construction plywood

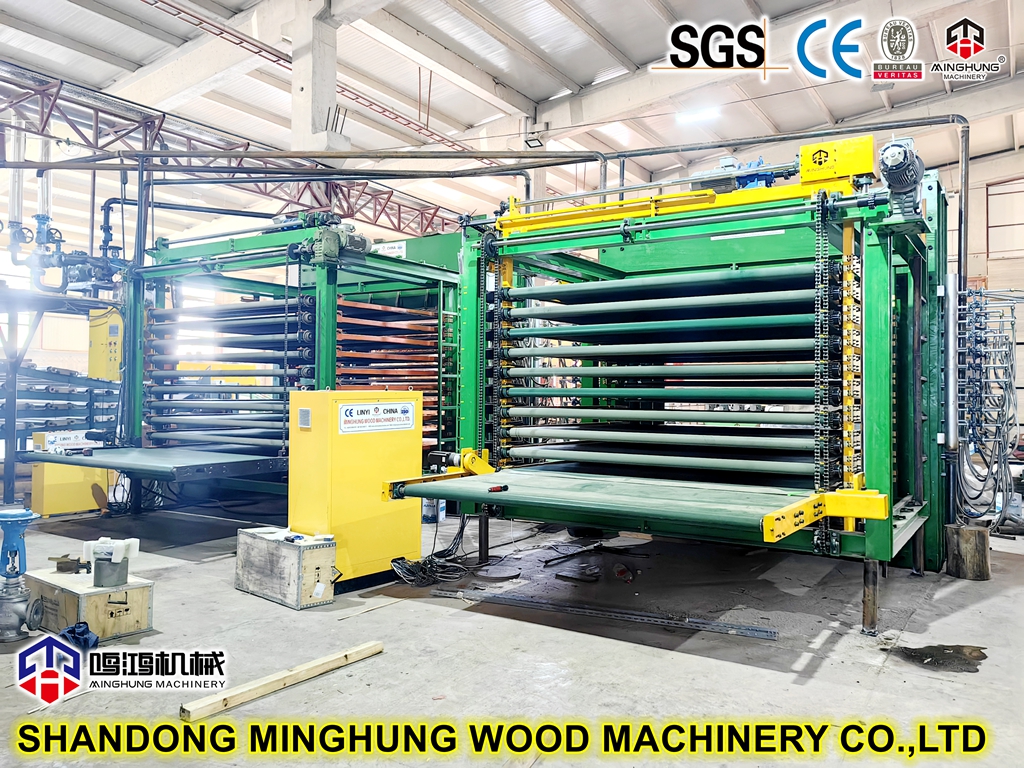

Usually we advise equipped with Semi auto loader for your hot press machine, thus you can laminating two sides of plywood at the same time. improve production capacity.
For film hot press machine, actually it is the plywood hot press machine withh stainless steel plate and crash pad, so you can do laminating
Consider the film paper feature, we not advise the hot press machine with many layers. usually we advise 10 layers film hot press with semi auto loader, or as you want, you can choose 8 layers, 6 layers
304 stainless steel plate
Each hot platens will with 2pcs stainless steel plates
Crash pad
Each hot platens will with 2pcs crash pad
Hexa stainless steel plate
If you want to make Anti-slip plywood, then you need special stainless steel plate as picture show.
Specification of 10 layers Film hot press
| Pressure | 600Ton/800Ton/1000Ton/1200Ton |
| Quantity of Hot platens | 11pcs |
| Distance between each hot platens | 120mm/130mm/150mm |
| Oil cylinders | 6pcs mainly oil cylinders +2pcs fast lifting cylinders |
| Convey way | Automatic |
| Film faced plywood size | 1220*2440mm or customized |
Note: Laminating hot press machine can be customized as your own conditions and requires.
Details of our Film hot press:
Oil cylinders
Our film hot press machine with 6pcs oil cylinders and 2pcs fast oil cylinders, ensure machine much powerful for pressing laminating plywood
Great electric box
Our Semi auto loader for film hot press machine with great electric box and electric parts which are Siemens brand. Ensure all of them works very well
Good accessories of Semi auto loader
Our semi auto loader for film hot press is heavy and strong, it with kinds of good quality spare parts and accessories, to ensure it works well
Hydraulic station
Good designed hydraulic station with Siemens brand motors
So choose our laminating hot press machine, no need worry its quality, we promise that it will works very well and help you produce good quality plywood.
Introduction of China MINGHUNG Plywood Machine:
Plywood machine manufacturer
We as China professional and famous factory of the whole line of Plywood making machines and Veneer lathe, we can offer all machines for you to make plywood board and wood veneer.
Machine such as Veneer peeling line, Veneer drying line, Veneer joint machine, Veneer patcher, Glue mixing machine, Glue spreading machine, Pre-press machine, Hot press machine, Film hot press machine, Plywood trimming machine, Calibrating machine and Sanding machine, Plywood turnover machine, Lift table, and so on
And each machine can be different specification as different clients conditions and requires. After know your own requires, we can offer the good quality plywood machinery for you.
MINGHUNG
Until now MINGHUNG machine has joined different countries fair and got good feedback, we have exported our woodworking machines to more than 20 countries.
Many clients choose to buy from us again and again, because they are satisfied of our machine quality. This also encourage us to continue and insist make our machine good
CE
We have the CE for all of our machines. So when you do custom clearance and need it, no problem
Welcome contact us for more information about laminating hot press machine
