MH-HP
MINGHUNG

Key Advantages
1. Large Format Hot Pressing Platform
2. Stable 500-Ton Pressure Output
3. Multi-Opening Design for High Efficiency
4. Precise Temperature Control System
5. Heavy-Duty Frame for Long-Term Durability
6. Fully Automatic PLC Control
Technical Specifications
Parameter | Value |
Nominal Pressure | 500 tons |
Platen Size | 3000×1500 mm / 3500×1600 mm (customizable) |
Number of Openings | 5–15 (optional) |
Working Temperature | Ambient – 200℃ (adjustable) |
Temperature Accuracy | ±2℃ |
Pressing Method | Hydraulic downward pressing |
Control System | PLC + Touchscreen |
Power Supply | 380V / 50Hz / 3-phase (customizable) |
Working Principle

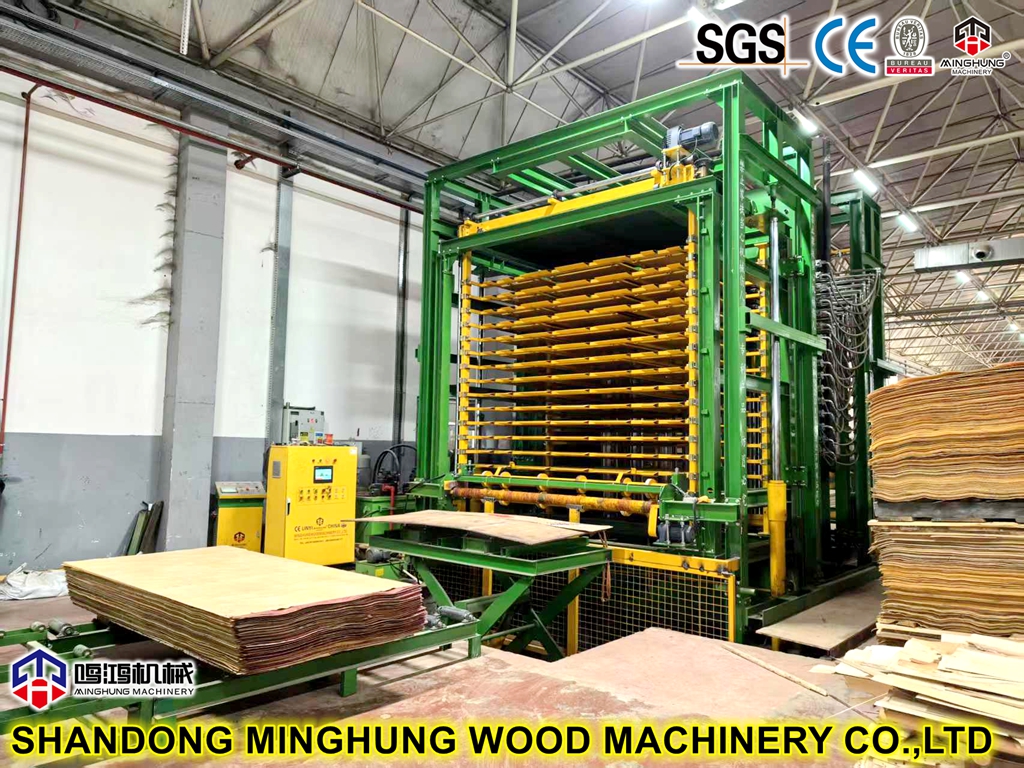

This hot press machine uses a hydraulic system to generate a maximum pressure of 500 tons, pressing together multiple layers of glued wood veneers (e.g., plywood layups). At the same time, the heating system raises the temperature of the hot platens. Under high temperature and high pressure, the adhesive between the veneers cures rapidly, permanently bonding the layers into a solid panel.
The typical working cycle is as follows
1. Loading – The veneer stacks are placed between each pair of hot platens.
2. Closing & Pressurizing – The hydraulic cylinder moves the movable crossbeam (upward or downward), closing all platens and applying the preset pressure.
3. Heating & Holding – The thermal oil or electric heating system brings the platens to the target temperature and maintains it for the required time, allowing the adhesive to fully cure.
4. Decompressing & Unloading – After the holding time, the hydraulic system releases pressure, the platens open, and the finished panels are removed.
The entire process (pressurizing, heating, holding, and decompressing) is automatically controlled by the PLC control system, ensuring consistent production quality and repeatability.
Main Components
Component | Brief Function Description |
1. Frame (Body) | Heavy-duty integral or sectional steel structure designed to withstand 500 tons of pressure, ensuring rigidity and platen parallelism. |
2. Hot Platens | Multiple large-format steel plates with internal channels (for thermal oil or electric heating elements) that transfer heat and pressure to the wood panels. |
3. Hydraulic System | Includes hydraulic pump, cylinders, and control valve group, providing stable and adjustable pressure up to 500 tons. |
4. Heating System | Typically a thermal oil heater with circulation pipes, or electric heating units, enabling rapid temperature rise and uniform platen heating. |
5. Temperature Control System | Multi-point temperature sensors combined with PID controllers, achieving precise temperature control within ±2℃. |
6. Control System (PLC) | Industrial programmable logic controller with a touchscreen interface, used to set and automatically execute process parameters such as pressure, temperature, and pressing time. |
7. Inter-platen Spacing Control Mechanism | Ensures all platens move in parallel and synchronously during opening and closing, preventing panel misalignment. |
8. Thermal Insulation Layer | Installed around the hot platens and on the outer frame to reduce heat loss and improve energy efficiency. |
After-Sales Service
1-year warranty on complete machine, lifetime technical support
Overseas installation and commissioning guidance available
Operation manuals and training materials in Chinese/English
Long-term supply of common spare parts
