The High-Efficiency Hot Air Circulation Plywood Drying Machine is a complex system where several key components work in synergy to ensure efficient and uniform drying. Its main constituent parts include:
1. Drying Chamber
This is the main body of the dryer, designed to hold the plywood to be dried. It is typically constructed with insulated panels (stainless steel inner wall with polyurethane foam insulation) to ensure excellent sealing and heat retention, minimizing thermal loss.
2. Hot Air Circulation System
This is the "heart" of the equipment, responsible for driving the uniform flow of hot air within the drying chamber. Key components include:
Circulation Fans: High-power, heat-resistant centrifugal or axial fans that provide strong airflow, forcing hot air through the stack of panels.
Air Ducts & Baffles: Carefully designed ducts and adjustable baffles ensure even distribution of hot air throughout the chamber, preventing dead zones and air short-circuiting, guaranteeing consistent heating for all plywood.
3. Heating System
This system provides the heat source required for drying. Depending on the energy source, it mainly comes in the following forms:
Electric Heaters: Generate heat by electrifying resistance wires. They offer precise control and easy installation.
Steam Heat Exchangers: Utilize steam from a boiler to heat air via finned heat exchangers. They have lower operating costs and are suitable for plants with steam availability.
Gas/Oil Hot Air Furnaces: Directly burn natural gas, LPG, or diesel to produce clean hot air. They feature high thermal efficiency and advantageous comprehensive operating costs.
Heat Pump Systems: Absorb ambient heat and compress it to a higher temperature based on the reverse Carnot cycle. They have an extremely high Coefficient of Performance (COP) and are the most energy-efficient option, though the initial investment is higher.
4. Ventilation and Dehumidification System
Responsible for promptly exhausting the moisture evaporated from the plywood during the drying process to the outside.
Components: Include exhaust fans, air inlets/exhaust vents, and automatic dampers. The system opens and closes based on preset humidity parameters, finding the optimal balance between dehumidification and energy saving.
5. Intelligent Control System
The "brain" of the equipment and the core of modern high-efficiency dryers.
Components:
PLC / Microcomputer Controller: Receives signals from various sensors and executes preset drying programs.
Touch Screen HMI (Human-Machine Interface): Used for setting and displaying drying parameters (e.g., temperature, humidity, time), offering intuitive and easy operation.
Temperature & Humidity Sensors: Monitor the temperature and air humidity at different points in the drying chamber in real-time.
Moisture Content Detector: An optional component for online or offline detection of the real-time moisture content of the boards, enabling more precise final control.

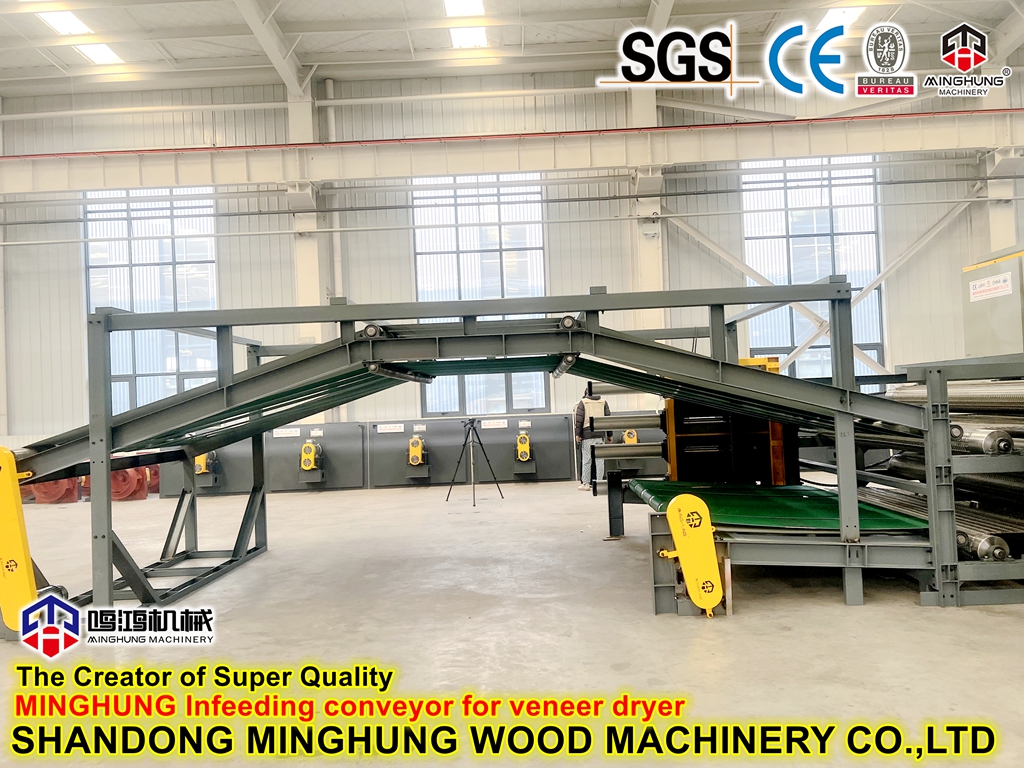

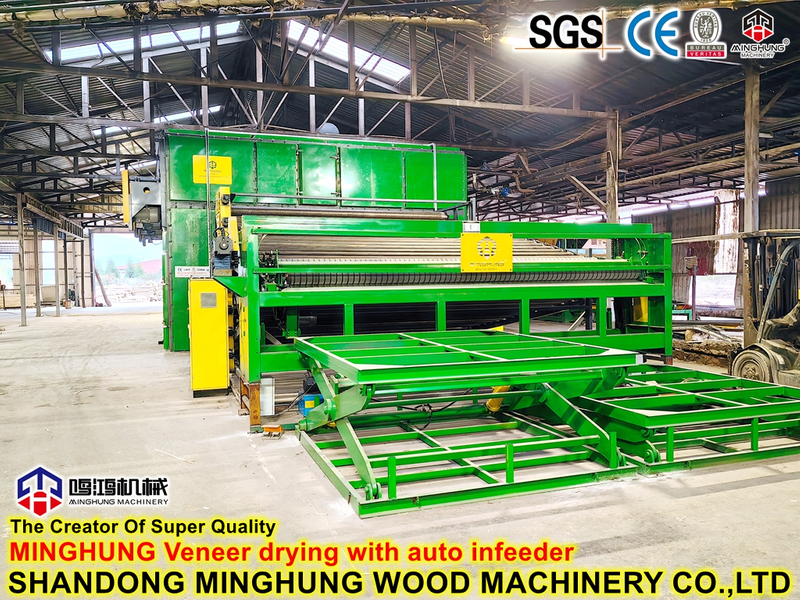

6. Material Handling System
Used for loading and unloading plywood, reducing manual labor intensity, and enabling continuous or batch production.
Forms: Can be a track and cart system, forklift access, or chain/roller conveyors.
7. Auxiliary Structures
Base Frame: A sturdy load-bearing structure.
Sealing Door: Features good thermal insulation and air tightness, usually wide for easy loading and unloading.
Safety Devices: Such as overheat protection, fan failure alarms, and fire prevention systems, ensuring safe operation of the equipment.
