Automatic Woodworking Plywood Hot Press Machine
You are here: Home » Plywood Machine Series » Hot Pressing » Automatic Woodworking Plywood Hot Press Machine

PRODUCT CATEGORY

Automatic Woodworking Plywood Hot Press Machine

Hot press machine is one very important machine for making plywood panel. it can be different layers, and its layer quantity will decide plywood quantity. And it also can be different pressure to satisfy different plywood conditions
Availability:
Quantity:
sharethis sharing button
  • MH-HP20

  • MINGHUNG

  • 846599

  • Qingdao port

  • 20 PCS/PER TIME

  • T/T or L/C

  • Engineer always be there when you need help

  • Semi-automatic

  • 1 years

  • Plywood hot press machine

  • making plywood panel

Automatic Woodworking Plywood Hot Press Machine


>>>>> Automatic plywood hot press machine

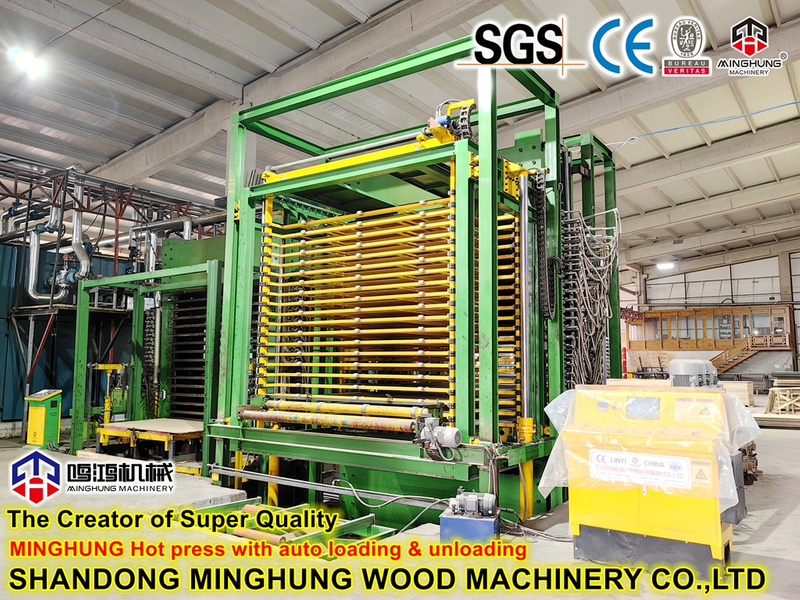

plywood machine linePlywood hot press machine with automatic loader & unloader, for plywood manufacturing.

Hot press machine can be different layers, pressure, and its hot plate size also can be different according to your plywood size.  For example, it can be 500ton, 600ton, 800ton, 1000ton or others, it also can be less than 15 layers like 12 layers, 10 layers, 8 layers, it is also can be more than 15 layers like 20 layers, 25 layers, 30 layers, 35 layers; And the standard hot press for making standard plywood size 1250*2500mm /1220*2440mm, But as the market demands, some clients produce special plywood size, bigger or smaller, it is no problem, we can customize the press machine for you


If you want to save labor cost, and want fully automatic, then your hot press can equipped with the automatic loading and unloading system, thus it will automatic loading plywood, and stacking pressed plywood, high work efficiency.

hot pressing machine with auto infeeding machine and out feeding machhnie


30layers hot pressing machine




Product name 500ton Hot press machine 600ton Hot press machine 800ton Hot press machine
Cylinder Dia 360mm *2pcs Dia 220mm *6pcs Dia 260mm*6pcs
Layers 15 15 15
Hot plate size 2800*1450*42mm 2800*1450*42mm 2800*1450*52mm
Distance between hot plates 100mm 100mm 100mm
Power 29.5kw 29.5kw
37.5kw
Closing time <25s <25s <25s
Weight 33ton 36ton 45ton



>>>>> MINGHUNG Hot press at our clients factory:

plywood machinery


plywood press machine


hot press for 48 feet plywood


kontrplak sıcak pres makinesi


plywood hot press machine


hot press machine



For our hot press machine, until now, we are confident and pride to say that all of our clients have a good feedback, they are satisfied of our plywood hot press machine.



>>>>> Our hot press machine's spare parts

plywood hot press frame

Thick steel plate material

For make hot press machine's strong

press machine hydraulic station

Hydraulic station

With Siemens engines

cylinder

Oil cylinders


hot platen for hot press

Hot plates


For the complete hot press machine, we ensure all of its spare parts and accessories, we choose and use high level and good quality type.



>>>>> MINGHUNG Plywood machine loading pictures

MINGHUNG PRESS


MINGHUNG pressing machine


MINGHUNG press machine


MINGHUNG plywood machine


plywood cutter


未命名_副本




>>>>> CE certificate


China MINGHUNG plywood machine CE certificate


We have the complete CE documents for all of our woodworking plywood machinery. Therefore, it will make sure you can do custom clearance fluently.

Our factory mainly manufacture and offer the full line of plywood production equipment and wood veneer lathe, from A to Z, from Raw materials to the end product, we can offer you all of necessary machinery.

With many years production experience, and advanced production technology, and insist to use good materials and spare parts, and keep to improve our machine, we are confident that we can offer suitabl, good and strong plywood machine for you.



>>>>> MINGHUNG clients

plywood machinery


veneer drying machine


laminating hot press machine


veneer production line


plywood hot press




>>>>> Related Plywood machinery


MINGHUNG glue spreader

Glue spreader

For coating glue on wood veneers, and workers lay glued veneer out, to be plywood size.

plywood press machine

Cold press machine

For pre-press glued veneer plywood, its next step is hot press machine.




Welcome contact us for more information about plywood hot press and other plywood machine, we will reply you quickly
