Shandong MINGHUNG Achieves New Milestone: Multiple Pneumatic Gluing Machines Shipped to Russia, Romania & Beyond
Marking a significant export achievement in late July 2025, Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd. (“Shandong MINGHUNG”) successfully dispatched a substantial shipment of multiple full standard containers (40HQ) of its high-quality Pneumatic Gluing Machines. Destined for multiple European markets, including Russia and Romania, this large-scale delivery underscores the strong international recognition and growing demand for MINGHUNG’s reliable woodworking solutions.
The shipped Pneumatic Gluing Machines are among Shandong MINGHUNG’s flagship products, renowned for their efficiency, stability, precision, and user-friendly operation. They are widely favored by global woodworking and furniture manufacturers for critical processes such as splicing, edge banding, and laminating in the production of doors, cabinets, furniture, staircases, moldings, and more, significantly enhancing production efficiency and product quality.
Shipping multiple containers of gluing equipment to multiple countries in a single batch is a testament not only to our current order fulfillment capacity but, more importantly, to the international market’s trust in the quality and reliability of the ‘MINGHUNG’ brand.

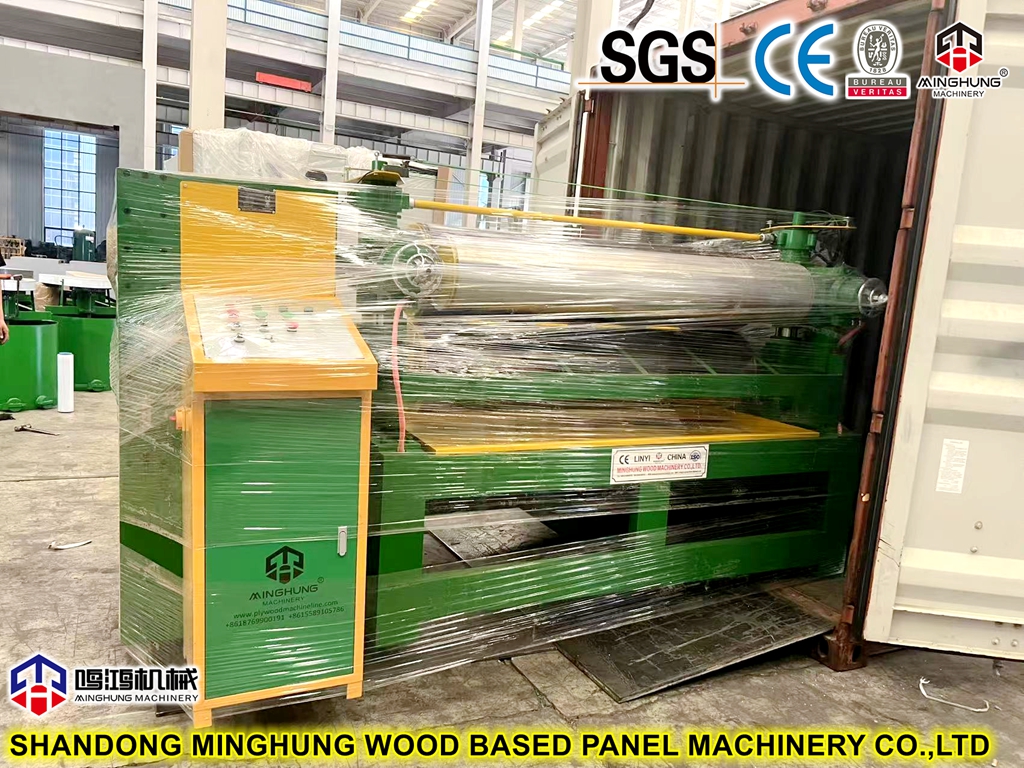

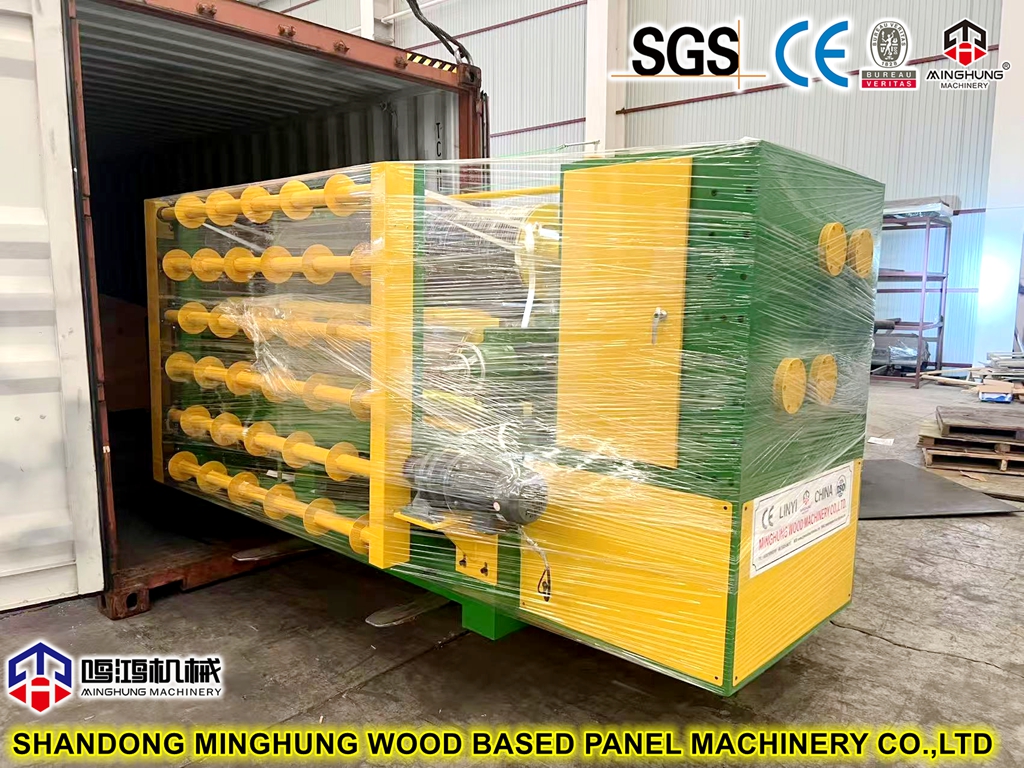

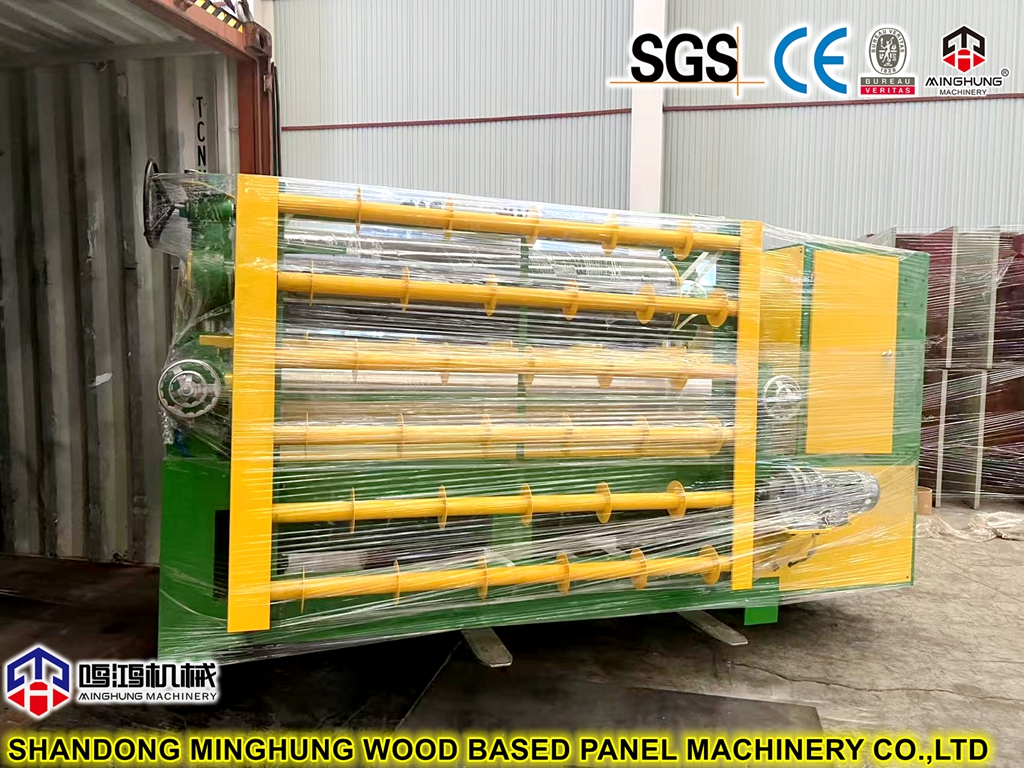

Pneumatic Gluing Machine for Plywood Production
The Pneumatic Gluing Machine for Plywood is an automated adhesive application system engineered specifically for plywood manufacturing lines. Utilizing a compressed-air driven system, it ensures precise control over glue volume, pressure, and speed to achieve uniform single/double-sided coating on veneers – a critical pre-pressing process before hot/cold pressing.
Operating Principle
1. Pneumatic Drive System
Powered by compressed air (0.6–0.8 MPa) to drive glue rollers and pumps, offering faster response and lower maintenance vs. hydraulic systems.
2. Dual-Side Coating
Counter-rotating top/bottom rollers apply adhesive simultaneously to both veneer surfaces, preventing warpage.
3. Glue Volume Control
Adjustable roller gap (0.1–0.5mm) via pneumatic valves, glue thickness tolerance ≤±0.02mm.
4. Glue Recycling
Integrated recycling trough with auto-filtration reduces adhesive consumption by >30%.
Key Components
Component | Function |
Pneumatic Control | Delivers stable air pressure to drive rollers, scrapers & lifting mechanisms |
Coating Rollers | Corrosion-resistant stainless steel/silicone rollers, precision-ground surface |
Glue Tank & Pump | 200–500L capacity with pneumatic diaphragm pump (PVAc/UF/EPI glue compatible) |
Gap Adjuster | Manual wheel or digital display for precise thickness control (1.5–25mm veneers) |
Conveyor System | Variable frequency drive (0–30m/min) with anti-deviation mechanism |
Technical Advantages
✅ Energy Efficiency：40% lower energy consumption vs. hydraulic systems, oil-free operation
✅ Uniform Coating：Glue thickness variation ≤5%, eliminates delamination/glue penetration
✅ Material Adaptability：Handles poplar, eucalyptus, birch veneers (MC:8–12%)
✅ Smart Control：Optional PLC + HMI for preset parameters per plywood specification
Applications
Plywood Types：Construction formwork, furniture core, container flooring, aircraft laminates
Production Line Integration：Works with veneer dryer → gluer → prepress → hot press
With years of dedication to the woodworking machinery sector, Shandong MINGHUNG specializes in the R&D and manufacturing of gluing, laminating, and panel clamping equipment. The company consistently prioritizes technological innovation and stringent quality control, exporting its products to dozens of countries and regions worldwide. This major shipment to Russia, Romania, and other nations further solidifies Shandong MINGHUNG’s position as a key player in the global woodworking machinery supply chain.
Looking ahead, Shandong MINGHUNG remains committed to its core principles of “Quality First, Customer Focused.” The company will continue to enhance product performance, expand its service network, and deliver even more efficient and intelligent woodworking machinery solutions to customers worldwide, striving to be a trusted partner for the global wood industry.
About Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd
Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd. is a high-tech enterprise specializing in the research, development, production, and sales of woodworking machinery. Its main product lines include Pneumatic/Hydraulic Gluing Machines, Laminating Machines, Panel Clamping Machines, Cold Presses, and more, widely used in furniture manufacturing, door production, and decorative materials industries. In addition, we specialize in manufacturing complete production lines for medium-density fiberboard (MDF), high-density fiberboard (HDF), particleboard (PB), oriented strand board (OSB), and veneered super-strong particleboard (LSB).The company has earned widespread acclaim from domestic and international clients for its reliable product quality, advanced technology, and comprehensive after-sales service.
To learn more about Shandong MINGHUNG’s Pneumatic Gluing Machines and other woodworking solutions, please contact us!
