This equipment serves as an ideal auxiliary solution for automated production lines of plywood, multi-layer boards, ecological boards, blockboards, and other panel products. The equipment can be seamlessly connected with upstream and downstream processes such as lay-up lines, hot presses, and edge trimmers, forming a complete automated panel production line.

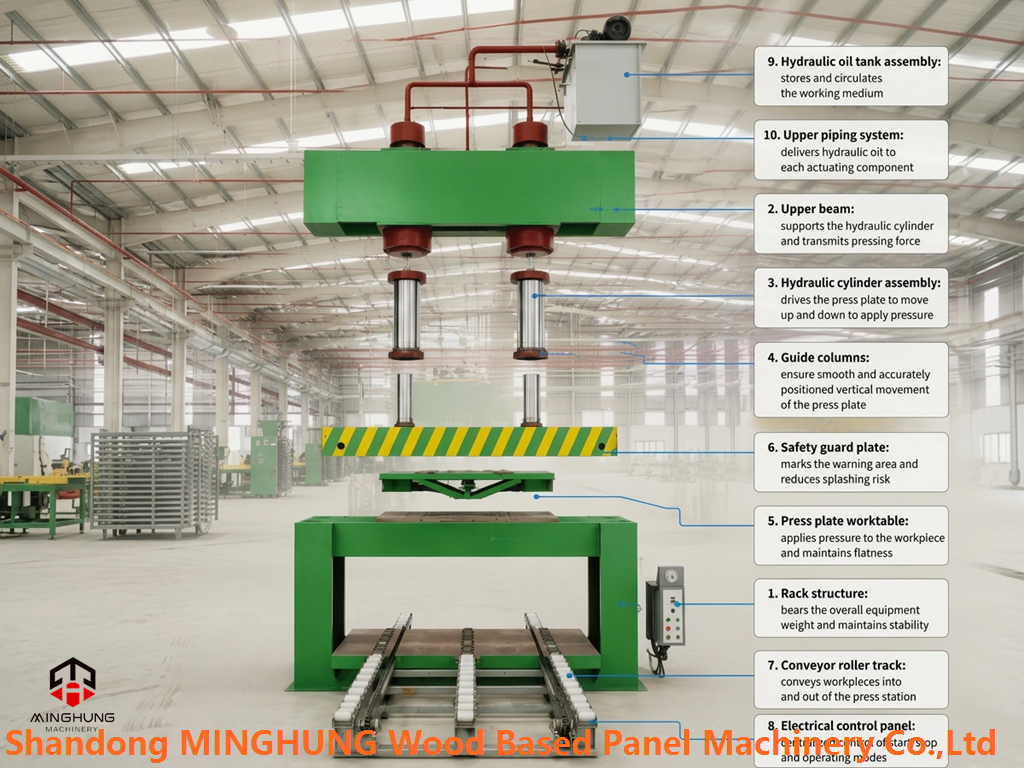

This Automatic Feeding Plywood Cold Press consists of the following core modules:
Module | Components | Function Description |
Main Frame Unit | Frame, upper beam, lower beam, moving platen, fixed worktable | Bears pressing force, ensures rigidity and stability |
Hydraulic Unit | Main cylinders, auxiliary cylinders, hydraulic power unit (tank/pump/motor/valve group) | Provides stable and controllable pressing power |
Automatic Feeding Unit | Infeed roller conveyor, positioning and guide devices | Automatically delivers board blanks into the press working area |
Automatic Discharging Unit | Outfeed roller conveyor, lifting transition table | Automatically conveys pressed boards to the next process |
Control System | PLC controller, touchscreen HMI, photoelectric sensors, encoders | Enables full-process automatic control and status monitoring |
Safety Protection | Safety light curtains, emergency stop buttons, audible & visual alarms, protective fencing | Ensures safety of equipment and operators |
Technical Parameters (Reference)
Parameter | Standard Specification | Customizable Range |
Nominal Pressure | 100T / 150T / 200T | 50T - 500T |
Effective Platen Size | 1300*2500mm | Customized per requirements |
Maximum Opening Distance | 1000mm | 800mm - 1800mm |
Cylinder Configuration | Φ140mm * 2 pcs | Configured per requirements |
Motor Power | 11kW | 4kW - 22kW |
System Pressure | 21MPa | 21MPa - 25MPa |
Feeding Speed | 0-15m/min (VFD adjustable) | Set per requirements |
Pressing Cycle Time | Approx. 60-120 seconds/cycle | Depends on process |
Power Supply | 380V/50Hz | 220V / 415V / 440V custom |
Control Mode | PLC + Touchscreen Automatic Control | Supports manual/semi-auto/auto switching |
Total Equipment Weight | Approx. 5,000kg - 15,000kg | Varies by specification |
Automatic Feeding System Details
(1) Infeed Roller Conveyor: Constructed with high-strength steel rollers, surface-treated for anti-slip or covered with rubber layer to ensure smooth and precise board blank conveying. Roller width matches platen width, and length is customized according to production line layout. The drive motor is equipped with a frequency converter for infinitely variable conveying speed, automatically synchronized with the discharge rhythm of the upstream lay-up line.
(2) Infeed Positioning Device: Pneumatic or electric stops and lateral guide wheels are installed at the press entrance to ensure precise centering of the board blank when entering the press, preventing uneven pressing or board scrap due to misalignment.
(3) Outfeed Roller Conveyor: After pressing is completed, the moving platen rises and the outfeed conveyor automatically starts to smoothly transport the finished board out. Outfeed speed is independently adjustable and can be coordinated with downstream hot presses or buffer tables.
(4) Lifting Transition Tables: Hydraulic or pneumatic lifting tables are installed at both the front and rear of the press to compensate for height differences between the conveyor surface and the press worktable, ensuring smooth transition of board blanks and reducing impact and wear.
We are Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd China factory and manufacturer of full sets of Plywood machinery and Veneer machinery. With many years production experience, advanced production technology,experienced workers and professional engineers, we can offer you the suitable, good and strong machinery for you.
The machinery we produce includes peeling machines, chipping machines, rotary cutting machines, drying machines, gluing mixers, laying machines, pre-pressing machines, hot pressing machines, cooling machines, longitudinal and transverse sawing machines, sanding machines, as well as auxiliary machinery such as automatic feeding and discharging systems and lifting platforms.
