Main Components
1. Feeding and spreading system
2. Multi-layer stainless steel mesh belt conveyor system
3. Hot air circulation heating system
4. Automatic temperature and humidity control system
5. Variable frequency drive system
6. PLC intelligent control cabinet
7. Moisture exhaust system
8. Cooling and discharging system
9. Insulated sealed chamber
10. Safety protection and alarm device
|
Product Packaging
|
Application Video
wire dryer machine.mp4
|
Working Principle

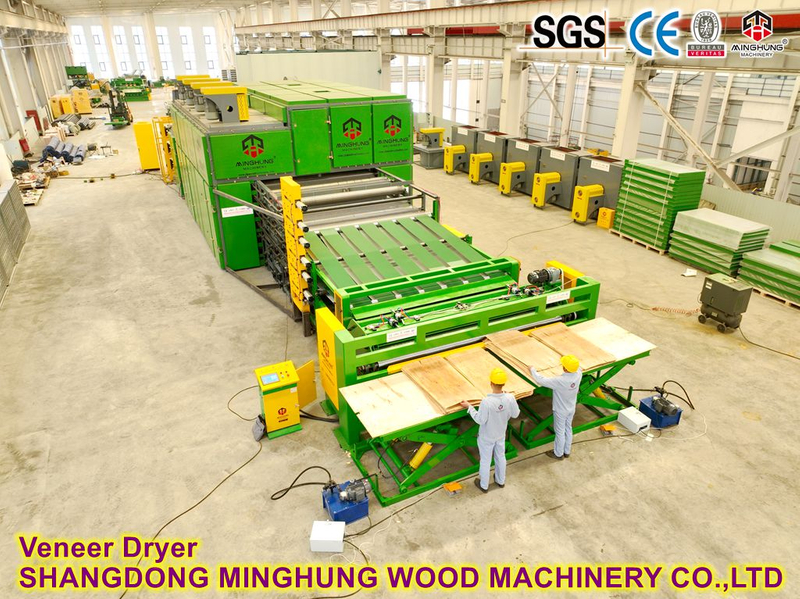

Wet plywood sheets are evenly spread onto multi-layer stainless steel mesh belts through the feeding and spreading system. The mesh belts run continuously driven by a variable frequency motor, carrying the panels into the dryer. The hot air circulation heating system generates heated air, which is forced by fans to pass through the upper and lower surfaces of the panels, achieving efficient heat exchange and moisture removal. The PLC intelligent control system automatically adjusts hot air temperature, air velocity, moisture exhaust volume, and belt speed according to preset temperature and humidity levels, ensuring uniform final moisture content. After drying, the panels are cooled by the cooling system and then discharged.
|
Core Advantages
1. Fully automatic intelligent control: PLC + touch screen, one-button setting, automatic operation, reducing labor.
2. Uniform drying: Hot air circulation + multi-layer mesh belt structure prevents panel deformation and cracking.
3. Energy-saving and efficient: Insulated sealed chamber + hot air recovery design reduces energy consumption by over 30%.
4. Continuous production: Feeding – drying – cooling – discharging in one continuous process, suitable for large-scale production.
5. Adjustable parameters: Temperature, humidity, belt speed, and air volume are adjustable in real time for different panel thicknesses and initial moisture contents.
6. Durable design: Stainless steel mesh belts, high-temperature resistant materials, anti-corrosion treatment for long service life.
7. Safe and reliable: Multiple safety protections (overload, overheat, fault alarm).
8. Reduced labor cost: One operator can manage multiple lines.
|
Customer group photos
|
Certifications
|
Qur Services
1. Customized design according to customer’s output capacity and panel specifications
2. Supply of complete dryer and matching heating system
3. Overseas installation guidance and commissioning by engineers
4. Operation training and maintenance manual provided
5. One-year warranty, lifetime technical support
6. Fast supply of spare parts
