01 Equipment Application
This machine is mainly used for peeling small-diameter logs (such as poplar, eucalyptus, pine, etc.) into continuous veneers, widely applied in plywood, laminated veneer lumber (LVL), packaging board, and related industries.

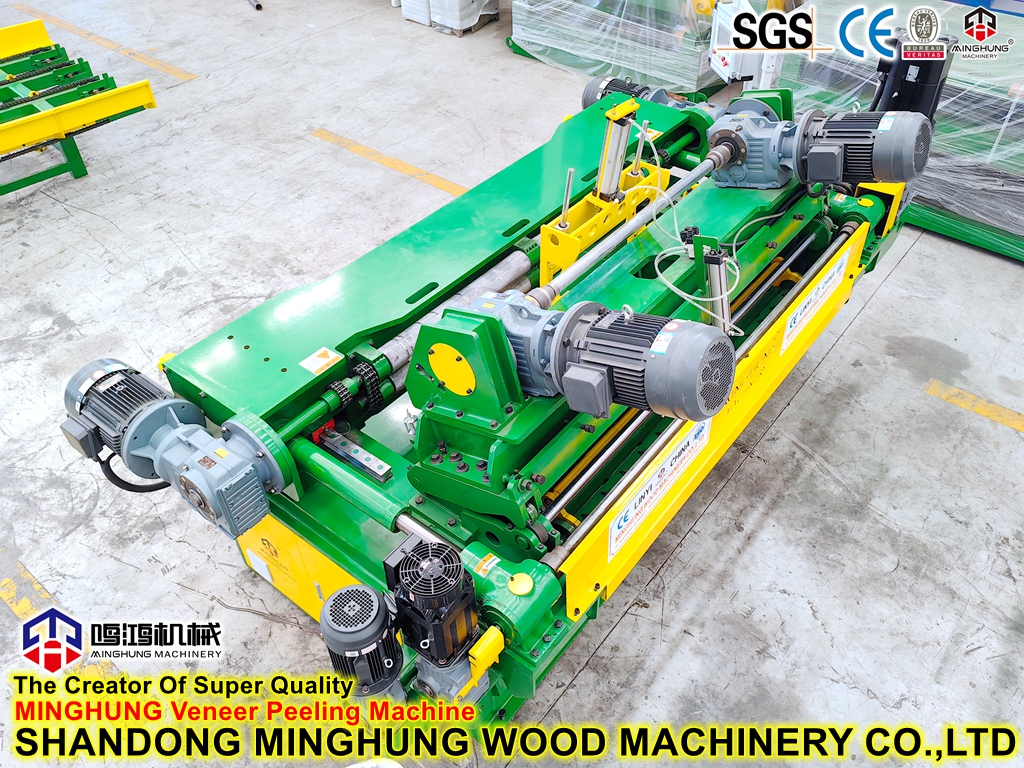

02 PRODUCT DISPLAY
03 PRODUCT DETAILS & ADVANTAGES
|
|
1. SIEMENS MOTORS FOR ALL High-speed operation: Siemens motors feature outstanding power output and high-speed rotation characteristics. Precision control: Siemens motors have precise speed and torque control functions, matching the precise cutting requirements of the rotary cutting machine
|
|
|
2. THE COMBINATION OF SINGLE AND DOUBLE ROLLERS Enhanced Flexibility: The use of both single and double rollers allows for selecting the appropriate cutting method based on specific requirements.
Improved Cutting Efficiency: Each roller type has its own advantages in cutting. By combining both, the machine can maximize the benefits of each cutting method.
|
|
|
3. PLC CONTROL SYSTEM & CNC SCREEN Precision Control: PLCs offer precise control over the cutting process, ensuring accurate dimensions and consistent quality of the cut products.
Automation: PLC control allows for the automation of the cutting process, reducing the need for manual intervention and increasing production efficiency.
|
|
| 4. HYDRAULIC OIL Lubrication: Hydraulic oil acts as a lubricant within the veneer peeling machine, reducing friction between components, preventing excessive wear, and extending the equipment's lifespan.
5. LINEAR GUIDES Smooth Movement: Linear guides provide smooth linear motion, reducing vibrations and noise that may occur during peeling.
|
04 Technical Parameters
Max. peeling length: 1250 mm (4 feet)
Max. log diameter: 500 mm
Min. remaining core diameter: ≤50 mm
Peeling veneer thickness: 0.5–4.0 mm (adjustable)
Spindle speed: 0–80 rpm (VFD controlled)
Total power: approx. 48 kW
Machine dimensions: 4500×2300×1500 mm
Machine weight: approx. 8000 kg
05 Main Features
Spindleless Design: No chucks required to fix logs; suitable for short, crooked, or irregular-diameter logs, increasing wood utilization by 15%-20%.
Fully Automatic Operation: PLC control with touchscreen interface, automatically completing log centering, clamping, peeling, veneer output, and residual core ejection.
High Precision Peeling: Servo motor drives tool feed, thickness tolerance within ±0.05mm, producing smooth and uniform veneer surfaces.
4-Foot Processing Width: Maximum peeling length of 1250mm, meeting standard plywood size requirements.
Safe & Durable: High-strength welded frame, heat-treated key components, equipped with emergency stop and overload protection.
Energy Efficient & Productive: Main motor with variable frequency drive for low energy consumption; output capacity of 200–300 m³ per 8 hours.
06 Working Process

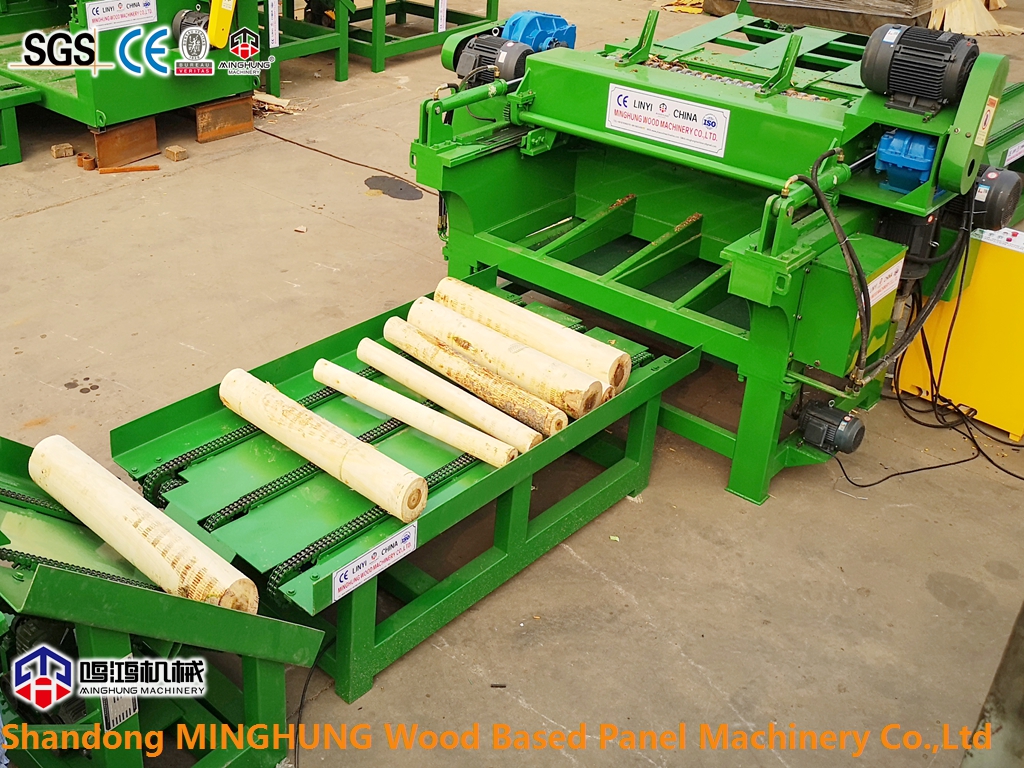

1. Loading & Positioning
The operator places small-diameter logs onto the feeding rack. The machine automatically detects the log position and conveys it to the rotating clamping mechanism.
2. Automatic Centering & Clamping
The spindleless mechanism clamps the log evenly from all sides using multiple rolling wheels, eliminating the need for a traditional chuck. The system automatically adjusts the center to align the log's rotation axis with the blade cutting line.
3. Start Peeling
The main motor drives the log to rotate at high speed, while the servo motor controls the tool holder to feed automatically according to the set thickness. The blade continuously cuts the log surface, producing a continuous veneer ribbon.
4. Veneer Output & Guiding
The peeled veneer passes through guide rollers and pressure rollers for smooth output, preventing curling or tearing. An optional conveyor belt can transport the veneer to a stacker or stacking area.
5. Core Ejection
When the log diameter becomes less than 50mm, the machine automatically stops feeding, the clamping mechanism releases, and the remaining wood core falls out through the core discharge port or is pushed out by a push rod.
6. Cycle Repetition
After core ejection, the machine automatically resets and prepares for the next log, enabling continuous automated production.
05 CLIENTS FACTORY
06 COMPANY PROFILE
We are SHANDONG MINGHUNG WOOD MACHINERY CO.,LTD, which produce the whole production line of plywood machine.
Professional manufacturer produce the full sets of veneer machine and plywood machine in Linyi City, Shandong Province, China. Including Wood debarker, veneer peeling machine, veneer stacker, veneer dryer machine, glue spreader, cold press machine, hot press machine, plywood saw machine, sanding machine.The value of our factory is: create much more value for clients.We have our own morality and principle, insist sincerely treat our clients, regard them as our friend, try help their business.
