200m³/Day Birch Plywood Production Line

This 200m³/Day Birch Plywood Production Line integrates automation and energy-saving technologies, processing premium birch into high-strength, eco-friendly plywood. Covering core processes from log peeling, veneer drying, glue spreading, hot pressing to sanding, it supports customizable configurations and complies with CARB/CE standards. Ideal for construction formwork, marine engineering, and high-end furniture, with ROI within 2–3 years.

Quantity:
Availability:





Inquire Add to Basket

Model:
MH-CHP
Brand:
MINGHUNG

Product Description

200m³/Day Birch Plywood Production Line

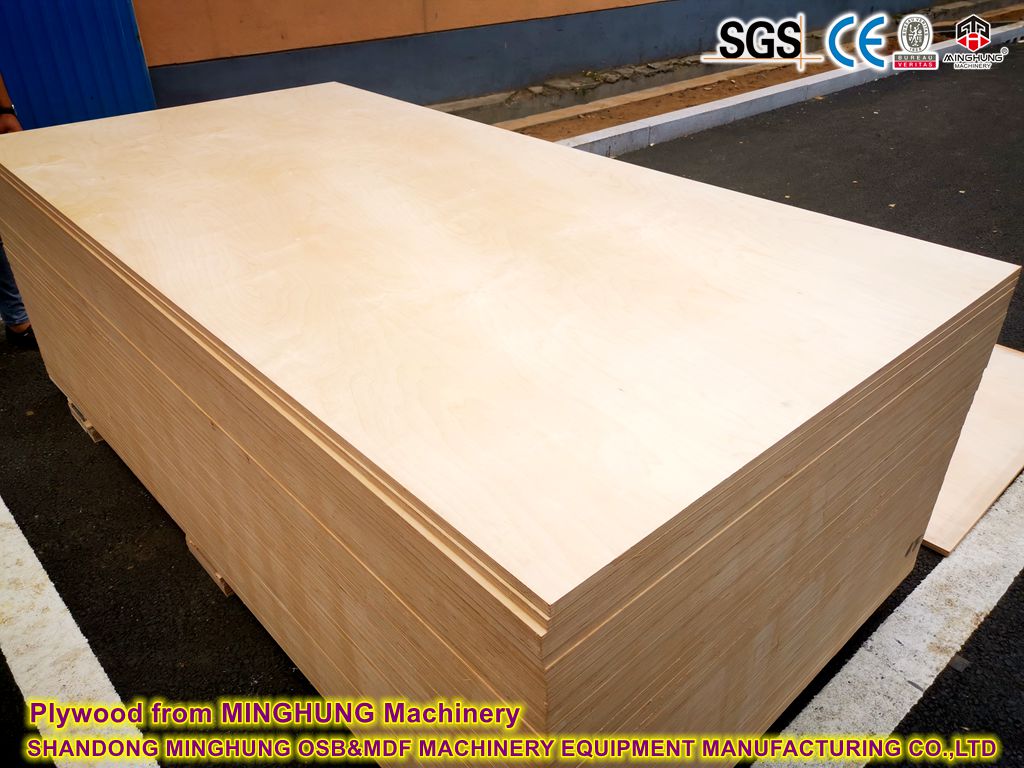

Plywood from MINGHUNG Machine

Plywood Core Features

Feature	Advantages of Birch Plywood
Structural Stability	Odd-layer cross-grain lamination (3–11 layers), superior warp resistance vs. solid wood.
Eco-Certification	WBP phenolic resin (72h boil-proof), formaldehyde emission ≤0.3mg/L (Super E0 grade).
Physical Properties	Density ≥700kg/m³, high screw-holding capacity (100%), CNC machining compatible.
Applications	Marine decks, concrete formwork, premium furniture, musical instruments (humidity/impact resistant).

Full Production Process

1. Log Processing:

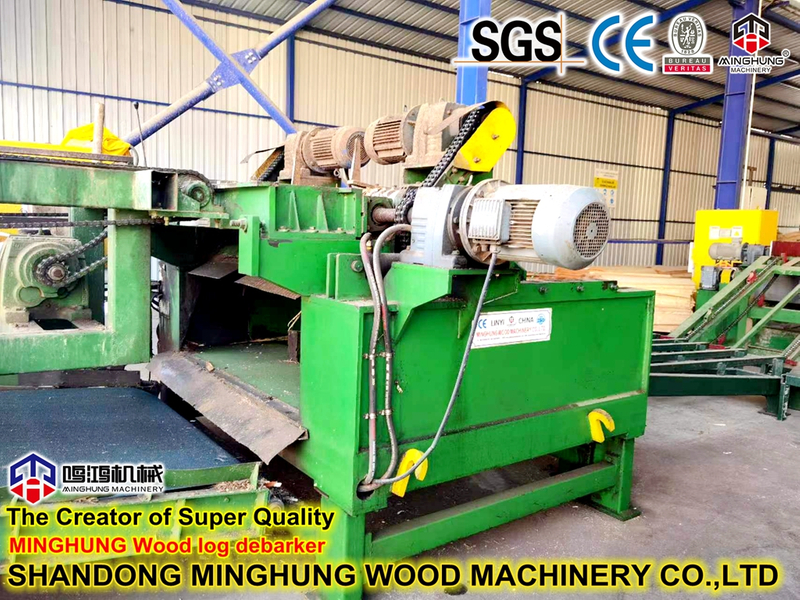

Debarking & steaming (stress relief) → High-precision rotary cutting (veneer thickness: 0.3–4mm, accuracy ±0.05mm).

2. Veneer Drying:

IR pre-drying + mesh-belt drying (moisture 8–12%, zoned temp 80–120℃).

3. Gluing & Layup:

Double-sided PF resin coating (150–200g/m²), alternating thick/thin veneers (core: 1.5–2.5mm, face: 0.5–1.0mm).

4. Pre-pressing & Hot Pressing:

Cold pressing (0.8–1.2MPa) → Hot curing (135–180℃, 1.5MPa, time = thickness × 1.5 min).

5. Post-Processing:

Cross/rip trimming (±0.5mm) → Calibrated sanding (Ra≤3.2μm) → Grading (A/AA) & packaging.

Equipment Configuration for 200m³/Day Output

Equipment	Technical Specs & Highlights	Economy Design
Peeling Lathe	Log Ø150–800mm, speed 90m/min, servo-knife control.	Hydraulic drive (30% energy saving).
Mesh-Belt Dryer	40m drying tunnel, zoned heating, energy ≤120kWh/m³.	Biomass heating (20% fuel reduction).
Auto Glue Spreader	Dual-roller coating (±10g/m² accuracy), heated glue tank.	Compatible with UF/PF/WBP resins.
12-Opening Hot Press	Platen 1300×2500mm, pressure 3000psi, PLC temp control (±2℃).	Steam/thermal oil dual-mode.
Sanding Line	3-head wide-belt sander, thickness accuracy ±0.1mm.	Pneumatic pressure pads.
Central Control	IoT remote monitoring, real-time parameter adjustment.	Auto fault diagnosis.

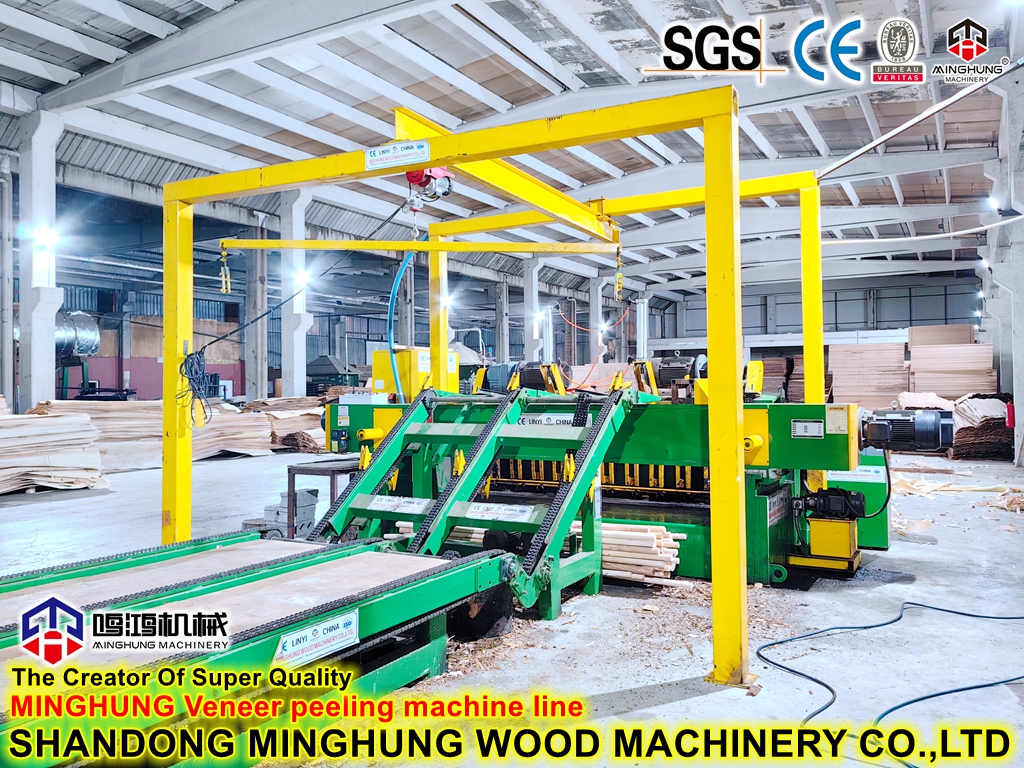

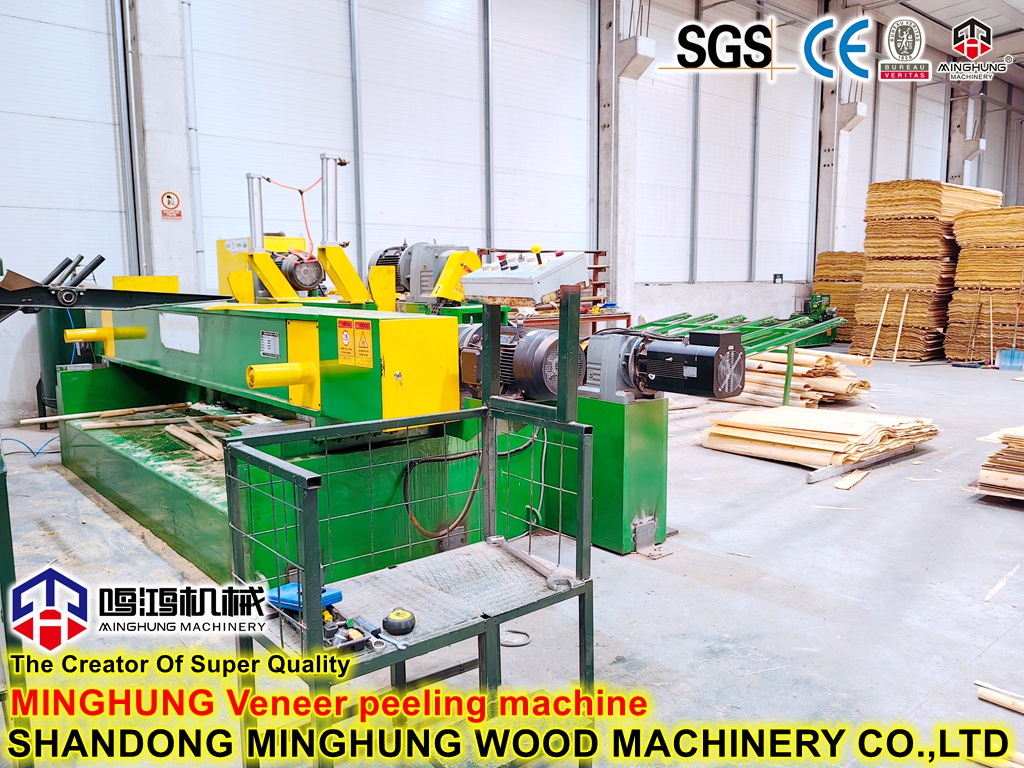

veneer peeling machine

automatic infeeder

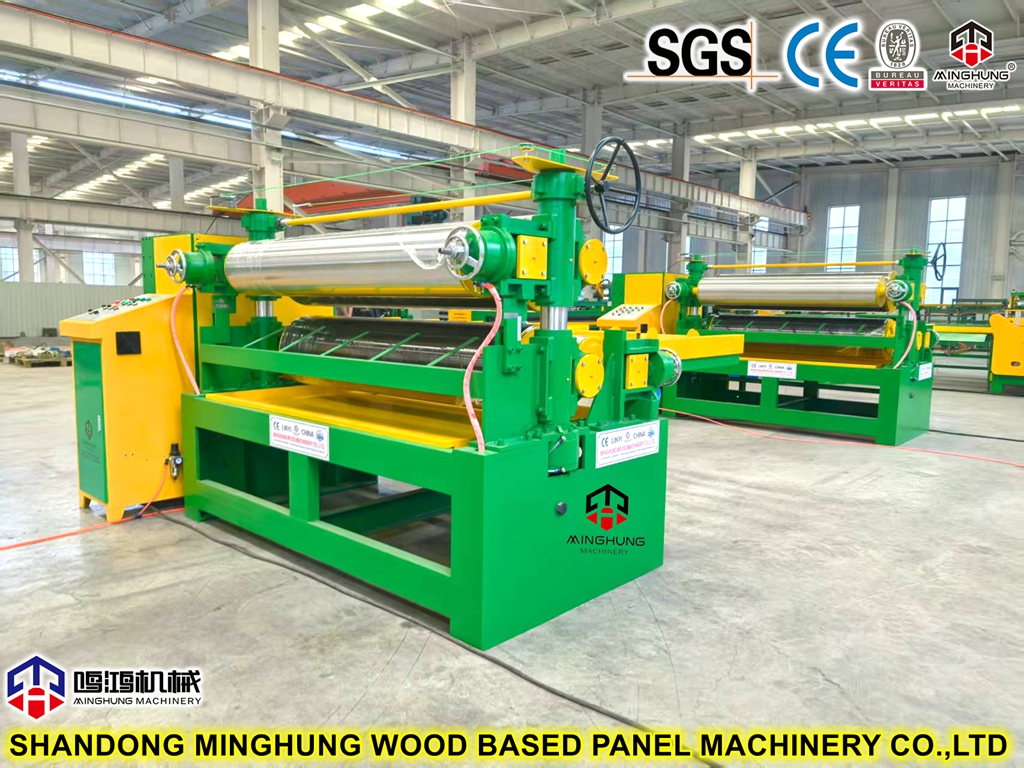

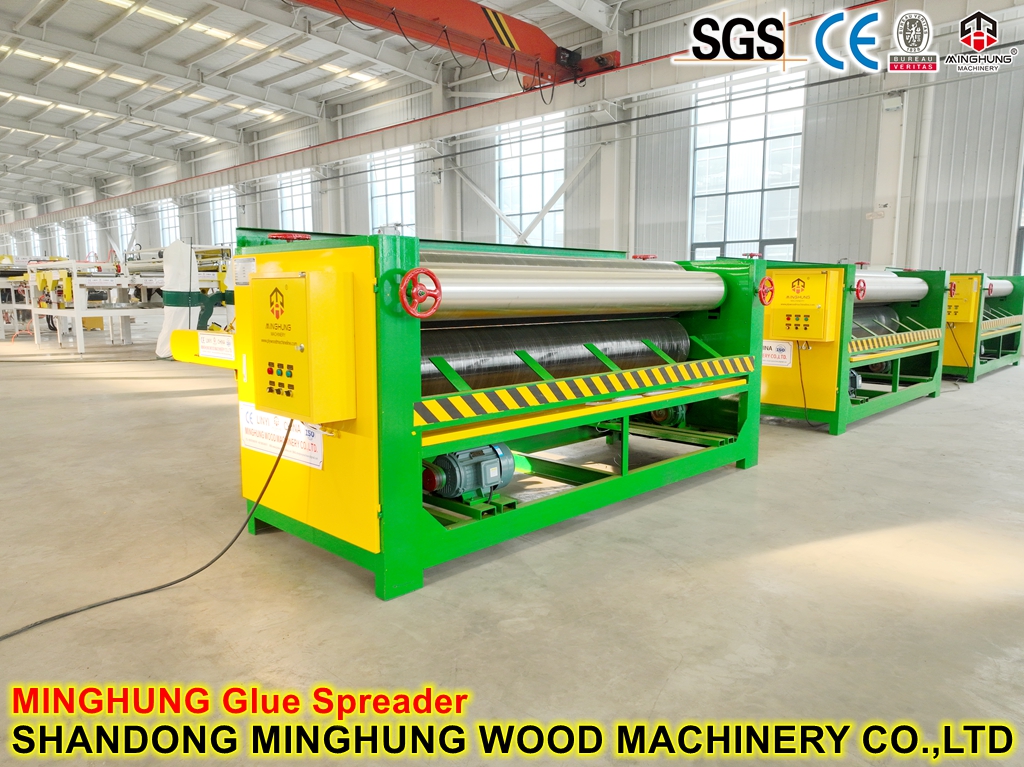

glue spreader

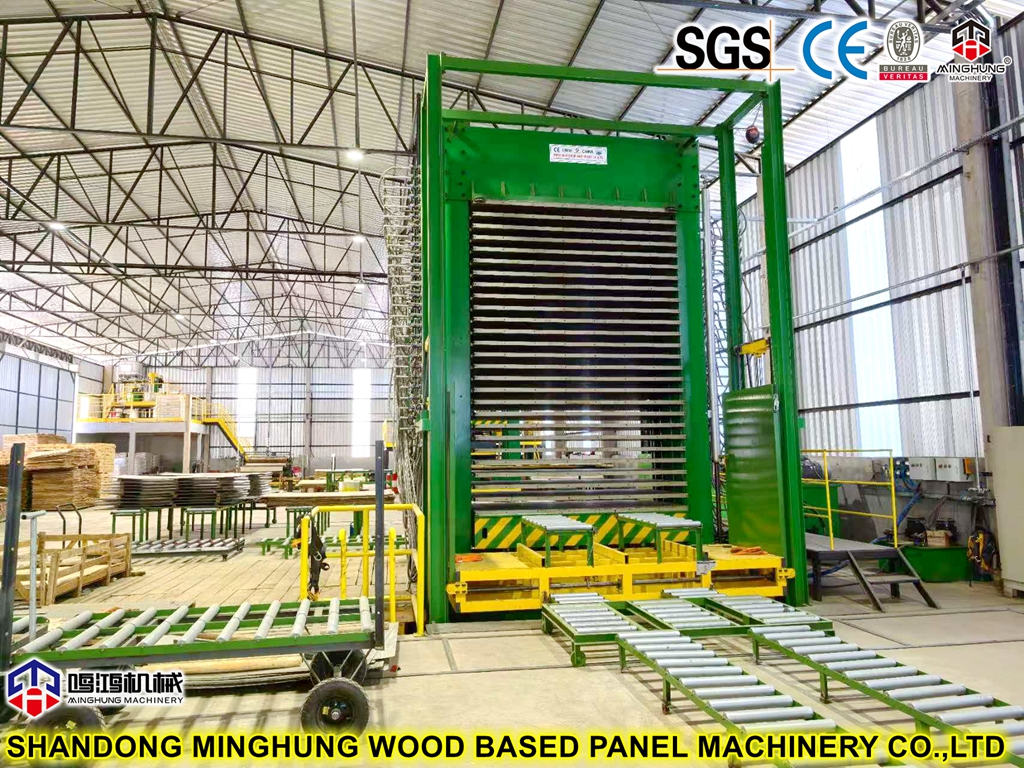

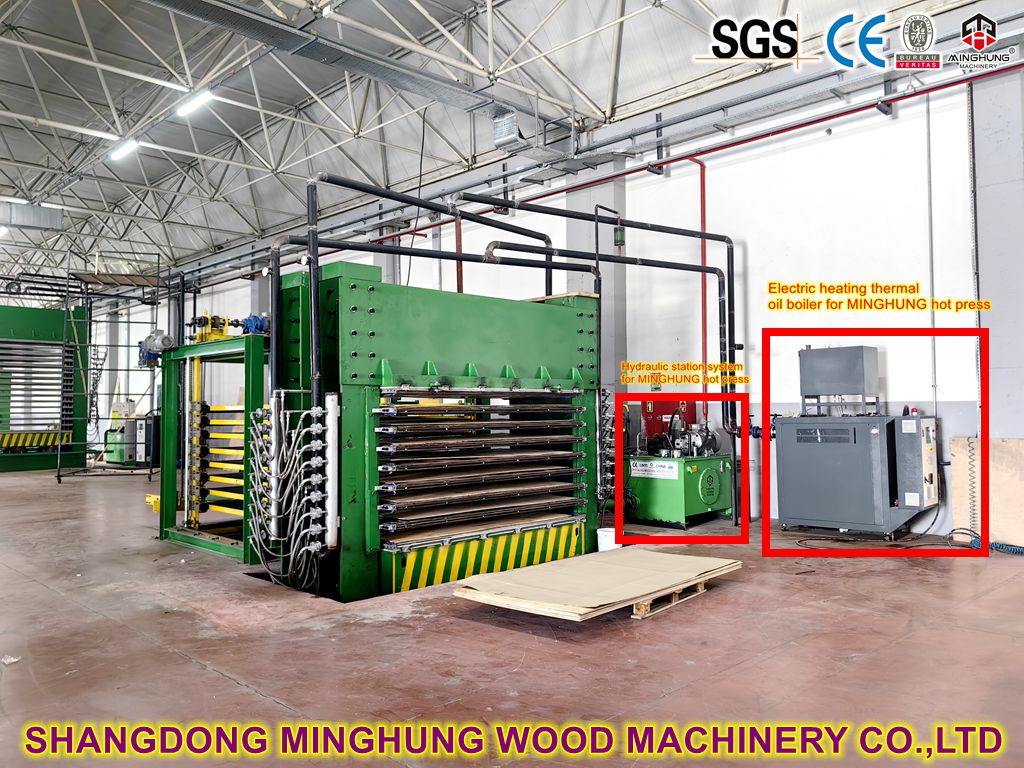

hot press

sanding machine

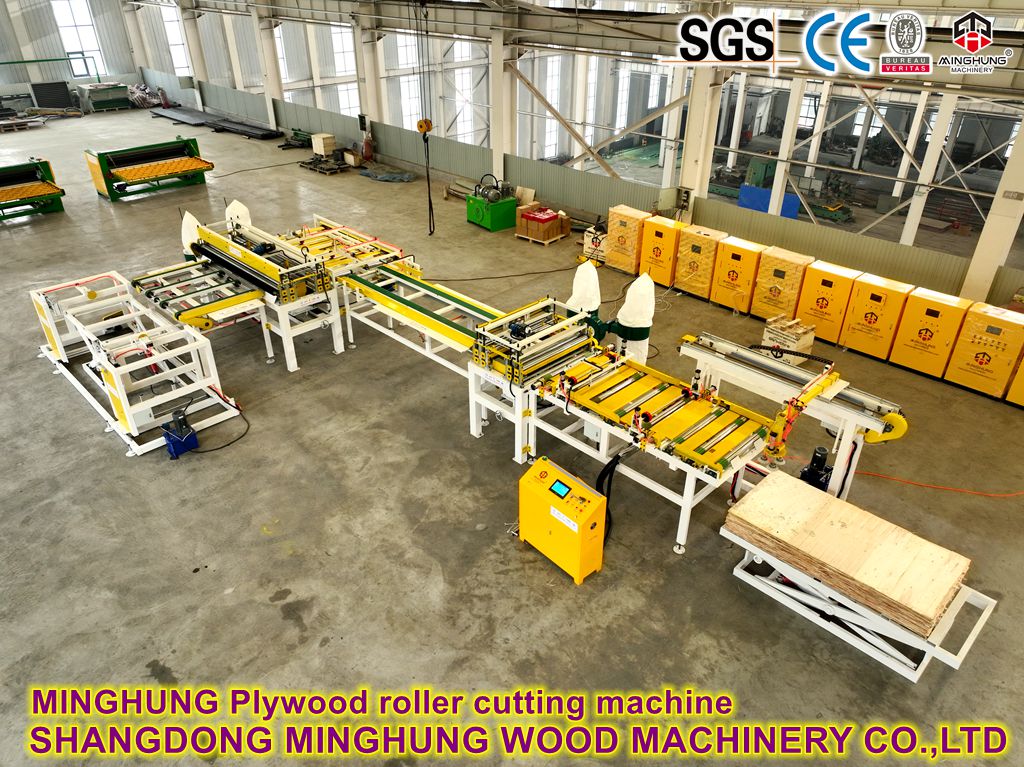

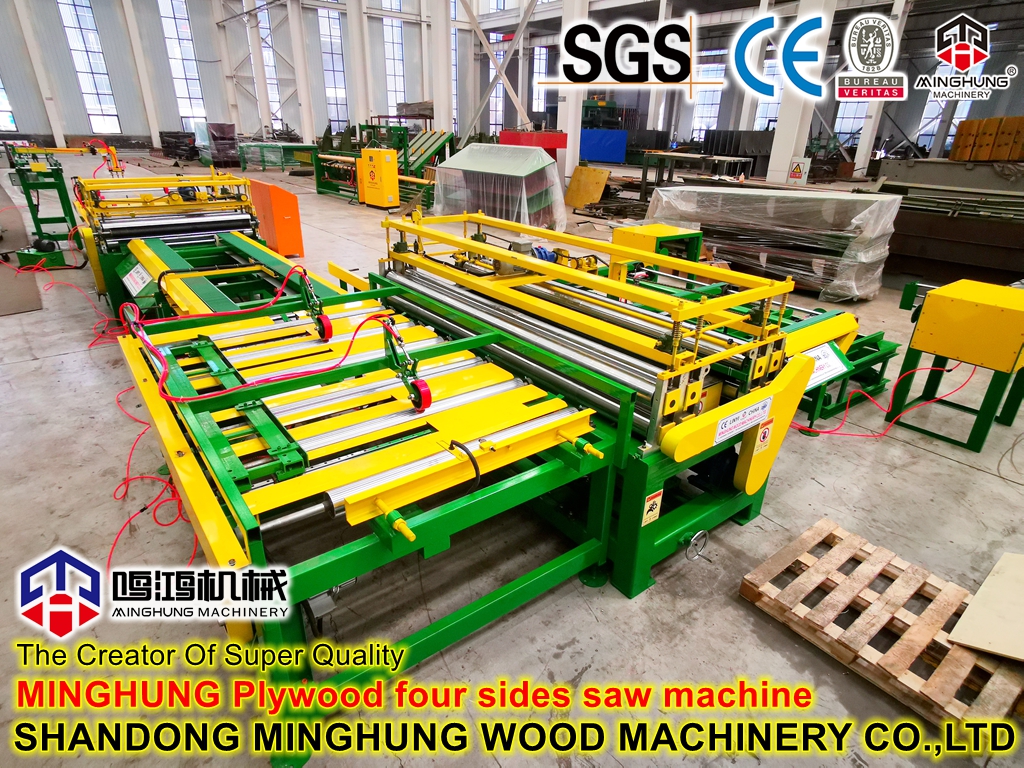

saw machine

Scale Positioning & Target Clients

Capacity Scale:

Annual output 60,000m³ (300 days/year), classified as medium-scale, comparable to global 80,000m³/a tier.

Target Clients:

Professional plywood manufacturers (upgrading capacity), furniture substrate suppliers, marine/construction board exporters.

Factory Requirements: Clear height ≥6m, storage/production area ratio 1:2, power capacity ≥800kVA.

Birch Origins & Material Advantages

Global Origins:

Russia (70% global supply, Nordic zone), Baltic region, Northeast China.

Core Advantages for Plywood:

Wood Properties: Slow-grown in cold climates, uniform density (700kg/m³), high peel strength.

Machinability: Smooth veneer surface (Ra≤3.2μm post-sanding), excellent glue penetration.

Eco-Efficiency: 100% fast-growing species, 20% lower material cost vs. hardwoods.

Our company

We are Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd China factory and manufacturer of full sets of Plywood machinery and Veneer machinery. With many years production experience, advanced production technology,experienced workers and professional engineers, we can offer you the suitable, good and strong machinery for you.

Machines include:Veneer production line(Log debaker,Veneer peeling machine, Log loader,Automatic stacker)，Blade sharpener,Veneer patching machine,Veneer dryer machine(Veneer roller dryer, Veneer mesh dryer, Veneer press dryer), Veneer gluing machine,Plywood lay-up machine, Veneer jointing machine, Plywood cold press, Hot press machine,Plywood edge trimming cutting machine, Sanding and calibrating machine, Plywood overturn machine, Lift table, and so on.

MINGHUNG MCHINERY

MINGHUNG veneer prodution line

Customize Your Birch Plywood Solution Now! Plant layout design, on-site training & global logistics support – Build your competitive plywood brand today!
