MH-MD
MINGHUNG
A plywood dryer, also known as a plywood drying kiln, is specialized industrial equipment used to reduce the moisture content of veneers (peeled or sliced wood sheets) or pressed plywood blanks to the required process standard (typically 8%-12%) by controlling heat, humidity, and airflow.
Importance of Drying
Ensures Product Quality: Appropriate moisture content is crucial for plywood strength, dimensional stability, and resistance to mold and cracking. Uneven or excessive moisture can cause warping, delamination, and reduced strength.
Meets Shipping Requirements: Especially for marine-grade plywood, strict low moisture content (often below 14%, even 10%) is mandatory to prevent moisture damage, mold, and fungal growth during long-distance sea transport in hot, humid environments.
Improves Production Efficiency: Modern dryers enable continuous, automated production, significantly shortening drying cycles. They are a core component of large-scale, industrialized plywood manufacturing.
Main Types
By Drying Target:

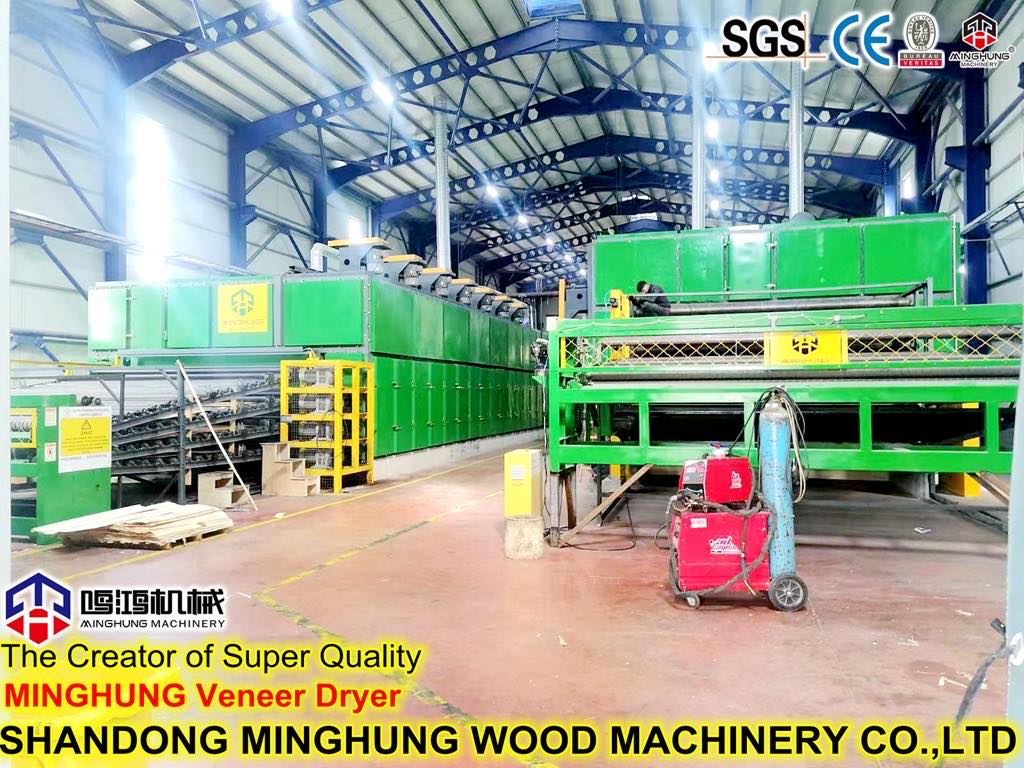

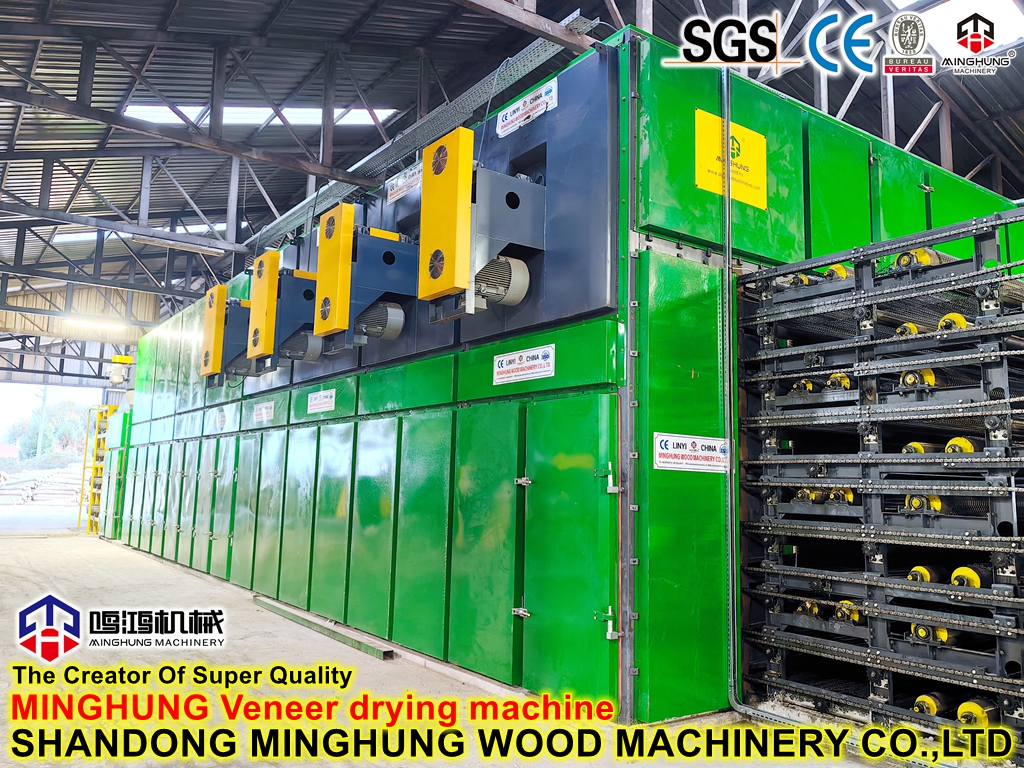

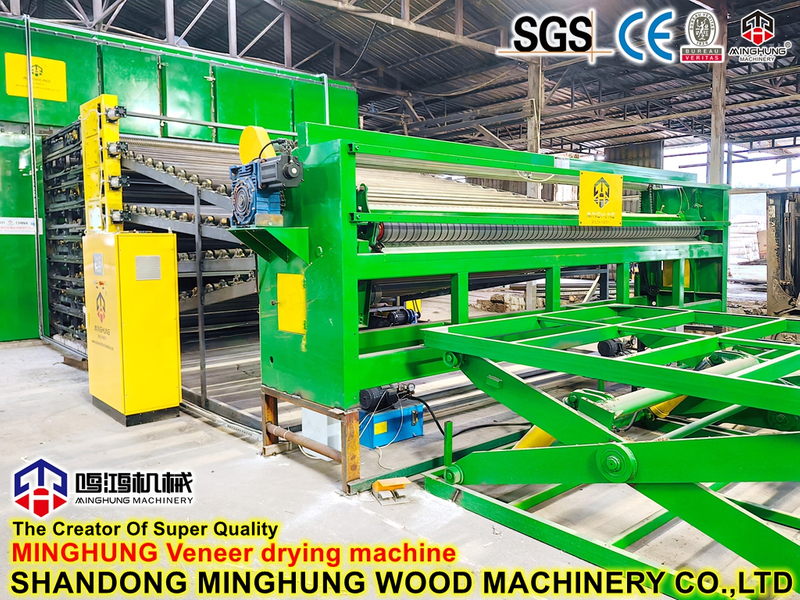

Veneer Dryer: Used for drying individual thin veneers after peeling. High-speed operation, typically roller-type or mesh-belt type.
Plywood Panel Dryer: Used for drying already pressed and formed plywood panels. Focuses on gentle, uniform drying to prevent deformation, typically chamber-type or tunnel-type.
By Heat Source:
Steam-Heated Dryer: Traditional, stable, high heat capacity.
Hot Water/Thermal Oil Dryer: Provides even and stable temperatures.
Gas-Fired (Natural Gas, Biomass) Direct/Indirect Dryer: High thermal efficiency, lower operating costs, increasingly popular.
Electric Dryer: Clean and precise, but high energy costs, often used for small-scale or precision applications.
By Structural Design (Mainstream Types):
Chamber Dryer (Batch Type): Operates in batches. Suitable for flexible production of multiple wood species, specifications, and small quantities.
Continuous Dryer (Tunnel Type): Panels move through continuously. High production efficiency, ideal for large-scale, standardized production. This is the modern mainstream type.
The working principle is essentially a heat and mass transfer process: a heating medium transfers heat to the panels, causing internal moisture to evaporate, which is then carried away by flowing air.
Core System Components
1. Drying Chamber: An insulated, enclosed space where drying occurs.
2. Heating System: Provides the heat source (e.g., heat exchangers, hot air furnaces).
3. Air Circulation System: Composed of large fans and ducts. Forces hot air to pass uniformly and at high speed through the stack of panels. This is key to ensuring drying uniformity.
4. Humidity/Exhaust System: Removes hot, humid air from the chamber via vents/dampers and introduces a small amount of fresh air to maintain the drying potential.
5. Control System: The "brain" of a modern dryer. Typically uses a PLC + Touch Screen to precisely set and automatically control parameters like temperature, humidity, airflow speed, and time. It records drying curves and enables fully automated operation.

Key Features
High Efficiency & Energy Saving: Equipped with heat recovery design, reducing energy consumption by 30%.
Intelligent Control: Fully automated PLC control system with remote monitoring capabilities.
Uniform Drying: Multi-layer airflow distribution technology achieves 98% drying uniformity across panels.
Strong Adaptability: Capable of processing plywood of varying thicknesses (6-40mm) and dimensions.
Durable Structure: Stainless steel core components, suitable for high-humidity environments.
Application Areas
Industrial drying treatment for plywood used in marine container flooring, ship interior panels, export packaging crates, and more.
An advanced plywood dryer, especially one supporting global shipping standards, is far more than a simple "oven." It is a complex, precision system integrating thermodynamics, fluid mechanics, automatic control technology, and wood science. Its value lies in transforming natural wood into a stable, industrially standardized product through precise process control. It is an indispensable key asset for plywood manufacturers to enhance product competitiveness and access high-end global markets, particularly in sectors like shipping, containers, and export packaging.
We are Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd China factory and manufacturer of full sets of Plywood machinery and Veneer machinery. With many years production experience, advanced production technology,experienced workers and professional engineers, we can offer you the suitable, good and strong machinery for you.
2007-2010
2007 -Our factory started to manufacture the full sets of OSB、PB、MDF Production line.
2013
Shandong Hungyou intelligent Equipment Industry ResearchCo..Ltd established, for plywood machinery and OSB、PB、MDF machinery research and development.The main research direction is to realize the automation of Plywood machinery.
2015
Linyi Ming Hung Trade Co.,Ltd established, the development focus has began to Foreignmarket, to service more foreign customers.
2017
Our High-end brand -ShandongMinghung OSB&MDF Machinery Equipment Manufacturing Co..Ltd established, mainly for foreign customers make the whole plant planning and design,achieve comprehensive high-end automation.
2018
Our High-end brand -Shandong MingHung Wood Machinery Co..Ltd established, mainly for foreign customers make the whole plant planning and design,achieve comprehensive high-end automation.
2022
Our factory's overseas business achieved significant growth,shipped machines to many different countriesl,ike America,Mexico,Columbia,Russia,Indonesia,Vietnam,Malaysia,Thailand,Egypt, TurkishUkraine, Romania, Portugal, Africaand others.
2024
We continue to adhere to the strategy of going global,to become one World brand.
PACKING & SHIPPING
We maintain a long-term cooperation with a well-known freight forwarding company, and adhere to the customer-first philosophy. We strictly implement the quality inspection process before shipment to ensure that each batch of products meets international quality standards, We deeply understand that high-quality service is the cornerstone of winning customer trust, and we always create value for customers with professional and efficient supply chain management.

We regularly participate in international industry exhibitions based on the company's business development and customer needs. On one hand, this helps us showcase our company's strength and expand new customers. On the other hand, we visit existing customers for follow-up visits, thereby enhancing the bond between them.

Our goal is not merely to "sell equipment" but to become your long-term "production process partner." Through proactive, professional, and efficient service, we ensure your production line consistently operates at its best. We help you build a reliable and stable product reputation in the competitive global market, especially in the demanding marine sector.
For more information, welcome contact us, we will reply you quickly and offer working videos with you.
