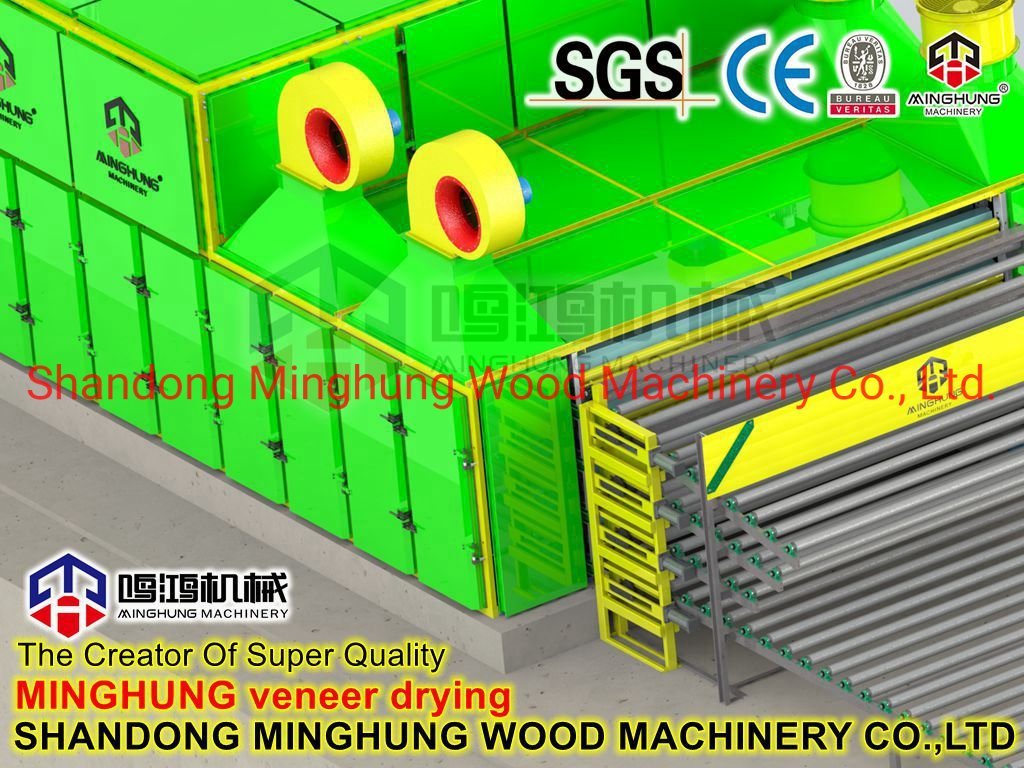

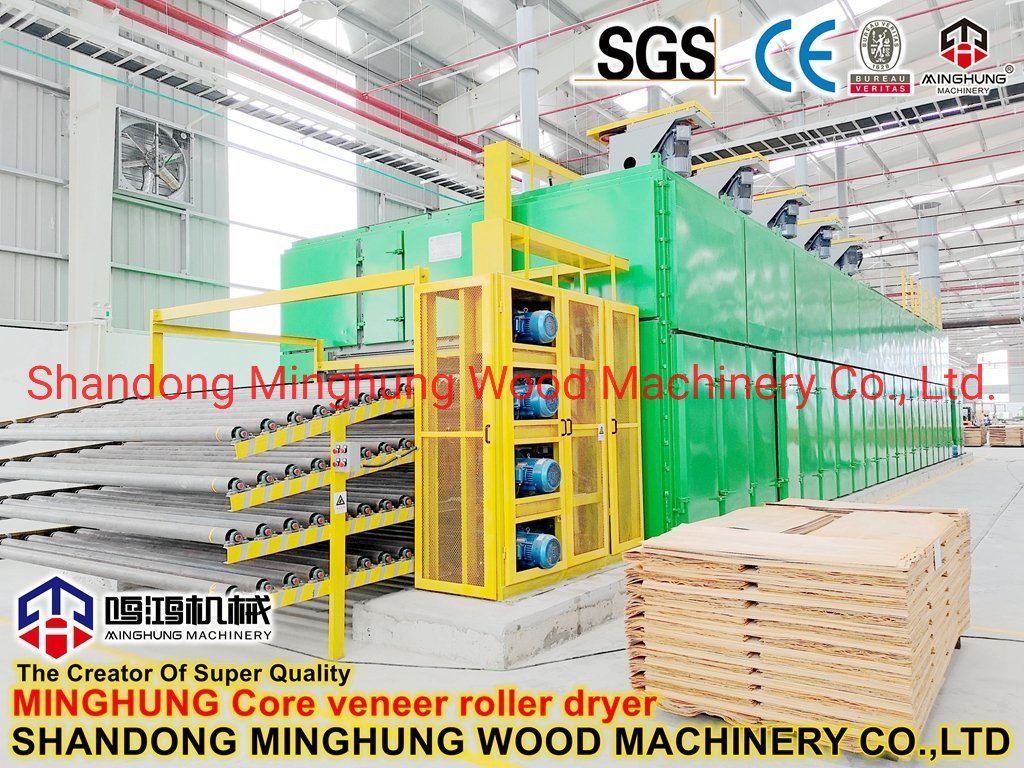

Veneer Drying Process Roller Dryer
Veneer drying

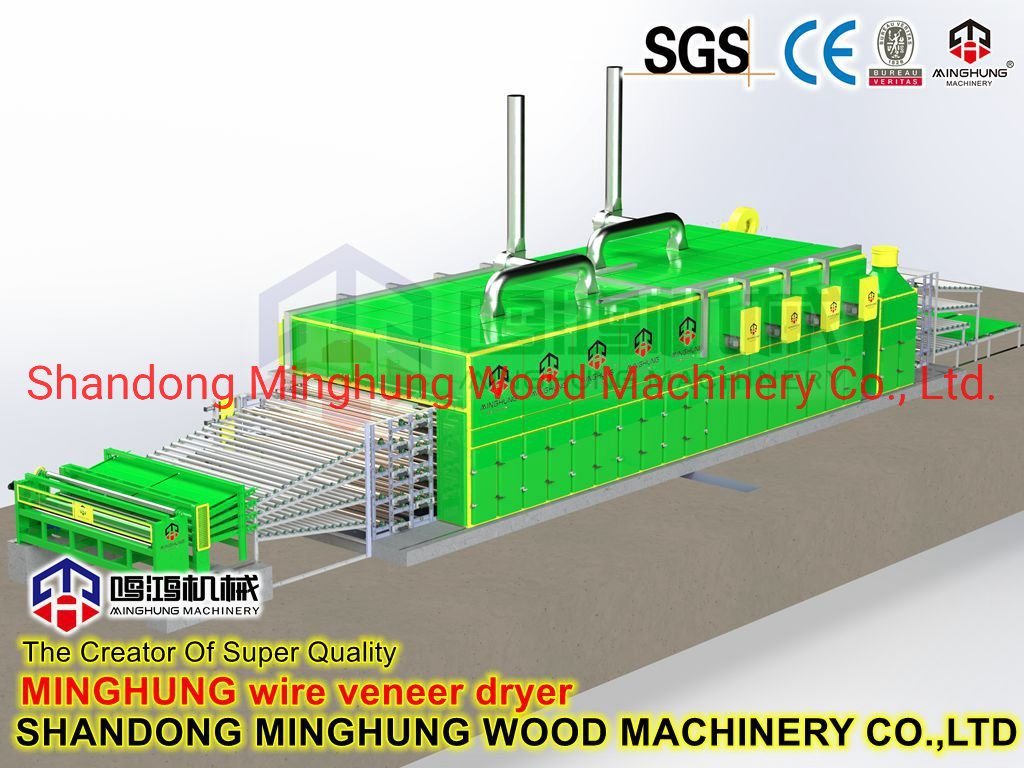

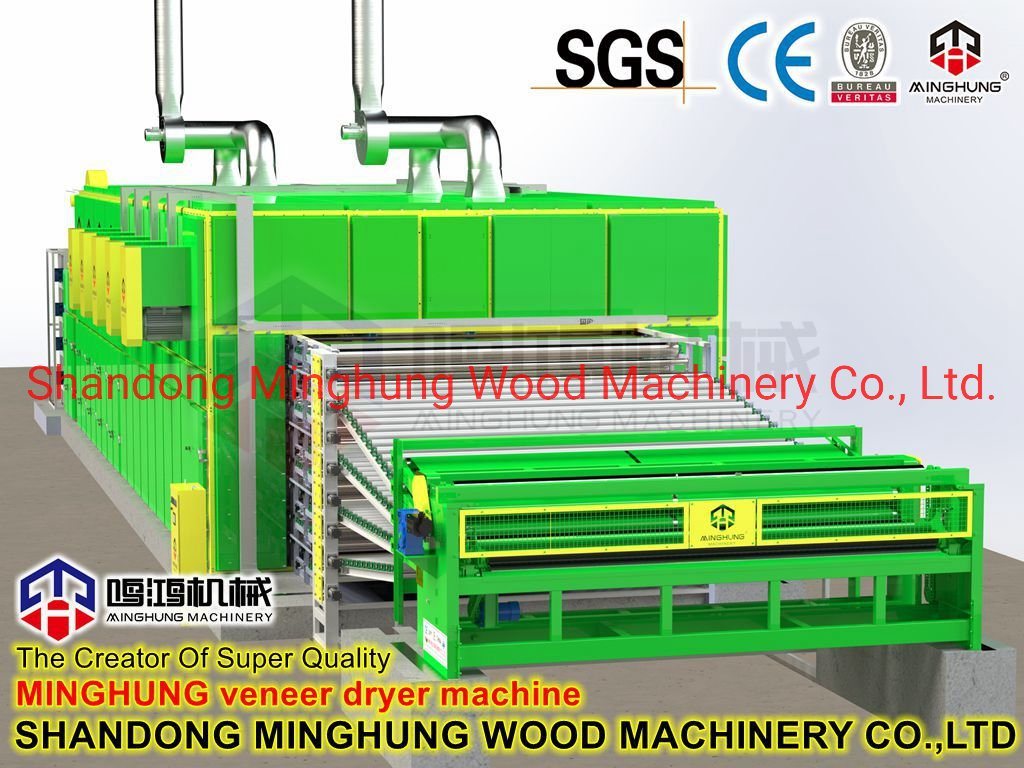

Veneer drying is a very important link in the production process of plywood. The moisture content of veneer is too high, or the moisture content of veneer is uneven, which directly affects the production quality of plywood. Usually, the moisture content of veneer is required to be %8-%14 , the moisture content of the veneer in this interval is the most reasonable for the quality of the plywood veneer, so a veneer dryer is required to complete the veneer drying. The selection of the veneer dryer needs to provide us with several data to ensure that we provide the best solution: 1. What is the thickness of the veneer? 2. What is the throughput for 10 hours? 3. What is the moisture content of the veneer? 4. The name of the tree for the veneer? 5. Is the heating boiler heat transfer oil or steam? Etc., MINGHUNG MH-304HL model dryer, providing energy-saving and efficient veneer drying solutions. The veneers move through the drying machine in several layers along rollers, as the machine's name indicates. The target moisture level after drying is around 6-7% which is precisely the right moisture level for gluing veneer.
A sufficient drying temperature is 145-160ºC and the veneers pass through the machine in about six minutes. Drying conditions and the moisture of the veneers are monitored continuously to make sure that the drying quality remains even.
Usually, the original moisture is 70-80%, after drying, the moisture is about 10%
>>>Parameters:
The dryer machine-Roller dryer, can be different layers, length and width, so we usually offer and produce according to your production capacity required.
| Name | Roller dryer |
| Model | MH-RD2830L |
| Heating mode | Steam/Oil |
| Veneer thickness | 1-3mm |
| Transport mode | Roller press mode |
| Speed | Speed adjustable |
| Number of layers | 2 layers/3layers/4layers |
| Length of hot wind area | 20m/26m/30m |
| Peoduction capacity | 10-20m³/day, 20-30m³/day, more |

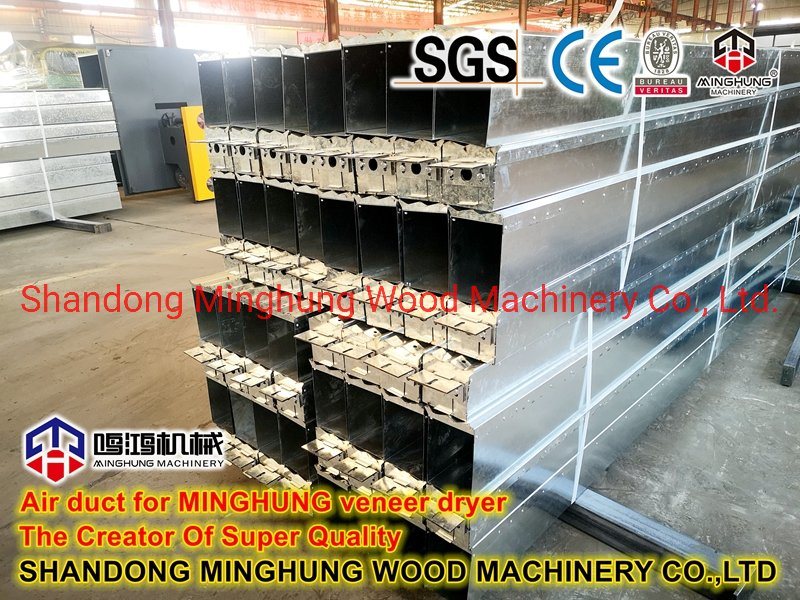

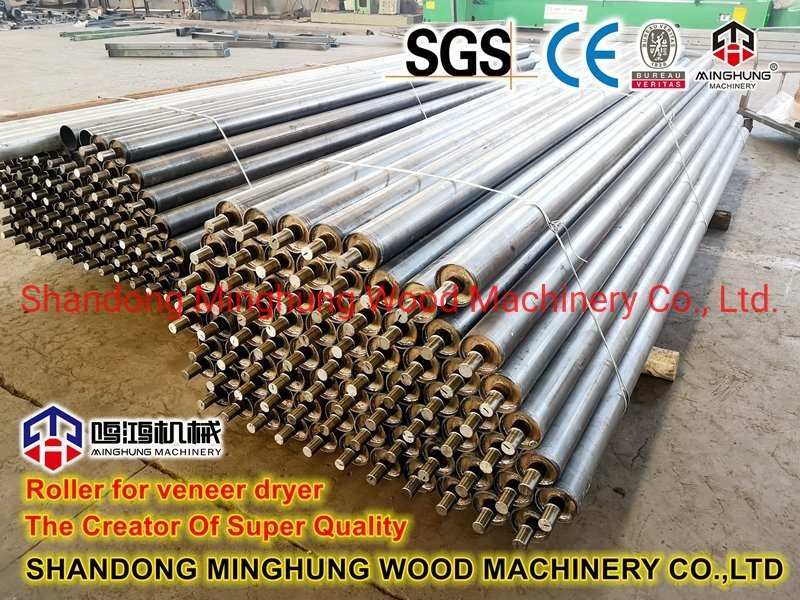

>>>Main Parts: <1> Resonable design and good parts make roller dryer save energy and transfer heating fast.

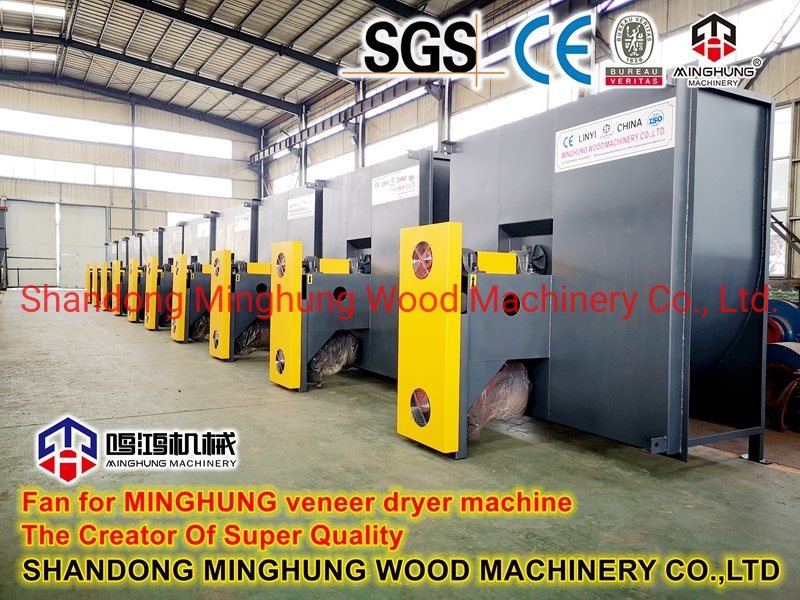

<2> The dryer machine uses the latest ultra-low noise centrifugal ventilator, reduce noise, good for workers.
<3> The wind speed is faster and the air volume is higher, therefore the drying speed is much quicker.

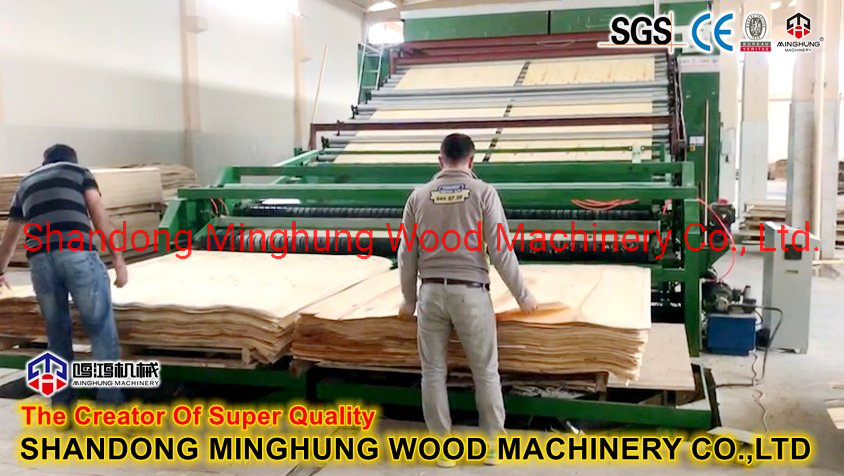

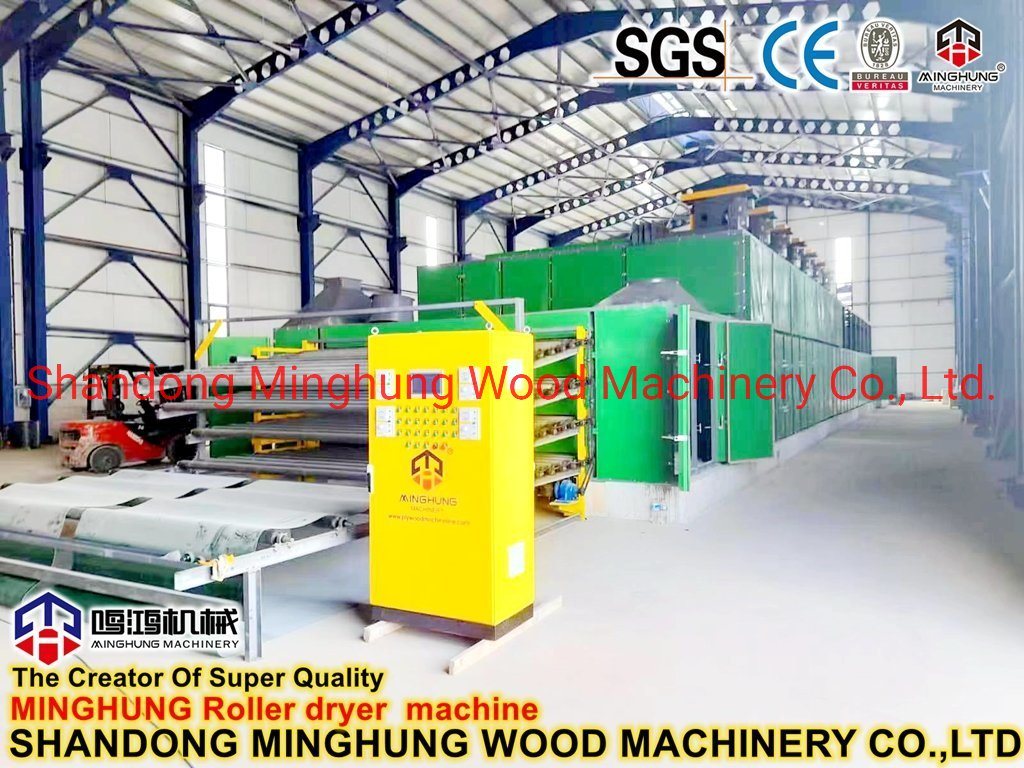

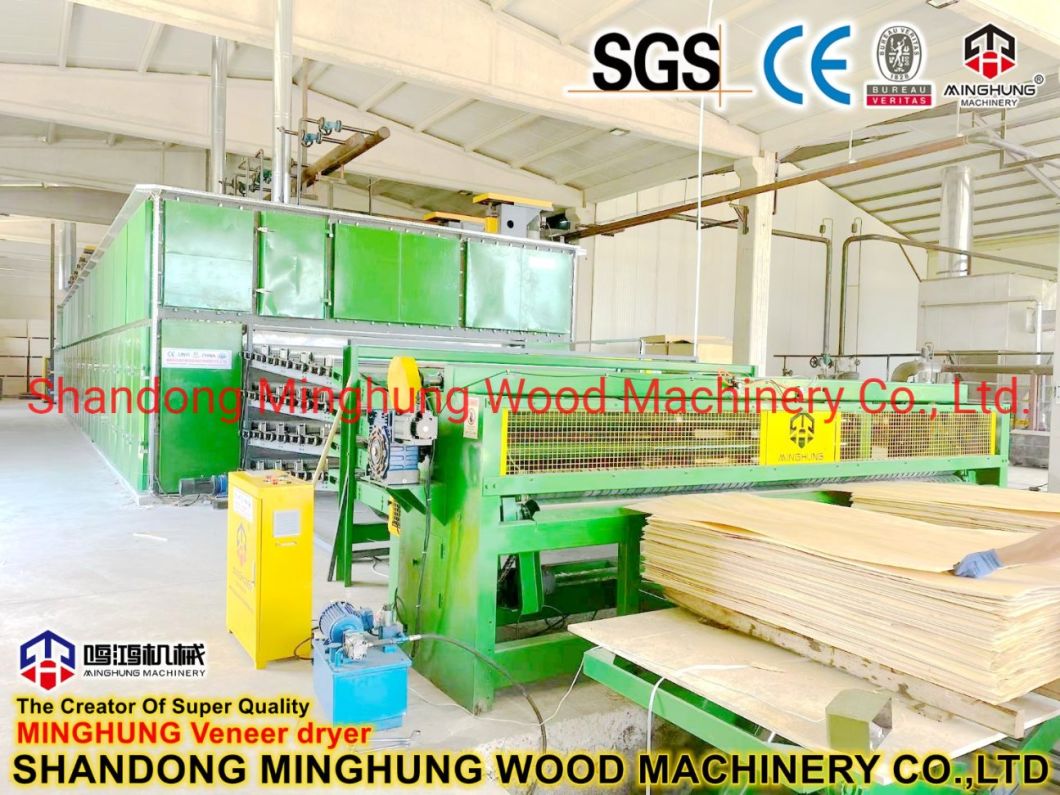

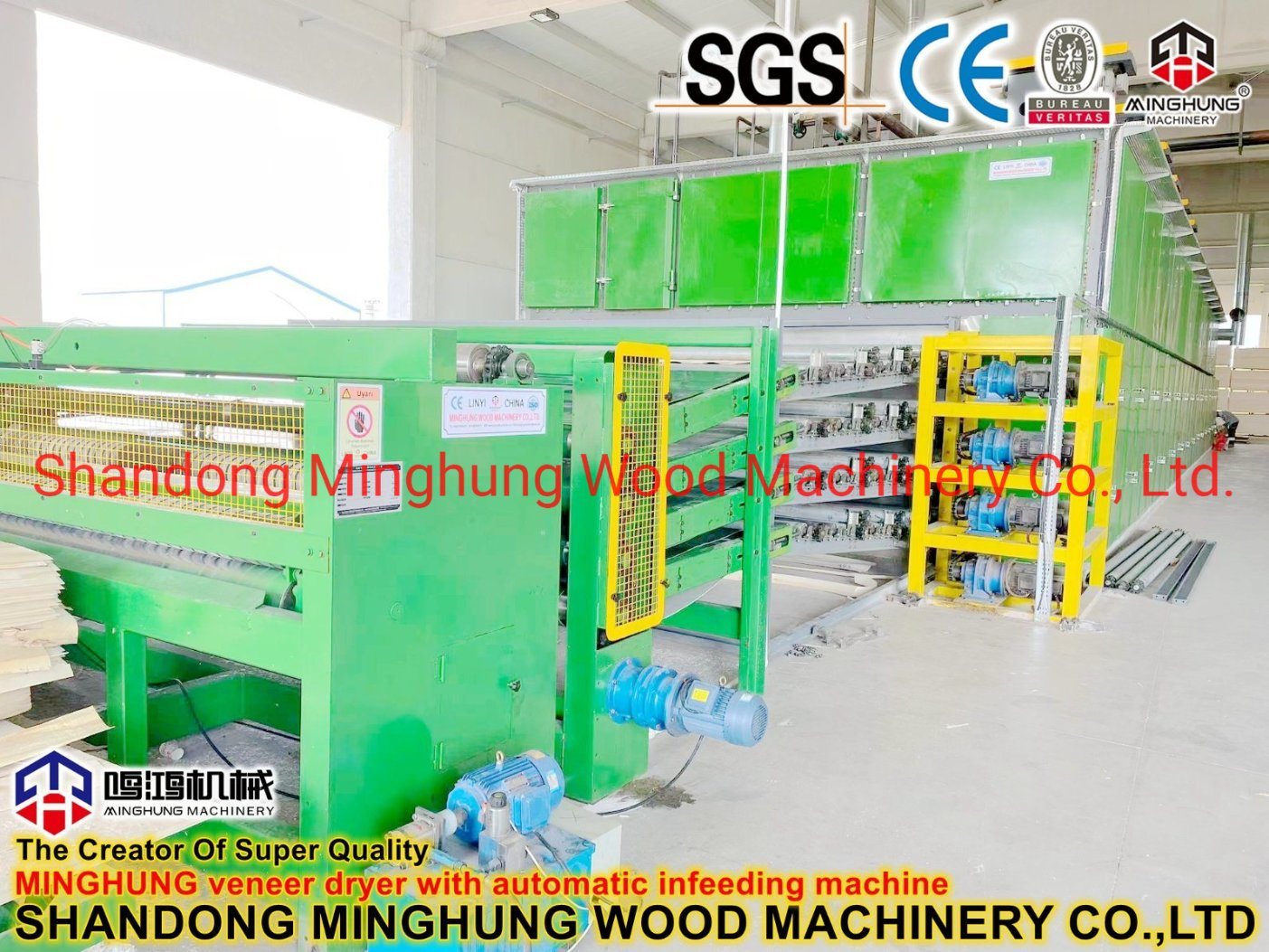

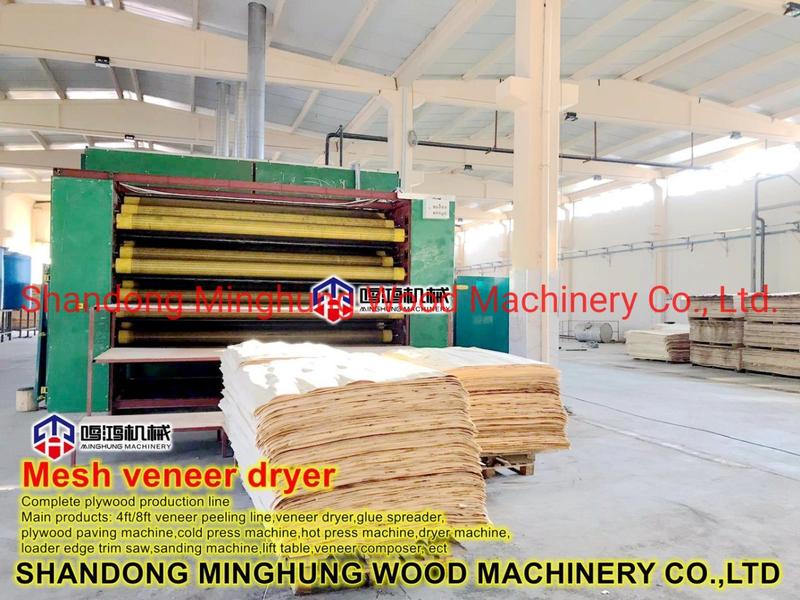

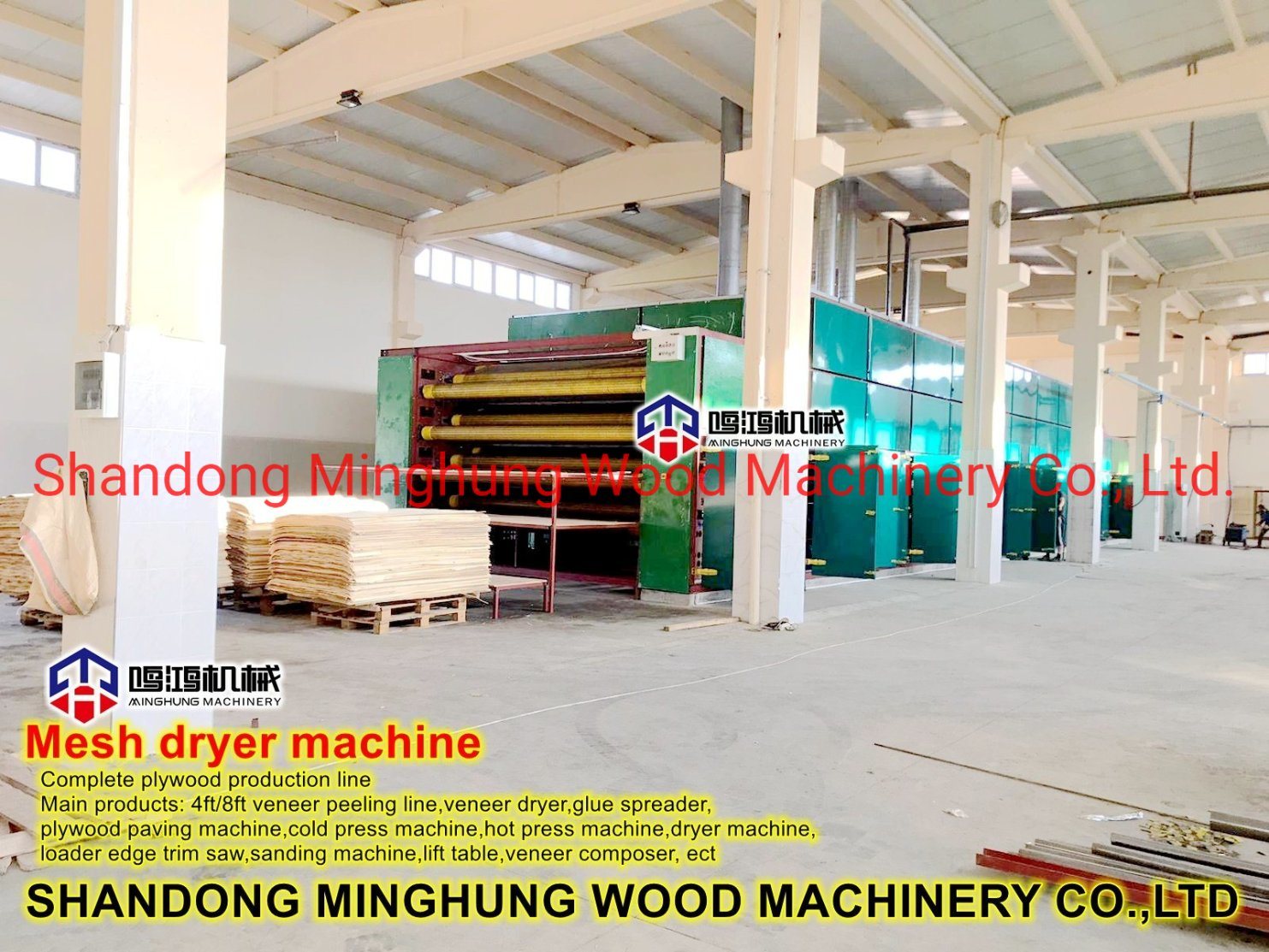

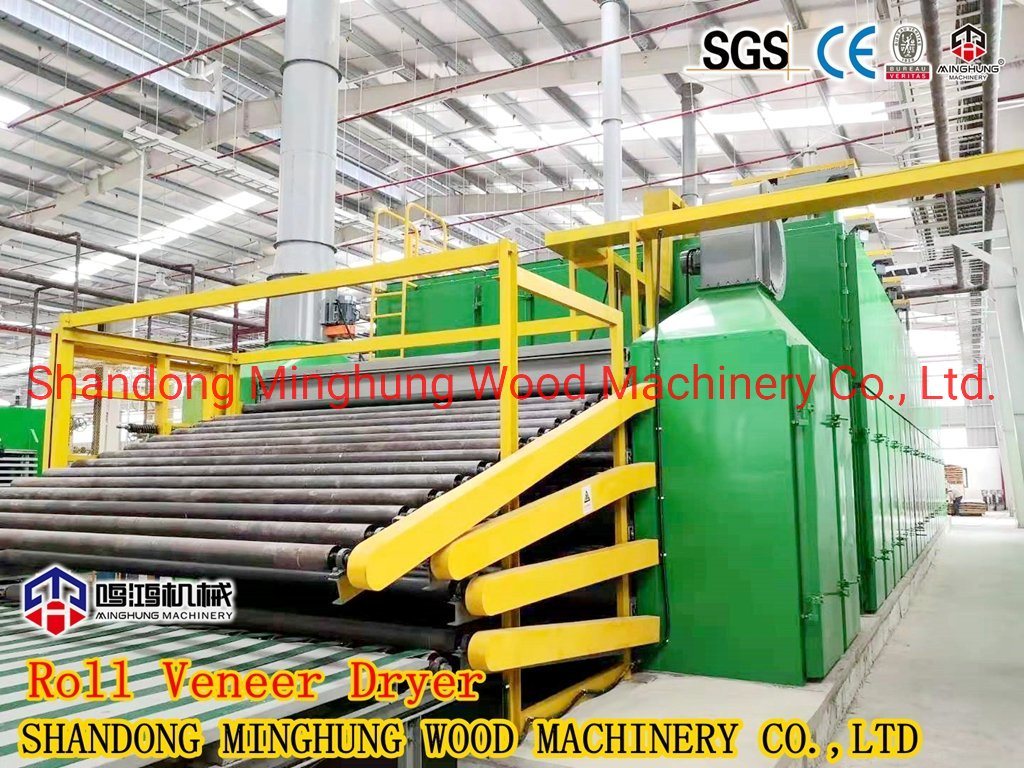

<4> Adopt variable frequency speed control, can adjust feed speed according your veneer thickness and moisture content, to get perfect drying effect. >>>Machine In Client Factory:
The installation of veneer roller dryer is more complex and spend longer time than others, so our engineer will go to install with your workers. Our factory produce plywood machine and veneer production line with many years experience, Advanced technology and professional workers. We are confidence to offer the strong and suitable machine for you.
Welcome contact us for more information
