Plywood Veneer Peeling Cutting Machine with Clipper
You are here: Home » Veneer Machine Serise » Veneer Peeling Machine » 4feet Veneer Peeling Machine » Plywood Veneer Peeling Cutting Machine with Clipper

PRODUCT CATEGORY

Plywood Veneer Peeling Cutting Machine with Clipper

Availability:
Quantity:
Plywood Veneer Peeling Cutting Machine with Clipper

We can not promise you our machine price is the lowest in the world, but we can promise you the machine we offered are good quality and suitable for you.
If we just pursue the benefits, yes, we indeed can reduce the production cost through decrease machine quality.
But this is not we want, what we want and our value is: let our machine help more clients business better and better.

---Lucinda/sales manager

Plywood Veneer Peeling Cutting Machine with Clipper
Veneer Production Line includes:
  1. Wood Debarker
  2. Veneer Peeling Machine
  3. Log Transporter
  4. Vacuum Veneer Stacker
  5. Knife Grinder

They are necessary machine for producing wood veneer


1. Wood Debarker

Plywood Veneer Peeling Cutting Machine with Clipper
The Function:
Removing wood bark, and make log round.
The Structure:
Wood debarker machine structure is simple, mainly consist by: machine frame, motors, cylinder, hydraulic station, knife
The Working Principle:
When start machine, put log into it, worker shake handle, machine will work.
The Advantages:
<1> the roller is "wolf roller", it has many small knife, can easily remove wood bark.
<2> machine structure not complex, convenient operate for your worker.
<3> its speed is fast, can offer enough wood witout bark to veneer peeling machine.
Specification:
Max length: 4feet/8feet
Max diameter: 500mm/550mm/600mm/700mm
Max speed: 70m/min
Total power: 27.5kw
Weight: 4t
Size: 3800*2200*1500mm

Customize machine according to your needs.

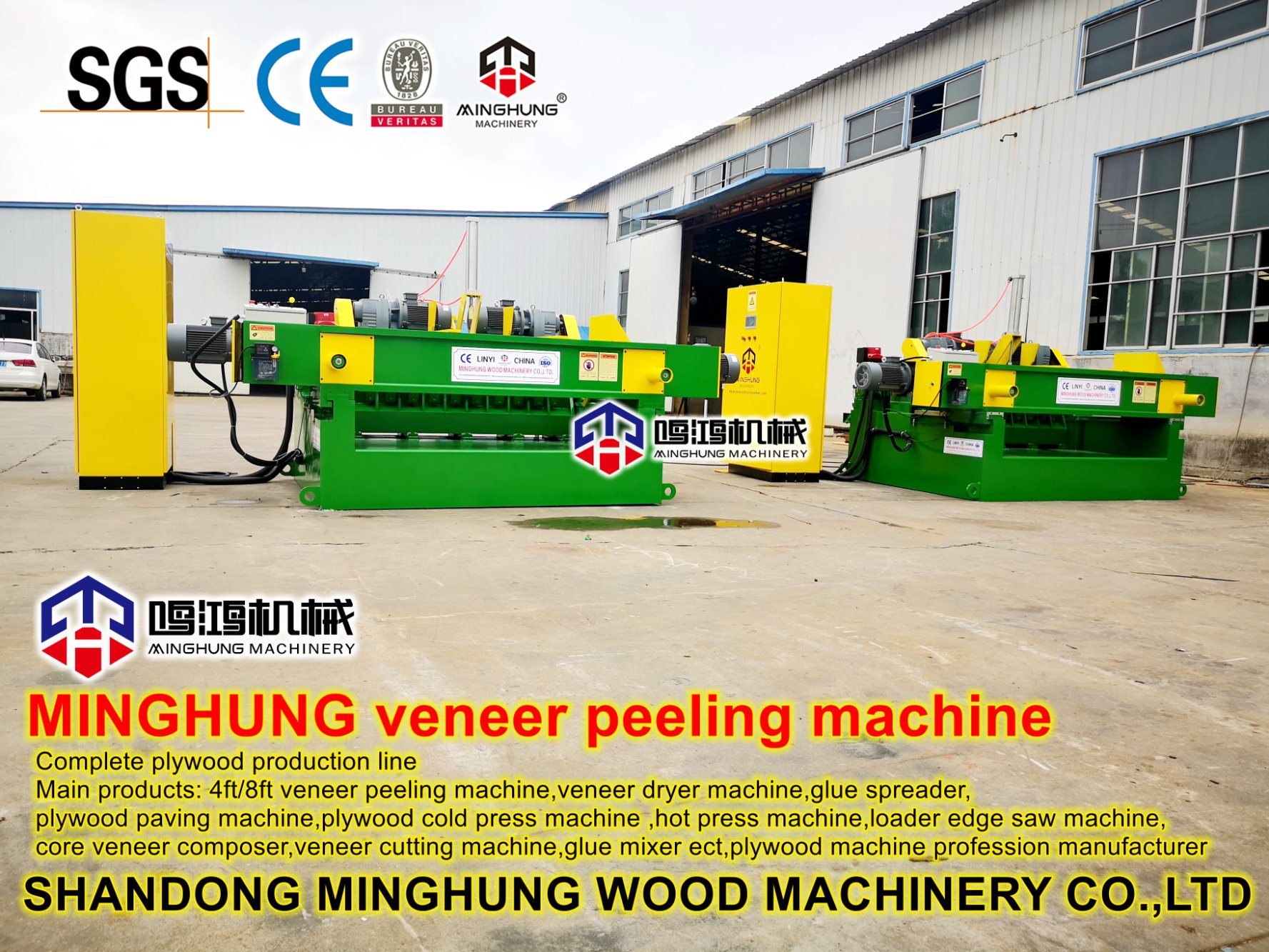

2. Veneer Peeling Machine
Plywood Veneer Peeling Cutting Machine with Clipper
The Function:
Processing log into pieces of wood veneer.
The Structure:
Veneer peeling machine mainly consist by: machine frame, motors, rollers, knife, control box
The Working Principle:
When start machine, adjust wood veneer thickness and width you want by CNC screen, adjust machine diameter and open, put log, then veneer machine will automatically roatry.
The Advantages:
<1> the bottom use one whole solid and thick steel, make sure machine is stable.
<2> total weight is heavy, use good material and spare parts.
<3> total power is big, make sure offer powerful energy to rotary log.
<4> Our factory patent, the outside of screw has shell to protect, long lift span.
Specification:
Max length: 4feet/8feet
Max diameter: 500mm/550mm/600mm/700mm
Max speed: 50-80m/min
Total power: 41.2kw
Weight: 6.8t
Size: 4500*2300*1500mm

Customize machine according to your needs.


3. Log Transporter
Plywood Veneer Peeling Cutting Machine with Clipper
The Function:
Transport log, one connect with wood debarker, another connect veneer peeling machine.
The Advantages:
This is the upgrade one, powerful to convey log, the chain will be fine.
Specification:
Power: 4.4kw
Weight: 2t/pcs
Size: 3000*1800*1500mm
4. Vacuum Veneer Stacker
Plywood Veneer Peeling Cutting Machine with Clipper
The Function:
Automatic sorting wood veneer, save 2 workers, connect with veneer peeling machine.
The Structure:
Machine frame, lift table, convey belt, fan, electric box
The Advantages:
<1> save labor cost, and higher work efficiency than worker receive
<2> automatic detect veneer quality, if veneer has hole, it will pick it out.
<3> its speed is synchronous with veneer peeling machine.
Specification:
4feet
Lifting mode: hydraulic lift
Veneer size: 1270*500-1270mm
Thickness: <3.6mm
Power: 18.55kw
Weight: 2.5t
Size: 6500*2000*2750mm
5. Magnetic Knife Grinder
Plywood Veneer Peeling Cutting Machine with Clipper
The Function:
Grinding knife, make it become sharp again.
The Advantages:
Knife is consumable, after using a while, knife edge will become blunt, if you have this grinding machine, will be conveniently and fast make knife become sharp again. Knife is also very important for peeling good quality wood veneer.
Specification:
4feet magnetic
Knife length: 1500mm
Table size: 1500*160(200)mm
Power: 4kw
Weight: 800kg
Size: 2800*1000*1000mm

Customize machine according to your needs.


Machine in Clients Factory:
Plywood Veneer Peeling Cutting Machine with ClipperPlywood Veneer Peeling Cutting Machine with ClipperPlywood Veneer Peeling Cutting Machine with ClipperPlywood Veneer Peeling Cutting Machine with Clipper


We often talk with our clients about machine working conditions, see if machine is well. If they meet some problems, we will help them solve it in time.
The moment when you choose us, we have been your lifetime partners, anytime you need help, we will be there.


Delivery:
Plywood Veneer Peeling Cutting Machine with Clipper
When machine finish production, we will share test video and pictures to you.
When loading, we will send loading pictures to you.
After ship leave, we will offer you container no and ship information, and prepare all documents for your custom clearance.


Plywood Machine:
Plywood Veneer Peeling Cutting Machine with Clipper


RFQ:
Production Time:
1 month after receive your deposit.
Payment Terms:
30% deposit, 70% before delivery.
100% Letter of Credit.
Warranty:
2 years for main parts.
MOQ:
1 set
Installation:
When machine reach your factory, our engineer can go to install
After-sales service:
Any problem that your worker can not solve, tell us, we will reply you at the first time,
