Reducer principle for plywood machine accessories

Views:0     Author:Mark Zhai     Publish Time: 2020-08-05      Origin:Site



Minghung wood machinery plywood making machine manufacturering



round wood cutter machine副本_副本round wood peeling machine副本_副本ring log debarker

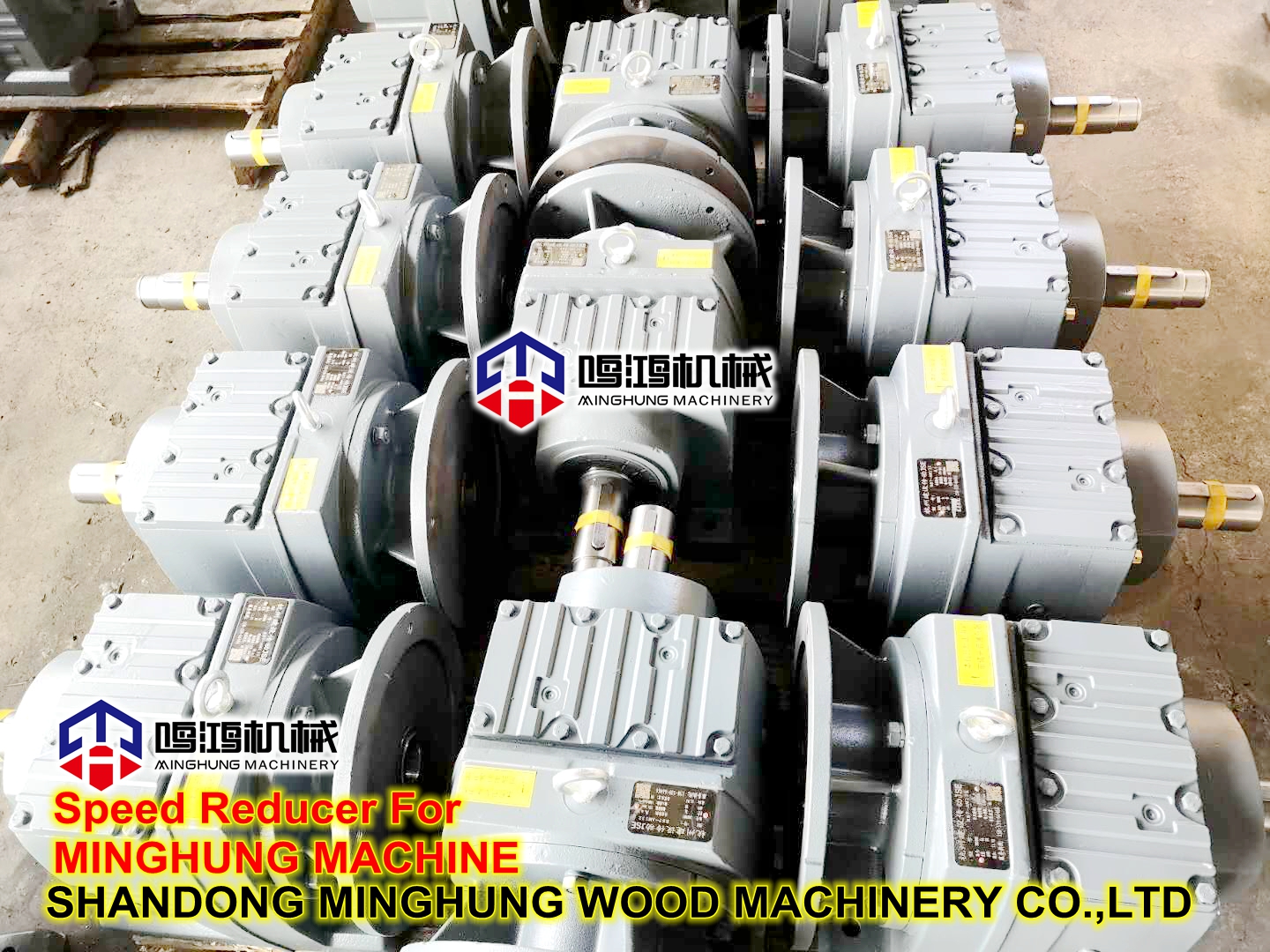

The reducer plays the role of matching the speed and transmitting torque between, the prime mover and the working machine or the actuator. The reducer is a relatively precise machine. The purpose of using it is to reduce the speed. Linyi minghung wood machine reducer worm reducer and planetary gear reducer, According to the different transmission stages, it can be divided into single-stage and multi-stage reducers.plywood machine line including veneer peeling machine,log debarker,veneer stacker,veneer machine,veneer dryer machine,veneer paving machine,plywood hot press machine,plywood cold press machine,core veneer composer veneer machine veneer joint machineplywood glue spreader,plywood dd saw machine,plywood sanding machine The shape of the factory wheels can be divided into cylindrical gear reducers, bevel gear reducers and conical-cylindrical gear reducers; they can be divided according to the transmission arrangement. It is an expandable, split-flow and co-entry shaft reducer. The reducer is an independent component composed of gear transmission, worm transmission, and gear-worm transmission enclosed in a rigid shell. It is often used as a reduction transmission device between the original moving part and the working machine. It plays a role in matching the speed and transmitting torque between the prime mover and the working machine or the actuator. It is widely used in modern machinery.

core veneer composerpeeling machine accessories

Veneer dryer machine has three types, they are veneer press dryer, veneer roller dryer machine, face veneer mesh dryer machine, their drying ways are different, but the drying effect are good, the temperature within 140-180℃, the original mositure is 70%-80%, after drying, the mositure about 10%.

Veneer roller dryer machine through roller transport, can be different length, width, floors, so we usually offer details according to your capacity required. Ususally we use it drying core veneer. Its production capacity is more bigger.

Veneer mesh dryer can drying thin face veneer, and it also can be different length, width and floors according to your conditions.

working principle

The reducer is a relatively precise machine. The purpose of using it is to reduce the speed and increase the torque?

Speed ratio = motor output revolution ÷ reducer output revolution ("speed ratio" is also called "transmission ratio")

1. Know the motor power, speed ratio and use coefficient, find the torque of the reducer as follows: reducer torque = 9550 × motor power ÷ motor power input revolution × speed ratio × use coefficient

2. Know the torque and the output,speed of the reducer and the use coefficient, and find the motor power required by the reducer as follows: motor power = torque ÷ 9550 × motor power input speed ÷ speed ratio ÷ use coefficient

There are many types, different models, and different types have different uses. There are many types of reducers. According to the transmission type, they can be divided into gear reducers, worm reducers and planetary gear reducers; according to the transmission stages, they can be divided into single-stage and multi-stage reducers; according to the gear shape, they can be divided into cylindrical gear reducers. According to the transmission layout, it can be divided into expansion type, split type and coaxial type reducer.

product category Planetary gear reducer

Wood debarker has 4feet and 8feet, max diameter can be 700mm, using wolf roller easily remove wood bark, can add wood crusher to smash wood bark. Veneer peeling machine use cnc screen, conveniently adjust data, veneer width can be 40mm-3000mm, the thickness range can be 0.1mm-10mm, double driving structure, big motor power, strong and solid bottom plate, accurate feeding screw, all these details make sure our veneer peeling machine is strong to peel hardwood and veneer thickness very accurate and balance. Veneer stacker can automatic sorting wood veneer, save two labors. Knife grinder length can be 1400mm-3200mm, magnetic clamp knife, high efficiency

The following are commonly used reducer classifications:

1. cycloid reducer

2. hardened cylindrical gear reducer

3. planetary gear reducer (used in workshop)

1) The ring gear is fixed, the sun gear is active, and the planet carrier is passive. It can be seen from the demonstration that this combination is a reduced speed transmission, and the transmission ratio is generally 2.5-5, and the steering is the same.

Planetary gear reducer

4. Soft tooth surface reducer

5. three-ring reducer

6. crane reducer

7. worm reducer

8. Shaft mounted hard tooth surface reducer

9. continuously variable transmission

The main feature of worm gear reducer is that it has reverse self-locking function, which can have a larger reduction ratio. The input shaft and output shaft are not on the same axis or on the same plane. But generally the volume is large, the transmission efficiency is not high, and the accuracy is not high. The harmonic drive of the harmonic reducer uses the controllable elastic deformation of the flexible element to transmit movement and power. The volume is small and the accuracy is high. However, the disadvantage is that the flexible wheel has limited life and is not resistant to impact. The rigidity is compared with metal parts. difference. The input speed cannot be too high. The advantages of planetary reducer are compact structure, small return clearance, high precision, long service life, and large rated output torque. But the price is slightly more expensive.
