Plywood sander technical manual
1. The plywood sander is mainly used for fine sanding and re-polishing on the surface of plywood, various multi-layer boards, blockboard, particle board, medium density fiberboard and other boards.
The main performance characteristics of the machine tool are as follows:
(1). The body adopts the overall box-shaped welding structure, which has sufficient rigidity and the service life of the machine tool is high.

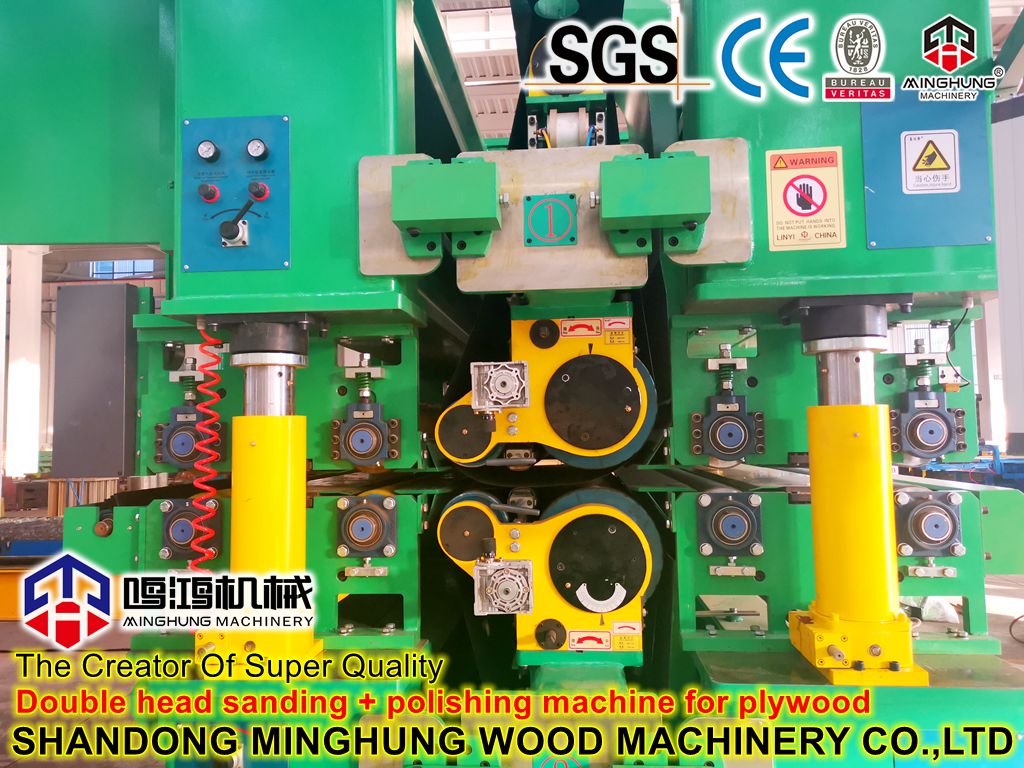

(2). The diameter of the sanding roller is large, which increases the service life of the sanding belt, and it works smoothly through precise dynamic balance.
(3). The sanding roller adopts a soft rubber roller to ensure good contact between the abrasive belt and the plate without sanding through the surface material of the plate; the sand pad adopts an airbag sand pad to ensure an excellent polishing effect on the surface of the plate.

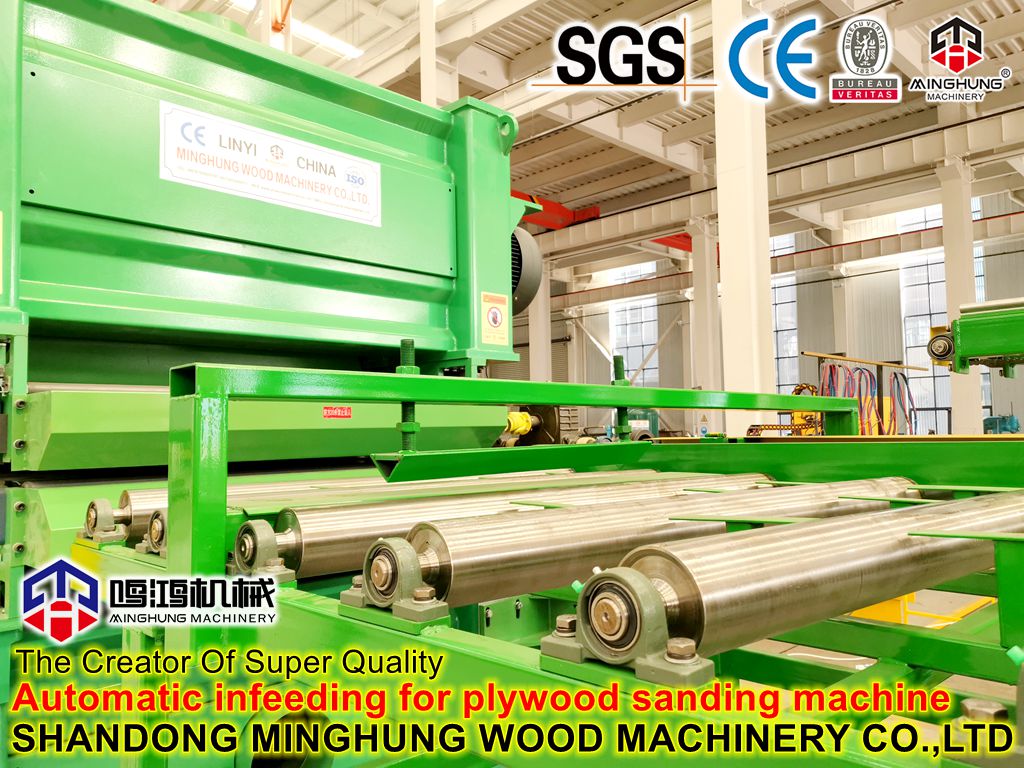

(4). The feeding adopts the roller feeding stepless frequency conversion speed change, the feeding speed can be as high as 78m/min, and the production efficiency is high.

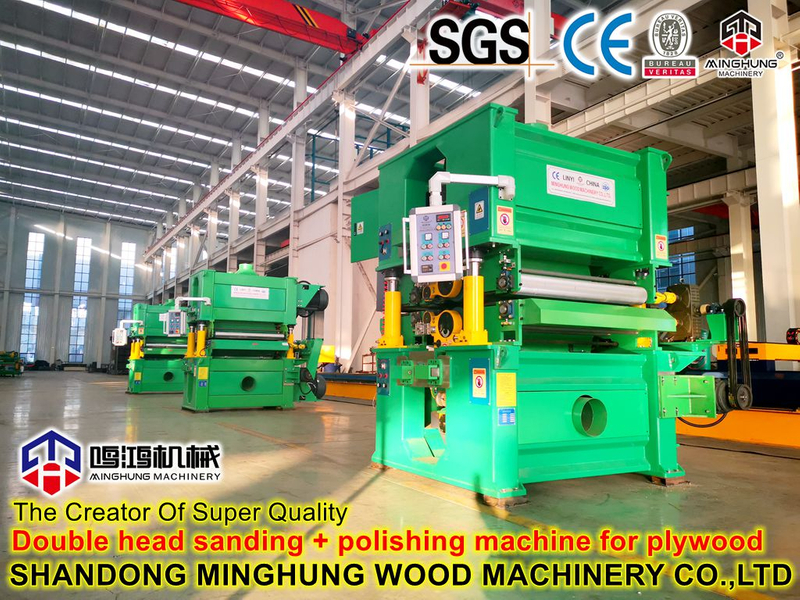

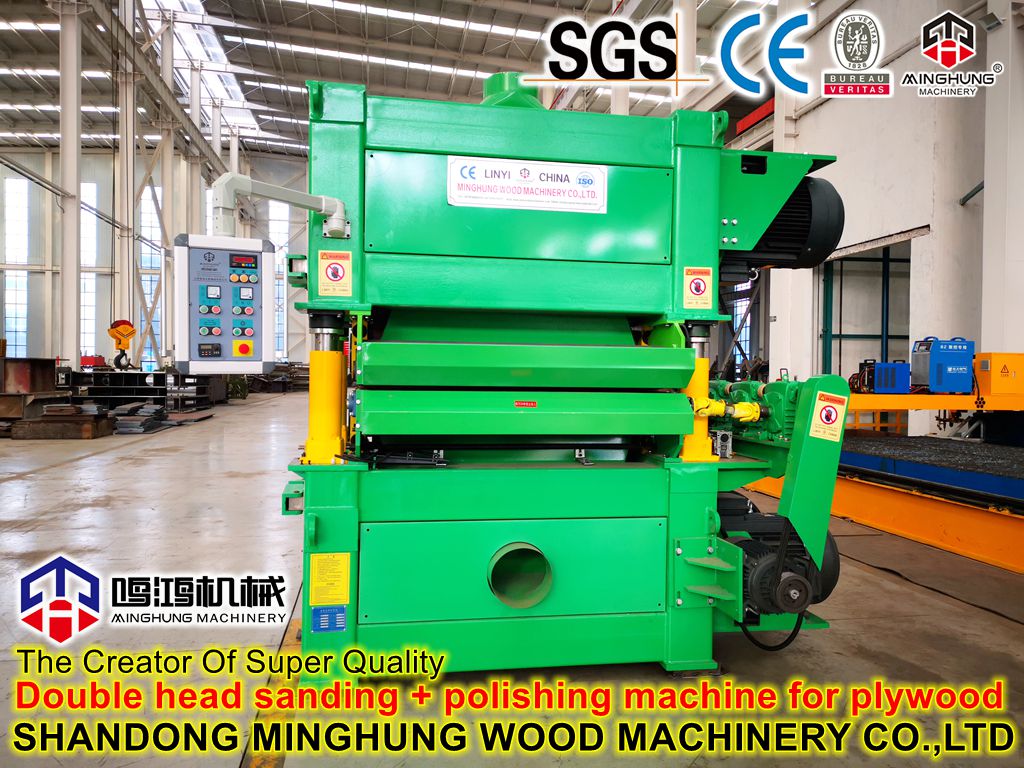

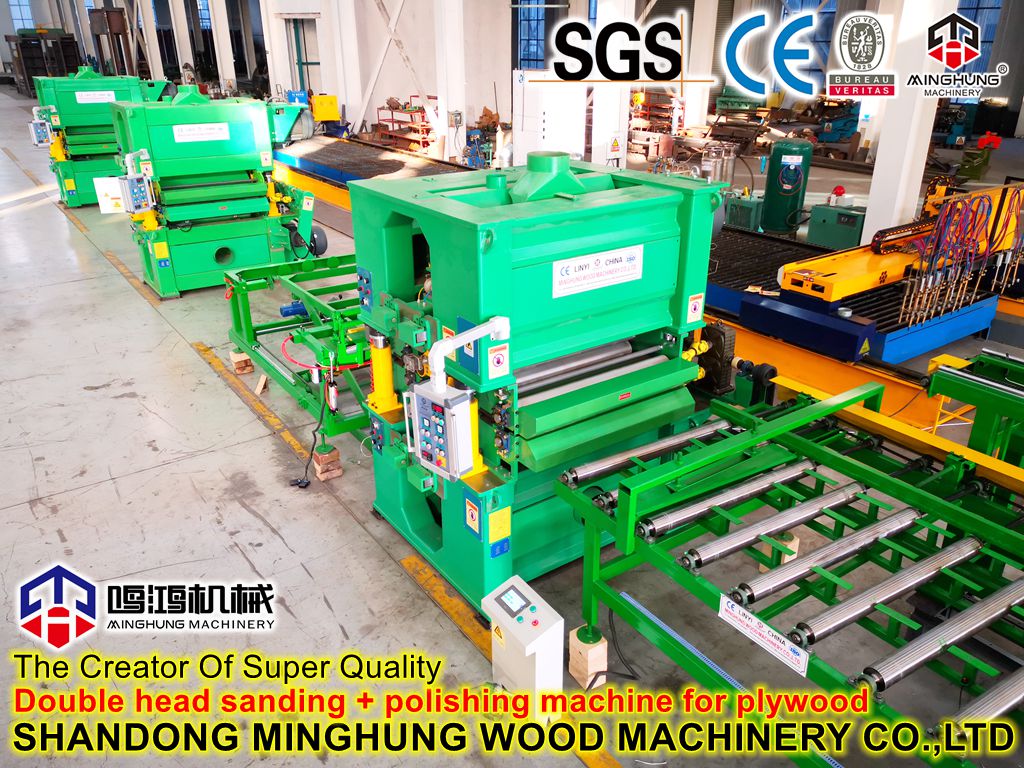

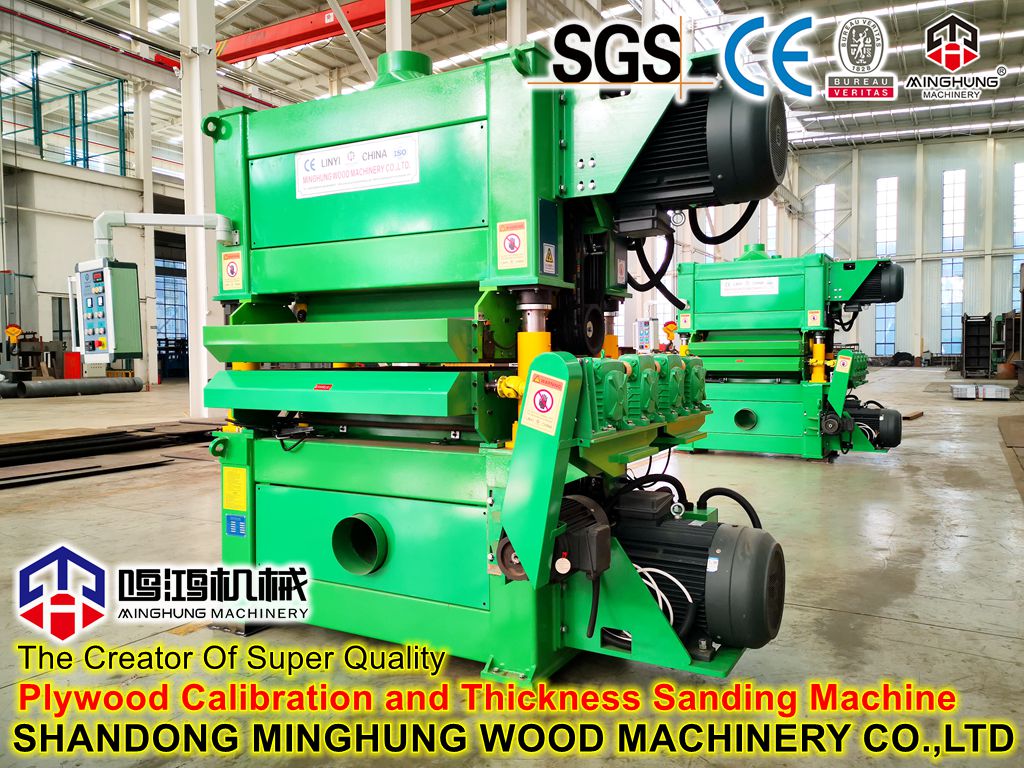

The Instruction of Sanding Machine: Sanding machine is the last step for producing plywood, for make plywood thickness more accurate and balance, surface more smooth and bright, we have different types, for example, there has 1 head, 2 heads, 3 heads, single side, double sides, light weight and heavy duty, some wants calibrating the thickness very accurate, some wants keep the surface very smooth, so we will offer you the most suitable sanding machine. This is single side sanding machine with two sanding heads, one for calibrating plywood thickness, one for polishing plywood surface, so the sanded plywood, its thickness will be accurate and balance, and surface will be smooth, it can help you create more benefits. Max Sanding board width | 40-1300mm |
Sanding board thickness | 2.5-80mm |
Sanding board length | >780mm |
Abrasive belt speed | 25m/min |
Abrasive belt size | 1300*2620mm |
Voltage | 380v |
Frequency | 50hz |
Main motors power | 30kw; 22kw |
Convey feeding motor power | 7.5kw |
Feeding speed | 20-40m/min |
Lifting motor | 0.75kw |
Brushing motor | 0.75kw |
Total power | 61kw |
Working pressure of compress air | 0.6mpa |
The capacity of dust collection | 15000m³/h |
size | 3100*2900*2440mm |
Weight | 8100kg |
Note: if your plywood size is special, like the width is 1500mm, 1700mm or more, please tell me, we can customize sanding machine. ADVANTAGES: FACTORY:
>Machine we produce:
wood debarker, veneer peeling machine, veneer stacker, knife grinder, veneer dryer machine, glue spreader,
plywood veneer lay-out machine, core composer, plywood cold press machine, plywood hot press machine,
plywood DD saw, sanding machine, lift table.
>Principle:
through many years improvment and development, we have had our own company value, that is offer good and suitable plywood machine to every our client forever, and help their business create much value.
Because we know this, so we insist make our machine well, from the beginning, choose machine material and spare parts, our experienced purchasing manager choose the better one through company different, then our designer will discuss and design machine, then our professional workers will start produce machine, each production step will be responsible by different workers.
the whole production line will be tested at least 5 times to make sure our machine in good conditions.
>Certification:
All our plywood machine have CE, and test report. DELIVERY:
Before loading, we will test machine and send you videos.
When loading, we will share loading pictures with you.
After ship leave, we will offer container and ship information to you, and prepare all documents for your custom clearance.
