Plywood Machine Plywood Production Line Plywood Making Machine
You are here: Home » Plywood Machine Series » Plywood Production Line » Plywood Machine Plywood Production Line Plywood Making Machine

PRODUCT CATEGORY

Plywood Machine Plywood Production Line Plywood Making Machine

Wood debarker has 4feet and 8feet, max diameter can be 700mm, using wolf roller easily remove wood bark, can add wood crusher to smash wood bark. Veneer peeling machine use cnc screen, conveniently adjust data, veneer width can be 40mm-3000mm, the thickness range can be 0.1mm-10mm, double driving structure, big motor power, strong and solid bottom plate, accurate feeding screw, all these details make sure our veneer peeling machine is strong to peel hardwood and veneer thickness very accurate and balance. Veneer stacker can automatic sorting wood veneer, save two labors. Knife grinder length can be 1400mm-3200mm, magnetic clamp knife, high efficiency.


烘干:
Veneer dryer machine has three types, they are veneer press dryer, veneer roller dryer machine, face veneer mesh dryer machine, their drying ways are different, but the drying effect are good, the temperature within 140-180℃, the original mositure is 70%-80%, after drying, the mositure about 10%.
Veneer roller dryer machine through roller transport, can be different length, width, floors, so we usually offer details according to your capacity required. Ususally we use it drying core veneer. Its production capacity is more bigger.
Veneer mesh dryer can drying thin face veneer, and it also can be different length, width and floors according to your conditions.


胶合板:
Hot press has 500t 600t 800t 1000t 1200t, 10layer 12layers 15layers 20layers etc, Cold press max opening can be 1800mm, pressure can be 400t 500t 600t. Glue spreader has 4feet and 8feet, single side and double sides. Plywood veneer paving line can be 18m, 24m, 30m, 36m. Plywood saw machine can be 4*8feet, 3*6feet or customized, controlled by infrared ray, high efficiency. Plywood sanding machine has light type and heavy type, can be 1 head, 2heads, 3heads, can calibrating thickness accurate, and polishing surface bright and smooth.
we will offer you the better and suitable machine, two years warranty, professional technical team at your service anytime. and hope that build a good and long-time cooperation.
Availability:
Quantity:
sharethis sharing button
  • Qingdao, China

  • 1000sets/Year

  • L/C, T/T

Plywood Machine Plywood Production Line Plywood Making Machine Full Sets


Friends, for save your precious time, please tell me your conditions and requires, i will offer you the suitable plywood machine details for your reference.

Shandong MINGHUNG Wood Machinery Co.,Ltd is one famous manufacturer of plywood machine in China, located in Linyi city.and is one of the famous plywood machinery manufacturers in China. Our products have obtained EU CE, ISO 9001, ISO 14001, CCEP and energy saving certification.

Our company integrates design, research and development, production and sales, and cooperates closely with China's advanced scientific research institutions. We have a strong R&D team, and our machinery has obtained a number of national patents.

Pay more attention to machine details, details determine success or failure, so we continuously improve and optimize machine performance, strictly control each production step, use advanced lathe processing machines, and pass multiple inspections to ensure that our machines are accurate and durable.

Technological innovation-oriented, quality-oriented, service-oriented, to provide customers with a full range of plywood production solutions and technical support. And our machines have been exported to more than 30 countries and regions such as the United States, Russia, Poland, Ukraine, Portugal, Bulgaria, Romania, Turkey, Egypt, Morocco, Indonesia, etc., and have received good feedback.

With high efficiency sales team offer 24 hours online service, the professional technical team and after-sales service team offer plant layout, machine drawings, and after-sales service.

Choose us, you need not worry anything, we will help you arrange all.

we will offer you the better and suitable machine, two years warranty, professional technical team at your service anytime. and hope that build a good and long-time cooperation.

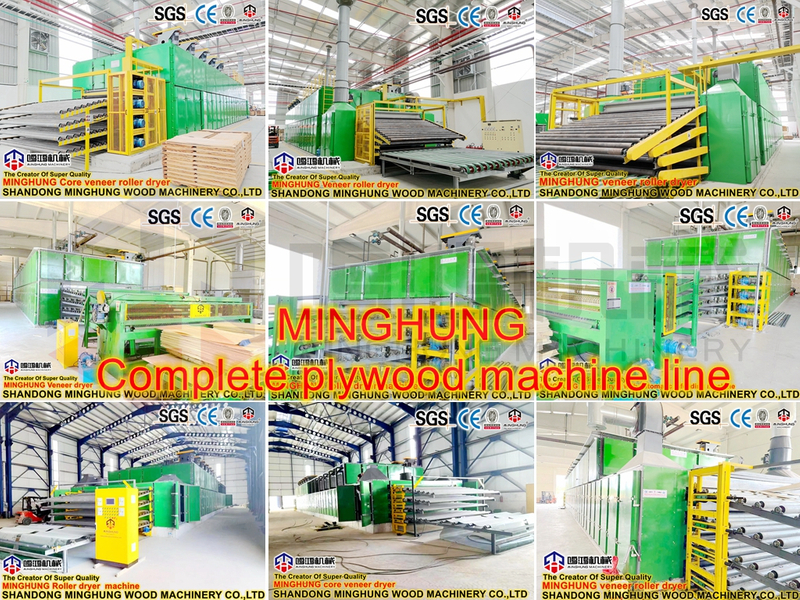

minghung complete plywood machine lineMINGHUNG plywood line

Our factory produce the whole sets Plywood Machine, include plywood hot press machine, plywood cold press machine, glue spreader, plywood veneer paving line, plywood edge cutting saw, sanding machine and others.


>>>>HOT PRESS MACHINE:
plywood hot pressmachineIMG-20220318-WA0002_副本MINGHUNG HOT PRESS MACHINE

Product name Plywood Hot Press Machine
Layers 8 /10 /12 /15 /20 /25
Pressure 400t /500t /600t /800t /1000t /1200t
Cylinder φ320*2pcs /φ360*2pcs /φ220*6pcs /φ260*6pcs
Hot platen size 2700*1370*42/52/62mm
Power 18.5kw/29.5kw
Weight 33t /48t


Advantages:





>>>>COLD PRESS MACHINE:MINGHUNG cold press machineplywood cold press machineMINGHUNG COLD PRESS MACHINE

Product name Plywood Cold Press Machine
Pressure 400t /500t /600t
Cylinder φ320*2pcs /φ360*2pcs /φ220*6pcs
Power 18.5kw
Weight 10t /12t
Size 3600*1370*4000mm


Advantages:






>>>>GLUE SPREADER MACHINE:

minghung plywoog glue spreaderComplete Glue Spreader MachineMINGHUNG 1400MM TWO SIZE GLUE SPREADERGLUE SPREADER



Product name glue spreader
Sides Double sides at the same time
Size 4feet/8feet or customize
Diameter of coating roller φ310 /φ410
Line speed 20-30m/min
Installed capacity 5.5kw
Transmission way gear &chain transmission
Size 2250*1250*1700mm
3250*1250*1700mm


>>>>PLYWOOD SAW MACHINE:
MINGHUNG Plywood cutting machineMINGHUNG edge sizer machine


Product name plywood edge cutting saw
size 4*8feet /3*6feet /customize
working speed 40-70m/min
capacity 8-12pcs/min
working style infrared ray guide
feeding way automatic
with one set lift table


>>>>ABOUT US:
Plywood Machine Plywood Production Line Plywood Making Machine




We-Shandong MINGHUNG Wood Machinery is one of the leaders of plywood machine in China, supplies a complete range of machinery, systems and technology for the production of plywood and veneer including wood debarker, veneer peeling machine, vacuum veneer stacker, knife grinder, veneer dryer machine, glue spreader, cold press, hot press machine, plywood saw machine, sanding machine.

Highly qualified personnel and competent management take all the advantages of production and continue developing day by day, the basis of our business is focus on our clients' needs, such position allows us to build long-term partnership with our clients in China and abroad.

We also works closely with a global network of manufacturing partners in order of provide the reliable, good quality and service to our customers.



>>>>CLIENTS:
Clients






>>>>DELIVERY:
VENEER DRYER MACHINE1
MINGHUNG MACHIENRY_副本MINGHUNG DELIVERY 3
>>>>RFQ:
Plywood Machine Plywood Production Line Plywood Making Machine

Whatsapp:

MARK:  +8618769900191

ALI :+8615589105786

LUCINDA: +8615805493072
