The Medium-Sized E0 Grade Plywood Production Line is a flagship product meticulously engineered by Shandong Minghong Woodworking Machinery for modern plywood manufacturers. It is not merely a simple assembly of individual machines, but a complete production system that deeply integrates mechanical engineering, automated control, and eco-friendly processes. Designed to empower our clients to produce high-quality plywood that meets the world's most stringent environmental standards (E0 Grade) with stable efficiency and competitive costs, this line is the core weapon for businesses aiming to enter the high-end international market and achieve industrial upgrading.

Design Philosophy & Objectives

  Core Objective: To achieve near-"large-scale" automation and stability with a "medium-sized" investment, while ensuring the final product quality meets the top-tier E0 environmental standard.

  Design Philosophy: Modular, Intelligent, User-Friendly. Each station can be seamlessly integrated into a fully automatic line or flexibly configured based on the client's existing factory layout and process requirements.

  Target Clients: Growing manufacturers with an annual output target between 15,000 to 50,000 cubic meters, and existing factories planning to transition from low-end products to high-value-added, eco-friendly products.

Breakdown of Key Components

1. Feeding & Pre-processing Section

  Veneer Peeler/Lathe: Provides high-quality veneer with uniform thickness and a smooth surface, the foundation for superior plywood.

  Veneer Dryer: Precisely controls veneer moisture content, preventing quality issues like warping and glue failure caused by uneven moisture.

 Veneer Splicing & Stitching Machine: Automatically detects and patches small veneer sheets or cracks, significantly improving raw material utilization.

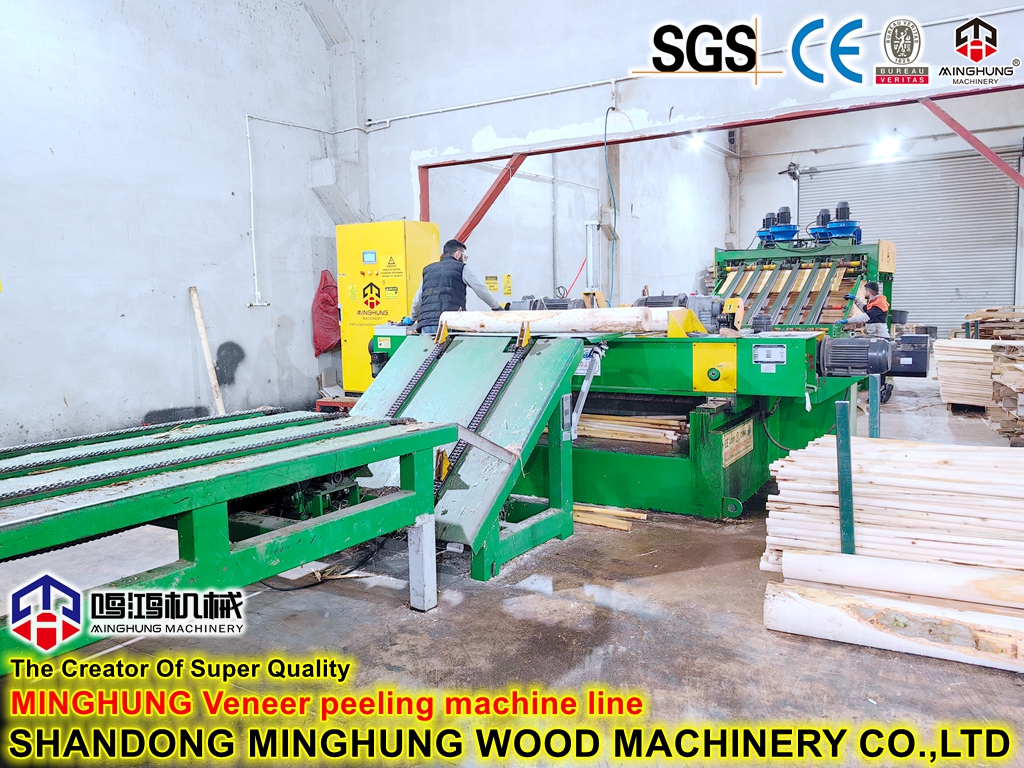

veneer peeling machine

drying machine

2. Gluing & Layup Section

  Fully Automatic Four-Roller Glue Spreader: A key machine in the line. Precision rollers ensure even, omission-free glue application with accurate control over the amount spread. This is the physical basis for achieving low formaldehyde emissions and strong bonding strength.

  E0 Grade Eco-Friendly Adhesive System: We provide adhesive application solutions perfectly matched with the production line, ensuring the glue performs to its full E0 grade potential.

  Automatic Layup Line: Robotic arms or conveyors automatically arrange and align veneer layers, replacing manual labor entirely. This results in high layup efficiency, precise positioning, and a significant reduction in human error.

3. Core Hot Pressing Section

  Intelligent Hot Press: The "heart" of the production line. It utilizes multi-stage heating and pressure control systems to execute precise hot pressing according to preset process curves (temperature, pressure, time).

      E0 Grade Assurance: Precise temperature and pressure control ensure complete adhesive curing while effectively restricting formaldehyde emissions within the E0 grade range.

      High Efficiency & Energy Saving: Advanced hydraulic systems and insulation technology reduce energy consumption while guaranteeing stable and excellent physical-mechanical properties for each panel.

4. Post-processing & Finishing Section

  Double-Side Calibrating Sander: Precisely sands the pressed rough panels to achieve minimal thickness tolerance and a perfectly smooth, flat surface, providing an ideal substrate for subsequent laminating, foil application, or direct sale.

  Cross-Cut & Trim Saw: Automatically trims and cuts panels to set dimensions with clean edges and accurate sizing.

  Cooling & Turning System: Cools and stacks the hot-pressed panels evenly to prevent deformation.

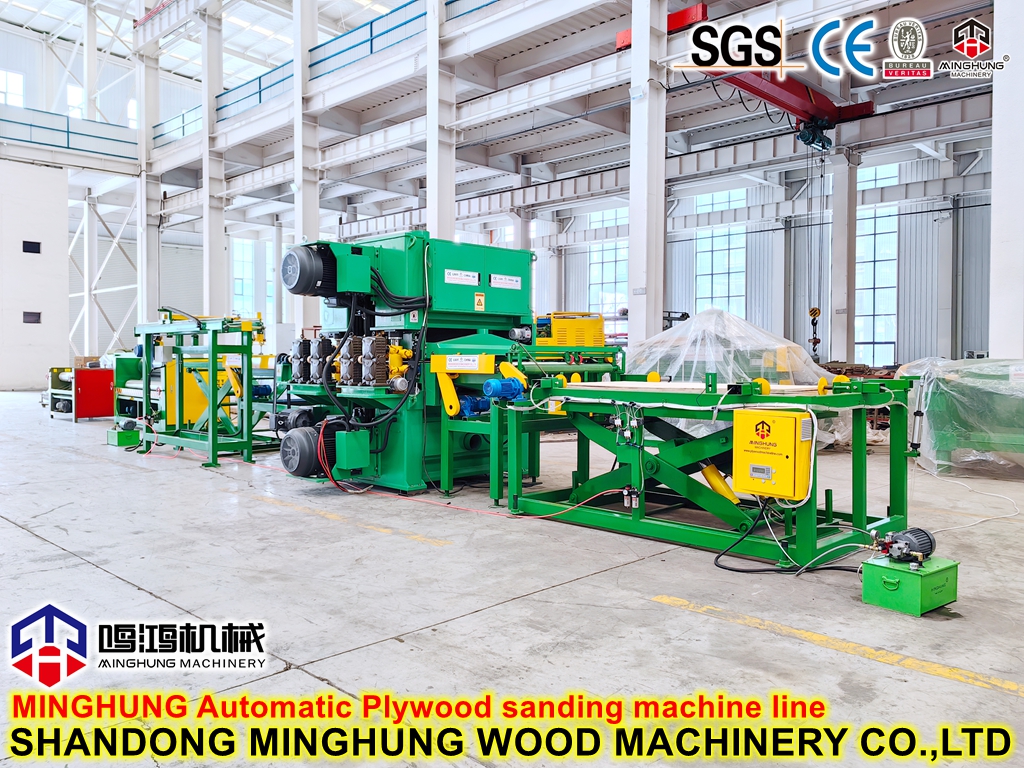

sanding machine

sawing machine

5. Central Intelligent Control System

  PLC + HMI (Human-Machine Interface): The entire line is controlled by a central PLC, allowing for the setting and monitoring of all process parameters on a touch screen.

  Data Logging & Traceability: The system automatically records production data (pressure, temperature, time, etc.) for each batch, facilitating quality traceability and process optimization.

  Fault Diagnosis & Alarm: Monitors equipment status in real-time, providing immediate alerts and fault location prompts, drastically reducing maintenance downtime.

Core Advantages & Client Value

1.  "E0 Grade" is Not Just a Standard, But a Market Competitiveness:

      Directly meets the mandatory requirements for formaldehyde emissions in high-end markets like the EU, North America, Japan, and South Korea.

      Helps your end-clients (e.g., furniture manufacturers, renovation companies) create healthier, safer indoor environments, enhancing your brand image and product premium.

2.  "Medium-Sized" Positioning for Optimal ROI:

      Offers a more rational investment and shorter payback period compared to large-scale lines that often require massive capital.

      High automation reduces direct labor by approximately 40%-60%, effectively countering rising labor costs and management challenges.

3.  Exceptional Stability & Yield:

      Key components (e.g., hydraulic systems, motors, bearings, PLC) from renowned international/domestic brands ensure long-term, reliable continuous operation.

      High-precision gluing and layup systems significantly reduce raw material (veneer and glue) waste, increasing yield by 3%-5%.

4.  Flexibility & Scalability:

      Can be equipped with different specification machines (e.g., hot press with larger daylight opening, wider sander) based on client needs to adapt to various product specifications.

      Allows for future capacity expansion, protecting your initial investment.

Technical Parameter Overview

Choosing Shandong Minghong's Medium-Sized E0 Grade Plywood Production Line means more than purchasing equipment; it means integrating a production system that ensures your future market competitiveness. We provide a one-stop service, from plant layout planning, equipment installation & commissioning, process training, to after-sales support, making us your trustworthy long-term partner.
