Energy-Saving Plywood Production Line with Heat Recovery
Detailed Introduction of the Plywood Production Line
This energy-saving plywood production line is a complete automated system from veneer handling to finished plywood output, with its core highlight being the integrated multi-stage heat recovery modules. The line comprises the following sections:

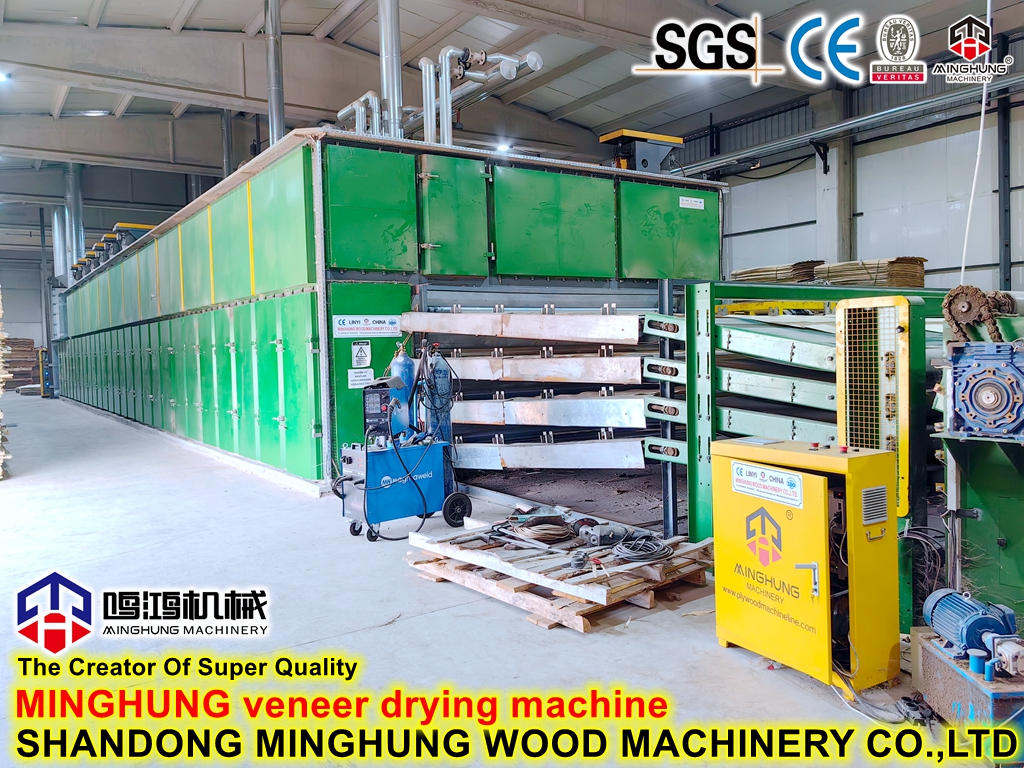

1. Veneer Drying & Heat Recovery Unit
High-efficiency mesh belt dryers are used. The hot, humid exhaust air from the drying process first passes through an air-to-air plate heat exchanger, transferring waste heat to fresh intake air. The preheated air then enters the heating system, reducing fuel consumption of the burner or thermal oil heater. Additionally, a condensing heat exchanger further recovers latent heat from the exhaust for boiler make-up water preheating or workshop heating.

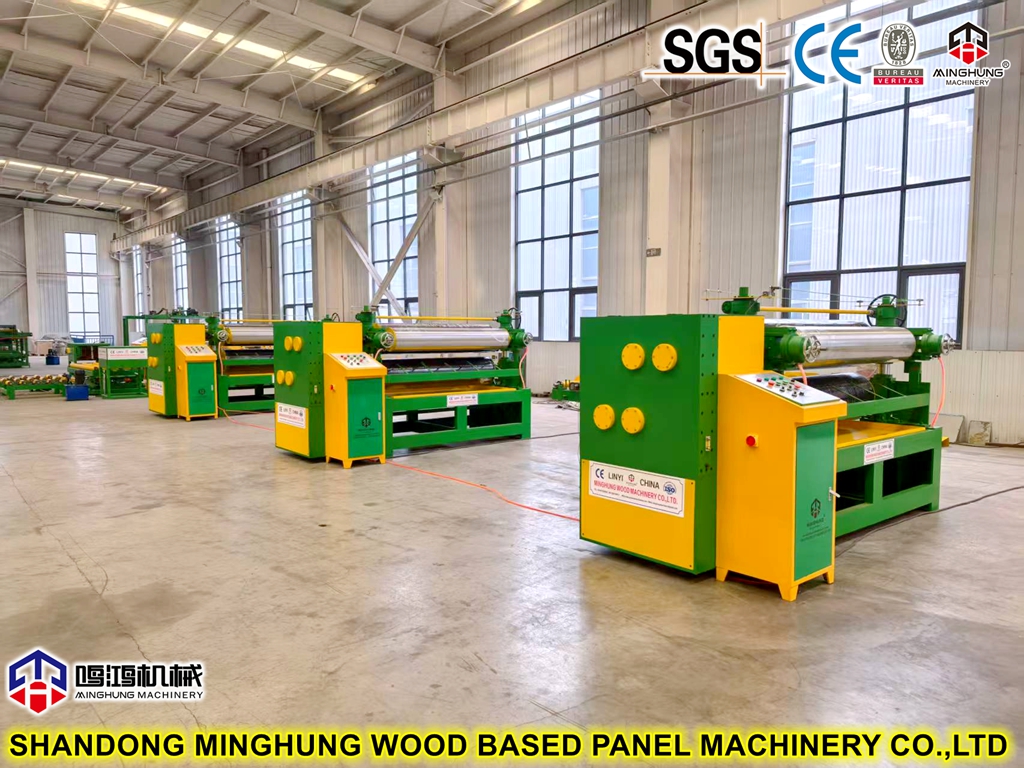

2. Glue Spreading & Assembly Section
Precision metering glue spreaders minimize adhesive waste. Minor waste heat from this section is collected by local recovery vents and used for glue tank insulation or glue preheating.
3. Pre-pressing & Hot Pressing Section (Core Heat Recovery)
The hot press is the largest energy consumer. A closed-loop waste heat recovery unit is installed on the return water pipe of the hot press. The heat from the high-temperature condensate or thermal oil return is transferred via a heat exchanger to clean water. The produced hot water is supplied to the veneer drying unit, boiler make-up water, or workshop cleaning. An intelligent temperature control valve automatically adjusts the recovery flow based on process requirements, ensuring stable platen temperature. Furthermore, radiant heat released during mold opening/closing is captured by guide hoods, upgraded by a heat pump, and used for glue preheating or veneer preheating.
4. Cooling & Trimming Section
Heat released during cooling of finished plywood is recovered through an air-to-water heat exchanger. The recovered hot water is used for veneer soaking tanks or winter freeze protection in the workshop.
5. Intelligent Control System
The entire line is equipped with a PLC and HMI, providing real-time monitoring of temperature, pressure, flow rate, and heat recovery efficiency at each stage. The system automatically allocates recovered heat to priority low-grade demands such as drying and preheating, with surplus used for space heating or hot water preparation. It also generates energy consumption reports and savings analysis to help managers optimize production parameters.
Key Technical Parameters
Production capacity: 5,000 – 30,000 m³/year
Heat recovery rate: 25% – 38%
Comprehensive energy saving rate: 20% – 35%
Hot platen temperature control accuracy: ±1.5°C
Applicable plywood thickness: 6 – 25 mm
Advantages Summary
Significantly reduces energy costs; payback period typically 1.5–3 years
Reduces load on boilers/thermal oil heaters, extending equipment life
Complies with international carbon emission regulations, enhancing export competitiveness
Modular design for flexible integration into existing lines
About us
We are Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd China factory and manufacturer of full sets of Plywood machinery and Veneer machinery. With many years production experience, advanced production technology,experienced workers and professional engineers, we can offer you the suitable, good and strong machinery for you.

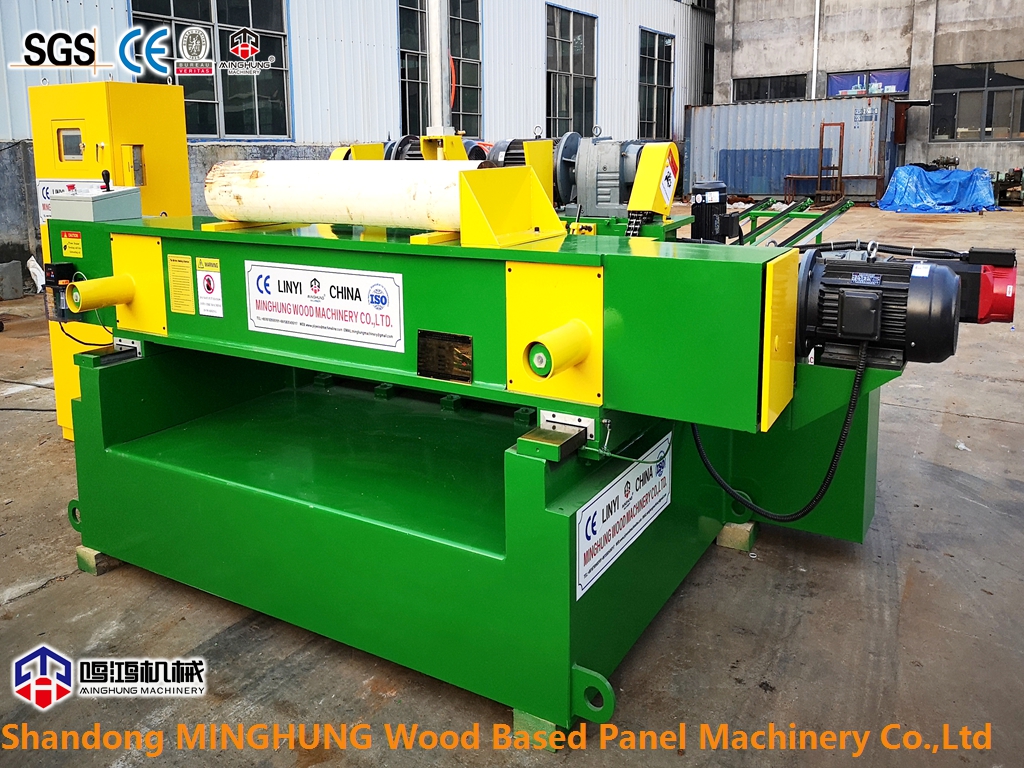

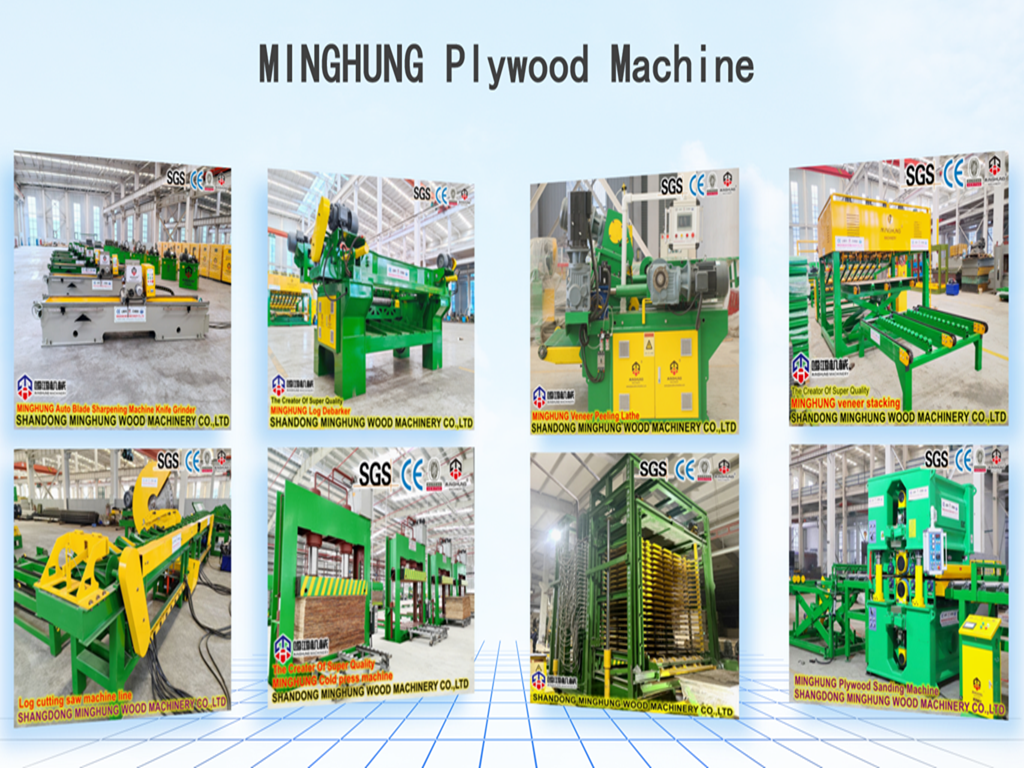

The machinery we produce includes peeling machines, chipping machines, rotary cutting machines, drying machines, gluing mixers, laying machines, pre-pressing machines, hot pressing machines, cooling machines, longitudinal and transverse sawing machines, sanding machines, as well as auxiliary machinery such as automatic feeding and discharging systems and lifting platforms.
We offer complete services including site survey, design and manufacturing, installation and commissioning, and after-sales training.
For more information, welcome contact us, we will reply you quickly and offer working videos with you.
Whatsapp: +8618769900191 +8615589105786 +8618954906501
Email: osbmdfmachinery@gmail.com
