During the molding of the osb, the upper and lower surfaces of the oriented strand board arrange the mixed glue particleboard in the direction of its fiber, while the core layer particleboard is arranged horizontally to form a three-layer structural board embryo, and then the oriented strand board is made by hot press.
The shape of this particleboard requires a relatively large length and width, and the thickness is slightly thicker than that of ordinary particleboard. Directional paving/forming methods include mechanical orientation and electrostatic orientation. The former is suitable for large shavings oriented paving, while the latter is suitable for small shavings oriented paving. The directional paving of particleboard makes it have the characteristics of high strength in a certain direction, and it is often used instead of plywood as structural materials.
Our factory mainly produce the full line of osb board making machine, particle board making machine, and mdf board making machine. With many years production experience, and advanced production equipment and technology, we promise that we can make and offer suitable and good machine for you.
Therefore, if you plan or interested to produce particle board or oriented strand board or medium density board, welcome contact us. According to your production capacity and factory conditions, we can design and offer the good machine.
The whole production line mainly includes wood chipper/flaker, drum dryer, gluing system, forming machine, pre press machine, cutting machine, hot press, sanding machine, and these machine includes kinds of related parts too.
Our factory insist to use good material and parts, and improve our machine in every period, to make our machine better and better.
Therefore, if you plan or interested to produce particle board or oriented strand board or medium density board, welcome contact us. According to your production capacity and factory conditions, we can design and offer the good machine.
The whole production line mainly includes wood chipper/flaker, drum dryer, gluing system, forming machine, pre press machine, cutting machine, hot press, sanding machine, and these machine includes kinds of related parts too.
Our factory insist to use good material and parts, and improve our machine in every period, to make our machine better and better.
>>>>Oriented Strand Board(OSB)
During the molding of the osb, the upper and lower surfaces of the oriented strand board arrange the mixed glue particleboard in the direction of its fiber, while the core layer particleboard is arranged horizontally to form a three-layer structural board embryo, and then the oriented strand board is made by hot press.
The shape of this particleboard requires a relatively large length and width, and the thickness is slightly thicker than that of ordinary particleboard. Directional paving/forming methods include mechanical orientation and electrostatic orientation. The former is suitable for large shavings oriented paving, while the latter is suitable for small shavings oriented paving. The directional paving of particleboard makes it have the characteristics of high strength in a certain direction, and it is often used instead of plywood as structural materials.
The application of oriented strand board:
Directional particleboard has a more superior and powerful performance than ordinary particleboard and plywood in static bending strength, bearing capacity, stability, deformation resistance, etc., and can also be used for bearing larger, higher strength places, becoming a good substitute for plywood and structural solid wood.
OSB board light weight and high strength, can be used for light steel construction, partition board use, decoration bottom modeling, wooden house construction, box bottom plate, bottom plate, etc. OSB board after high temperature and high pressure treatment, kill the bacteria in the wood, insect eggs, etc., can be used in packaging, transportation and other industries; The selection of formaldehyde-free glue, which does not contain formaldehyde, eliminates the release of harmful substances such as formaldehyde, and can be safely applied to the whole house customization, interior decoration and other fields.
>>>> Specification of the Full OSB Line
Name
Sieving Machine
Sieving capacity
150-200m3/h
Sieve mesh
2
Sieving area
10m2
Name
Drum dryer
Original moisture
less than 80%
End moisture
2%
Heating medium
fume air
Name

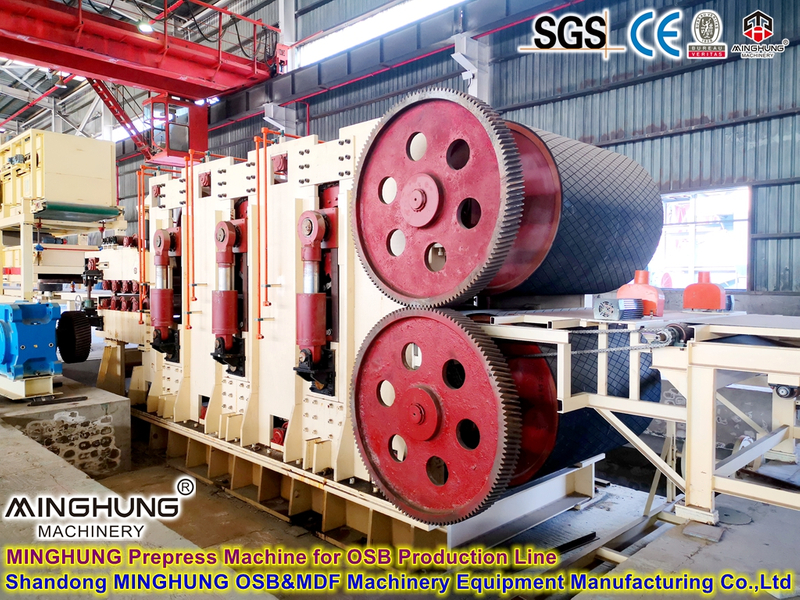

Continuous pre press
Belt width
1500mm
Transmission speed
10-30m/min
Working height
1250mm
Layers
22
Pressure
1200ton
Hot plate size
2650*1680*120mm
Oil cylinder
Dia 400mm*4pcs
Hydraulic system pressure
25Mpa
Heating medium
less than 180℃
Closing time
10s
Note: Specification can be customized according to different requires.
>>>>Loading Pictures of Our Particleboard Machine
>>>>After Sale Service
<1> Machine Installation: We can send engineers go to install machine, degue, and teach your workers
<2> Warranty: 2 years
<3> Factory layout: After machine production start, we can make factory layout for you
<4> If meet problem when operation machine Contact us at the first time, our engineers will help check and solve quickly.
Welcome contact us for more information if you are interested.
