Full Sets Plywood Machine in China
Friends, for save your precious time, please tell me your conditions and requires, i will offer you the suitable plywood machine details for your reference.
Our factory produce the whole sets Plywood Machine, include plywood hot press machine, plywood cold press machine, glue spreader, plywood veneer paving line, plywood edge cutting saw, sanding machine and others. >>>>HOT PRESS MACHINE:
| Product name | Plywood Hot Press Machine |
| Layers | 8 /10 /12 /15 /20 /25 |
| Pressure | 400t /500t /600t /800t /1000t /1200t |
| Cylinder | φ320*2pcs /φ360*2pcs /φ220*6pcs /φ260*6pcs |
| Hot platen size | 2700*1370*42/52/62mm |
| Power | 18.5kw/29.5kw |
| Weight | 33t /48t |
Advantages:
<1> hot press machine frame use thick steel plate, all welding place be grinding finely, make sure machine good quality and beautiful.
<2> The hot platen be processed by large lathe, make the surface is smooth, with sufficient strength and stiffness. Under the high temperature, it will not change its shape, and transfer hear uniformly. This makes the plywood heated evenly, and surface is flat, help you produce good quality plywood.
<3> The oil cylinder is treated with anti-rust, alloy casting, high hardness, scratch resistance, suitable for high-strength operations, and uses a good oil seal to prevent leakage, ensure the pressure in the oil cylinder, and good performance
<4> Hydraulic station is one important part for press machine, Our hydraulic station be designed by our engineer, reasonable design of hydraulic system, save energy, all hydraulic components are arranged reasonably, neatly and beautifully placed, and the components like electromagnetic valve, hydraulic pump all use good one. >>>>COLD PRESS MACHINE:
| Product name | Plywood Cold Press Machine |
| Pressure | 400t /500t /600t |
| Cylinder | φ320*2pcs /φ360*2pcs /φ220*6pcs |
| Power | 18.5kw |
| Weight | 10t /12t |
| Size | 3600*1370*4000mm |
Advantages:
<1> the structure of cold press machine is simple, and easy operate for worker.
<2> the frame of cold press machine uses thick and good one, make sure hydraulic cold press is stable.
<3> The oil cylinder is treated with anti-rust, alloy casting, high hardness, scratch resistance, suitable for high-strength operations, and uses a good oil seal to prevent leakage, ensure the pressure in the oil cylinder, and good performance
<4> Hydraulic station is one important part for press machine, Our hydraulic station be designed by our engineer, reasonable design of hydraulic system, save energy, all hydraulic components are arranged reasonably, neatly and beautifully placed, and the components like electromagnetic valve, hydraulic pump all use good one. >>>>GLUE SPREADER MACHINE:
| Product name | glue spreader |
| Sides | Double sides at the same time |
| Size | 4feet/8feet or customize |
| Diameter of coating roller | φ310 /φ410 |
| Line speed | 20-30m/min |
| Installed capacity | 5.5kw |
| Transmission way | gear &chain transmission |
| Size | 2250*1250*1700mm
3250*1250*1700mm |
Advantages:
<1> Glue spreader's structure is simple, easy operate.
<2> Transmission by gear & chain, fast speed, high efficiency.

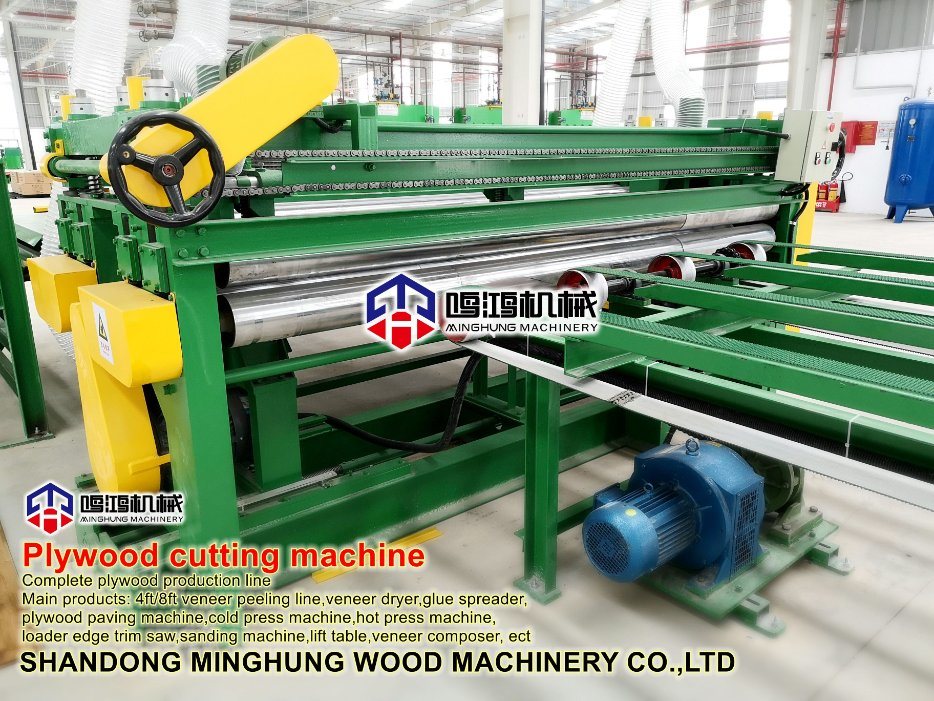

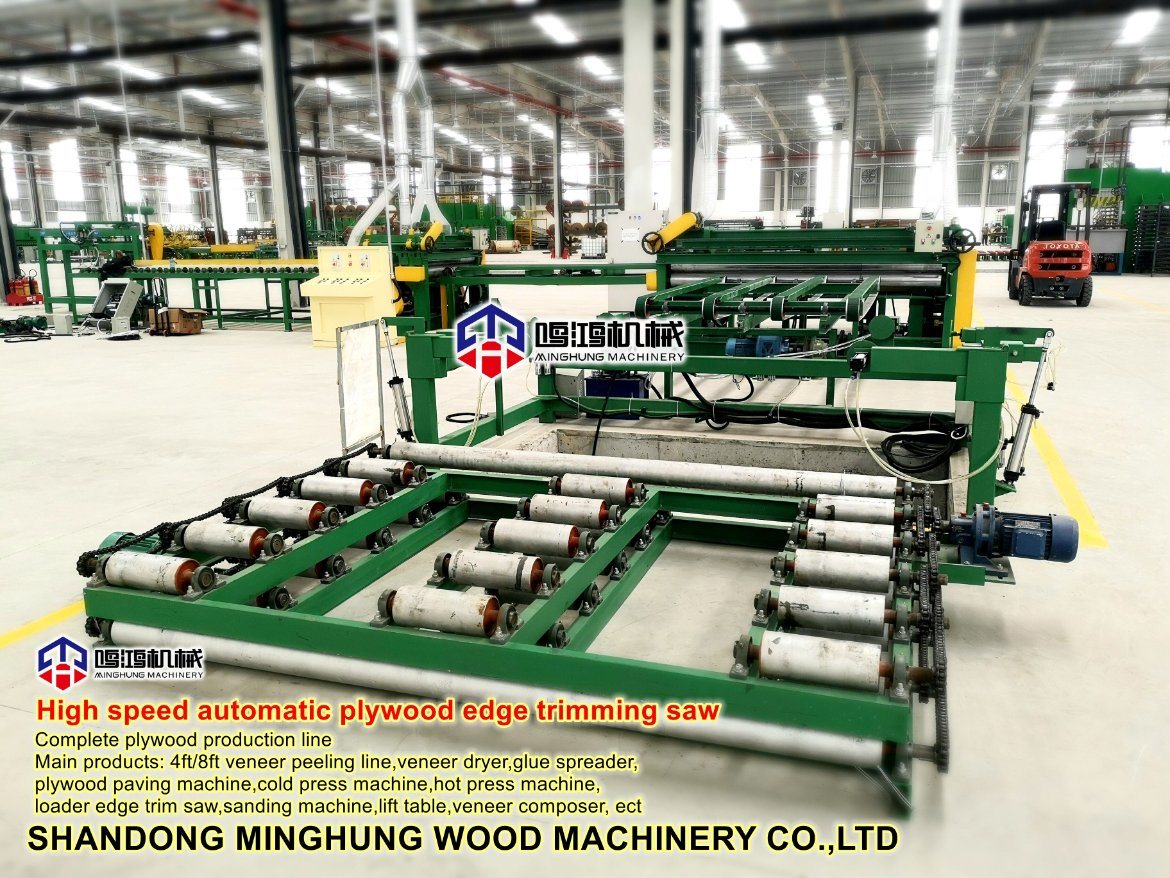

<3> Using good and big diameter roller, good quality >>>>PLYWOOD SAW MACHINE:
| Product name | plywood edge cutting saw |
| size | 4*8feet /3*6feet /customize |
| working speed | 40-70m/min |
| capacity | 8-12pcs/min |
| working style | infrared ray guide |
| feeding way | automatic |
| with one set lift table |
Advantages:
Be controlled by micro-computer, easy operate.
<2> Be positioning by infrared ray, accurate
<3> Be controlled by PLC, automatic cutting.
>>>>DELIVERY:
>>>>ABOUT US:

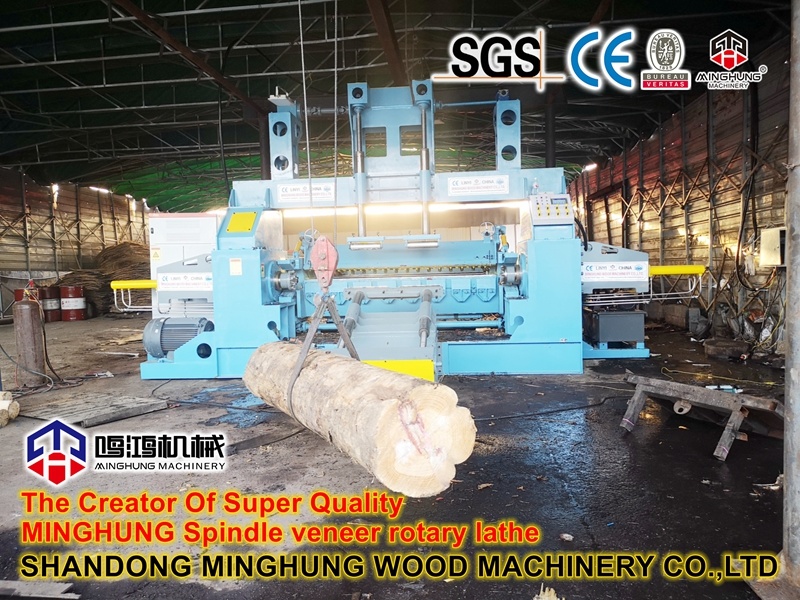

We-Shandong MINGHUNG Wood Machinery is one of the leaders of plywood machine in China, supplies a complete range of machinery, systems and technology for the production of plywood and veneer including wood debarker, veneer peeling machine, vacuum veneer stacker, knife grinder, veneer dryer machine, glue spreader, cold press, hot press machine, plywood saw machine, sanding machine.
Highly qualified personnel and competent management take all the advantages of production and continue developing day by day, the basis of our business is focus on our clients' needs, such position allows us to build long-term partnership with our clients in China and abroad.
We also works closely with a global network of manufacturing partners in order of provide the reliable, good quality and service to our customers.
