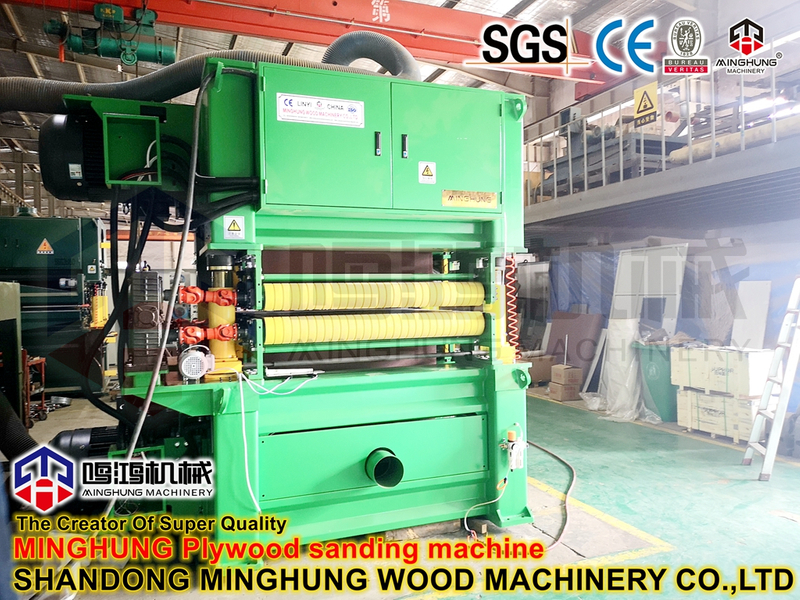

Automatic CNC Plywood Panel Wide Belt Sanding Machine
Basic composition of plywood sander
The machine tool mainly consists of the following parts:
(1). Machine body: responsible for the connection of sanding head, feeding device, lifting device and other machine tool components.
(2). Lifting hand wheel: used for fine-tuning the lifting of the feeding table.
(3). Various power mechanisms: provide the power required by the sanding head, feeding device, lifting device, and brushing device.
(4). Lifting device: The cycloidal pin wheel reducer drives the lead screw in the worm gear reducer to lift up and down through the chain drive, thus completing the lifting of the feeding table supported on the top of the lead screw.
(5). The conveyor bed is composed of driving rollers, driven rollers, support rollers and bed body. The 4Kw reducer adopts frequency conversion speed regulation, and its feeding speed is 6~35m/min.
(6). Upper feeding roller: there are five in total, all of which are driven feeding rollers, which mainly play the role of pressing material. Their position and pressing force directly affect the sanding quality of the workpiece, and must be carefully adjusted.
(7). Brushing roller: used to remove the dust bonded on the surface of the workpiece.
(8). Electrical control box: the electrical components of the machine are assembled in it. Please refer to the attached drawing for the electrical schematic diagram.
.whatsapp: +8618769900191 +8615589105786 +8615805493072
website: www.plywoodmachineline.com
email: minghungmachinery@gmail.com
Sanding machine is the last step for producing plywood, according to different requires, like calibrating thickness accurate and balance, or polishing the surface of plywood are smooth and bright, sanding machine will be different.
Sanding machine has 1 head, 2 heads, 3 heads, light weight and heavy duty, single side and double sides, and different structures.
The function of sanding machine, decides it should be more precise, and our factory has many years experience, advanced technology and speicial produce technique, so we can make sure sanding machine quality good and accurate.
Therefore, please tell us your demands, we will offer the most suitable machine for you.
>>>Parameters:
| product name | sanding machine |
| working width | ≤1300mm /customize like 2000mm |
| working length | ≥700mm |
| working thickness | 5-100mm |
| abrasive belt size | 2620*1330mm |
| speed of dust-collector | 0.6m³/min |
| speed of dust-collector | 25-30m/s |
| volume of dust collector | 12000m³/h |
| weight | 11000kg |
