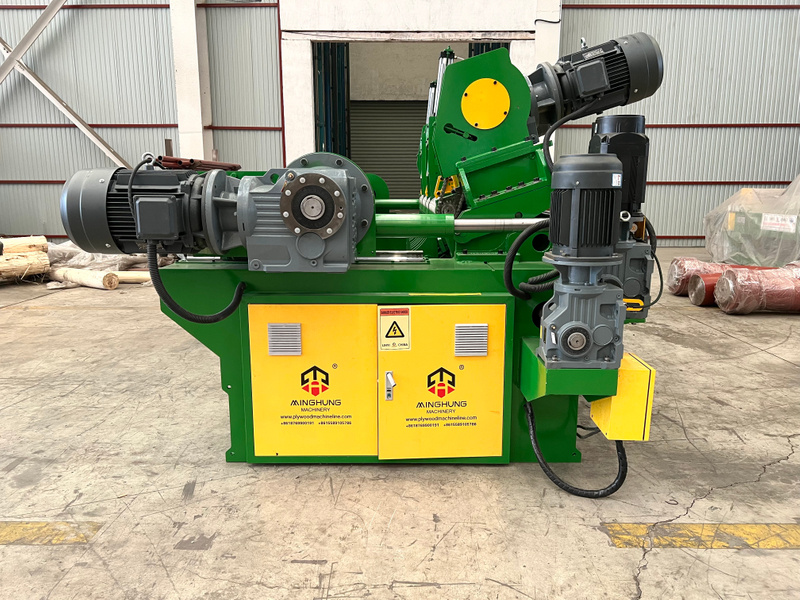

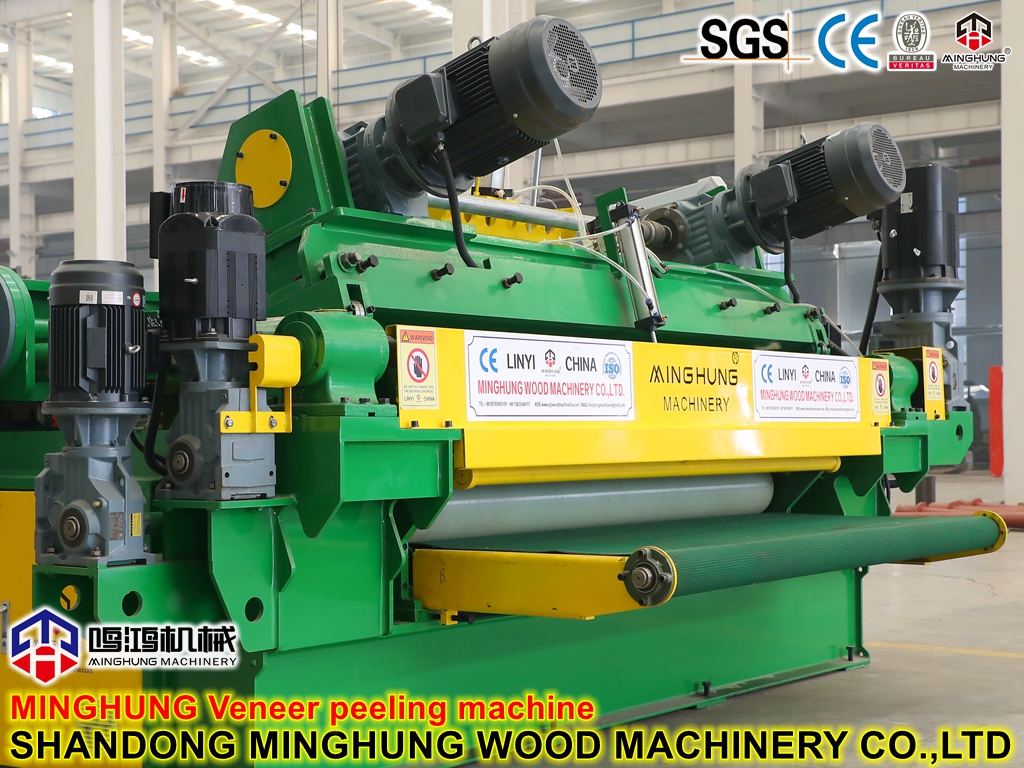

Main Structure Components
1. Frame and Base
Made of high-quality structural steel through welding, offering excellent overall rigidity and vibration resistance to ensure stable operation during high-speed peeling.
The base is precision-machined to guarantee installation accuracy for all moving components.
2. Drive Roller System
Includes drive rollers and pressure rollers, with anti-slip surface treatment to increase friction with the log and prevent slipping.
The drive rollers are powered by high-torque variable frequency motors, with infinitely adjustable speed to accommodate logs of different diameters and wood species.
3. Knife Carriage and Tooling System
The knife carriage is made of high-strength cast iron or cast steel, offering strong rigidity and minimal deformation.
Blades are made of high-quality alloy tool steel or carbide inserts, providing good wear resistance and long service life.
The knife angle can be manually adjusted according to wood species for optimal cutting performance.
4. Automatic Feed System
Consists of a feed motor, precision ball screw, and linear guides.
Works with the CNC system for precise thickness control, with feed resolution up to 0.01mm.
Features overload protection that automatically retracts the knife when encountering hard foreign objects or knots, protecting both tooling and equipment.
5. Control System
Standard configuration is a digital control panel for setting veneer thickness, peeling speed, and real-time display of current peeling status.
The premium version offers a PLC touchscreen control system with functions such as automatic thickness compensation, multiple process parameter storage, and fault self-diagnosis.
6. Output Auxiliary System (Optional)
Can be equipped with an automatic veneer coiling stand or fixed-length cutting device for easier subsequent sorting and stacking, improving overall line automation.
