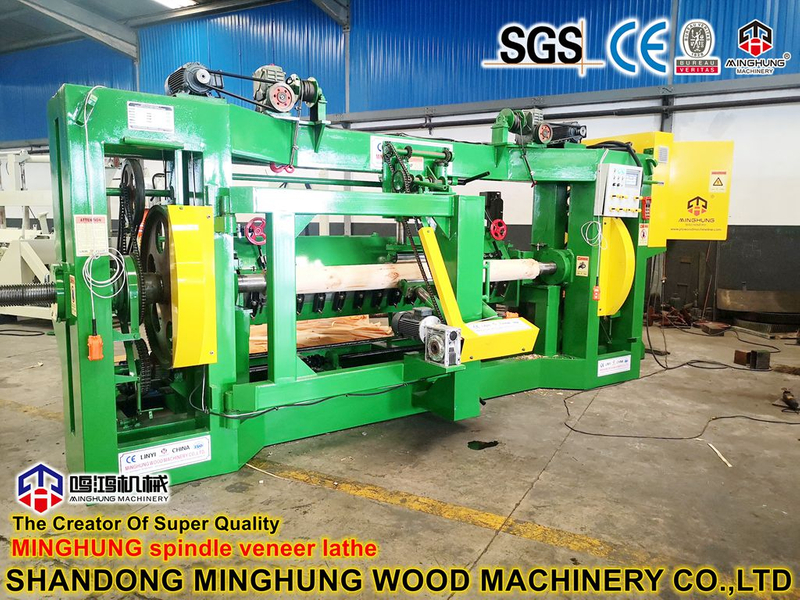

After the log is fixed by the centering device, it is pressed and rotated by hydraulically driven double rollers. The knife carriage feeds toward the log surface under hydraulic action, and the blade continuously peels veneer at a set thickness. Throughout the process, the PLC system monitors log diameter and peeling pressure in real time, automatically adjusting feed speed and knife gap to ensure uniform veneer thickness. Chip control and impact resistance are specially optimized for high-hardness woods.
1. Strong adaptability to high-hardness woods : Reinforced frame and hydraulic system enhance cutting force, suitable for wood with density up to 1000 kg/m³ or higher.

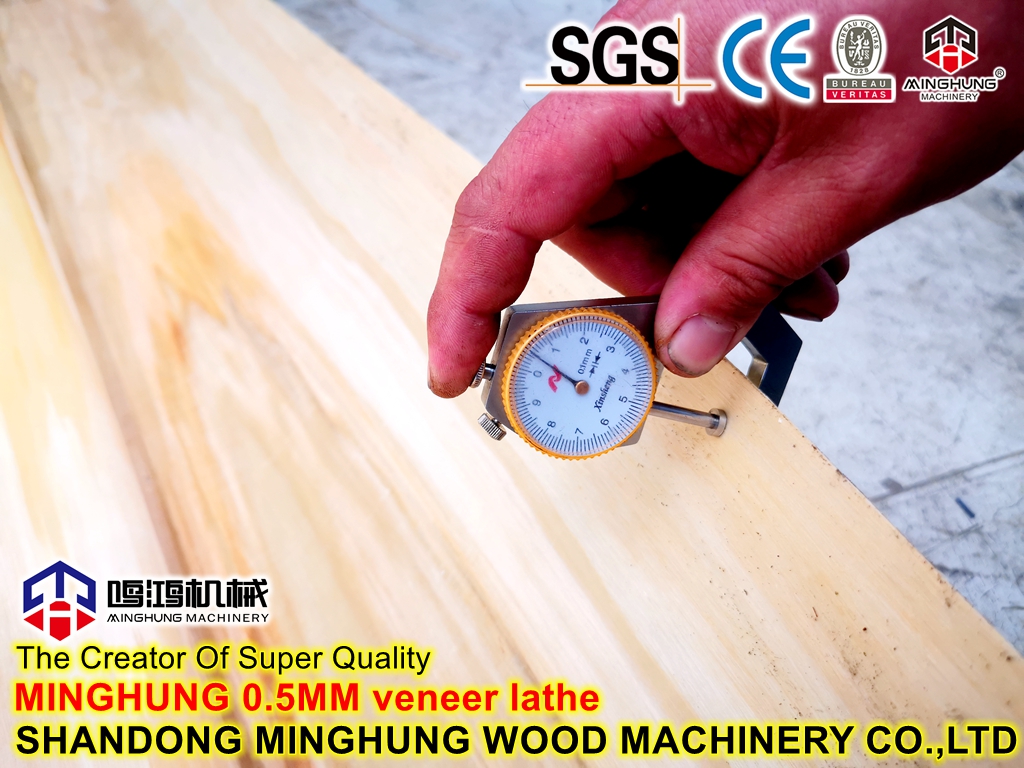

2. Uniform veneer thickness : Hydraulic servo control + high-rigidity knife carriage, thickness tolerance ≤ 0.1mm.
3. High efficiency and energy saving : Hydraulic energy recovery design saves over 20% energy compared to conventional models.
4. Intelligent operation : PLC + touch screen control, one-key parameter recall, reducing reliance on operator experience.
5. High durability : Key components made of alloy steel and wear-resistant materials, extending machine lifespan.
6. Safe and reliable : Multiple hydraulic and electrical interlock protections, complete emergency stop devices.
