3x6 To 5x10 Feet Adjustable Size Plywood Making Machine
The production line integrates complete plywood manufacturing processes including rotary peeling, drying, gluing, lay-up, pre-pressing, hot pressing, trimming, and sanding. With PLC + HMI centralized control system, specification switching is fast and convenient, greatly enhancing production flexibility. It is particularly suitable for customers who need to simultaneously supply conventional construction formwork and special oversized panels such as truck flooring and specialty furniture boards.
Market Background & Product Positioning
The global plywood market shows increasing diversification in product specifications. The construction formwork market commonly adopts the 4×8 ft (1220×2440mm) standard, while furniture manufacturing, truck flooring, and decorative engineering sectors show growing demand for extended-size panels including 3×6 ft (915×1830mm), 4×10 ft (1220×3050mm), and 5×10 ft (1525×3050mm).
Traditional plywood production lines are typically fixed to a single specification, requiring shutdown and modification for specification changes. This product addresses this industry pain point with an adjustable specification design concept, enabling customers to achieve a "one production line, multiple specification products" flexible manufacturing model, significantly reducing equipment investment and operating costs.

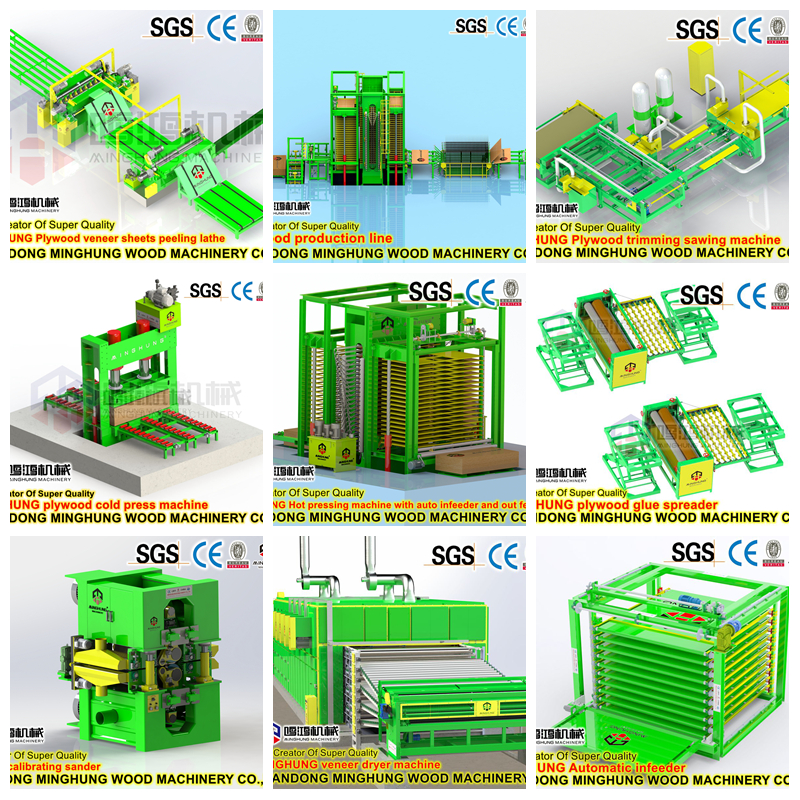

Production Line Composition & Process Flow
1. Raw Material Preparation & Veneer Peeling
Main Process Steps: Log processing and veneer peeling. Logs are first cut into required lengths (e.g., 4 ft or 8 ft billets), then fed into a rotary peeler, which continuously cuts the log into a continuous veneer ribbon at a preset thickness. To ensure peeling quality, logs sometimes require steaming or hot-water soaking for softening, especially for hardwood species.
Main Production Equipment:
Crosscut Saw: Cuts logs into standard-length billets.
Debarker: Removes bark from logs.
Rotary Peeling Machine / Lathe: The core equipment of the line, used to peel logs into continuous veneer ribbons.
log cutting machine
log debarker
log peeling machine
2. Veneer Drying & Conditioning
Main Process Steps: Veneer drying, clipping, and jointing. Freshly peeled veneers have high moisture content and must be dried through dryers to the ideal range of 8%–12%. After drying, veneers are clipped to specification sizes. For large-format panels, narrow veneers must be jointed/spliced into full-width sheets (e.g., 4×8 ft or 5×10 ft).
Main Production Equipment:
Veneer Dryer: Reduces veneer moisture content; available in mesh-belt and roller types.
Clipper / Veneer Jointer / Splicer: Cuts veneers or splices narrow strips into full large-format sheets to meet the 3×6 to 5×10 ft specification range.
veneer dryer
Veneer Jointer
3. Gluing, Lay-up & Pre-pressing
Main Process Steps: Gluing, lay-up, and pre-pressing. Dried and conditioned veneers are coated with adhesive, then laid up in a cross-grain (alternating perpendicular grain direction) symmetrical structure to form a mat. After lay-up, the mat undergoes pre-pressing in a cold press to achieve preliminary bonding and shape stability, facilitating feeding into the subsequent hot press.
Main Production Equipment:

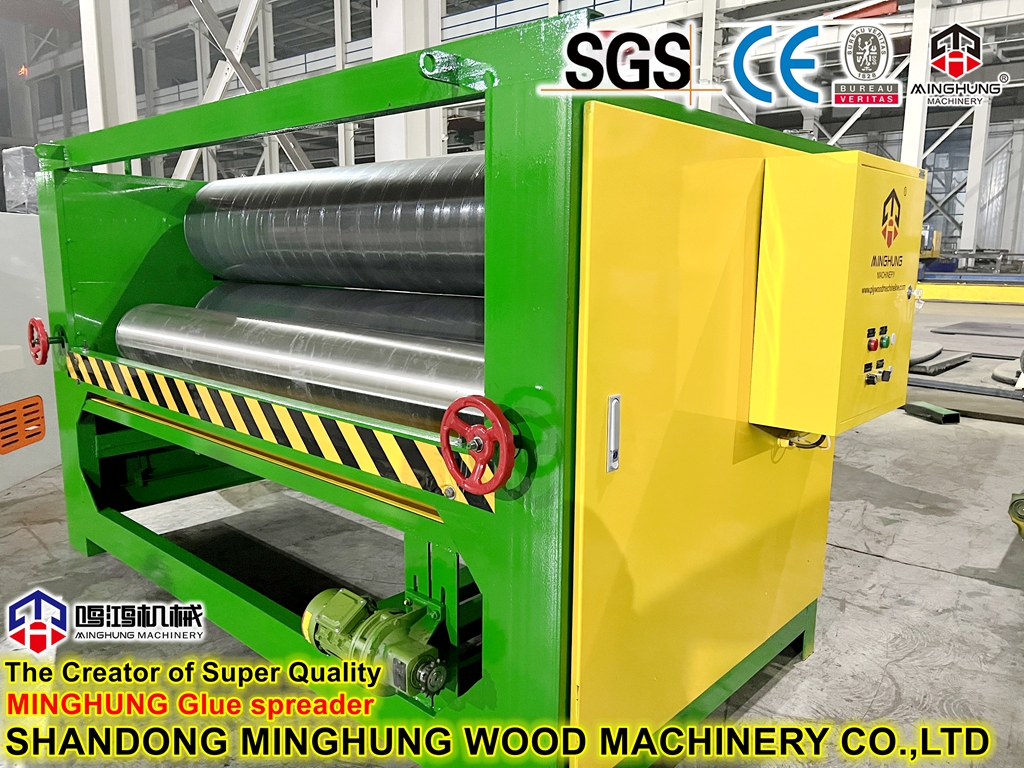

Glue Spreader: Evenly applies adhesive onto veneer surfaces; typically offers double-sided gluing capability.
Lay-up Line: Automatic or semi-automatic cross-grain veneer assembly system, critical for ensuring panel quality.
Cold Press / Pre-press: Applies pressure to the mat at room temperature for preliminary shaping.
glue spreader
cold press
4. Hot Pressing, Trimming & Sanding
Main Process Steps: Hot pressing, edge trimming, and surface finishing. This is the core process determining final panel performance. The mat undergoes hot pressing at high temperature (e.g., 180–220°C) and high pressure (e.g., 20–25MPa) to cure the adhesive and consolidate the panel. After cooling and conditioning, the rough board is trimmed to final dimensions (e.g., 3×6 to 5×10 ft) via crosscut and edge sizing saws, and finally sanded to ensure thickness accuracy and surface smoothness.
Main Production Equipment:

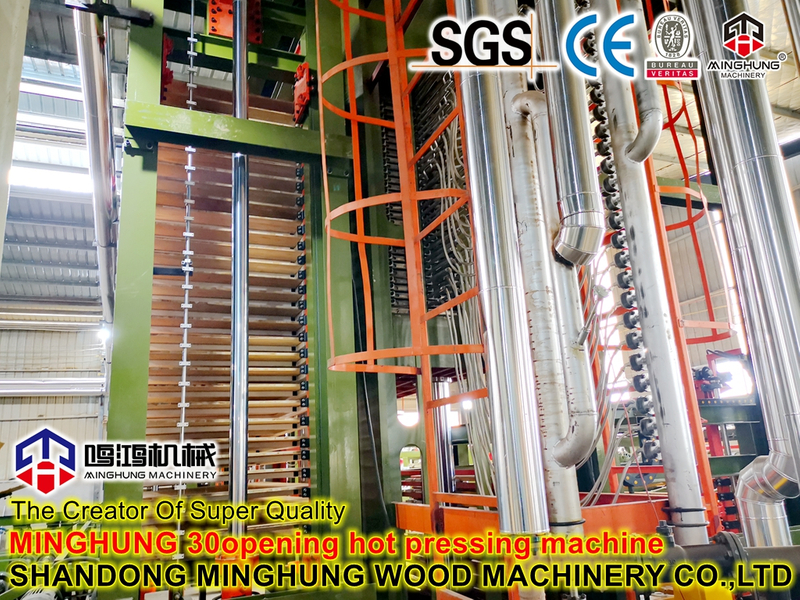

Hot Press: The core equipment of the entire line. For the large-format products you require, the platen dimensions must cover the 5×10 ft specification and incorporate thickness control systems. Professional-grade equipment (e.g., the R7 series) supports 5×10 ft specifications with extremely short press opening times and temperature accuracy of ±2°C.
Edge Trimming / Sizing Saw: Cuts hot-pressed rough panels to precise finished dimensions; equipment specifications must match the product range.
Sanding Machine: Performs thickness calibration and fine surface sanding on trimmed panels, ensuring tolerance ≤±0.2mm.
hot press
edge trimming saw
sander
Technical Specifications
Parameter | Specification |
Adjustable Product Specifications | 3×6 ft (915×1830mm) to 5×10 ft (1525×3050mm) |
Product Thickness Range | 8–40mm (customizable extension) |
Veneer Thickness | 0.5–3.0mm (adjustable) |
Annual Production Capacity | 30,000–100,000 m³ |
Glue Application Rate | 180–220g/m² (double-sided) |
Hot Press Temperature | 180–220°C |
Hot Press Pressure | 20–25MPa |
Hot Press Cycle | 5–20 minutes (depending on thickness & adhesive) |
Finished Product Moisture Content | 6%–12% |
Thickness Tolerance | ≤±0.2mm |
Control System | PLC + HMI touchscreen, supports specification recipe storage |
Specification Adjustment Mechanism
The core technologies enabling flexible specification switching from 3×6 to 5×10 ft on this production line include:
1. Platen Size Adaptability
The hot press platen dimensions are designed for the maximum 5×10 ft specification. Through adjustable thickness limiters and lateral positioning systems, all smaller panel specifications can be accommodated.
2. Adjustable Trimming System
Crosscut and edge trimmer saw positions and cutting strokes are driven by servo motors. For specification changes, simply input the target dimensions on the HMI touchscreen, and the system automatically completes positioning adjustments, with changeover time ≤30 minutes.
3. Lay-up Recipe Storage
The PLC system can store multiple lay-up recipes (layer count, veneer thickness combinations, glue application rate, etc.). Specification changes are executed with one-touch recipe recall, ensuring process parameters match the specification.
4. Sanding Width Adaptability
The sander infeed width is adjustable to accommodate different panel widths, preventing misalignment issues when processing narrow panels on wide sanders.
Applicable Specifications & Applications
Specification | Imperial Size | Metric Size | Typical Applications |
3×6 ft | 3'×6' | 915×1830mm | Small furniture panels, decorative panels, packaging |
4×8 ft | 4'×8' | 1220×2440mm | Construction formwork, general furniture panels (standard) |
4×10 ft | 4'×10' | 1220×3050mm | Extended furniture components, truck flooring |
5×10 ft | 5'×10' | 1525×3050mm | Specialty truck panels, large decorative panels, wide formwork |
The production line can also produce multiple thickness products within 8–40mm range, with core material options including poplar, eucalyptus, birch, pine, and mixed cores.
Key Competitive Advantages
1. Flexible Manufacturing Capability
One production line covers the full specification range from 3×6 to 5×10 ft, eliminating the need to purchase multiple fixed-specification lines, significantly reducing equipment investment. Rapid specification switching helps customers flexibly respond to diversified order demands.
2. Large Format Processing Capability
Supports oversized panel production up to 5×10 ft, meeting high-end market demands such as specialty truck flooring and large decorative panels, expanding customer product lines and enhancing profitability.
3. High Level of Automation
PLC + HMI centralized control system with one-touch specification recipe switching reduces manual adjustment time and error probability. Can interface with MES systems for production data management.
4. Product Quality Assurance
Referencing international advanced press technology, the hot press achieves high temperature uniformity (accuracy ±2°C) with no cold zones, ensuring consistent panel quality across the entire board. Precise thickness control minimizes sanding losses.
5. Flexible Customization
Customized configurations available based on customer site conditions, raw material characteristics, and target markets, including production capacity, automation level, and environmental standards.
Services & Support
Preliminary Consultation: Market analysis, specification positioning, ROI assessment
Customized Design: Tailored line solutions based on site, raw materials, and target markets
Equipment Manufacturing: Strict quality control, on-time delivery
Installation & Commissioning: Professional team for on-site installation, commissioning, and trial production
Personnel Training: Comprehensive training on operations, maintenance, and specification switching
After-Sales Service: Spare parts supply, remote diagnostics, regular inspections, specification expansion support
Process Support: Process parameter optimization services for different specification products
Why choose us?
We are not only equipment suppliers, but also your reliable business partners. We offer a turnkey solution covering factory planning, equipment installation, commissioning, personnel training and after-sales support. Choosing us means choosing quality, innovation and continuous support.
