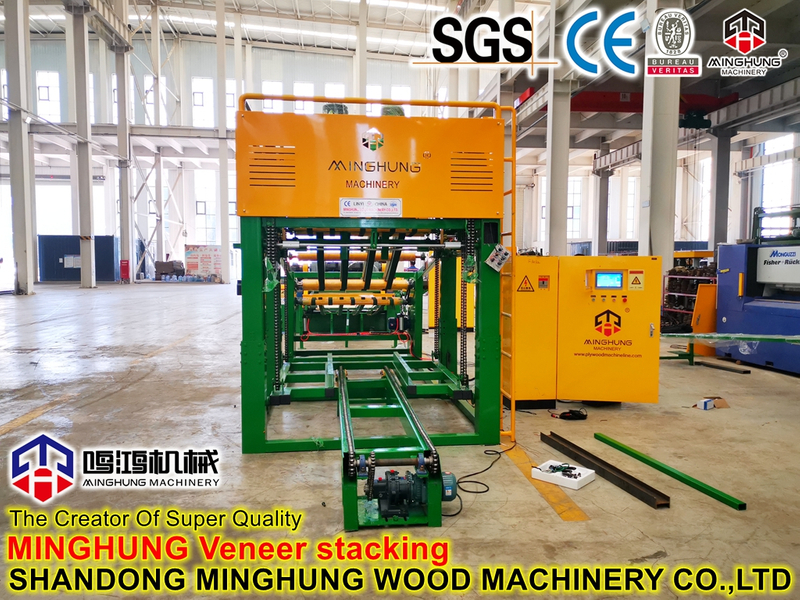

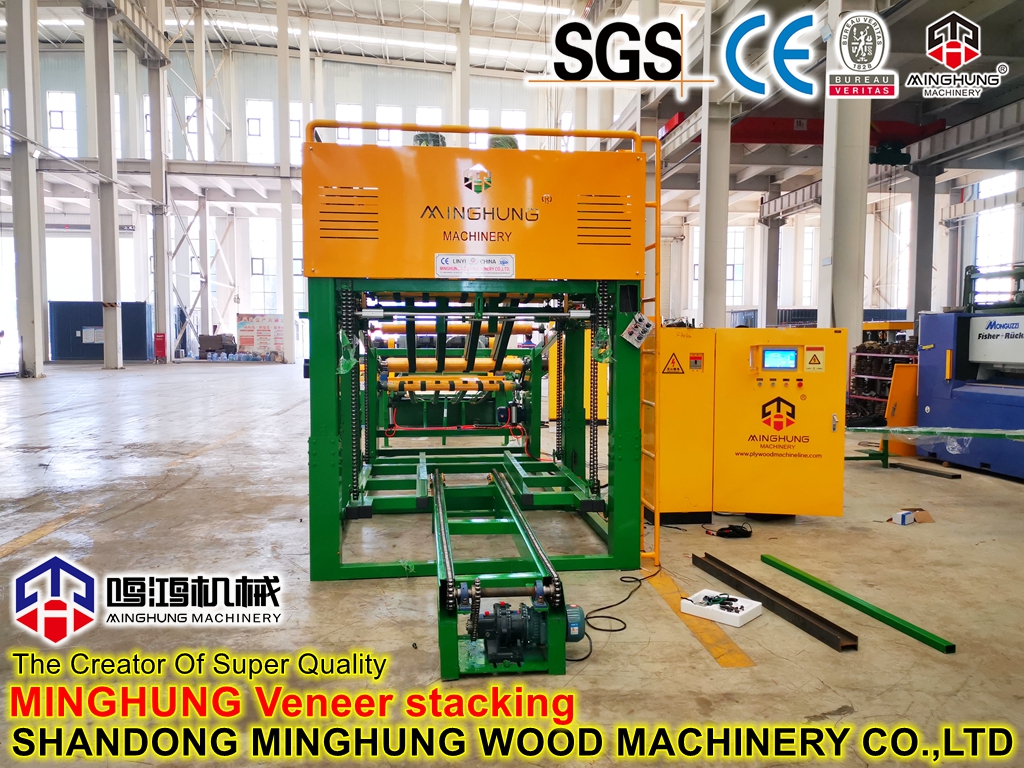

The 1270mm Veneer Stacker is installed at the output end of the rotary peeler and connected via a conveyor belt. Veneer sheets produced by the peeler enter the stacker working area through the conveyor. When photoelectric sensors detect a veneer sheet in position, the control system activates the vacuum suction system. The suction cups lift the veneer and transfer it to the stacking station, where it is neatly placed according to the preset number of layers. Once stacking is complete, the equipment signals for transfer. The entire process is controlled by PLC, enabling fully automatic operation.

Fully Automatic Operation: PLC control system with HMI, easy parameter setting, automatic operation with one-touch start, no manual intervention required

High Production Efficiency: Operating speed up to 100m/min, perfectly matching the output of high-speed rotary peelers and eliminating production bottlenecks

Vacuum Suction Damage-Free Handling: Uses vacuum suction to grip veneer sheets without damaging the surface, ensuring finished product quality

Intelligent Sorting: Supports 2-grade sorting, automatically separating quality veneers from waste with higher accuracy than manual sorting

Labor Savings: One machine replaces at least 2 stacking workers, providing fast return on investment

Vacuum Suction System: Includes vacuum pump, suction cups and pipelines for gripping and releasing veneers

Traversing Mechanism: Servo motor-driven, positions the suction cup frame horizontally

Lifting Mechanism: Controls smooth lifting and lowering of the suction cup frame for pick-up and placement

Conveying System: Includes infeed conveyor belt and pallet roller conveyor for moving veneers and pallets

Electrical Control System: PLC, touch screen HMI and various sensors for fully automatic operation
