Hydraulically driven drum debarker with capacity of 50-100 tons/hour

Automatic knife wear compensation system with service life exceeding 2000 hours

Integrated impurity separation device with bark removal rate ≥95%

Compatible with various hardwood materials with diameters of 100-500mm

Large ring-type longwood flaker with power of 355-560kW

Special alloy knife disc with blade life of 800-1200 hours

Strand specifications: length 100-120mm, width 20-50mm, thickness 0.5-0.8mm

Hydraulic drive system with capacity of 30-50 bone dry tons/hour

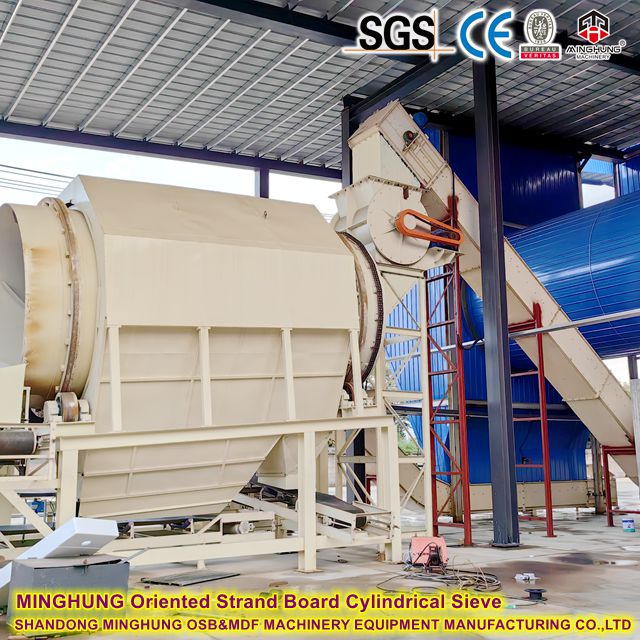

Three-stage vibrating screening device:

  First stage: Remove oversized fragments (>120mm)

  Second stage: Separate qualified strands

  Third stage: Screen out fine particles (<20mm)

Cyclone separator for metal impurity removal

Automatic return system for reprocessing non-conforming materials

Hammer mill refiner with power of 132-200kW

Adjustable screen aperture for output size control

Hydraulic opening device for easy maintenance

Disc grinder for precise thickness adjustment of strands

Digital thickness control system with accuracy of ±0.05mm

Automatic knife sharpening system maintains blade sharpness

Counter-flow washing tank for sediment removal

Water recycling system for water conservation

Centrifugal dewatering machine controls moisture content at 40-45%

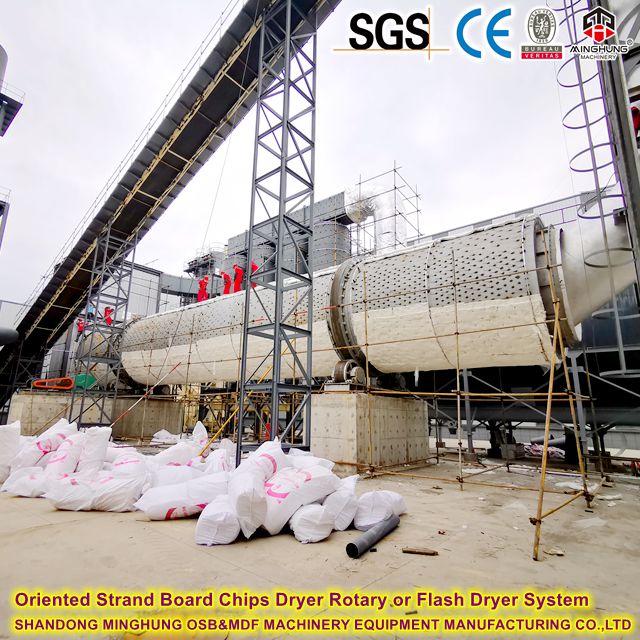

Three-pass rotary dryer with capacity of 8-12 tons/hour

Adjustable hot air temperature range: 150-350℃

Precise humidity control system, final moisture content 2-3%

Dual fuel system (gas/biomass)

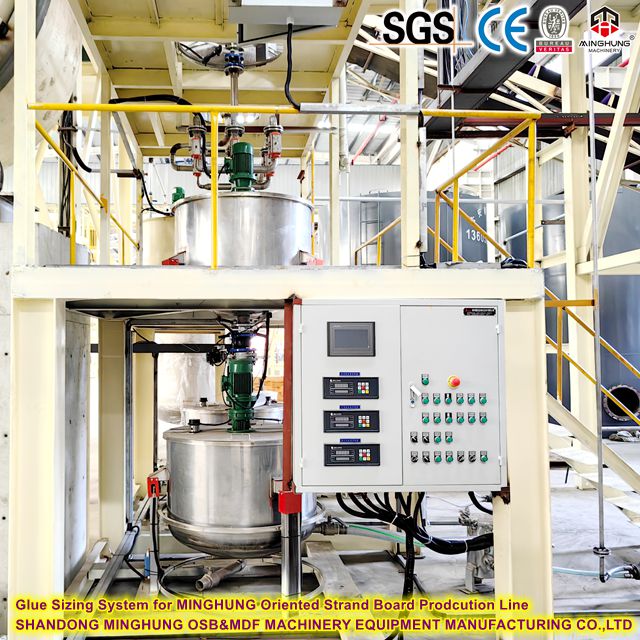

High-pressure atomization system with droplet size of 20-50μm

Four-nozzle rotary application device with coverage uniformity ≥98%

Precise glue consumption control system with error <±1.5%

Dual system configuration for phenolic resin/MDI adhesive

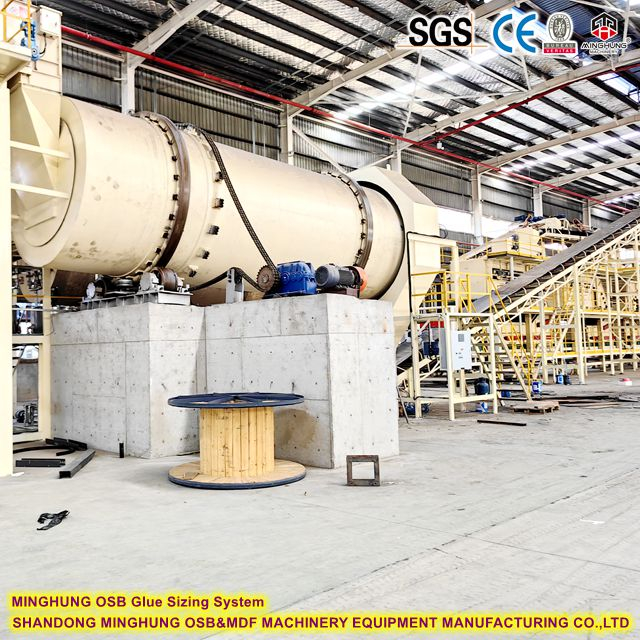

Dual-shaft differential mixer with power of 75-110kW

Mixing uniformity ≥99%

Variable frequency speed control for different production needs

Stainless steel lining with corrosion-resistant design

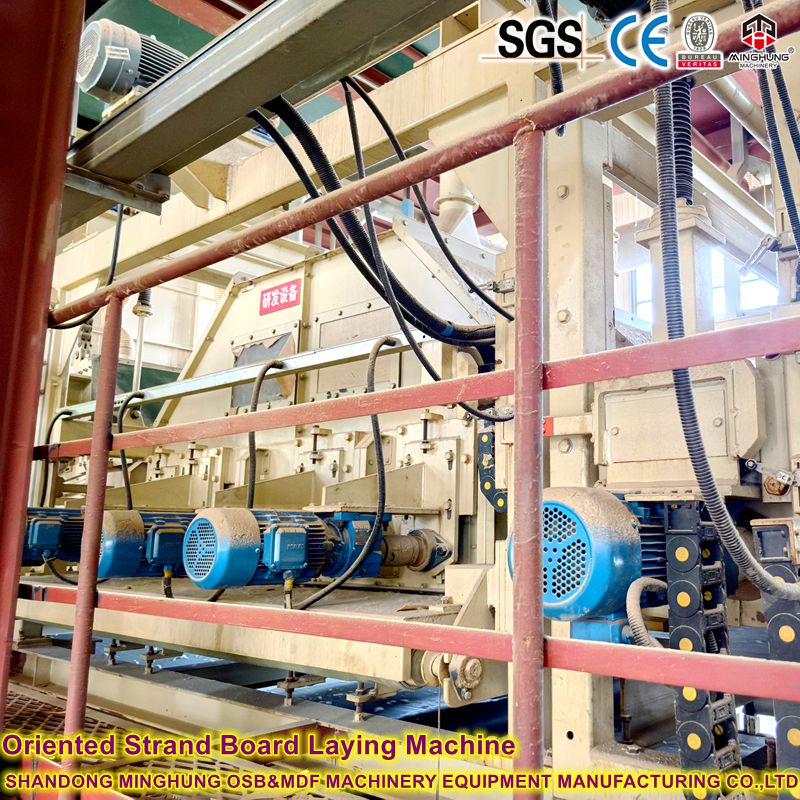

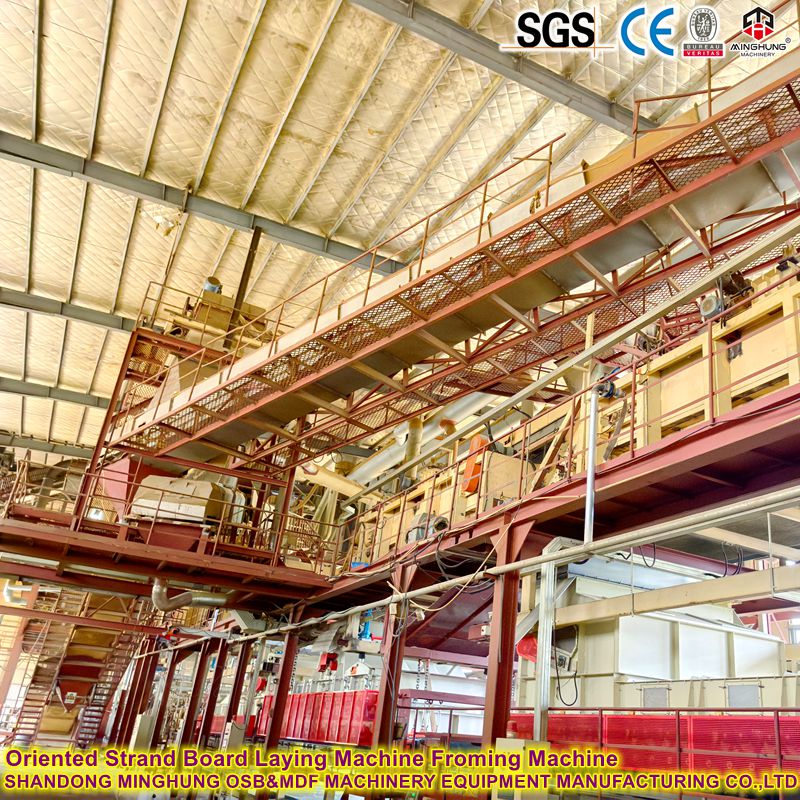

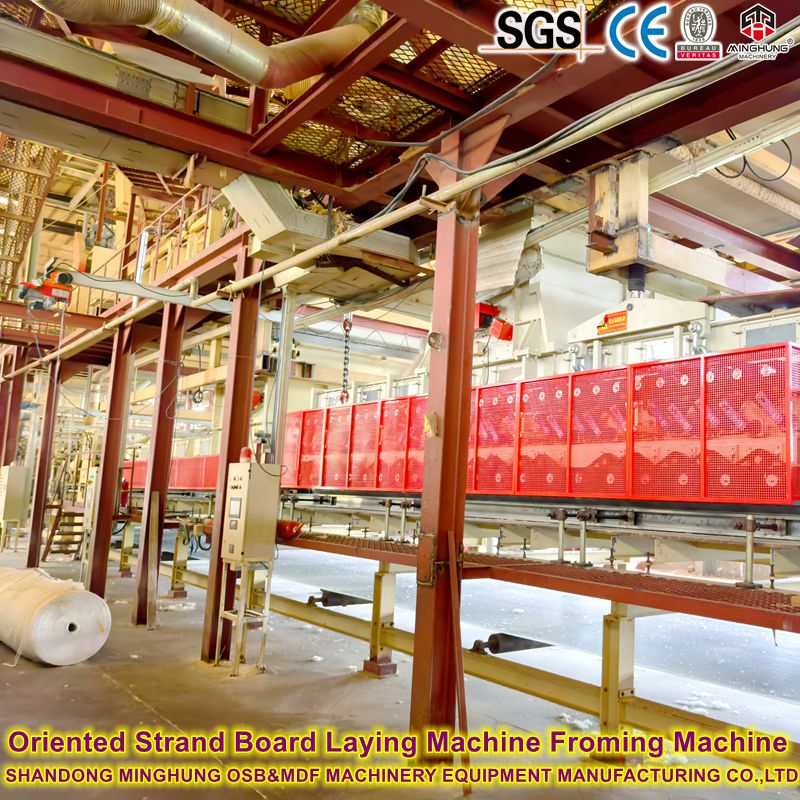

Mechanical oriented former with forming accuracy ±5%

8 forming heads for 3-5 layer structure formation

Online density detector for real-time monitoring of forming uniformity

Adjustable forming speed range: 10-30m/min

Continuous belt pre-press with pressure range 0.5-2.0MPa

Pre-press density control accuracy ±3%

Automatic deviation correction ensures mat alignment

Hydraulic system pressure stability ±0.1MPa

15-25 opening hot press with total pressure 2000-3000 tons

Hot plate size 1450x2750mm to 1450x5500mm

Temperature control accuracy ±1℃, pressure control accuracy ±0.5%

Fast closing system with closing time <30 seconds

Rotary cooling rack with capacity 300m³/day

Forced air cooling system with cooling time 20-30 minutes

Temperature uniformity ±2℃

Automatic stacking device with stacking accuracy ±1mm

Double-end trimming saw with cutting accuracy ±0.3mm

Cross-cutting and panel saw with maximum processing size 1300x5000mm

Servo drive system with positioning accuracy ±0.1mm

Automatic dust removal device maintains clean working environment

Six-head wide belt sander with sanding accuracy ±0.1mm

Automatic belt tracking system increases service life by 30%

Power 200-300kW with production capacity 50-80 sheets/hour

Digital thickness control system for real-time sanding adjustment

Robotic automatic stacking system with stacking height 1.2-1.5m

Automatic film wrapping machine with packaging speed 10-15 pallets/hour

Weight detection system with accuracy ±0.5kg

Automatic labeling machine with traceability system

10-30MW thermal output meets entire line requirements

Capable of utilizing wood waste, bark and other biomass fuels

Flue gas treatment system meets EU emission standards

Thermal efficiency ≥85%

Centralized dust collection system with air volume 200,000m³/h

Baghouse dust collector with efficiency ≥99.9%

Automatic dust packing system reduces manual operation

Noise control <85dB

Siemens S7-1500 PLC control system

Industrial Ethernet communication with real-time data acquisition

Remote monitoring and maintenance function

Production data management system with real-time OEE display
