Waterproof Film Faced Plywood Machine Hot Press-Hydraulic Laminated Plywood Press Machines-Linyi MINGHUNG
You are here: Home » Plywood Machine Series » Film faced hot pressing » Waterproof Film Faced Plywood Machine Hot Press-Hydraulic Laminated Plywood Press Machines-Linyi MINGHUNG

PRODUCT CATEGORY

Waterproof Film Faced Plywood Machine Hot Press-Hydraulic Laminated Plywood Press Machines-Linyi MINGHUNG

Film kağıdını kontrplak yüzeyine lamine etmek, film kaplı kontrplak, inşaat kontrplağı yapmak için film sıcak presi
Availability:
Quantity:
sharethis sharing button
  • MH-HP

  • MINGHUNG

  • 847930

  • Qingdao port

  • 70-80PCS//H

  • T/T, L/C

  • 1 year

  • Semi automatic

  • 1 year

  • Film Kaplı Kontrplak Sıcak Pres Makinesi

  • making Film faced plywood

Waterproof Film Faced Plywood Machine Hot Press-Hydraulic Laminated Plywood Press Machines


01 END PRODUCTS

Melamine impregnated film paper veneer wood-based panel machineChina Minghung Film Faced Hot Press Machine non-slip plywood from MINGHUNG Machinebuilding formwork

02 Product Description

Film laminating hot press machine is one important machine for laminating film paper on plywood surface, for making Film faced plywood /Construction plywood

Usually we advise equipped with Semi auto loader for your hot press machine, thus you can laminating two sides of plywood at the same time. improve production capacity.

For film hot press machine, actually it is the plywood hot press machine withh stainless steel plate and crash pad, so you can do laminating

Consider the film paper feature, we not advise the hot press machine with many layers. usually we advise 10 layers film hot press with semi auto loader, or as you want, you can choose 8 layers, 6 layers

Model MH-HP10
Numbers of Plate 10Layers
Pressure 800ton
Steel Plate Thickness 30mm*4pcs
Hot Plate Size 2700*1370*52mm
Closing Time 15s
Total Power 51.5kw
Weight 45000kgs
Size 3600*1370*4400mm

03 Product Display

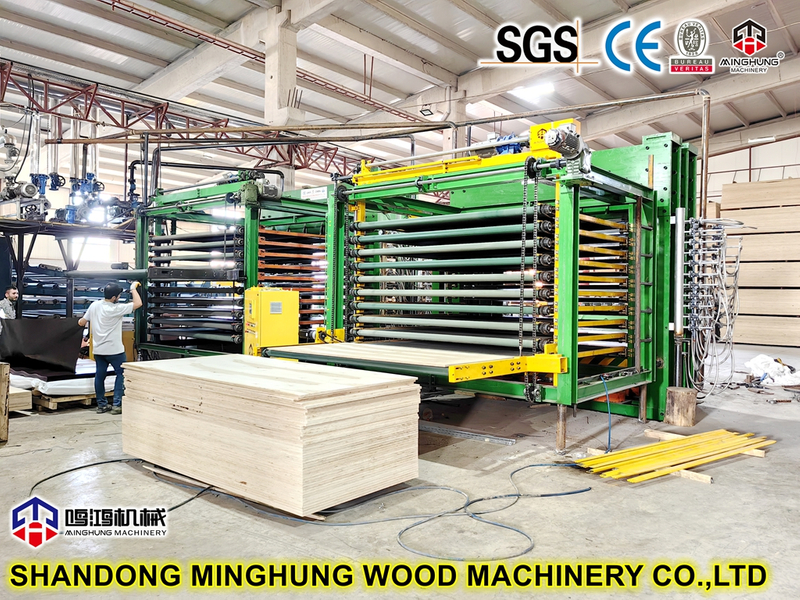

10 layers laminating hot press machinemelamine laminating hot press machinelamination hot press machine lamination hot press for film faced plywoodlaminating press machinelaminating hot press machine

04 Detachable Components

stainless steel plate


304 stainless steel plate

Each hot platens will with 2pcs stainless steel plates

Crash pad for hot press

Crash pad

Each hot platens will with 2pcs crash pad

honeycomb stainless steel plate


Hexa stainless steel plate

If you want to make Anti-slip plywood, then you need special stainless steel plate as picture show.


05 Details of our Film hot press

strong film hot press with 6pcs oil cylinders

Oil cylinders

Our film hot press machine with 6pcs oil cylinde rs and 2pcs fast oil cylinders, ensure machine much powerful for pressing laminating plywood

Film hot press with semi auto loader

Great electric box

Our Semi auto loader for film hot press machine with great electric box and electric parts which are Siemens brand. Ensure all of them works very well

Semi-Auto Infeeder for hot press

Good accessories of Semi auto loader

Our semi auto loader for film hot press is heavy and strong, it with kinds of good quality spare parts and accessories, to ensure it works well

hot press oil station

Hydraulic station

Good designed hydraulic station with Siemens brand motors

So choose our laminating hot press machine, no need worry its quality, we promise that it will works very well and help you produce good quality plywood.


06 Company Profile

We as China professional and famous factory of the whole line of Plywood making machines and Veneer lathe, we can offer all machines for you to make plywood board and wood veneer.

Machine such as Veneer peeling line, Veneer drying line, Veneer joint machine, Veneer patcher, Glue mixing machine, Glue spreading machine, Pre-press machine, Hot press machine, Film hot press machine, Plywood trimming machine, Calibrating machine and Sanding machine, Plywood turnover machine, Lift table, and so on

And each machine can be different specification as  different clients conditions and requires. After know your own requires, we can offer the good quality plywood machinery for you.

China Minghung Plywood Production Line Shandong OSB MDF HDF Chipboard Melamine Lamination Machines 1China Minghung Plywood Machine osb mdf manufacturing plant 7-31Shandong Minghung OSB MDF Machinery Manufacturing Plant

Export Strength: Until now MINGHUNG machine has joined different countries fair and got good feedback, we have exported our woodworking machines to more than 20 countries.

Many clients choose to buy from us again and again, because they are satisfied of our machine quality. This also encourage us to continue and insist make our machine good

CE: We have the CE for all of our machines. So when you do custom clearance and need it, no problem
