01 PRODUCT DESCRIPTION

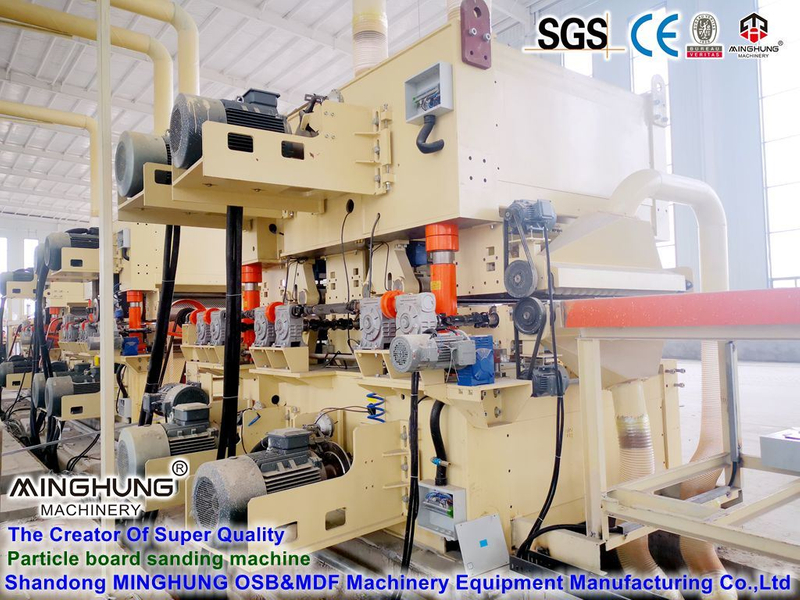

INTRODUTION&STRUCTURE: This is double sides sanding machine with two sanding heads, for making particle board, osb board, and mdf board. Usually the sanding machine will not be one set, and each set has different function, some sanding machine for rough sanding, some for fine sanding, so usually you need the full sanding line, to make your wood based panel board good quality.
TYPES FOR CHOOSE: Sanding machine can be different specification, it can be double sides, also can be single side; it can be different sanding heads.
02 PRODUCT FEATURES
1. Multi-stage Sanding System: Sanding machines typically feature multiple sanding heads or sanding belts, allowing for progressive sanding from coarse to fine, ensuring the board surface is even and smooth.
2. Variable Frequency Drive Technology: Variable frequency drives control the motor speed of the sanding machine, making the sanding belt speed adjustable to suit different materials and sanding requirements.
3.Numerical Control Technology: Modern sanding machines are equipped with numerical control systems that precisely control sanding parameters such as belt speed, sanding pressure, and feed speed.
4. Tensioning and Tracking Systems: The belt tensioning system ensures the sanding belt maintains proper tension during operation, preventing slipping or breakage.
5. Automatic Thickness Measurement and Adjustment: Equipped with thickness measurement sensors, these machines detect the board thickness in real time and automatically adjust the sanding head position to ensure uniform thickness after sanding.
6. Automatic Loading and Unloading System: Automated loading and unloading systems reduce manual handling, increasing production efficiency.
03 PRODUCT PARAMETERS
| Sanding width | 1300mm |
| Thickness | 3-50mm |
| Max infeeding speed | 90m/min |
| Line speed | 33m/s |
| Mainly motor | 90kw*2pcs |
| Dust collector | 16000m3/h |
04 LOADING PICTURES
DELIBERY WARRANTY:
<1> Before Order ship, our engineer will test machine make sure it is in good condition.
<2> When loading, we will share pictures with you.
<3> After ship leaving, we will offer container and ship information for your reference.
<4> Offer all documents for you do custom clearance.
05 COMPANY PROFILE
MINGHUNG MACHINE,was founded in 1998, located in Linyi city, Shandong Province China, commit to provide the full sets of Plywood production line. Minghung Wood machinery, Minghung trade, Jianzhong trade, Hungyou Intelligent Equipment Industry Research, belong to us.
With more than 20 years production experience, and adhere to continuous innovation and improvement, with specialized R&D center, obtained a number of research and development patents, with experienced technians and engineers, and professional sales team and after-sales team, We have beome one China's high-end plywood machinery manufacturing enterprise.
We can provide Veneer production line, Veneer drying line, Core veneer composing line, Plywood assembly line, Veneer patching machine, Glue machine, Cold press machine, Hot press machine, Film faced hot press machine, Plywood edge trimming machine, Sanding machine, Plywood panel turnover machine, Lift table and so on for you.
06 WHY CHOOSE US
Our principle is "Make customers satisfied and Create greater value for customers".
Welcome contact us for more information
