Roll Type Veneer Dryer Machine for Drying Wood Veneer

Roll Type Veneer Dryer Machine for Drying Wood Veneer

Quantity:
Availability:





Inquire Add to Basket

Product Description

Roll Type Veneer Dryer Machine for Drying Wood Veneer

Veneer drying
Veneer drying is very important for the production of plywood. After wood is produced into veneer through veneer lathe, the moisture content is 50-70%. Plywood production requires veneer moisture content of 8-%14. The moisture content of veneer is greater than %14, which brings negative The influences are: 1. It will increase the hot pressing time of the plywood blank in the hot press. The heating of the hot press is heated by a steam boiler or a heat transfer oil boiler. If the hot pressing time is increased, it is equivalent to an increase in heat loss. 2. If the moisture content is higher than %14, the veneer after glue spreading will seep out of glue during the hot pressing process, causing the plywood to crack. 3. If the moisture content of the veneer is 14%, the plywood blank needs to be dehumidified several times during the hot pressing process to remove the moisture inside the plywood blank. If the temperature is not properly controlled, there will be air bubbles in the semi-finished plywood, which will crack and cause the plywood to be scrapped.

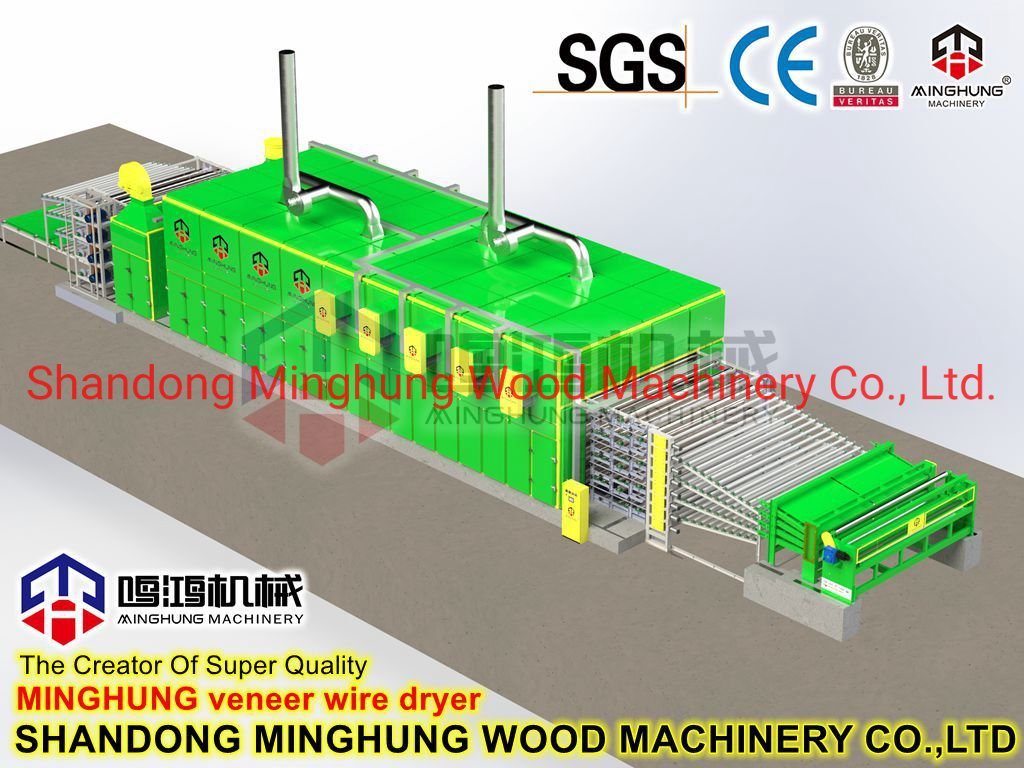

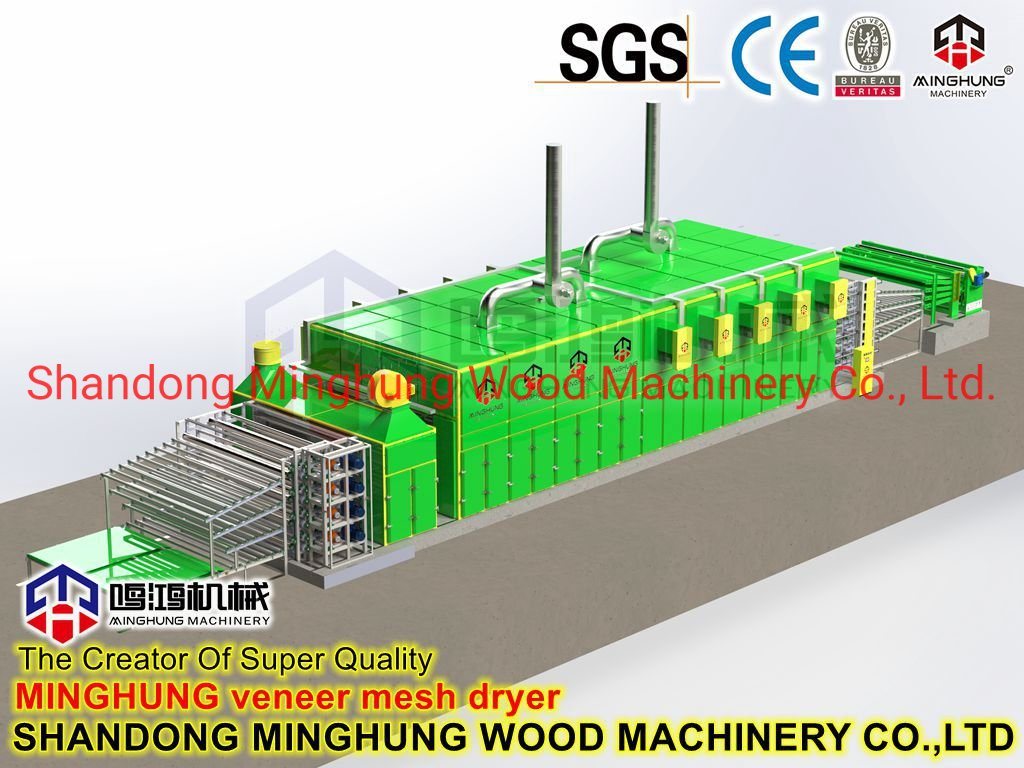

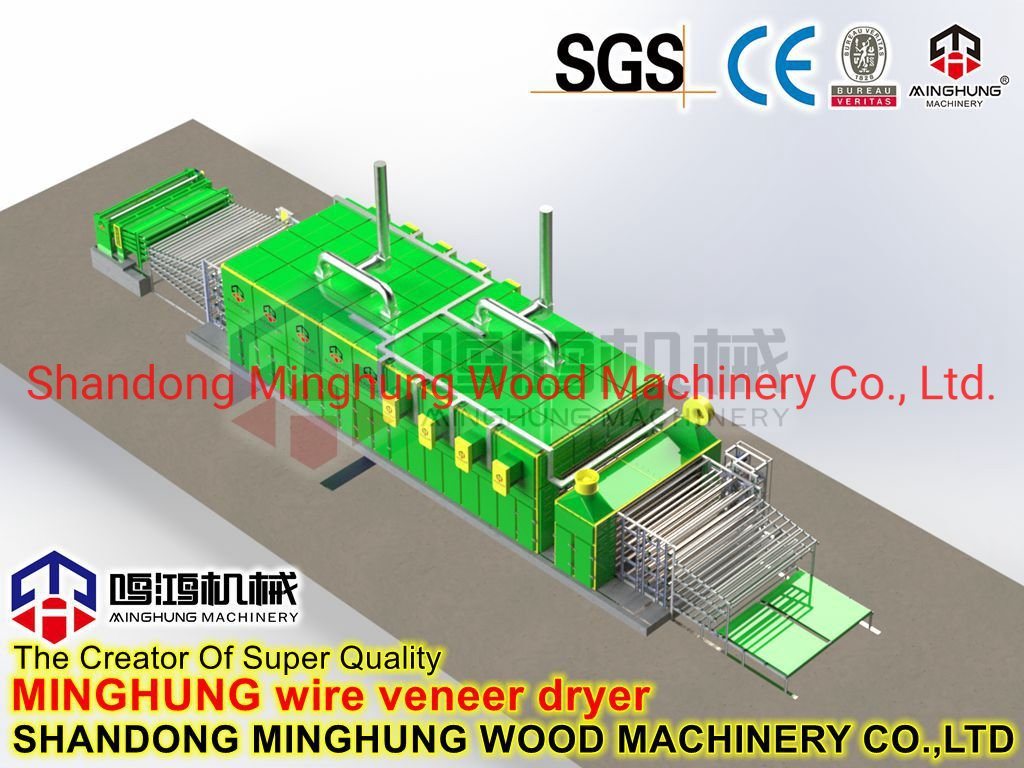

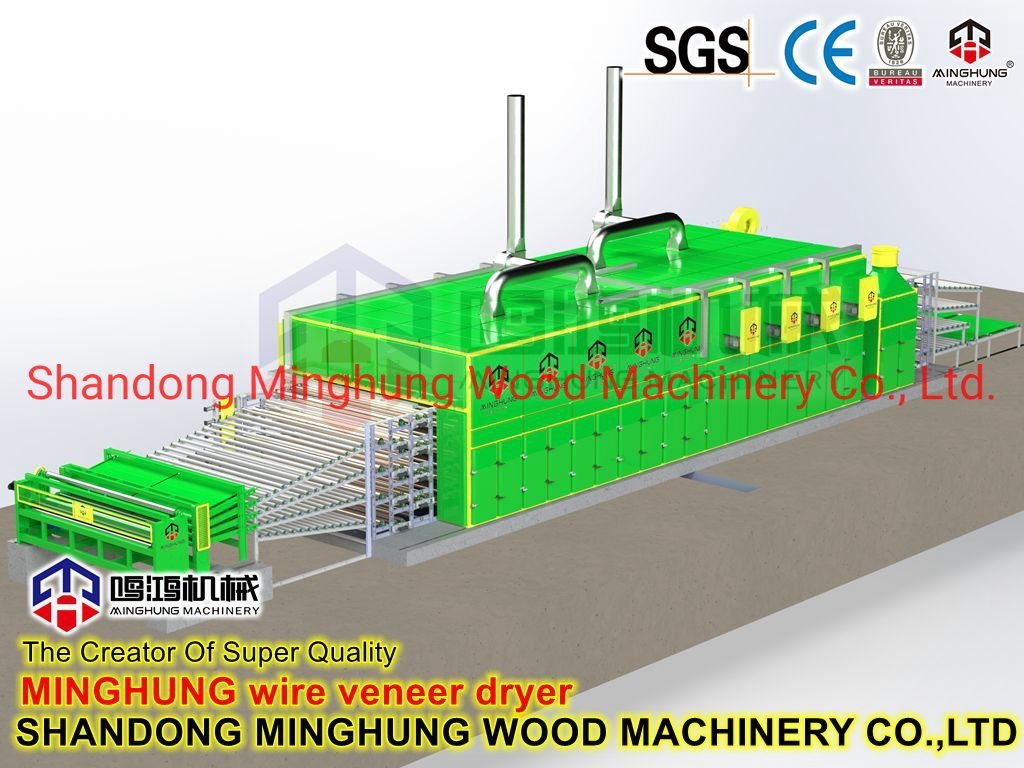

MINGHUNG veneer drying effectively solves the problem of veneer drying, veneer drying, according to the density of different veneers, the customer's different veneer output, the factors of purchasing cost, MINGHUNG has developed a variety of veneer drying types MH-RD40L,MH-RD304HL / MH-2830L / MH-MD3618 : roller veneer drying, wire veneer drying, mesh veneer drying, press drying, square tube veneer drying, Hollow veneer drying, ect specialized in research on saving energy, energy consumption and improving production efficiency of veneer drying.
The veneers move through the drying machine in several layers along rollers, as the machine's name indicates. The target moisture level after drying is around 6-7% which is precisely the right moisture level for gluing veneer.
A sufficient drying temperature is 145-160ºC and the veneers pass through the machine in about six minutes. Drying conditions and the moisture of the veneers are monitored continuously to make sure that the drying quality remains even.
Usually, the original moisture is 70-80%, after drying, the moisture is about 10%

>>>Parameters:
The dryer machine-Roller dryer, can be different layers, length and width, so we usually offer and produce according to your production capacity required.


Name	Roller dryer
Model	MH-RD2830L
Heating mode	Steam/Oil
Veneer thickness	1-3mm
Transport mode	Roller press mode
Speed	Speed adjustable
Number of layers	2 layers/3layers/4layers
Length of hot wind area	20m/26m/30m
Peoduction capacity	10-20m³/day, 20-30m³/day, more

>>>Main Parts:

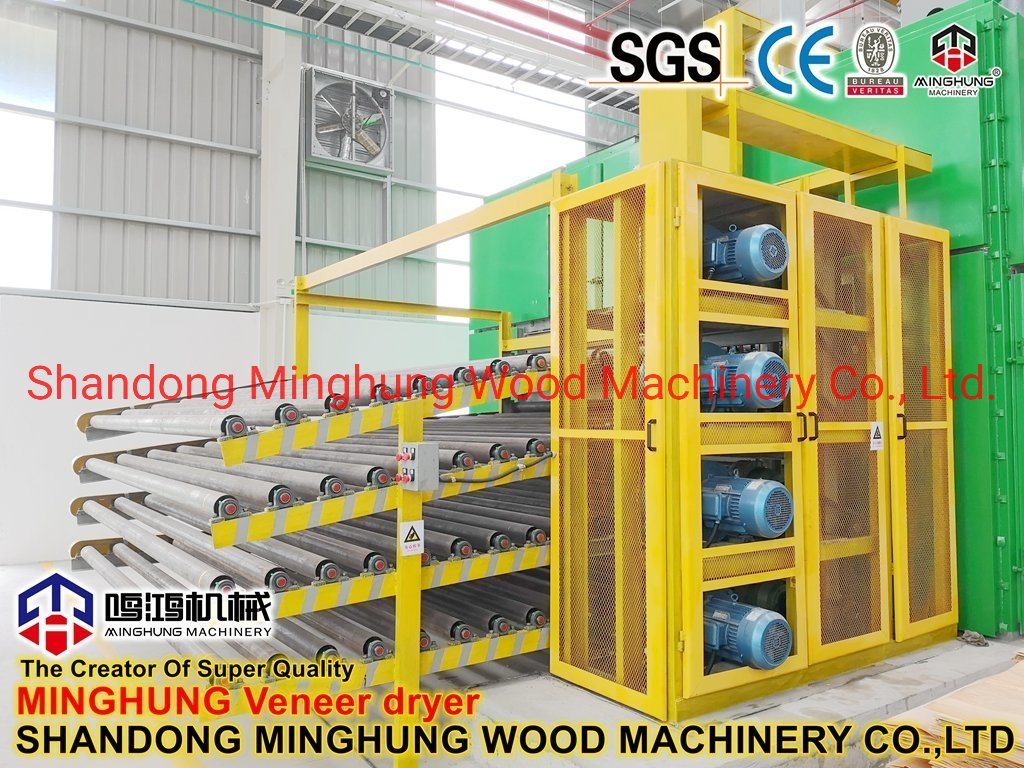

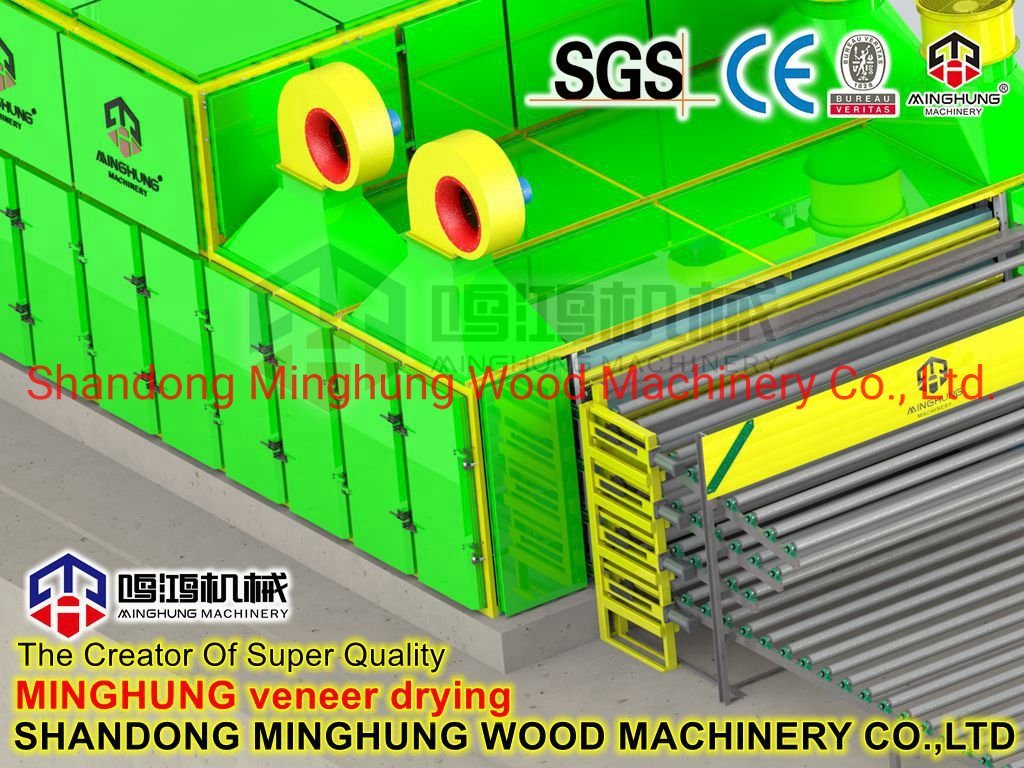

Roll Type Veneer Dryer Machine for Drying Wood Veneer

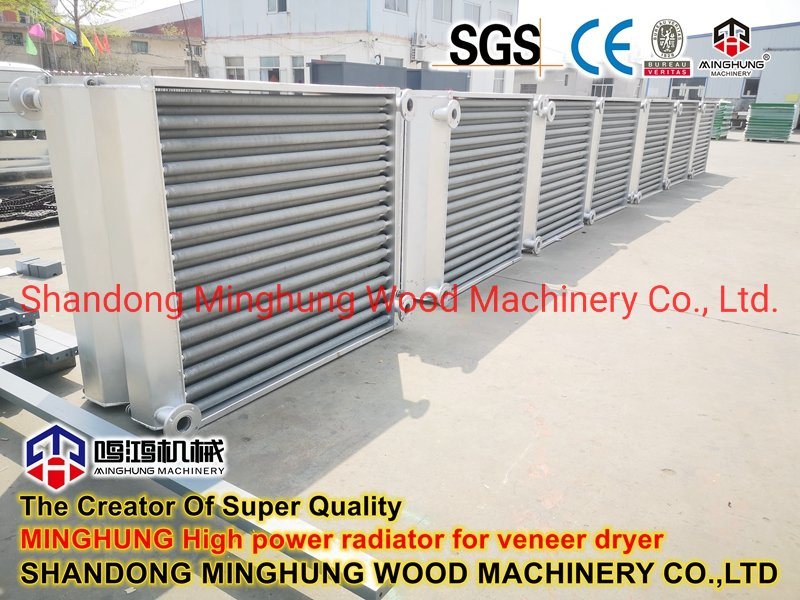

<1> Resonable design and good parts make roller dryer save energy and transfer heating fast.

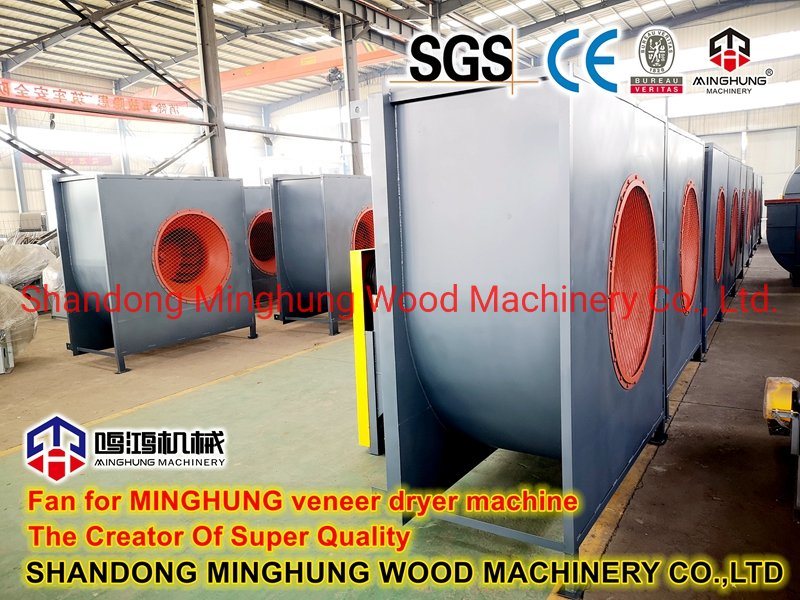

<2> The dryer machine uses the latest ultra-low noise centrifugal ventilator, reduce noise, good for workers.
<3> The wind speed is faster and the air volume is higher, therefore the drying speed is much quicker.
<4> Adopt variable frequency speed control, can adjust feed speed according your veneer thickness and moisture content, to get perfect drying effect.

>>>Machine In Client Factory:

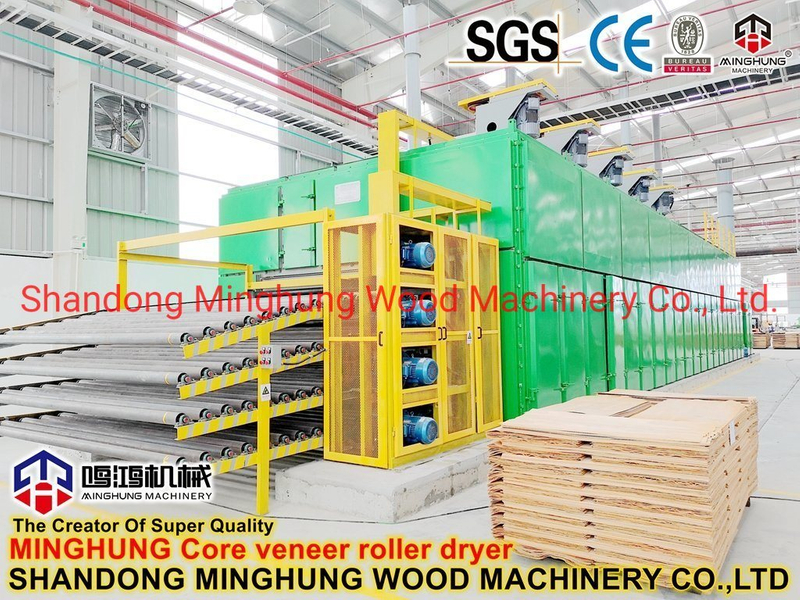

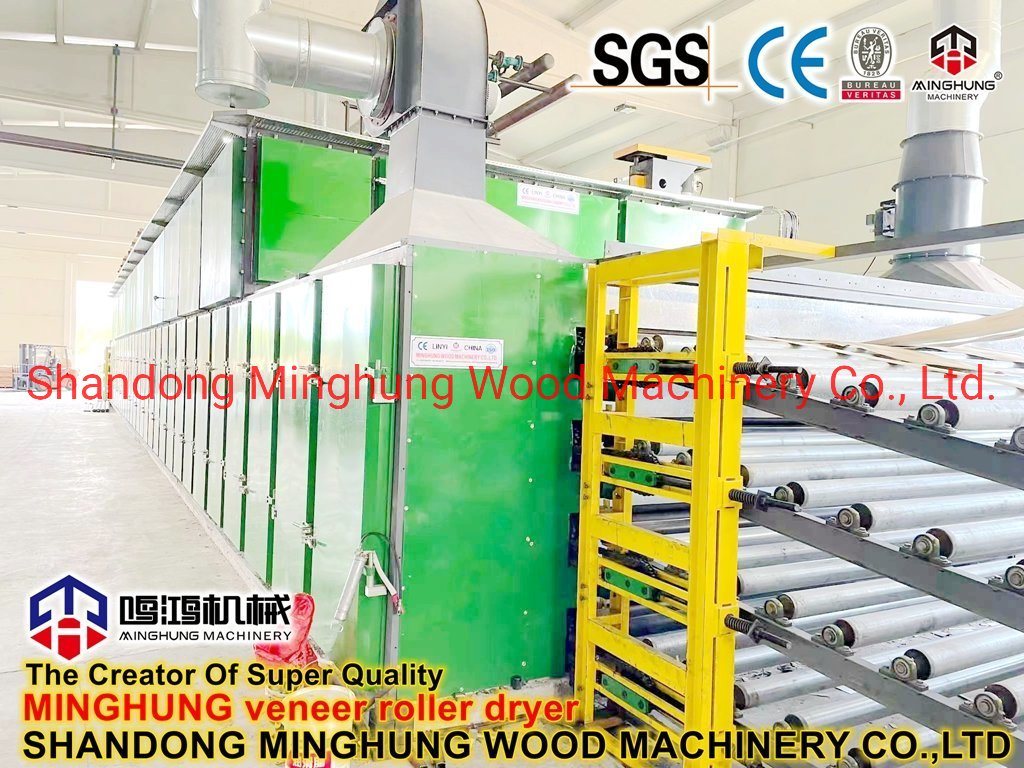

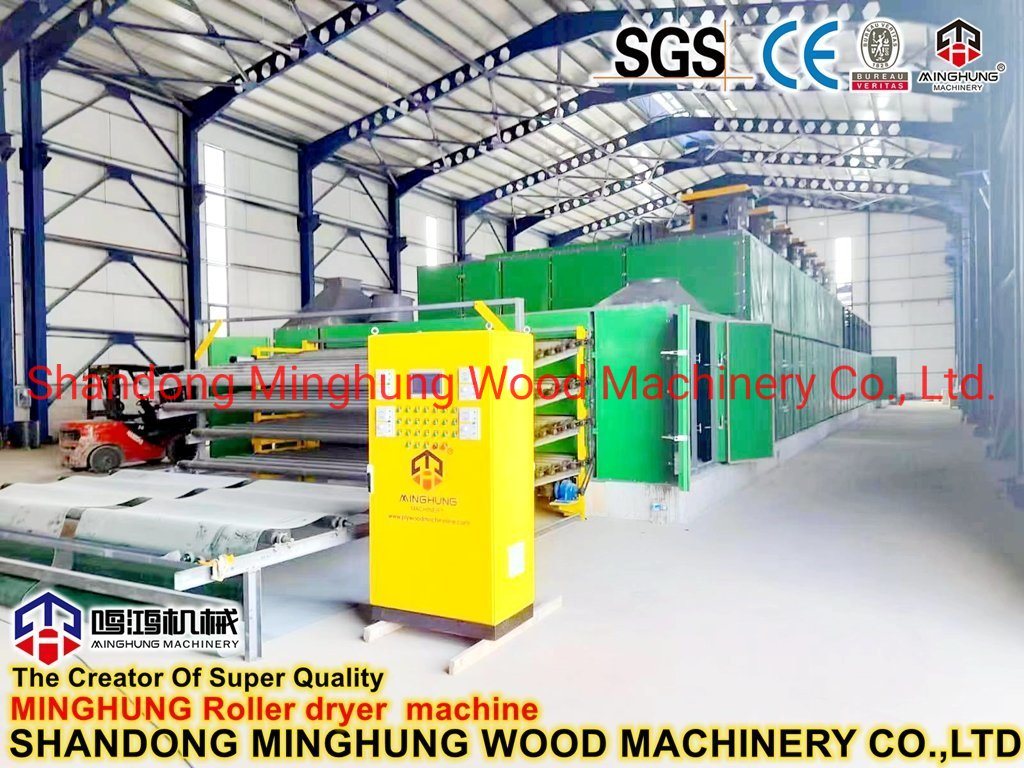

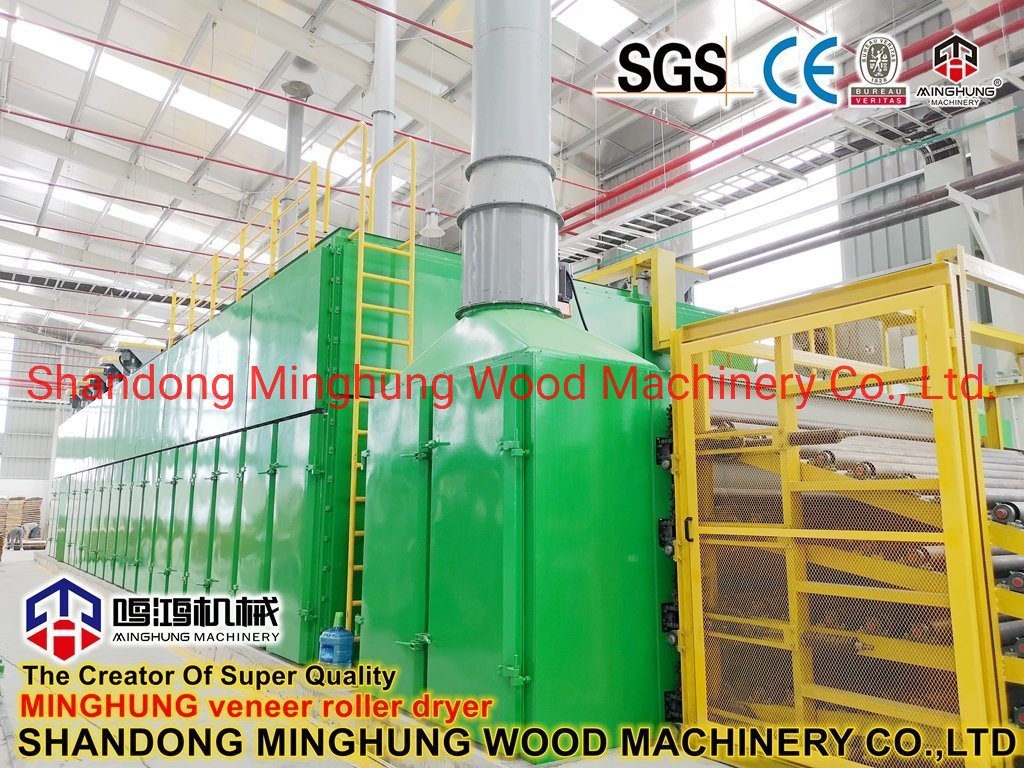

Roll Type Veneer Dryer Machine for Drying Wood Veneer

The installation of veneer roller dryer is more complex and spend longer time than others, so our engineer will go to install with your workers.

>>>RFQ:

Production Time:

1 month after receive your deposit.

Payment Terms:

30% deposit, 70% before delivery.
100% Letter of Credit.

Warranty:

2 years for main parts.

MOQ:

1 set

Installation:

When machine reach your factory, our engineer can go to install

After-sales service:

Any problem that your worker can not solve, tell us, we will reply you at the first time,
