This complete production line covers the entire process of plywood manufacturing, forming a complete closed loop from logs to finished products:

Stage 1: Log Processing & Peeling

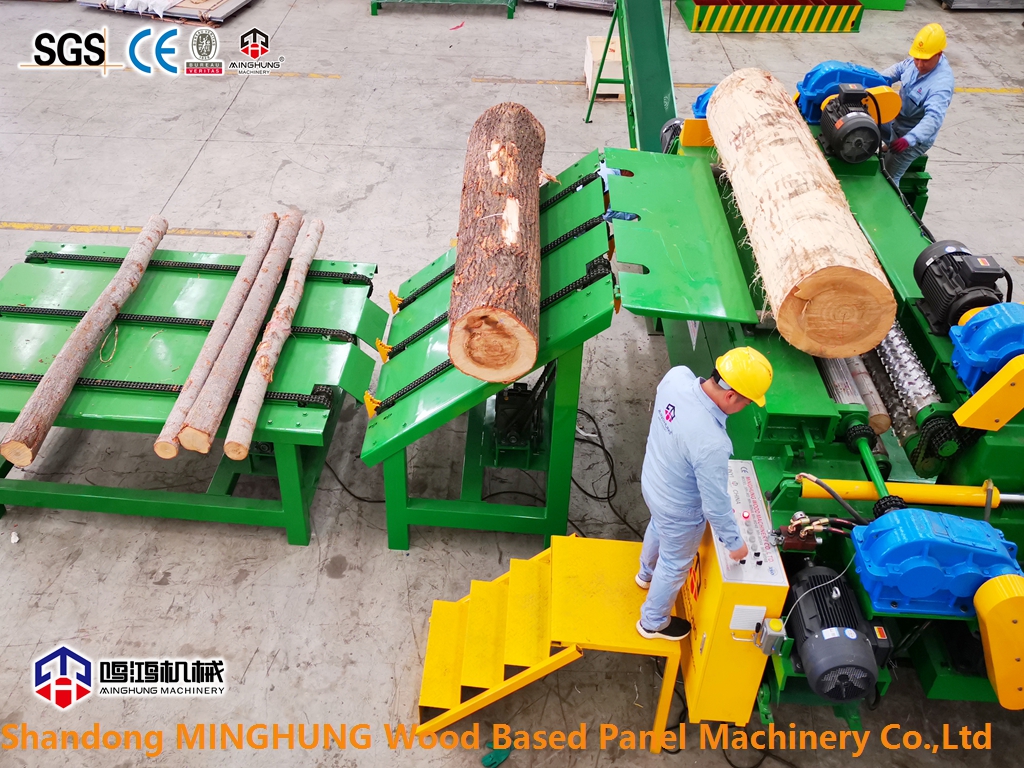

1. Log Crosscutting & Debarking: Logs are classified by length and diameter, then cut into standard billets using crosscut saws, with bark removed by debarkers to prepare for peeling.

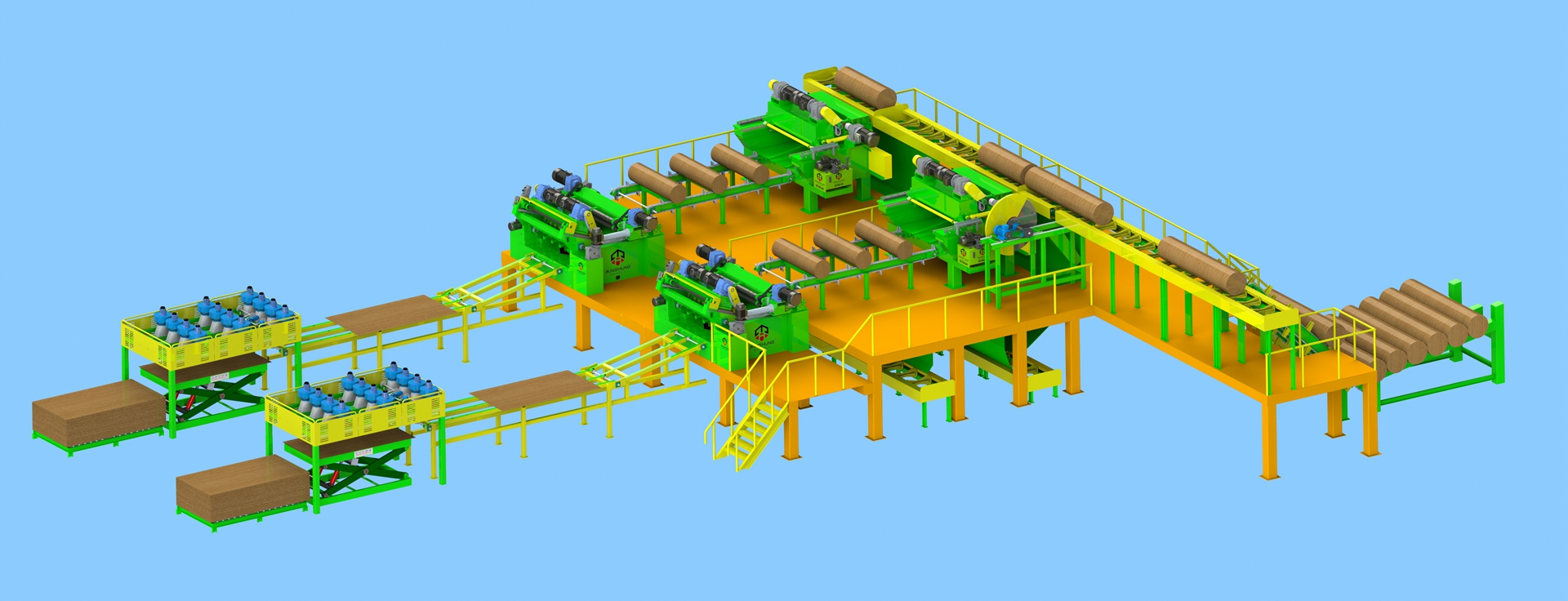

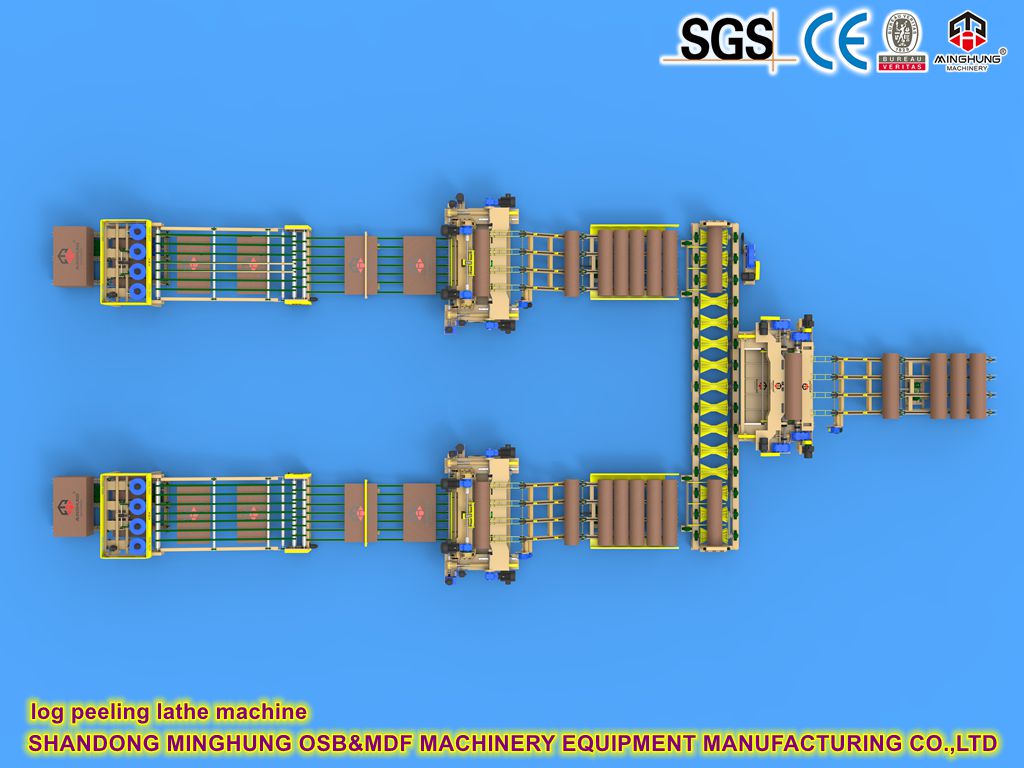

2. Precision Rotary Peeling: CNC rotary peelers continuously cut logs into veneers of 0.5-3.0mm thickness. Peeling precision directly affects veneer thickness consistency and subsequent bonding quality. Research shows that veneer surface roughness and thickness variation are primary causes of plywood delamination defects.

Stage 2: Veneer Drying & Conditioning

3. Veneer Drying: Mesh-belt or roller dryers precisely control veneer moisture content to 6%-10% (typically at 120-150°C drying temperature), ensuring subsequent gluing and hot pressing quality. New-generation fully automatic dryers feature automatic infeed, intelligent monitoring, and precise stacking, significantly improving drying efficiency with moisture control accuracy up to 2%.

4. Veneer Conditioning & Jointing: Dried veneers undergo sorting, repair, and jointing (for large formats) before being stored by grade.

Stage 3: Gluing & Lay-up

5. Adhesive Mixing & Gluing: After proportioned mixing, adhesive is evenly applied onto veneer surfaces using roller coaters or curtain coaters. Glue spread control is critical for bonding strength and preventing glue dryout.

6. Cross-Grain Lay-up: Glued veneers are arranged with grain directions perpendicular to each other (typically 3-13 odd layers) in alternating orientation to form the mat. Lay-up structure directly determines panel dimensional stability and mechanical properties.

Stage 4: Forming & Post-Processing

7. Pre-pressing: Cold presses apply pressure (typically 5-8MPa) to the mat at room temperature, expelling inter-layer air and achieving preliminary glue contact.

8. Hot Pressing: Multi-opening hot presses cure the mat at high temperature (120-220°C) and high pressure (10-25MPa). Hot pressing parameters are the core control point determining bonding strength and panel density. Hot platens are precision-machined on large lathes for smooth surfaces, maintaining dimensional stability at high temperatures with uniform heat transfer, ensuring even heating and flat panel surfaces.

9. Trimming: Crosscut and edge trimmers cut rough panels to target dimensions (e.g., 4×8 ft), ensuring dimensional accuracy.

10. Sanding: Wide-belt sanders perform double-sided calibrated sanding for smooth surfaces and precise thickness.

1. One-Stop Complete Supply, Reducing Investment Risk

2. Full-Process Coordinated Control, Ensuring Product Consistency

3. High Automation, Reducing Labor Costs

4. Advanced Process Technology Configuration

5. Flexible Customization for Diverse Needs

Q: What equipment and processes are included in a complete turnkey plywood production line?

A complete production line typically includes full-process equipment covering log debarking, peeling, veneer drying, gluing, lay-up, pre-pressing, hot pressing, edge trimming, and sanding - all processes from logs to finished plywood.

Q: What role does the hot press play in the production line?

The hot press is the core equipment in plywood production. It cures the adhesive and forms the panel at high temperature and high pressure, directly determining the panel's bonding strength, density, and surface quality.

Q: Why is veneer drying important?

Veneer moisture content directly affects bonding quality. Excessive moisture causes steam bubbles during hot pressing, while insufficient moisture may cause veneer brittleness and glue dryout. Moisture content is typically controlled at 6%-10% after drying.

Q: What are the raw material requirements for the production line?

The line can process various wood species including poplar, eucalyptus, birch, and pine, as well as recycled wood materials. Raw material diameter and length must match the peeler specifications.

Q: Can the production line achieve environmentally friendly no-added-formaldehyde production?

Yes. The line can be equipped with MDI (isocyanate) no-added-formaldehyde gluing technology and continuous flat-press equipment for large-scale production of no-added-formaldehyde plywood.

Q: How long does production line customization take?

The customization cycle depends on production capacity, automation level, and configuration requirements, typically ranging from 3 to 12 months from contract signing to delivery and installation. Detailed discussions with the supplier are recommended.

Q: What are the advantages of complete supply compared to purchasing equipment separately?

Complete supply ensures matching and compatibility between equipment at each process stage, avoiding efficiency losses caused by equipment interface and process integration issues from different suppliers. Customers also receive one-stop services from planning and manufacturing to installation and commissioning, reducing coordination costs and investment risks.
