Modular Design Small Footprint 10 Openings Plywood Hot Press Machine

Modular Design Small Footprint Plywood Hot Press Machine

Small Footprint 10 Openings Plywood Hot Press Machine

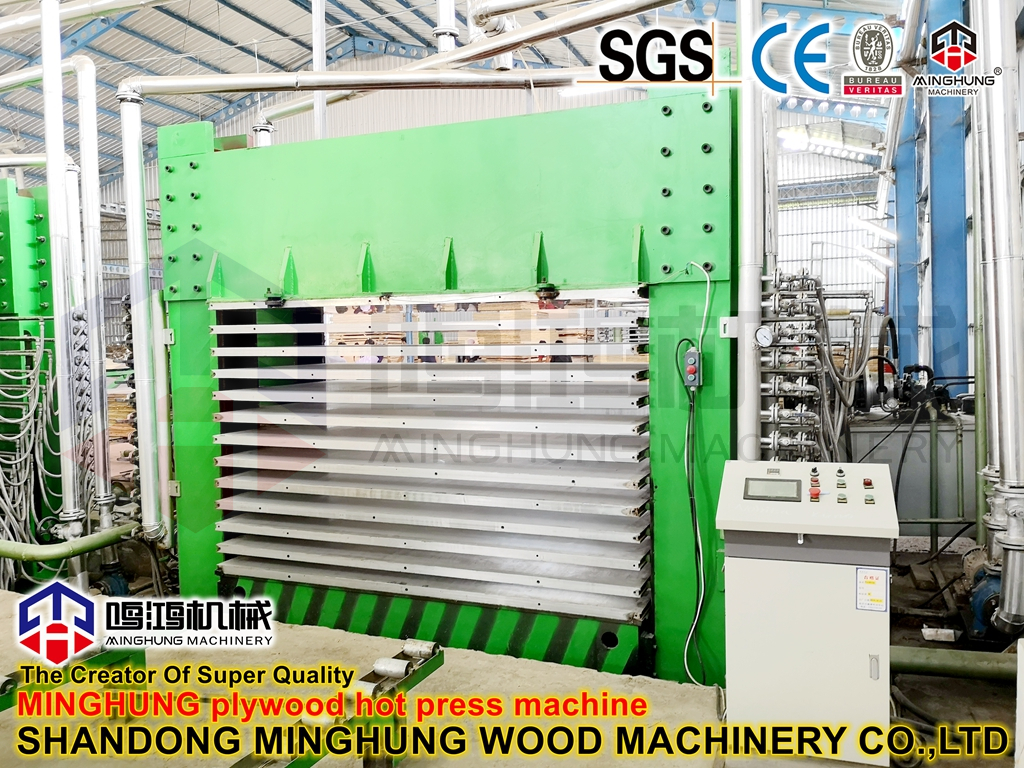

Modular Design Small Footprint 10 Openings Plywood Hot Press Machine

This product is a 10-layer plywood hot press featuring a modular design and a compact footprint, making it especially suitable for workshops with limited space or small to medium-sized board manufacturers. The machine retains the high pressing capacity of traditional hot presses while being easy to transport, quick to install, and flexible for future upgrades — an ideal choice for producing plywood, ecological boards, and composite boards.

Quantity:
Availability:





Inquire Add to Basket

Model:
MH-HP
Brand:
MINGHUNG

Product Description

Modular Design Small Footprint 10 Openings Plywood Hot Press Machine

Main Components

1. Modular Main Frame: Segmented welded structure, easy to assemble/disassemble with high strength.

2. 10 Hot Platens: Uniform heat distribution with hardened surface treatment.

3. Compact Hydraulic Station: Small size, high efficiency, integrated noise reduction.

4. Main Cylinder: Short-stroke design, reducing overall machine height.

5. Heating System: Optional thermal oil or electric heating, integrated within modules.

6. PLC Control System: Touchscreen operation, programmable and storable parameters.

7. Quick Lifting Mechanism: Reduces auxiliary time and improves efficiency.

hot platen for plywood hot press machine

hydraulic station for minghung hot press machine

Electric control cabinet for MINGHUNG machine

Working Principle

The hot press drives the main cylinder through a hydraulic system to close the multi-layer hot platens. The heating system evenly delivers thermal medium (thermal oil or steam) into each platen, rapidly curing the adhesive in the board under high temperature and pressure. The modular design allows the hydraulic, heating, and control systems to be independently disassembled, facilitating maintenance and relocation.

MINGHUNG 20layer hot press machine

Packaging & Shipping

minghung automatic hot press machine loading

minghung plywood hot press machine delivery

Key Advantages

Small Footprint: Optimized length and width — saves over 30% space compared to conventional models.

Modular Design: Independent functional units, easy for relocation, maintenance, and capacity expansion.

Easy Transport: Packed in modules, fits standard shipping containers.

Quick Installation: Short on-site assembly and fast commissioning.

No Performance Compromise: Same pressure, temperature, and precision as larger models.

Flexible Investment: Gradual addition of layers or automation components as needed.

Main Specifications

Parameter	Value
Number of Layers	10
Hot Platen Size	Customizable (e.g., 2500×1250mm)
Max. Pressure	600–1200 tons (adjustable)
Number of Cylinders	2–4 (according to module configuration)
Hydraulic Station Power	11–18.5kW
Heating Method	Thermal oil / Electric heating
Working Temperature	Ambient–190℃
Closing Time	≤15 seconds
Machine Footprint (approx.)	Approx. 3.5×1.8×2.8m
Control System	PLC + Touch Screen
Number of Modules	2–3 main modules

Company Profile

We are Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd China factory and manufacturer of full sets of Plywood machinery and Veneer machinery. With many years production experience, advanced production technology,experienced workers and professional engineers, we can offer you the suitable, good and strong machinery for you.

The machinery we produce includes peeling machines, chipping machines, rotary cutting machines, drying machines, gluing mixers, laying machines, pre-pressing machines, hot pressing machines, cooling machines, longitudinal and transverse sawing machines, sanding machines, as well as auxiliary machinery such as automatic feeding and discharging systems and lifting platforms.

minghung plywood equipment

dryer with a secondary drying mechanism

minghung companys production workshop

MINGHUNG customer visit photos

SHANDONG MINGHUNG OSB&MDF MACHINERY

Services We Provide

Customized platen size and machine layout according to customer's factory space

Modular transport solutions with disassembly/assembly guidance

Remote or on-site installation and commissioning

Operation and maintenance training

Future layer addition or automation upgrade services

1-year warranty for the complete machine, lifelong technical support

Global spare parts delivery
