01 PRODUCT DESCRIPTION
 |

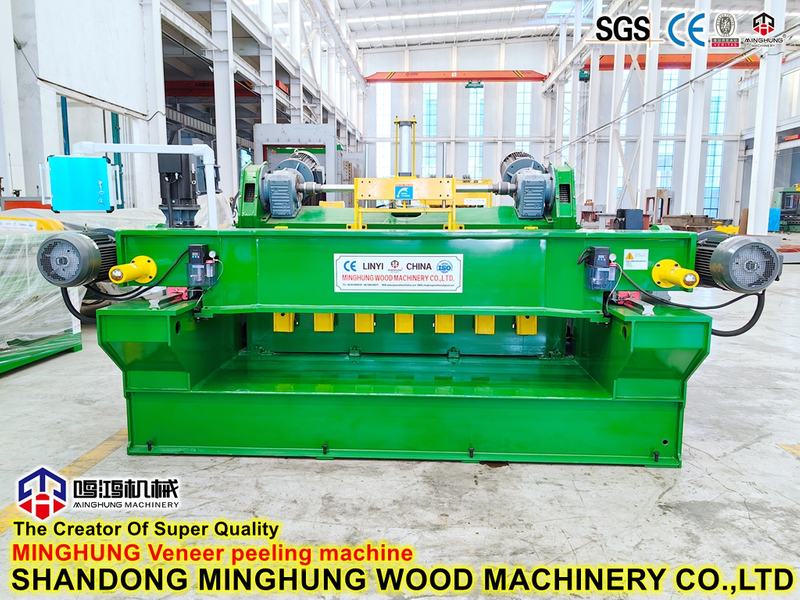

This is our new and upgraded wood veneer peeling machine, compare our old but also good type peeling machine, this new type peeling machine improved a lot based on it. For example, it becomes more heavier and powerful, it added more functions, its material and spare parts become more better.
Whatever you peel kinds of hardwood, this type wood peeling machine can peel it easier and produce good quality wood veneer.
As your max wood length, we can customize the veneer peeling machine for you. |
02 PRODUCT DETAILS & ADVANTAGES
|
|
1. SIEMENS MOTORS FOR ALL High-speed operation: Siemens motors feature outstanding power output and high-speed rotation characteristics. Precision control: Siemens motors have precise speed and torque control functions, matching the precise cutting requirements of the rotary cutting machine
|
|
|
2. THE COMBINATION OF SINGLE AND DOUBLE ROLLERS Enhanced Flexibility: The use of both single and double rollers allows for selecting the appropriate cutting method based on specific requirements.
Improved Cutting Efficiency: Each roller type has its own advantages in cutting. By combining both, the machine can maximize the benefits of each cutting method.
|
|
|
3. PLC CONTROL SYSTEM & CNC SCREEN Precision Control: PLCs offer precise control over the cutting process, ensuring accurate dimensions and consistent quality of the cut products.
Automation: PLC control allows for the automation of the cutting process, reducing the need for manual intervention and increasing production efficiency.
|
|
| 4. HYDRAULIC OIL Lubrication: Hydraulic oil acts as a lubricant within the veneer peeling machine, reducing friction between components, preventing excessive wear, and extending the equipment's lifespan.
5. LINEAR GUIDES Smooth Movement: Linear guides provide smooth linear motion, reducing vibrations and noise that may occur during peeling.
|
03 PAREMETERS
| 4 FEET/4 FEET HYDRAULIC SPINDLELESS PEELING MACHINE |
| Max Wood Length | 1400mm |
| Max Opening | 500mm |
| Thickness | 0.5-4mm |
| Speed | 30-100m/min (Adjustable) |
| Peeling Knife Size | 1500*180*16mm |
| Clipper Size | 1500*90*12.7mm |
| Weight | 8000kgs |
| 8 FEET/8 FEET HYDRAULIC SPINDLELESS PEELING MACHINE |
| Max Wood Length | 2600mm |
| Max Opening | 640mm |
| Thickness | 0.5-4mm |
| Speed | 30-100m/min (Adjustable) |
| Peeling Knife Size | 2700*180*16mm |
| Clipper Size | 2700*90*12.7mm |
| Weight | 11000kgs |
04 CLIENTS FACTORY
05 COMPANY PROFILE
We are SHANDONG MINGHUNG WOOD MACHINERY CO.,LTD, which produce the whole production line of plywood machine.
Professional manufacturer produce the full sets of veneer machine and plywood machine in Linyi City, Shandong Province, China. Including Wood debarker, veneer peeling machine, veneer stacker, veneer dryer machine, glue spreader, cold press machine, hot press machine, plywood saw machine, sanding machine.The value of our factory is: create much more value for clients.We have our own morality and principle, insist sincerely treat our clients, regard them as our friend, try help their business.
06 WHY CHOOSE US
Welcome contact us for more information
