The Importance of Precision Specifications
Plywood thickness precision directly determines downstream processing efficiency and finished product quality. For furniture manufacturers and CNC machining centers, panel thickness deviation means:
CNC Program Deviation: Uneven thickness causes inconsistent milling depth, affecting mortise and ten joint precision
Edge Banding Difficulty: Automatic edge banders have strict requirements for panel thickness consistency
Assembly Issues: Cabinet doors, drawers, and other components cannot align due to thickness differences
Lamination Defects: Thickness fluctuation causes bubbles or delamination when pressing decorative paper or wood veneers
Core Technologies for Achieving High Precision

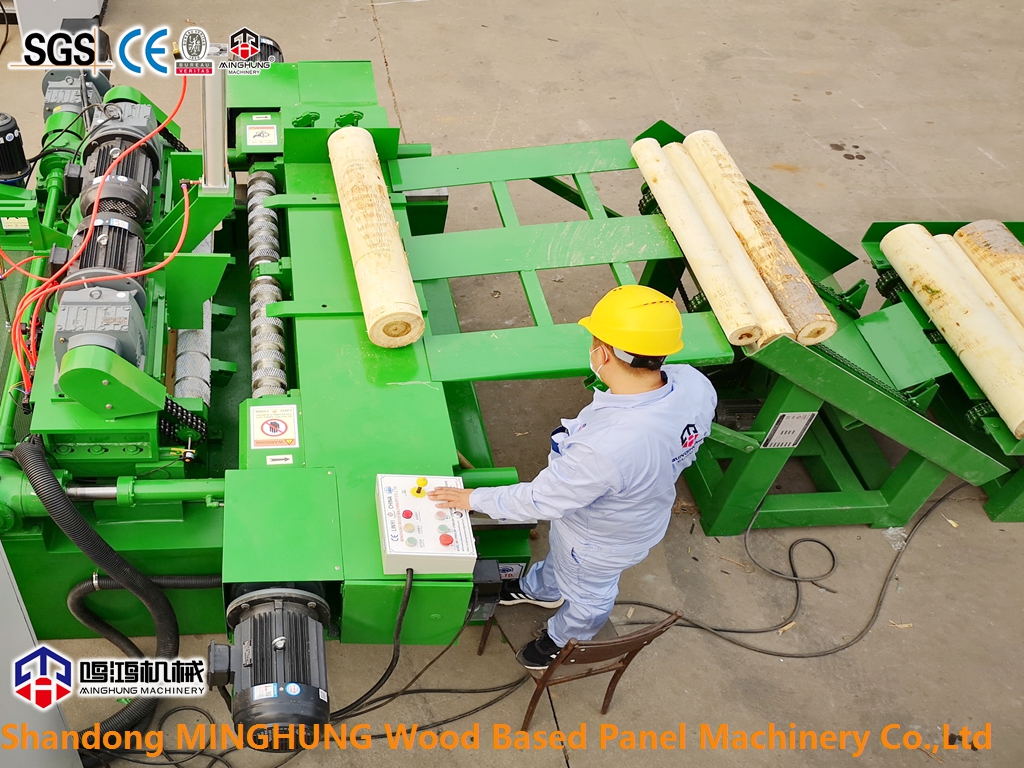

1. Precision Veneer Peeling Control
The rotary peeler is the first checkpoint for thickness precision. With CNC servo-driven peeling lines, veneer thickness control accuracy reaches ±0.05mm, ensuring veneer thickness consistency from the source. Research shows that veneer thickness error is one of the main causes of plywood thickness variation, with veneer thickness errors reaching ±0.20mm or even exceeding ±0.50mm. This production line is equipped with digital veneer thickness gauges for online inspection and feedback adjustment of peeling parameters.
2. Hot Press Thickness Control System
The hot press is the core equipment determining final panel thickness. The hot press on this production line features:
Four-Corner Thickness Control: Independent control from four corners of the platen, compensating for wood defects and ensuring uniform pressing quality
Thickness Limit Stops: Prevents over-pressing, maintaining uniform finished product thickness
High-Precision Temperature Control: Hot platen temperature uniformity ±2°C, avoiding cold zones that cause local thickness variation
Ultra-Short Press Opening Time: <60 seconds, reducing heat loss and thickness fluctuation

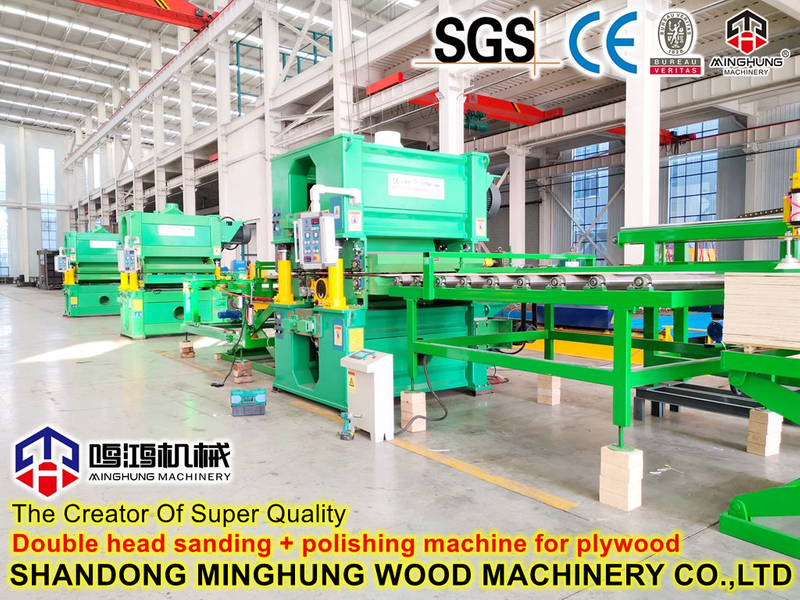

3. Double-Sided Precision Calibrated Sanding
After hot pressing, panels undergo precision calibration through double-sided wide-belt sanders:
Online thickness sensors continuously measure panel thickness
Digital feedback system adjusts sanding belt pressure in real time
Double-sided sanding removes high spots, achieving uniform panel thickness
