1. ±0.1mm High Thickness Accuracy
Each pressing layer is equipped with a high-precision displacement sensor that feeds real-time board thickness data to the PLC system. The servo hydraulic system automatically adjusts pressure compensation, ensuring uniform final board thickness – ideal for thin boards (3–6mm) and high-end furniture panels.
2. Automatic Feeding Platform (Standard)
A large-size hydraulic or electric automatic feeding platform synchronizes board loading and unloading. Running speed is frequency‑adjustable and perfectly matched to the press opening/closing action, reducing manual waiting time and increasing daily output.
3. Closed-loop Pressure & Position Control
PID closed-loop control algorithm keeps pressure fluctuation ≤ ±0.5 bar. Combined with displacement sensors, the system supports “position priority” or “pressure priority” modes, adapting to different adhesives and board structures.

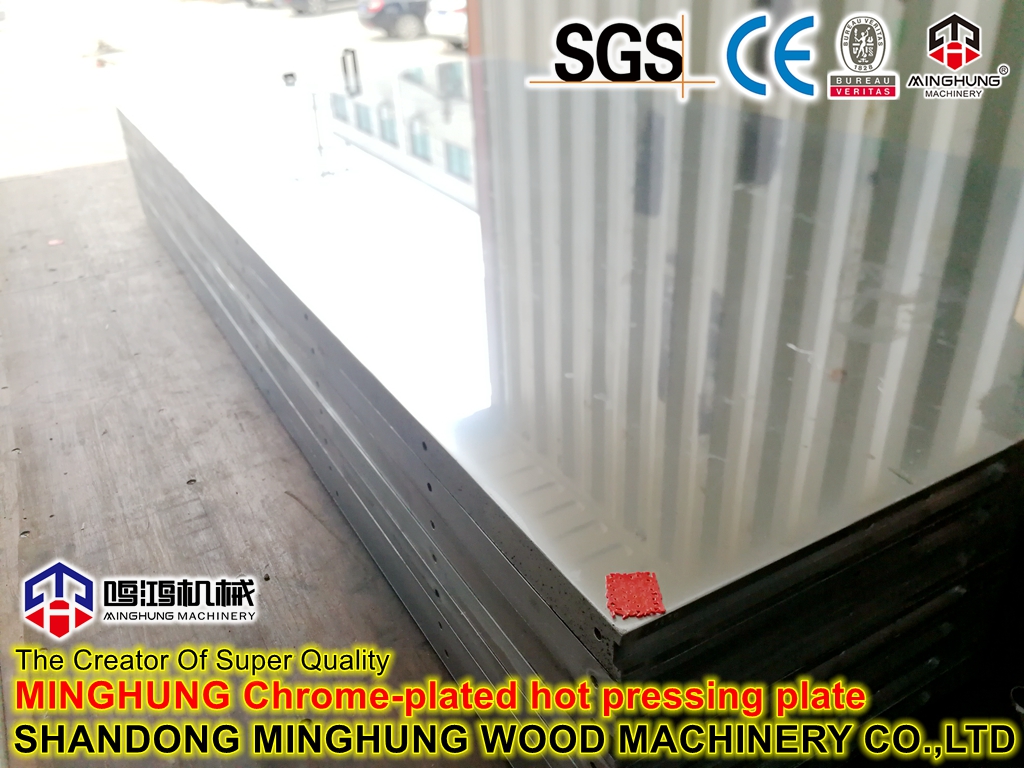

4. Precision Hot Press Plate Set
Double‑sided ground plates with parallelism ≤0.05mm/m. Optimized internal flow channels ensure plate surface temperature deviation ≤ ±1.5°C, effectively preventing warping or delamination caused by uneven heating.

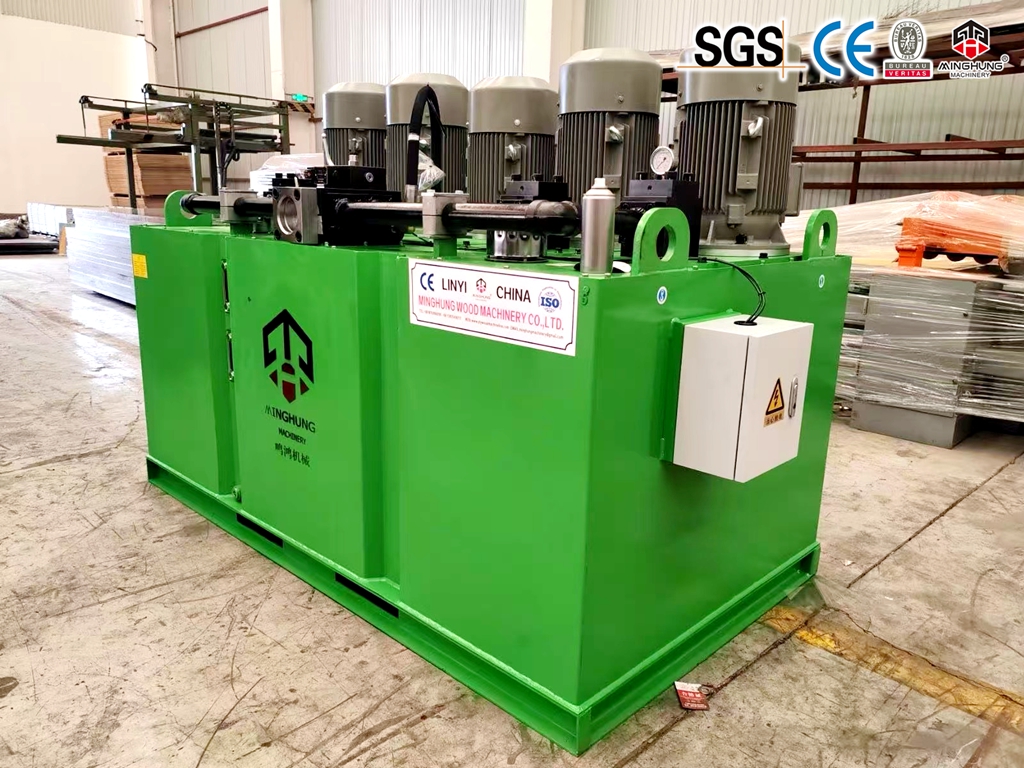

5. Servo Hydraulic Energy-Saving System
Saves over 30% energy compared to conventional fixed‑pump systems, with lower noise and more stable oil temperature. Supports multi‑stage fast/slow closing to reduce impact on boards.
6. User‑Friendly Interface
PLC color touch screen stores over 100 process recipes (temperature, pressure, time, closing speed, etc.). One‑touch recall for fast changeovers.
7. Multiple Safety Protections
Infrared light curtain + safety relay + emergency pull‑cord, meeting CE certification standards.
