Energy-Saving Particleboard Continuous Flat Press Line 35% Energy Reduction

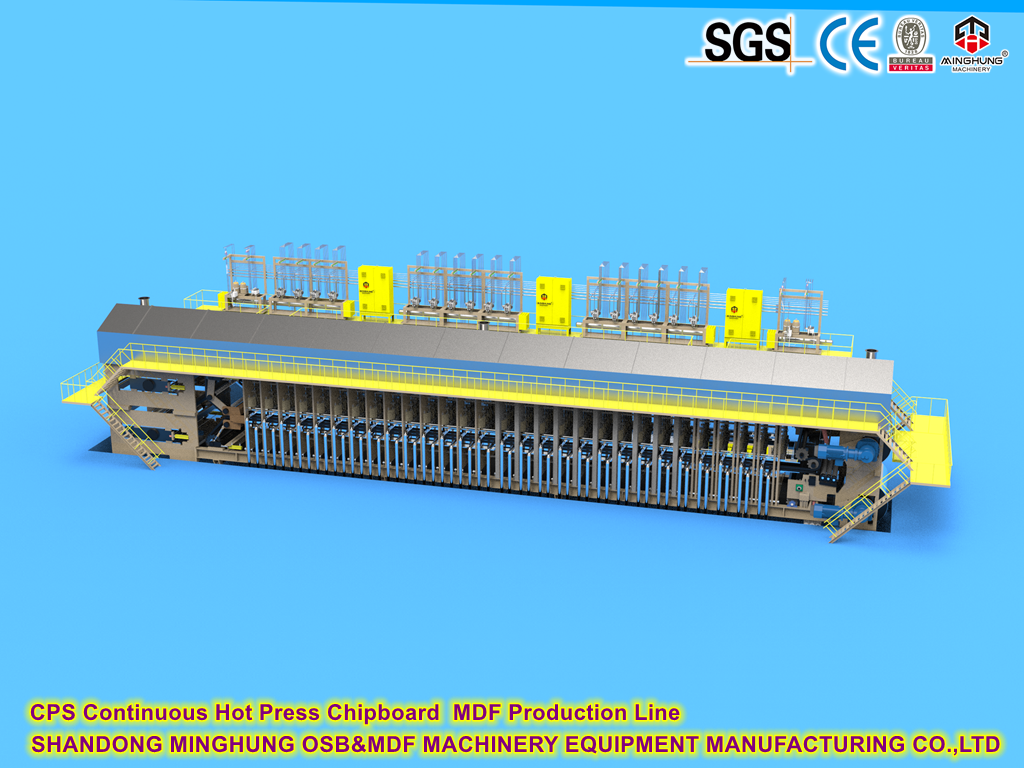

CPS Continuous Hot Press Particleboard Production Line

I.Continuous Flat Press Working Principle

Innovative integration beyond conventional continuous presses:

1. Mat Forming

- Dried particles blended with resin (PMDI/UF) via air-sifting forming with gradient structure (fine surface/coarse core).

- Energy-saving feature: Variable-frequency drive forming heads reduce idle consumption; online mat density monitoring prevents material waste.

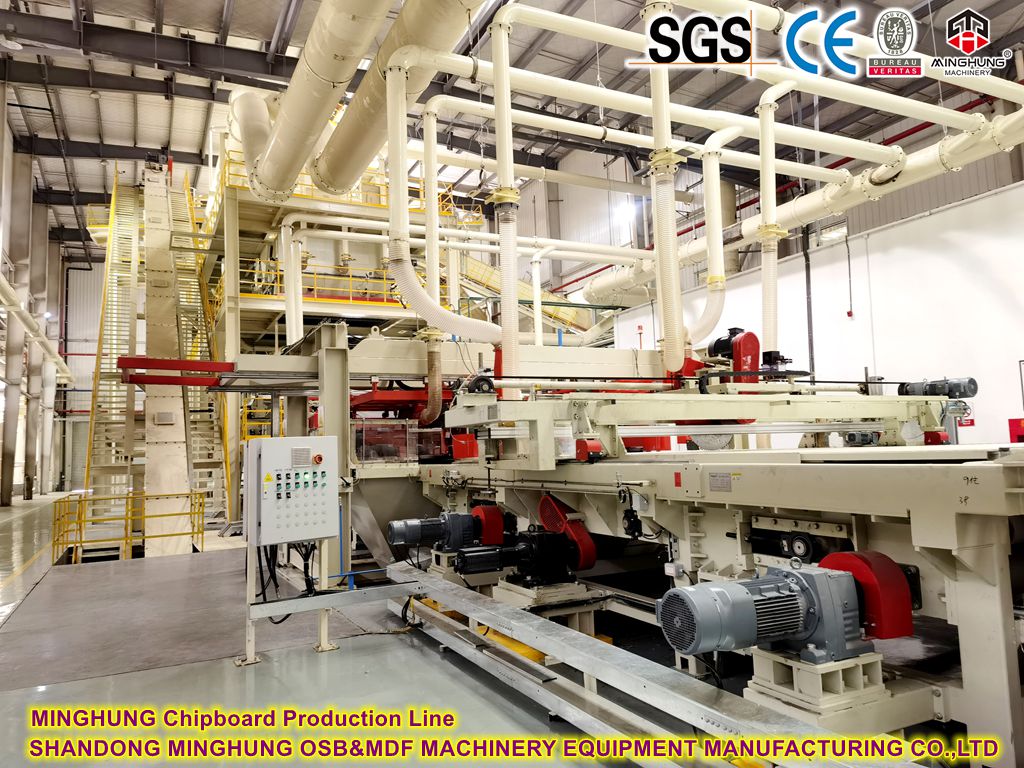

Particleboard paving machine line for PB board making

2. Pre-pressing & Infeed

- Mat compressed by belt pre-press (0.5-2 MPa) to minimize thickness variation before main press.

- Energy-saving feature: Lightweight composite pre-press rolls cut drive power by 18%.

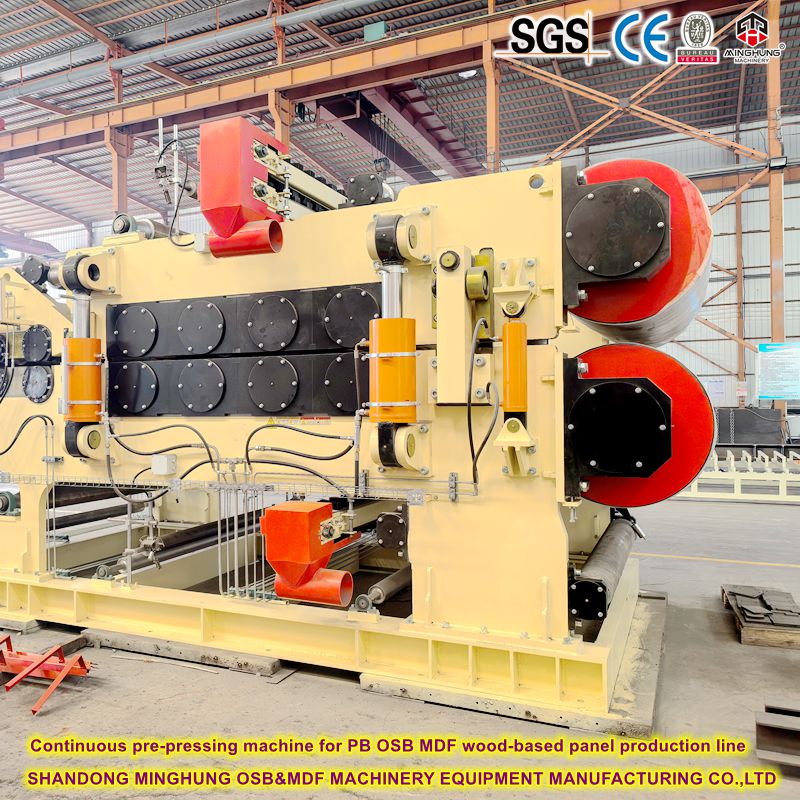

Continuous pre-pressing machine for PB OSB wood based panel production line

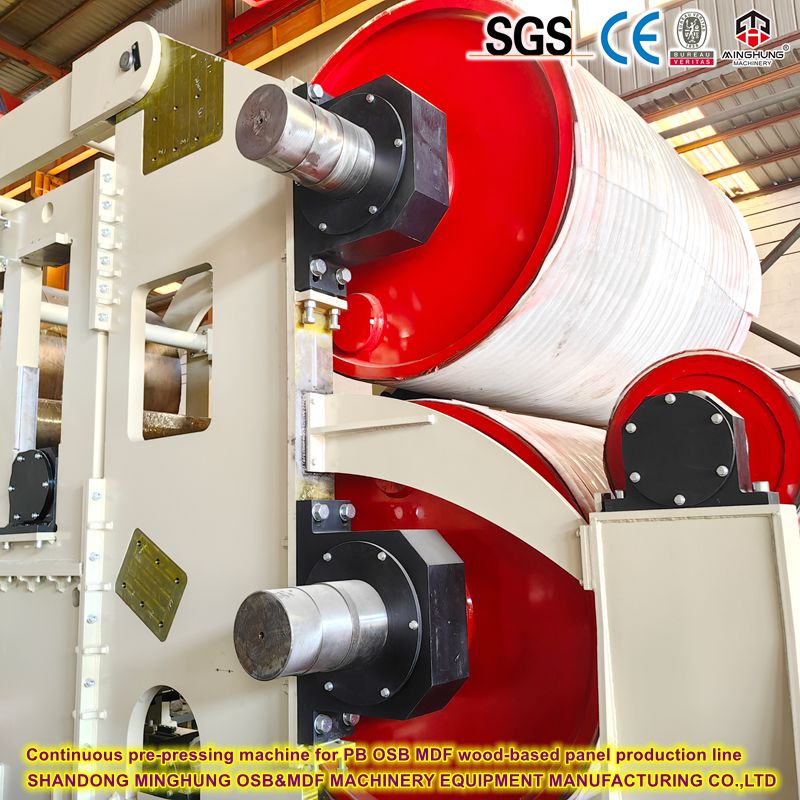

Continuous pre-pressing machine for PB OSB MDF wood-based panel production line

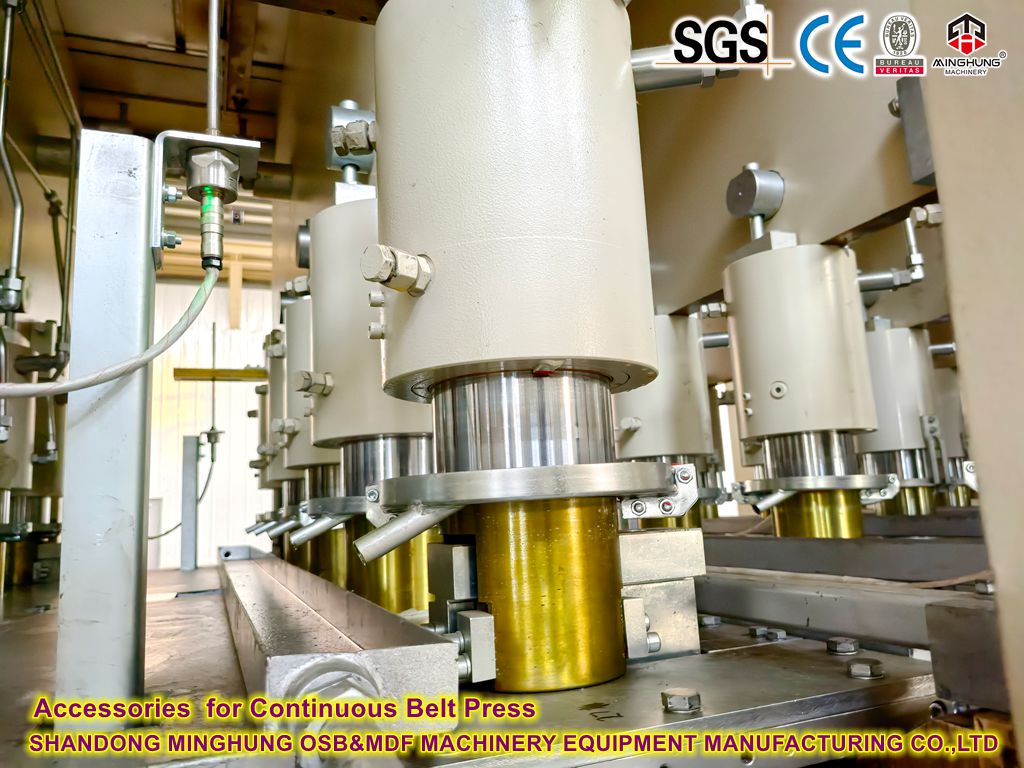

3. Continuous Hot Pressing

- Mat conveyed between steel belts through multi-zone controlled heating platens:

- Inlet high-pressure zone (20-50 MPa): Rapid compression to target thickness.

- Central constant-temp zone (180-220°C): Complete resin curing.

- Outlet pressure-release zone (5-10 MPa): Dimensional stabilization.

- Heating method: Thermal oil circulation (30% more efficient than steam); optional electromagnetic induction heating for faster response.

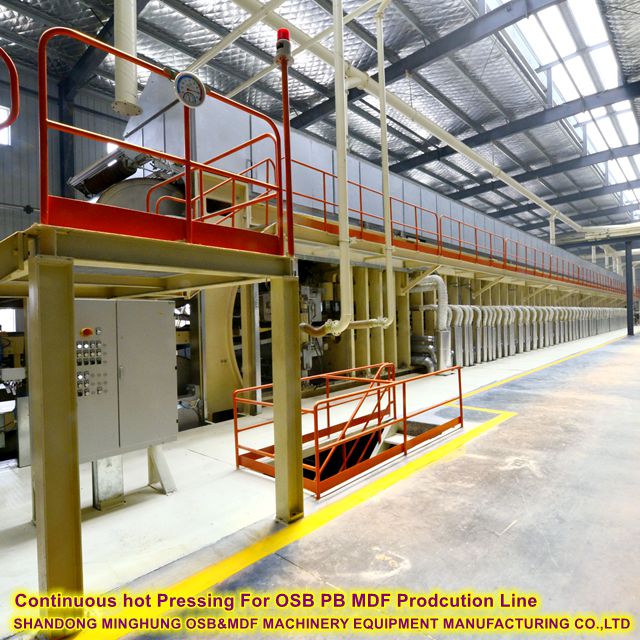

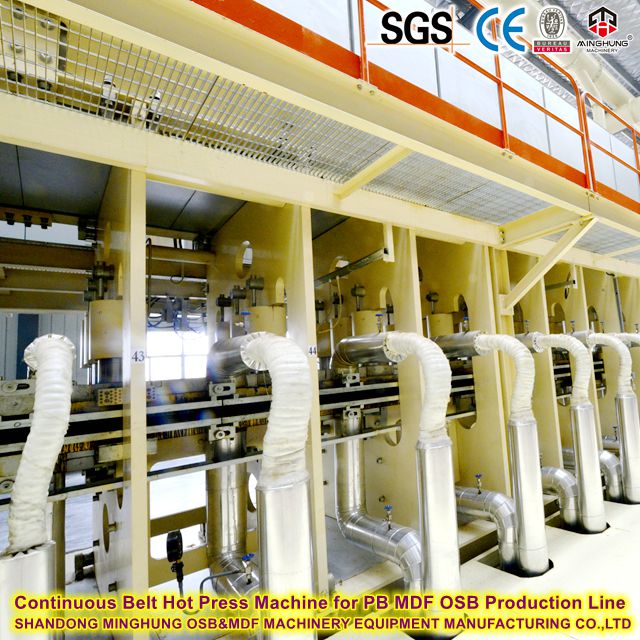

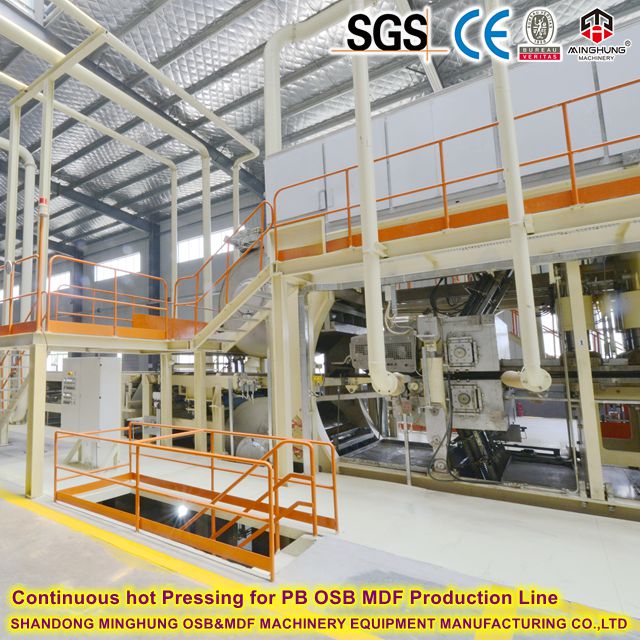

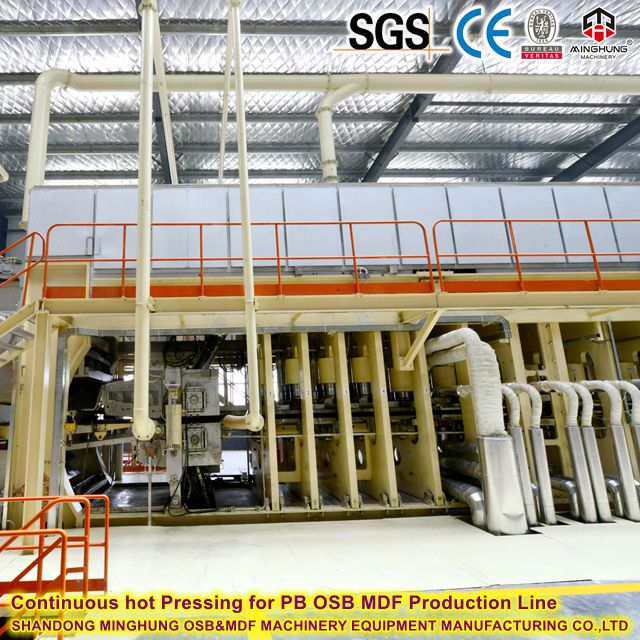

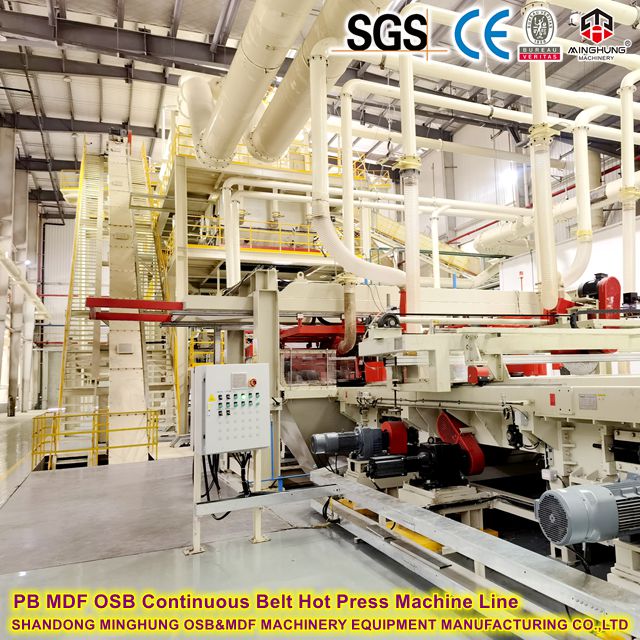

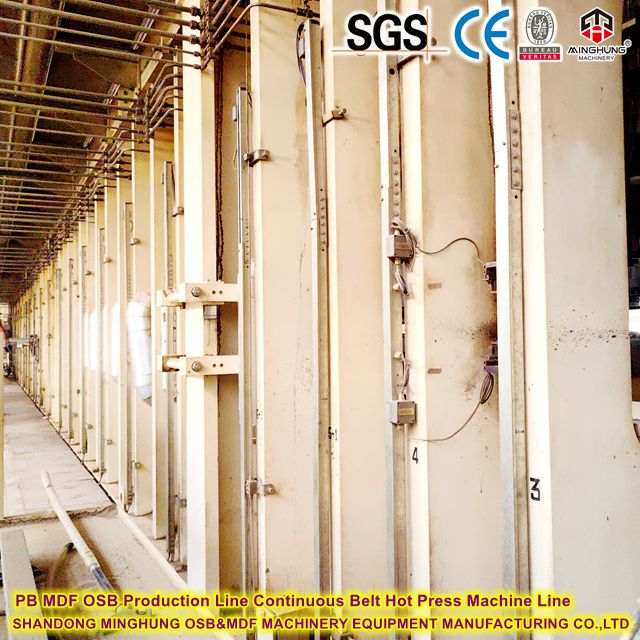

continuous press line

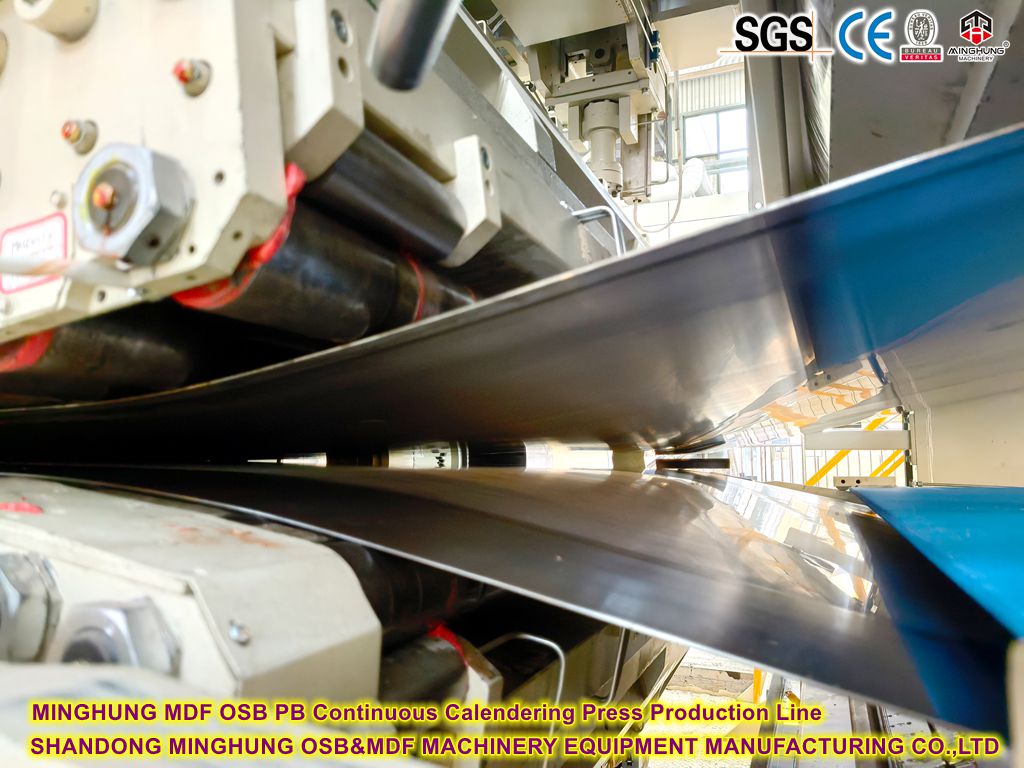

MINGHUNG MDF PB Continuous Calendering Press Production Line

double steel belt for continuous press

4. Post-processing

- Continuous panel → Flying cross-cut saw → Star cooler (forced-air cooling) → Sanding → Stacking.

- Energy-saving feature: Cooling section heat recovery for drying stage.

trimming saw machine

Minghung Particle Board Chipboard OSB MDF HDF LVL Sanding Sander Grinding Polishing Machinery

sanding machine

II. Key Parameters & Performance

Parameter	Energy-Saving Line	Conventional Line
Working Width	2.5-4.8 m (up to 4.8m+)	Same width
Daily Capacity	1,000-3,000 m³	Same capacity
Press Temperature	180-220°C (±2°C zonal control)	190-230°C (±5°C)
Specific Energy	≤180 kWh/m³	270-320 kWh/m³
Heat Recovery Rate	≥40% (exhaust/cooling heat reuse)	≤15%
Thickness Tolerance	±0.15 mm	±0.3 mm

III. Core Energy-Saving Technologies (35% Reduction)

(1) Press System Optimization (≈25% Savings)

- Precision Zonal Control:

- Servo-proportional valves + pressure sensors → pressure error <±0.5 MPa.

- Micro-channel thermal oil tubes in platens → 40% faster heating; 98% temp uniformity.

- Steel Belt Friction Reduction:

- Nano-ceramic coating (friction coefficient ↓60%) → drive power ↓15%.

- Auto-lubrication system minimizes friction heat.

(2) Heat Recovery Systems (≈8% Savings)

- Exhaust Gas Incineration:

- Formaldehyde-rich exhaust → Regenerative Thermal Oxidizer (RTO) (≥850°C) → heats thermal oil (replaces 30% natural gas).

- Cooling Section Heat Reclaim:

- Panel cooling heat → heat pipes → preheats dryer intake air (+50-80°C).

(3) Drive System Upgrades (≈7% Savings)

- Permanent Magnet Motors:

- ≥96% efficiency (vs. 89% for induction motors) → 10-15% power reduction.

- Intelligent Hydraulic Station:

- Variable-frequency pumps → standby flow ↓90%.

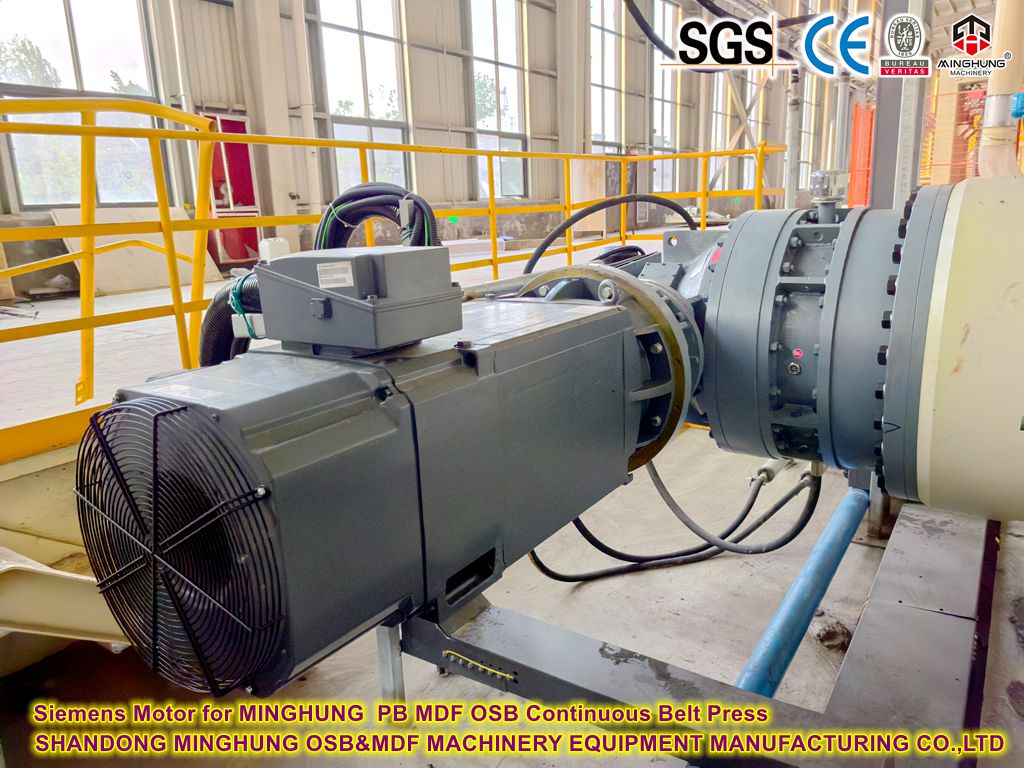

Siemens Motor for MINGHUNG PB MDF OSB Continuous Belt Press

sinmens motor

Hydraulic Station

(4) Process Synergy (≈5% Savings)

- Low-Temp Curing Resins:

- PMDI enables curing at 160-180°C (vs. 190-210°C for UF).

- Mat Moisture Control:

- Online IR sensors maintain ±0.5% moisture accuracy → optimizes drying energy.

IV. Economic Analysis

1.Energy Comparison:

Conventional: 270-320 kWh/m³

Energy-saving: ≤180 kWh/m³ → 35-45% reduction

2.Annual Savings (300,000 m³ line):

Electricity: (300 - 180) × 300,000 = 36,000,000 kWh ($3.6M @ $0.1/kWh)

Natural gas: 180,000 GJ ($1.08M @ $6/GJ)

3.CO₂ reduction: 28,000 tons ($144k carbon credit @ $5/ton)

ROI: 15-20% higher CAPEX repaid in 2-3 years.

Ⅴ.Energy conservation is demonstrated

1. Thermal Efficiency Contrast

Factor	Continuous Flat Press	Multi-Opening Press	Energy Advantage
Preheating Loss	No shutdown → zero cyclic heat loss	30%+ heat loss per cycle	Eliminates thermal inertia waste
Surface Heat Loss	60% less exposed area (enclosed belts)	Open platens → high convection	Steel belts minimize radiation
Heat Transfer Eff.	Thermal oil system (≥85% eff.)	Steam system (≤65% eff.)	Direct contact + temp stability
Waste Heat Recovery	≥40% via RTO + heat exchangers	None → direct emission	Closed-loop energy reuse

Data: Specific heat consumption: 1.0-1.2 GJ/m³ (continuous) vs. 1.8-2.2 GJ/m³ (multi-opening).

2. Operational Efficiency

Metric	Continuous Press	Multi-Opening Press
Effective Press Time	≥95%	≤45%
Output Rate	50-100 m³/h (4.8m line)	10-20 m³/h (20-opening press)
Power Use	≤180 kWh/m³	250-300 kWh/m³

Mechanism: Continuous motion eliminates idle time; zonal hydraulics avoid full-platen cycling.

3. System Design Innovations

3.1 Zonal Pressure/Temp Profiling

- Continuous: 30-50 independent zones (30MPa inlet → 5MPa outlet).

- Traditional: Uniform 35-40 MPa → core over-compression waste.

3.2 Friction Reduction

- Nano-coated belts: μ 0.25 → 0.1 → 40% less drive power.

- Smart hydraulics: Standby power <10% of fixed-pump systems.

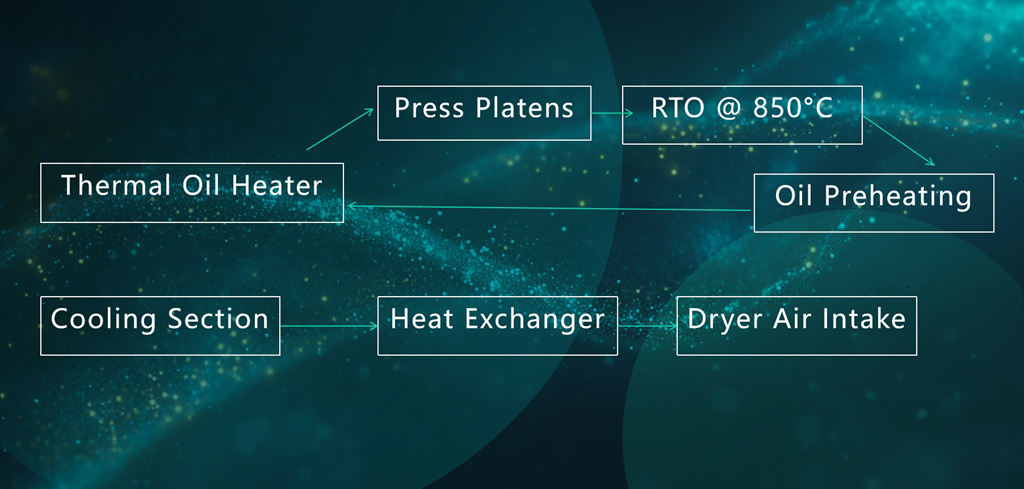

3.3 Thermal Closed Loop

微信截图_20250708114121

4. Process Integration

Technique	Continuous Press Benefit	Traditional Limitation
Low-Temp Adhesives	PMDI cures @ 160-180°C	UF requires 190-220°C
Moisture Control	Online IR (±0.5%)	Manual sampling (±2%)
Precise Forming	Air-sifting + feedback → 7% mat savings	Mechanical → safety overfill

5. Verified Savings

300,000 m³/year particleboard line:

Energy	Continuous	Multi-Opening	Annual Savings
Electricity	54 GWh	90 GWh	36 GWh
Natural Gas	240,000 GJ	420,000 GJ	180,000 GJ
CO₂	-	-	28,800 tons

Conclusion: 35-40% total energy reduction; ROI <3 years.
