Dryer for Waterproof Plywood Production
You are here: Home » Veneer Drying Series » Mesh Veneer Dryer » Dryer for Waterproof Plywood Production

PRODUCT CATEGORY

Dryer for Waterproof Plywood Production

This Dryer for Waterproof Plywood Production is a core piece of equipment specifically designed for manufacturing high-end waterproof plywood (such as Marine Grade and WBP types). It features a unique "Full-Cycle Glue Line Curing System" that, while drying the veneers, provides an optimal pre-curing environment for waterproof adhesives like phenolic resin through precisely controlled temperature and airflow management. This ensures superior bonding strength and durability. The equipment emphasizes balanced moisture content among veneers, effectively preventing warping and delamination after lamination. It is the key to achieving high-volume production of high-strength, high-stability waterproof plywood. Suitable for marine, construction formwork, and exterior-grade plywood production lines, it is the ideal industrial drying solution for enhancing your product quality and market competitiveness.

Availability:
Quantity:
sharethis sharing button
  • MINGHUNG

Dryer for Waterproof Plywood Production

minghung roller veneer drying



Overview


For producing waterproof plywood, drying is a crucial step. The appropriate dryer can effectively remove moisture from the veneers, laying a solid foundation for subsequent waterproof treatments (such as using phenolic resin glue, improving hot pressing processes, or adding waterproofing agents).


The table below summarizes several mainstream types of veneer dryers to help you quickly understand their core characteristics.

Dryer Type

Core Working Principle

Main Characteristics

Applicable Scenarios for Waterproof Plywood Production

Roller Press Continuous Dryer

The veneer is directly heated in contact with high-temperature rollers while being held under a steel belt, and dried under pressure.

Dried veneer is flat with uniform moisture content; high thermal efficiency with low heat loss.

Suitable for large-scale continuous production requiring high veneer flatness and energy efficiency.

Jet Air Roller Dryer

The veneer is conveyed by upper and lower rollers, and high-velocity hot air is vertically blown onto both surfaces of the veneer through nozzles for drying.

Has the effect of smoothing the veneer; can use various heat sources like steam or hot air furnaces (which can utilize waste wood), making it energy-saving and eco-friendly.

Wide applicability, especially suitable for post-shearing drying processes and veneers with thicknesses of 0.3mm-3.6mm. The hot air furnace type can utilize production waste materials, reducing costs.

Mesh Belt Dryer

The veneer is conveyed on a mesh belt through multiple independent drying chambers, each with its own hot air circulation and dehumidification system.

Modular chamber design allows precise control of temperature and humidity in each section; nozzle box design ensures hot air penetrates the veneer evenly.

Suitable for scenarios requiring fine-tuned drying processes and strict control over the drying curve.

Multi-layer (Stack) Dryer

Veneers are stacked layer by layer on racks inside the dryer and dried using circulating heat from mediums like steam.

Relatively small footprint, high space utilization; uses high-grade insulation materials and variable frequency drives for energy saving and stable operation.

Suitable for small and medium-sized enterprises with limited production space or those requiring batch drying.



2 layers veneer mesh dryer veneer dryer with stainless steel mesh

mesh dryer

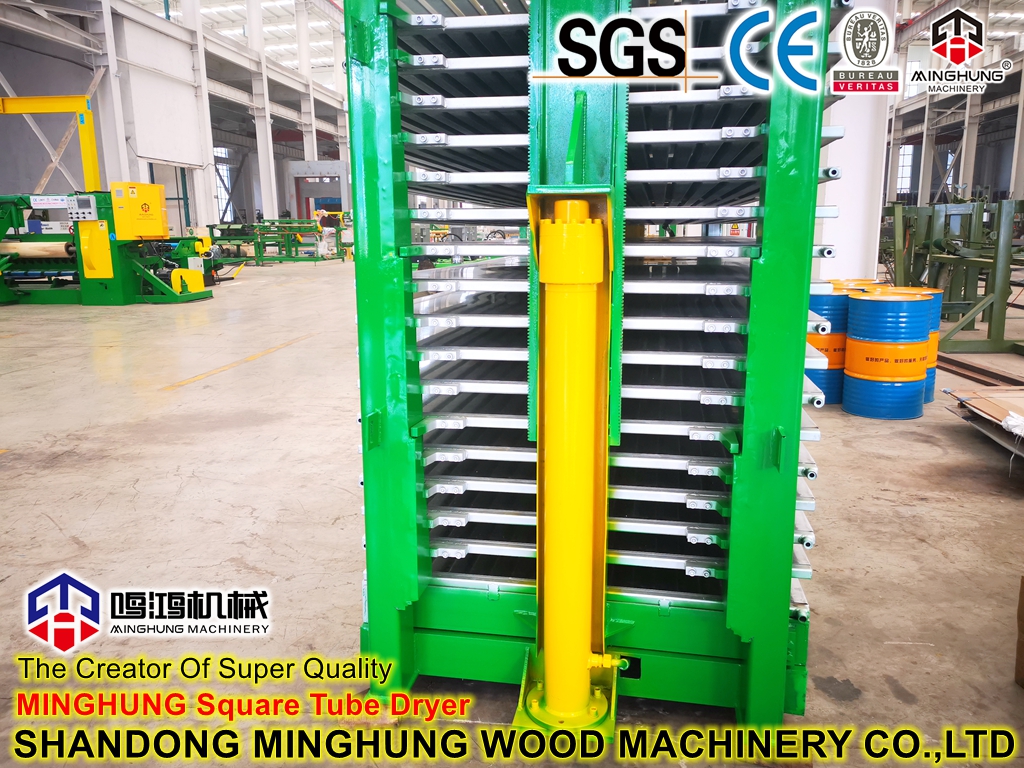

MINGHUNG Square Tube Veneer Dryer MINGHUNG Square Tube Dryer

MINGHUNG roller dryer


How to choose the right dryer


The final choice depends on your specific needs and conditions:

If you pursue extremely high veneer flatness and drying efficiency and have sufficient budget, the Roller Press Continuous Dryer is the preferred choice.

If you wish to flexibly use waste wood as fuel to reduce costs, the Jet Air Roller Dryer equipped with a hot air furnace is very economical.

If your production space is limited, the Multi-layer Dryer can utilize space effectively.

If you are particularly concerned about precise control and uniformity of the drying process, the modular structure of the Mesh Belt Dryer can be helpful.


Uses of waterproof plywood


Waterproof plywood (typically referring to plywood made using waterproof adhesives like phenolic resin and treated through special processes, such as marine plywood) has a wide range of applications due to its exceptional durability and moisture resistance.


1. Construction and Outdoor Engineering

This is the core application area for waterproof plywood.


1 Concrete Formwork: This is one of the highest volume uses. Waterproof plywood (especially overlaid/film-faced plywood) has a smooth surface, can withstand the moisture and weight of wet concrete, can be reused many times, and results in a smooth concrete surface after demolding.

      Scenarios: Building foundations, columns, floor slabs, bridges, dams—essentially any project requiring poured concrete.


2 Exterior Structural Components : Used for building parts directly exposed to weather.

      Scenarios:

          House Wall Sheathing: Acts as the base layer on the outside of the wall frame.

          Roof Sheathing: Serves as the underlayment for shingles or metal roofing.

          Balcony and Porch Flooring: Used directly as the load-bearing and walking surface.

          Shed and Warehouse Walls and Roofing.


3 Outdoor Decks and Fencing : Commonly used for outdoor decoration that requires both aesthetics and durability due to its excellent weather resistance.

      Scenarios:

          Patio and Deck Flooring.

          Outdoor Benches and Tables.

          Garden Planters and Flower Boxes.

          Fences and Railings.


2. Transportation Vehicle Manufacturing

1 Truck and Container Flooring : Requires extremely high strength and abrasion resistance to withstand the heavy pressure from goods and frequent loading/unloading. Waterproof properties ensure it doesn't warp or deteriorate in damp conditions or during rain/snow.

      Scenarios: Freight truck trailers, refrigerated trucks, railway containers, shipping containers.


2 Boat and Yacht Building : This is the origin of the name "marine plywood." It can withstand prolonged exposure to water, including immersion and splashing, making it ideal for constructing small watercraft.

      Scenarios:

          Hulls: For small fishing boats, sailboats, speedboats.

          Decks: For decking on boats.

          Interior Boat Fit-out: Such as furniture, partitions.


3 RV and Bus Interiors : Used for flooring, wall panels, and cabinets in recreational vehicles and buses, offering a combination of light weight and resistance to internal humid air.


3. Furniture and Interior Decoration

1 Bathroom and Kitchen Furniture : These areas have high humidity levels where standard boards are prone to mold and warping. Waterproof plywood is ideal for making bathroom vanities, kitchen cabinets, and pantries.

      Scenarios: Bathroom sink cabinets, kitchen base and wall cabinets.


2 Interior Decoration in Humid Environments : Used in interiors with very high humidity levels, such as saunas, swimming pool areas, basements, and laundry rooms, as wall panels, ceilings, or partitions.


3 Outdoor Furniture : Used for benches, tables, etc., designed specifically for public outdoor areas like parks, plazas, and residential communities, which must endure sun and rain.


4. Other Industrial and Special Uses

1 Signage and Billboard Backing : Provides a flat, sturdy base for outdoor billboards, capable of withstanding weather erosion.


2 Industrial Pallets and Crating : Used in factories as pallets for heavy machinery, or for creating crates for large, precision instruments requiring long-distance shipping, ensuring the safety of contents under harsh transport conditions.


3 Agricultural Facilities : Used in humid agricultural environments like greenhouses and livestock sheds.



The core advantage of waterproof plywood lies in its perfect combination of structural strength and weather/water resistance. Compared to materials like plastic or metal, it offers advantages such as ease of fabrication, relatively light weight, and cost-effectiveness. Compared to regular lumber or other wood-based panels, its stability and lifespan in damp environments are vastly superior.


Therefore, waterproof plywood is an indispensable key material in any scenario that requires load-bearing capacity, durability, and potential exposure to moisture.


Our Services


Pre-sales service:

1) Listen to customer needs

2) Provide preliminary machine design and flow chart for free, select and provide the most reasonable configuration equipment:

3) Support remote meetings and remote factory visits;

4) Provide professional advice to customers and confirm the final selection

5) Support on-site factory visits;

On-purchase service:

1) All equipment must be installed and debugged before leaving the factory, and remote video quality inspection is supported;

2) All machines must be unpacked before leaving the factory, and photos, videos, and annotations must be provided;

3) Free online or offline training for buyers' operators (domestic)

4) Assist buyers in installing and debugging equipment (overseas)

After-sales service:

1) 7*24 hours online service, remote real-time video solution;

2) During the first installation and debugging process, problems encountered during normal operation are solved in time:

3) Regular process inspection and use effect, timely machine maintenance suggestions:

4) Lifetime free technical guidance

5) Timely update the latest industry information.


Company Information

We are Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd China factory and manufacturer of full sets of Plywood machinery and Veneer machinery. With many years production experience, advanced production technology,experienced workers and professional engineers, we can offer you the suitable, good and strong machinery for you.


The machinery we produce includes peeling machines, chipping machines, rotary cutting machines, drying machines, gluing mixers, laying machines, pre-pressing machines, hot pressing machines, cooling machines, longitudinal and transverse sawing machines, sanding machines, as well as auxiliary machinery such as automatic feeding and discharging systems and lifting platforms.


Plywood production machine

FAQ

Q:How long the production time?

A:If one set machine,3-4 months;If the full production line 6-8 months.


Q:What are your advantages?

A:We have rich experience in the market, with the same cost, we do better because we have strict control of the production process. We have an independent inspection department to check the quality.


Q:Can you customize products for customers?

A:Yes, we can customize products according to customer requirements or drawings. At the same time, we protect customers' business privacy with the strongest awareness.


Q:Are you a factory or a trading company?

A:We are an industry and trade integrated company with 40 years of experience.


Q:What payment methods do you offer?

A:Usually T/T and LC. If you have other payment methods, we can also consider it.


For more information, welcome contact us, we will reply you quickly and offer working videos with you.


Whatsapp: +8618769900191  +8615589105786  +8618954906501

Email: osbmdfmachinery@gmail.com
