III. Core Structural Design

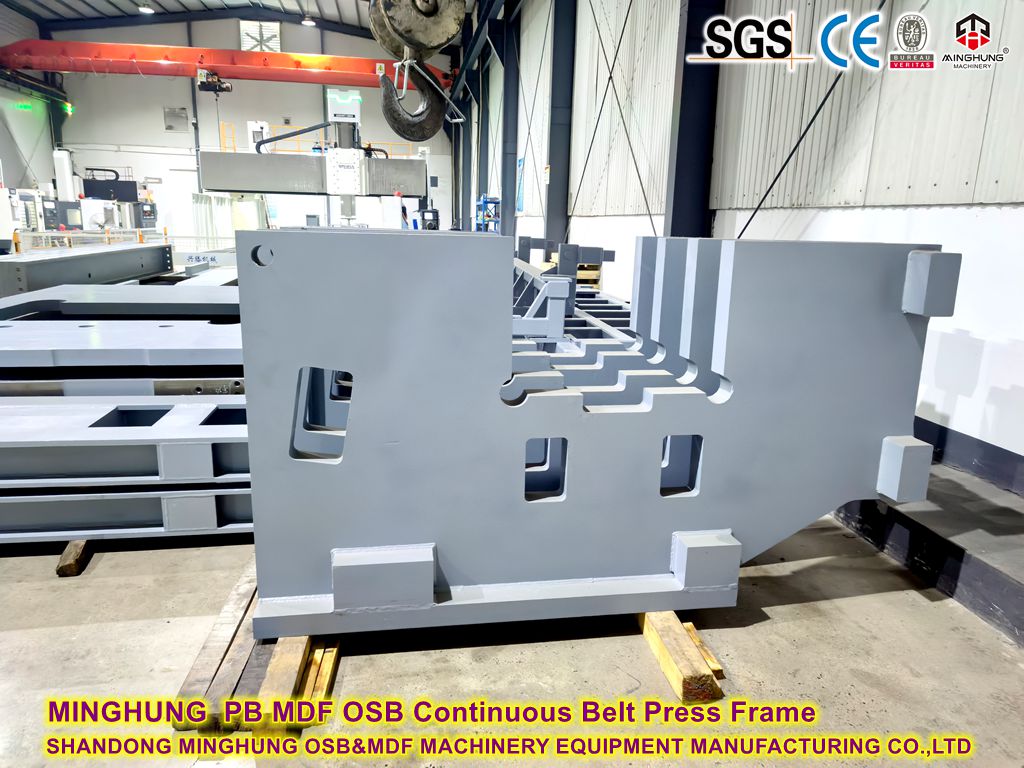

1. Heavy-Duty Frame
- Box Columns: 80mm-thick Q345B steel (anti-deformation >1200kN/m)
- Pre-stressed Frame: 1.3× working pressure preload
2. Heating Platens
Parameter | Specification | OSB Significance |
Length | 40-60m | Thick board curing time |
Surface Hardness | HRC 52-55 (chrome-plated) | Resists strand abrasion |
Oil Flow Design | Dual-spiral channels (ΔT≤3°C) | Eliminates core cure lag |
3. Steel Belt Drive System
- Multi-layer Belt:
- Base: 2.5mm SUS420 stainless steel
- Surface: 0.3mm HV1200 hard coating
- Hydraulic Tensioning:
- Constant tension (18-22kN/m), thermal expansion compensation
4. 12-Zone Temperature Control
- Execution:
- Independent thermal oil pumps per zone (±0.5L/min accuracy)
- IR thermography → real-time core temp feedback

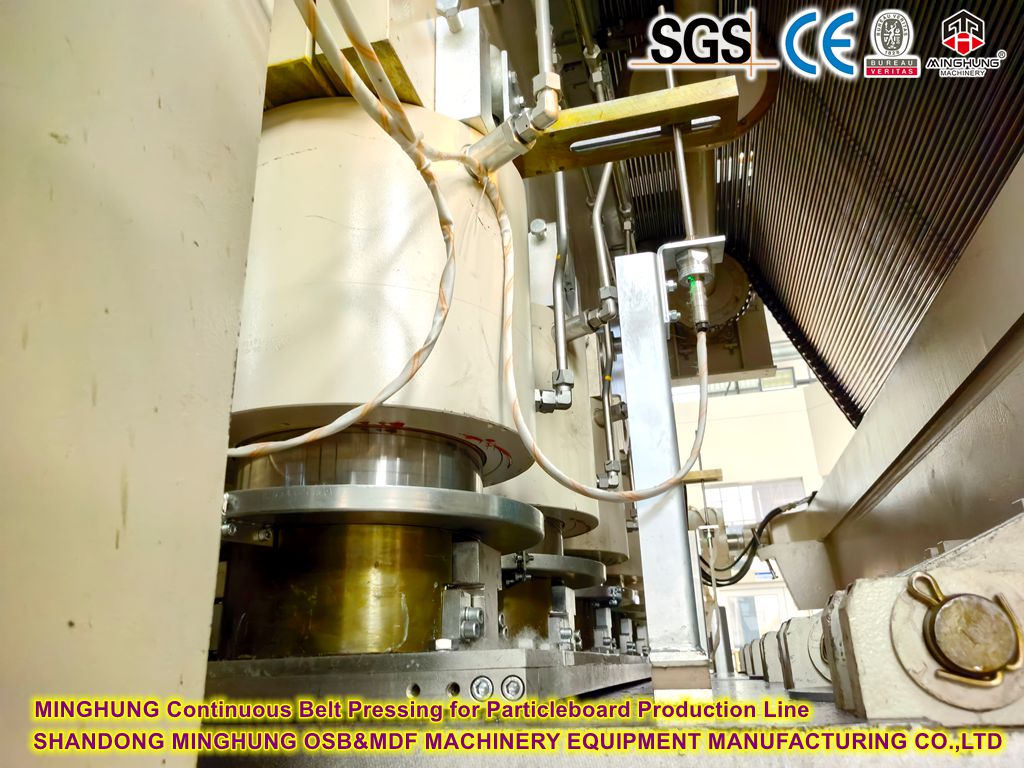

5. Hydraulic System
- High-Pressure Pumps: 35MPa operating pressure
- Proportional Valves: 12-zone control (±0.2MPa fluctuation)
IV. OSB-Specific Adaptations
1. Anti-adhesion Technology
- Laser-microtextured belt surface (0.1mm pits, 200 pits/cm²)
2. Quick Changeover System
- Hydraulic lift base (±50mm height adjustment)
3. Orientation Protection
- Gradual pre-press loading (0.3→1.0MPa) prevents strand crushing
V. Performance Comparison
Metric | Multi-Opening Press | OSB Continuous Press |
Density Uniformity | CV >8% | CV ≤3% |
Thick Board (38mm) | 8 min/cycle | 3 m/min |
Resin Utilization | 11-12% | 9-10% |
Daily Output (18mm) | 400m³ | 1200m³ |
12-Zone Independent Temperature Control
Zone Location | Temperature Target | Control Precision |
Inlet Zones 1-3 | Rapid heating to 170-180°C (surface pre-curing) | ±1.5°C |
Mid Zones 4-8 | Maintain 185°C core curing temp | ±1.0°C |
Outlet Zones 9-12 | Cool to 150°C (warp prevention) | ±2.0°C |
2. Technical Implementation

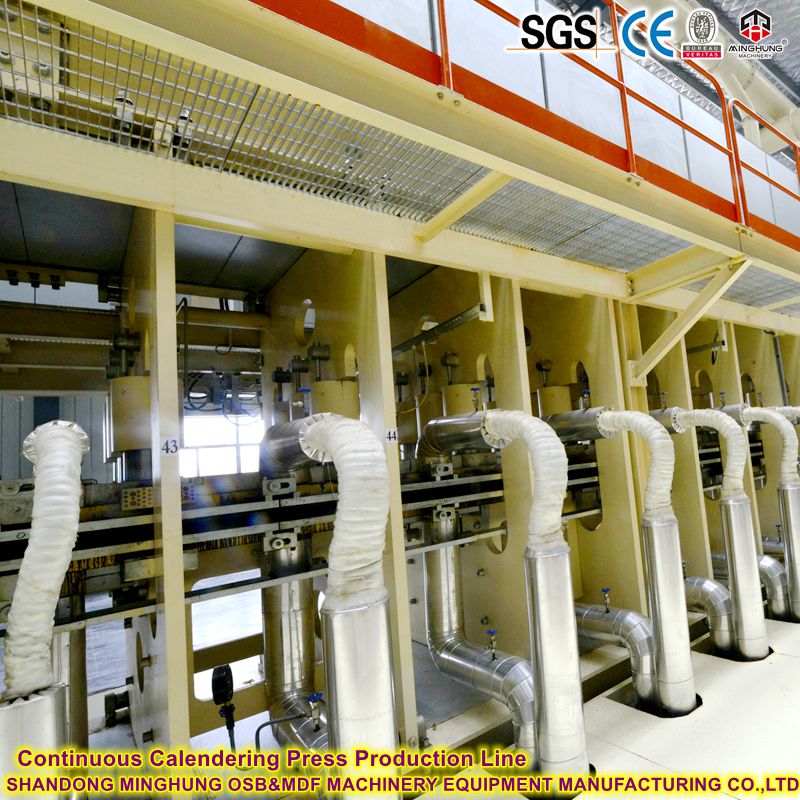

Independent Heating Systems
Each zone equipped with dedicated thermal oil circulation (or high-pressure steam module)
Heat transfer efficiency >85% (vs. <75% in conventional systems)
Dynamic Compensation
Infrared thermography scans mat temperature → adjusts zone oil flow
+5°C auto-compensation at edges (solves "edge under-curing" from heat dissipation)
Solves industry pain point: core under-curing (traditional press core/surface ΔT=30°C)
Reduces formaldehyde emission by 15-20% (uniform curing)
Increases line speed by 20% (shorter pressing time)
1. Mechanical Customization
Custom Item | Options | Application Scenario |
Pressure Zones | 12 → 24 zones (high-end) | Ultra-thick OSB (≥40mm) |
Belt Surface | Sandblasted/Chrome-plated/Laser-textured | Resin-rich wood (pine/poplar) |
Max Opening | 120mm → 250mm (expandable) | Structural OSB beams |
2. Control System Customization
Temperature Strategy Library
Pre-set curves for softwood/hardwood/mixed species
Supports client-developed recipes (≥100 encrypted storage)
IoT Integration
OPC UA protocol for MES connectivity (real-time 12-zone T/P data)
Remote diagnostics port (vendor expert optimization)
3. Special Process Packages
Fire-Retardant OSB: Enhanced cooling in Zones 9-12 (prevents additive degradation)
Moisture-Resistant OSB: Rapid heating in Zones 1-4 (accelerates wax diffusion)
Curved OSB Press: Zone temperature differential shaping (ΔT up to 50°C)
Technical Performance Comparison
Metric | Traditional OSB Press | Custom 12-Zone Press |
Thickness Tolerance | ±0.3mm | ±0.15mm |
Daily Output (18mm OSB) | 800m³ | 1200m³ |
Resin Usage | 11-12% | 9-10% |
Product Yield | 0.88 | ≥96% |
