01 HOW TO PRODUCE PARTICLEBOARD? WHAT IS ITS PRODUCTION STEP?
Particle board making machine for making particle board, the full line mainly includes: Wood chipper/crusher → Flaking → Drying → Screening → Gluing → Forming → Continuous pressing → Hot pressing → Cooling → Sanding → Sizing -Packing.
> Drum chipper for crushing wood and barks and trunks into the certaine size chips; > Flaking machine for make the small chips into wood strands; > Drying machine for drying the wet wood strands; > Vibrating screen for screening big wood strands, suitable strands, and chips; > Gluing machine for make glue on wood strands and evenly distributed; > Forming line for uniform distribution of the flakes both lengthwise and crosswise as well as the layer formation of top and middle layer flakes over the cross section of the panel; > Continuous press machine for pre-press particleboard, and make it in a certaine initial strength; > Hot press for press particleboard in a high pressure and heating temperature; > Sanding machine for sanding particleboard surface, and make its surface smooth and thickness accurate
02 FULL PRODUCT PARAMETERS
<1> Drum Chipper
Inlet size
240*750mm(H*W)
Blade quantity
2pcs
Knife roll diameter
800mm
Power
132kw
<2> Ring Chipper
Wood strands thickness
0.4-1.0mm
Capacity
5000-8000kg/h
Knife length
449mm
Power
250kw
<3> Vibrating screen
Screening cloth
2
Screening area
12 m2
Screening capacity
70m3/h
Power
11kw
<4> Gluing
Capacity
500m3 /per day
<5> Forming machine
Surface forming machine
2 sets
Capacity
2 *45m3/h
Core forming machine
1 sets
Capacity
65m3/h
Forming width
1300mm
Forming thickness
30-120mm
<6> Continuous press
Convey speed
10-30m/min
Working height
1250mm
Belt width
1500mm
Power
75kw

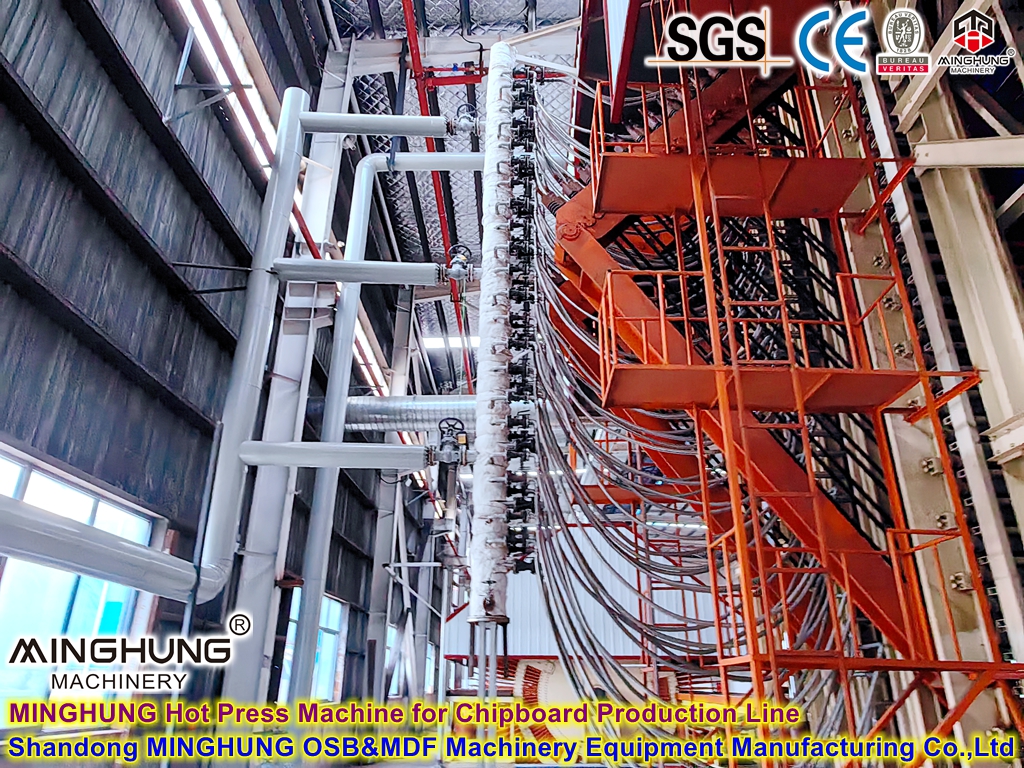

<7> Hot press
Pressure
1200 ton
Hot plate size
2650*1680*120mm
Layers
22
Heating medium
Oil
Heating temperature
≤180ºC
Closing time
10s
<8> Sanding machine
Max sanding width
1300mm
Sanding thickness
3-50mm
Sanding belt size
1350*2800mm
For this production line, it can produce 30000-150000m3 one year. And we can produced as your capacity requires
03 FINISHED OSB PRODUCTS
04 WHAT WE OFFERED
<1> Machine Installation: We can send engineers go to install machine, degue, and teach your workers <2> Warranty: 15 months <3> Factory layout: After machine production start, we can make factory layout for you <4> How to do when meet operation problem: Contact us at the first time, our engineers will help check and solve quickly
Welcome contact us for more information if you are interested
