Wire Drying Line for Plywood Core Veneer
You are here: Home » Veneer Drying Series » Mesh Veneer Dryer » Wire Drying Line for Plywood Core Veneer

PRODUCT CATEGORY

Wire Drying Line for Plywood Core Veneer

Availability:
Quantity:
Wire Drying Line for Plywood Core Veneer

Friends, for save your precious time, please tell me your conditions, i will offer you the suitable and good machine for you.
----Lucinda/sales manager

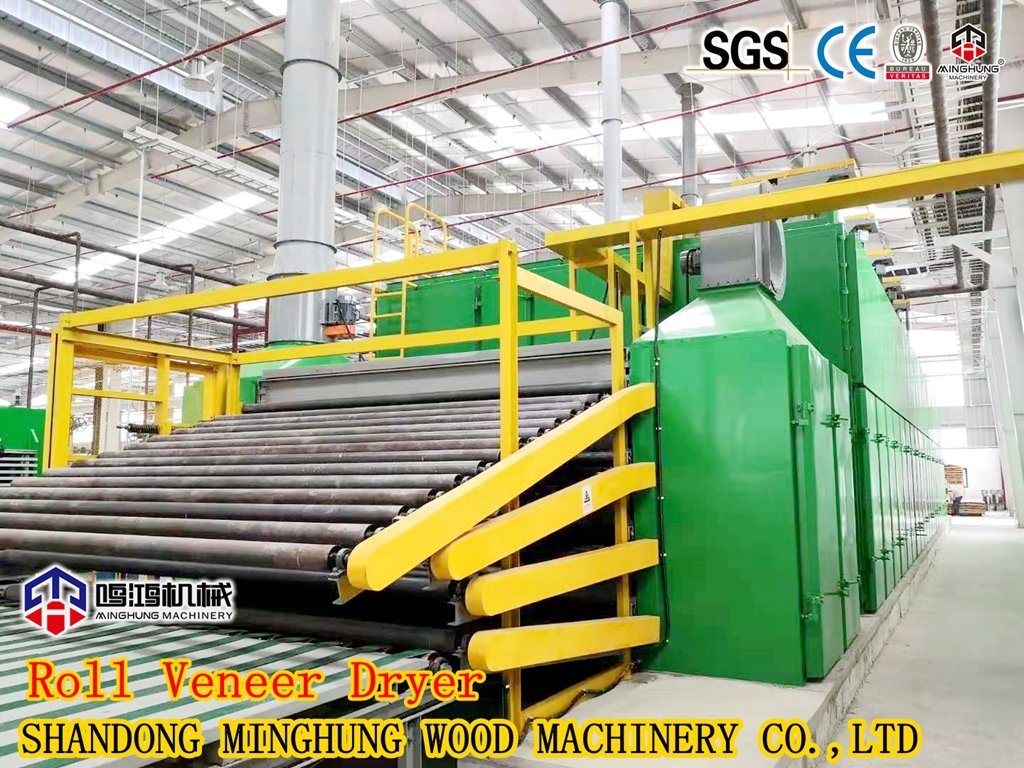

the drying line mainly have two types, one is roll dryer, inside transport material is roll.
another one is Mesh dryer, also be called wire dryer, inside transport material is the mesh, it can drying the thin veneer.

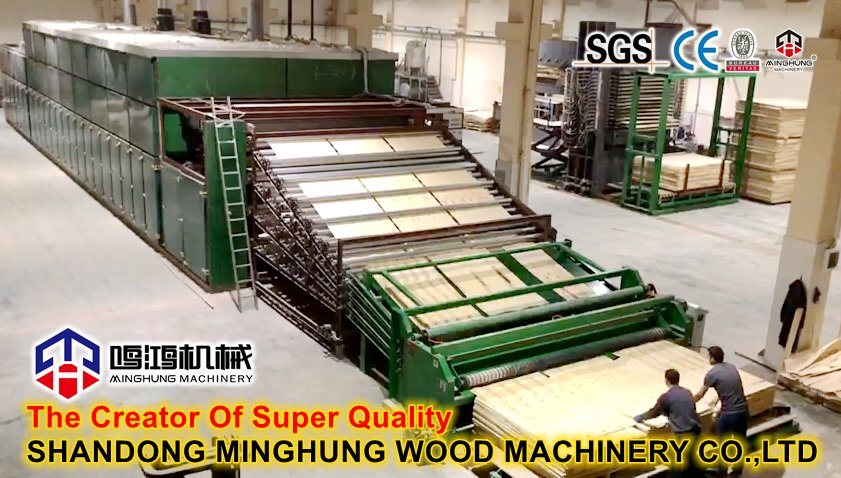

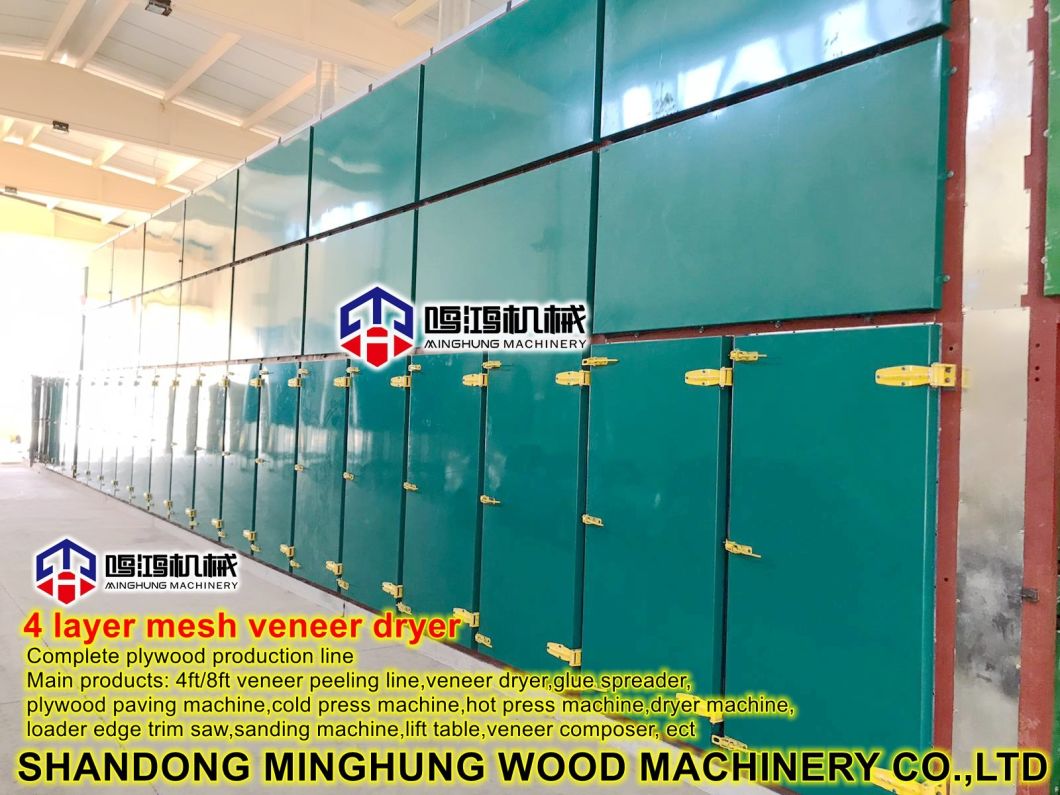

today this one introduced to you is the Mesh drying line. it can be different floors, like 1, 2 3 for 4floors, on the pictures, this is one 4 floors dryer machine. and its width can be different like width 3meter, width 4meter. also dryer length can be different. usually we offer the dryer details as your required the drying capacity everyday.

and can add the semi-auto infeeding device, it will automatic convey wood veneer to different floors. save labor cost and improve high efficiency.

The veneers move through the drying machine in several layers along rollers, as the machine's name indicates. The target moisture level after drying is around 6-7% which is precisely the right moisture level for gluing veneer.
A sufficient drying temperature is 145-160ºC and the veneers pass through the machine in about six minutes. Drying conditions and the moisture of the veneers are monitored continuously to make sure that the drying quality remains even.
Usually, the original moisture is 70-80%, after drying, the moisture is about 10%


>>>Parameters:
The dryer machine-mesh dryer, can be different layers, length and width, so we usually offer and produce according to your production capacity required.
Wire Drying Line for Plywood Core VeneerWire Drying Line for Plywood Core Veneer
Name Mesh dryer
Model MH-MD3618
Heating mode Steam/Oil
Veneer thickness 0.3-3mm
Transport mode mesh belt drying mode
Speed Speed adjustable
Number of layers 1layer/2 layers/3layers/4layers
Length of hot wind area 20m/26m/30m
Peoduction capacity 10-20m³/day, 20-30m³/day, more
Final Moisture of veneer 10%±2

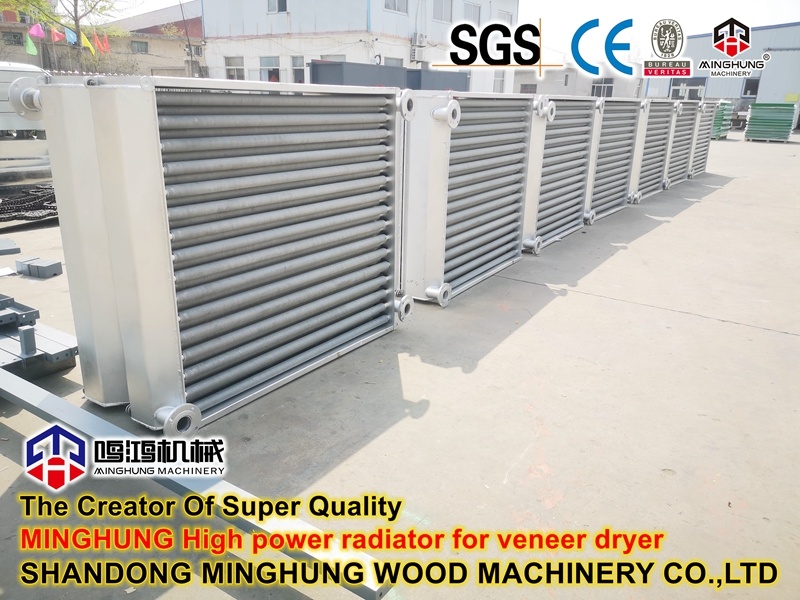

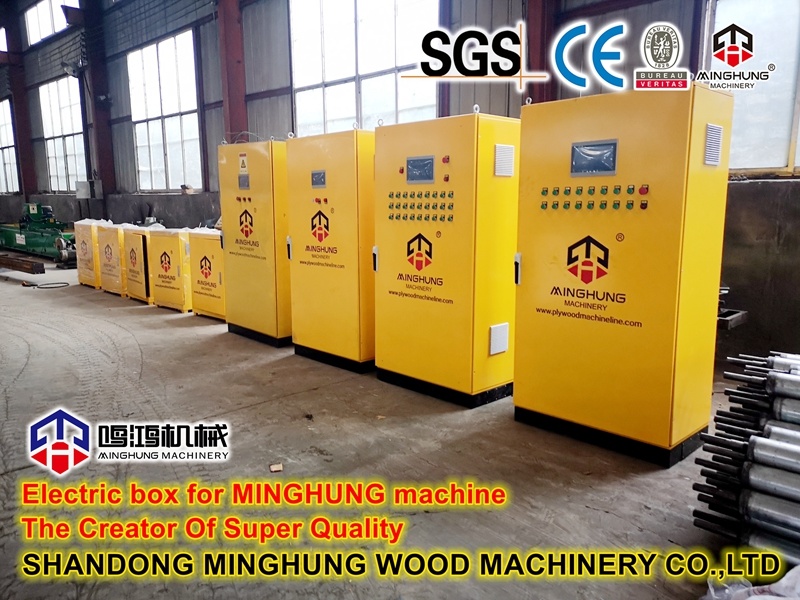

>>>Main Parts:
Wire Drying Line for Plywood Core Veneer
Wire Drying Line for Plywood Core Veneer
Wire Drying Line for Plywood Core Veneer
Wire Drying Line for Plywood Core Veneer
Wire Drying Line for Plywood Core Veneer
Wire Drying Line for Plywood Core Veneer




<1> Resonable design and good parts make mesh dryer save energy and transfer heating fast.

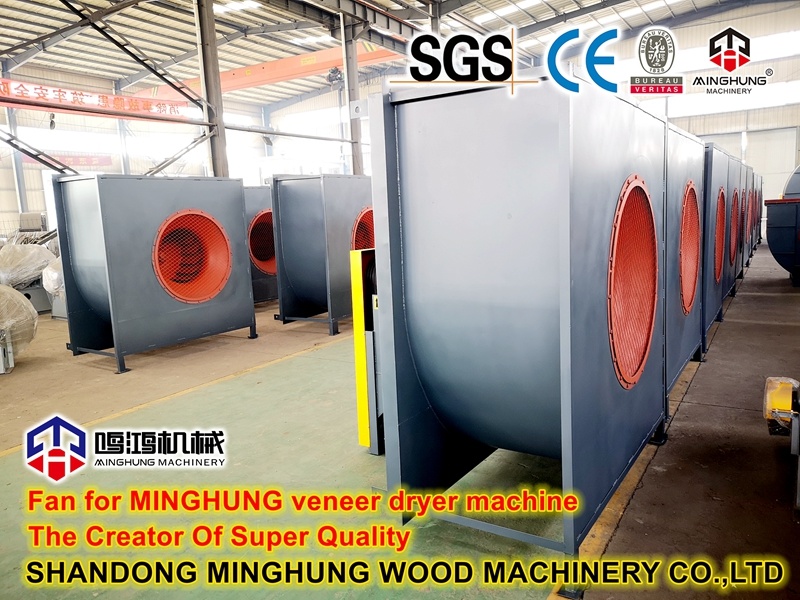

<2> The dryer machine uses the latest ultra-low noise centrifugal ventilator, reduce noise, good for workers.
<3> The wind speed is faster and the air volume is higher, therefore the drying speed is much quicker.
<4> Adopt variable frequency speed control, can adjust feed speed according your veneer thickness and moisture content, to get perfect drying effect.
<5> The mesh is anti-rust, and can drying very thin thickness face veneer.




>>>Machine In Client Factory:
Wire Drying Line for Plywood Core Veneer

Wire Drying Line for Plywood Core Veneer
Wire Drying Line for Plywood Core Veneer
Wire Drying Line for Plywood Core Veneer

The installation of veneer roller dryer is more complex and spend longer time than others, so our engineer will go to install with your workers.



>>>RFQ:
Production Time:
1 month after receive your deposit.
Payment Terms:
30% deposit, 70% before delivery.
100% Letter of Credit.
Warranty:
2 years for main parts.
MOQ:
1 set
Installation:
When machine reach your factory, our engineer can go to install
After-sales service:
Any problem that your worker can not solve, tell us, we will reply you at the first time,
