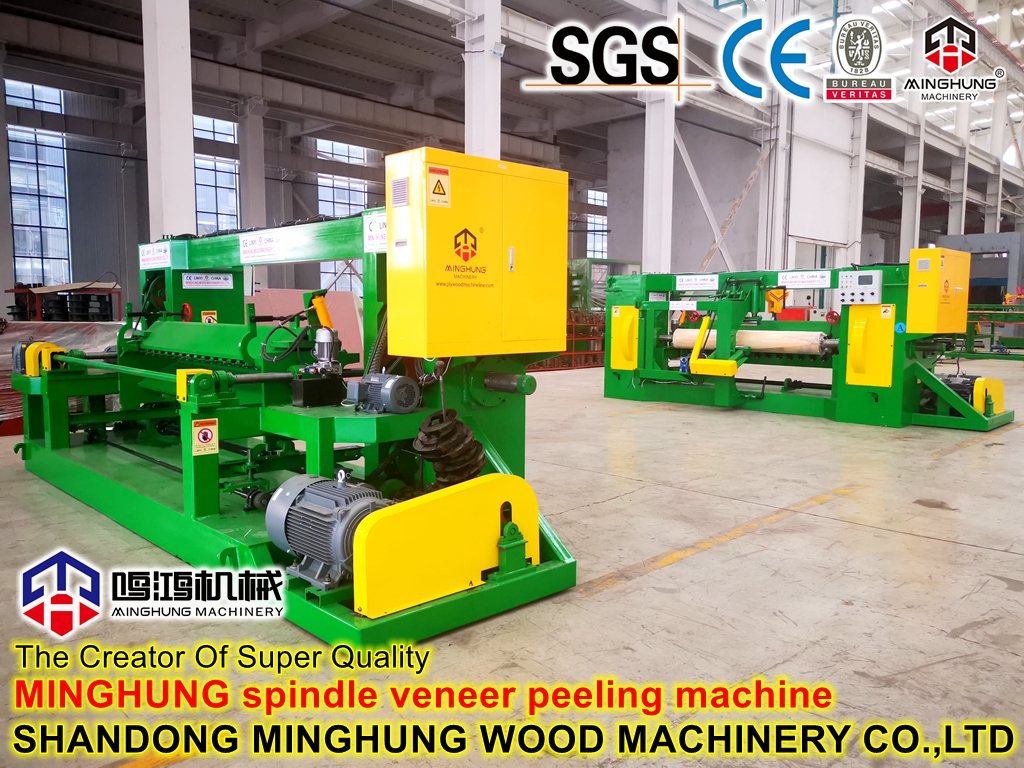

High-Stability Spindle Veneer Peeling Machine Customized for Eucalyptus Veneer
This spindle-type veneer lathe is a high-precision wood processing machine specially designed for large-scale eucalyptus veneer production. It adopts a dual-spindle drive structure, clamping the log at both ends to drive rotation, while a fixed knife carriage performs continuous peeling. Compared to roller-type lathes, this model offers higher rotational rigidity and machining accuracy, making it particularly suitable for hardwoods like eucalyptus with high density and strong fiber toughness.
Model NO. | MH-VPM2600B | Warranty | 1 Years |
Name | Spindle Peeling Machine | Transport Package | Plastic Film |
Trademark | MINGHUNG | Origin | Linyi City, China |
Specification/size | 600.00cm * 230.00cm * 260.00cm | Total motor | 57.45kw |
Thickness Range | 0.5-2.6mm (or customized) | Weight | 9500kgs |
Wood Length Range | 2000-2600mm | Max processing diameter | 1500mm |
Main motor | 45kw*1pc | Clamping motor | 4kw*2pc |
Adjust knife motor | 1.1kw*1pc | Hydraulic motor | 0.75kw*1pc |
Press motor | 1.1kw*1pc | Mainshaft speed | 0-200turn/min |
Single board output speed | 45-50 m/min |
|
|
Core Structure & Working Principle
1. Spindle Drive System
Dual-end synchronous servo motor drive: Left and right spindles operate independently but maintain real-time speed synchronization to prevent log twisting caused by uneven torque.
Hardened alloy steel jaws: Adjustable biting depth ensures no slipping during high-speed rotation of large-diameter eucalyptus logs.
Hydraulic automatic centering: Logs are automatically aligned upon loading, reducing setup time by 40% without manual calibration.
2. Knife Carriage & Pressure Bar Mechanism
Variable angle knife gap design: Blade mounting angle adjustable between 15°–25° to address eucalyptus' long-fiber, tear-prone characteristics; users can optimize based on wood moisture content and diameter.
Hydraulic servo pressure bar: Positioned immediately behind the knife edge, it compensates for blade wear in real time, enabling continuous 0.5mm thin veneer peeling without breakage.
Dual-guide rail carriage: Slides on heavy-duty linear guides with feed accuracy of ±0.05mm, maintaining veneer thickness tolerance within ±0.1mm.
3. Machine Bed & Vibration Damping
Integral cast iron bed: Undergoes aging annealing treatment to eliminate internal stress, ensuring long-term deformation-free operation.
Damping pads at spindle box-guide rail connections: Effectively absorb periodic shocks during peeling, particularly beneficial when processing eucalyptus with numerous knots.
4. Intelligent Control Unit
15-inch industrial touchscreen: Multi-language interface (Chinese/English/Russian, etc.).
Built-in eucalyptus-specific cutting database: Automatically recommends optimal rotation speed and feed rate based on log diameter and moisture content.
Fault self-diagnosis system: Monitors hydraulic pressure, spindle load, lubrication status in real time; automatically alarms and displays fault codes upon abnormalities.
Applications & Configuration Recommendations
Plywood production lines: Pairs with roller-type veneer lathes (for remaining core processing) and veneer dryers for complete eucalyptus log utilization.
Concrete formwork factories: Continuous production of 1.2mm–2.0mm eucalyptus core veneers; flatness exceeds national standards.
Packing board processing: For 4.0mm thick coarse veneers, reduce speed and increase feed rate for significant efficiency gains.
Core Advantages of This Veneer Lathe
1. Ultimate Stability – Born for Eucalyptus
Heavy-duty dual-spindle structure increases rigidity by 30%, completely eliminating vibration issues caused by eucalyptus' high density and numerous knots.
Variable angle knife gap + hydraulic servo pressure bar ensures thin veneers won't break and thick veneers won't fuzz, with veneer qualification rate exceeding 98%.
2. High Efficiency – Reduce Cost, Increase Profit
Dual-spindle automatic centering reduces loading time by 40%, increasing daily output by 25%.
Remaining core diameter ≤100mm, improving overall wood utilization by 15% – producing 30–50 more finished veneers per ton of logs.
3. Intelligent & User-friendly – One Operator, Multiple Machines
PLC touch screen for one-click thickness adjustment without stopping the machine; beginners operational within 1 hour.
Fault self-diagnosis + remote maintenance solves 80% of common issues remotely, reducing repair response time by 70%.
4. Rugged & Durable – 10-Year Design Life
Integral cast iron bed undergoes aging treatment, deformation-free for a decade.
Core bearings and hydraulic components from top international brands, ensuring trouble-free continuous full-load operation.
5. Multi-purpose – Not Picky About Wood Species
In addition to eucalyptus, adaptable to poplar, pine, birch, etc. Flexible switching between wood types during low seasons means zero idle time.
1. Pre-sales: Professional Selection & Customized Solutions
Free trial cutting of your log samples, providing veneer quality reports.
Recommend the most suitable model and supporting front/backend equipment based on your production targets, factory size, and budget.
2. During Sales: Efficient Shipping & Hassle-free Customs Clearance
Production and delivery within 60 days; fumigated wooden case + rust-proof & moisture-proof double export packaging.
3. After-sales: Global Warranty & Rapid Response
12-month whole machine warranty, 18-month warranty for key components including hydraulics, motors, bearings.
7×24 multilingual customer service (English, Russian, Spanish), solution provided within 2 hours.
Engineer on-site service: Installation, commissioning, and operator training available – ready to run upon arrival.
