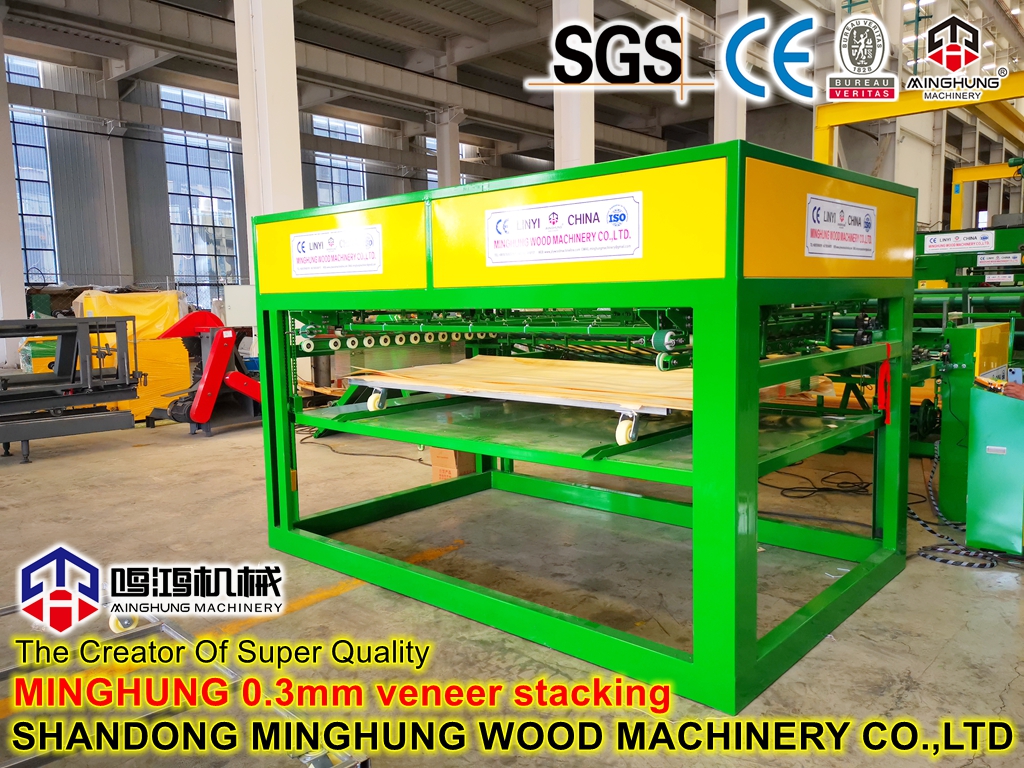

Vacuum Suction Stacker for Ultra-Thin Veneer Plywood
Main Components
Component | Main Function & Description |
Conveying Section | Composed of a conveyor frame, drive rollers, and a special conveyor belt. The belt typically has through-holes to allow the vacuum suction force to act on the veneer through the belt surface. |
Vacuum Suction System | This is the core of the equipment, including a fan (or vacuum pump), suction chamber (plenum), pipelines, etc. The operation of the fan creates a stable negative pressure zone within the suction chamber. |
Machine Frame | A high-strength structure welded from steel profiles and plates, used to support and install all other components, ensuring the operational stability of the equipment. |
Pneumatic System | Composed of cylinders, air source treatment units (FRL), solenoid valves, etc. It provides power for mechanisms like the unloading device and alignment devices, performing actions such as pushing, pulling, and clamping. |
Lifting Table | Typically a scissor-type hydraulic lifting table or motor-driven, used to support the continuously growing stack of veneers. It automatically descends as the stack height increases to maintain a constant receiving height. |
Electrical Control System | Centered around a PLC (Programmable Logic Controller), combined with a touch screen (HMI), inverters, sensors, etc., to achieve automated control, parameter setting, status monitoring, and fault alarm functions of the equipment. |
Working Process
1. Ultra-Thin Veneer Infeeding: Ultra-thin veneers (0.2-1.5mm) are conveyed from upstream peeling machines or dryers into the stacker infeed. Anti-curling press rollers ensure flat entry.
2. Micro-Pressure Suction: The variable frequency fan starts, automatically adjusting to micro-pressure mode (-8mbar to -12mbar) based on veneer thickness. High-density suction cups evenly grip the veneer, preventing local stress breakage.
3. Smooth Transport: The veneer is transported smoothly on the flexible suction belt at speeds up to 120 m/min. The lightweight design minimizes start-stop impact.
4. Intelligent Positioning: Photoelectric sensors detect the veneer position in real-time. The control system calculates the optimal release timing based on preset parameters. For thin veneers, the system automatically corrects the release zone according to thickness and speed .
5. Gentle Release: The servo-driven kicker arm releases the veneer with a gentle action. Placement error is within ±1mm, and the veneer lands smoothly onto the lifting stacking platform.
6. Precise Stacking: The stacking platform automatically descends by one veneer thickness (0.1mm precision), maintaining a constant stack top height and preventing thin veneers from drifting and misaligning.
7. Full Stack Output: Upon reaching the preset stack height, the platform delivers the full stack of ultra-thin veneers for removal by forklift or transfer via conveyor.
Main Specifications
4feet veneer stacker |
|
model | MH-VS127A |
lifting mode | hydraulic lift*3kw*1set |
fan motor | 5.5kw*2pcs |
driving motor | 3kw*2pcs |
press veneer motor | 2.2kw*1pcs |
waste veneer conveyor | 2.2kw*1pcs |
total power | 25kw |
veneer size | 900-1300*600-1300mm |
thickness | <3.6mm |
total weight | 2.5t |
size | 5500*2000*2750mm |
|
|

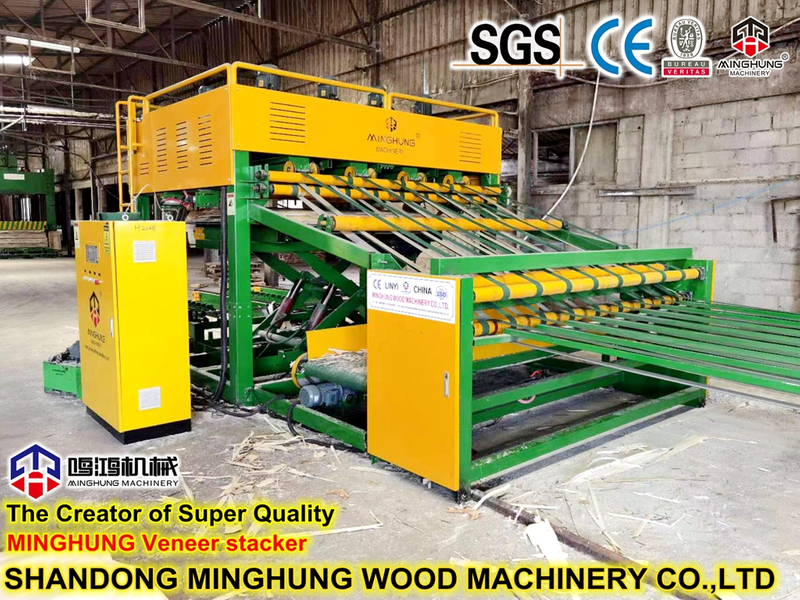

8feet veneer stacker |
|
model | MH-VS2600A |
lifting mode | hydraulic lift *3kw*1set |
fan motor | 5.5kw*4pcs |
driving motor | 3kw*2pcs |
press veneer motor | 2.2kw*1pcs |
waste veneer conveyor | 2.2kw*1pcs |
total power | 35kw |
veneer size | 2300-2600*600-1400mm |
thickness | <3.6mm |
total weight | 5t |
size | 6500*3200*2750mm |
Main Advantages
1. Designed for Ultra-Thin Veneers: Tailored specifically for the physical characteristics of 0.2-1.5mm ultra-thin veneers, fundamentally solving industry pain points such as fragility, curling, and difficult suction.
2. Micro-Pressure Suction Technology: Zoned micro-pressure vacuum control with precisely adjustable suction force avoids breakage of ultra-thin veneers caused by excessive suction common in traditional stackers .
3. Flexible Transport System: Lightweight suction belt and servo-driven kicker mechanism minimize start-stop and release impact, ensuring thin veneers remain intact and undamaged.
4. Speed-Adaptive Release: Automatically corrects release timing and zone based on veneer thickness and transport speed, ensuring precise placement for different thin veneer specifications .
5. Anti-Static Design: Conveyor belts and stacking platforms use anti-static materials to prevent ultra-thin veneers from sticking due to static electricity, maintaining stacking neatness.
6. Energy-Efficient & High-Speed: Variable frequency fans provide on-demand power, saving over 30% energy compared to traditional models while maintaining high-speed stacking capability of 120 m/min.
7. Industry-Leading Stacking Neatness: High-precision sensors combined with servo control achieve placement error within ±1mm, with stack edges as neat as if cut by a knife.
8. Intelligent Operation: PLC features a built-in parameter library for ultra-thin veneers, allowing one-touch recall of optimized stacking parameters for different thicknesses without repeated manual adjustments.
