Precision Heavy Duty Wood Hot Press Machine MDF / OSB / Particleboard Chipboard Particle Board Machinery Production Line
You are here: Home » OSB PB MDF Machine Serise » OSB/Oriented Strand Board Production Line » Precision Heavy Duty Wood Hot Press Machine MDF / OSB / Particleboard Chipboard Particle Board Machinery Production Line

PRODUCT CATEGORY

Precision Heavy Duty Wood Hot Press Machine MDF / OSB / Particleboard Chipboard Particle Board Machinery Production Line

Particle board making machine for making particle board, the full line mainly includes:Wood chipper/crusher → Flaking → Drying → Screening → Gluing → Forming → Continuous pressing → Hot pressing → Cooling → Sanding → Sizing -Packing.
Availability:
Quantity:
sharethis sharing button
  • MH-OSB-300

  • MINGHUNG

  • 846590

  • Qingdao

  • 300cbm/day

  • T/T or L/C

  • All time

  • Automatic/Semi-automatic

  • 2 years

  • OSB Machine

  • For OSB Production

  • Adjustable

Precision Heavy Duty Wood Hot Press Machine MDF / OSB / Particleboard Chipboard Particle Board Machinery Production Line

Particleboard paving machine MINGHUNG OSB MDF PB Plywood Roller Trimming Saw Machine


FULL PRODUCT PARAMETERS

wood clipper <1> Drum Chipper
Inlet size 240*750mm(H*W)
Blade quantity 2pcs
Knife roll diameter 800mm
Power 132kw

Oriented strand board flake machine <2> Ring Chipper
Wood strands thickness 0.4-1.0mm
Capacity 5000-8000kg/h
Knife length 449mm
Power 250kw

Particleboard vibrating screen for PB making <3> Vibrating screen
Screening cloth 2
Screening area 12 m2
Screening capacity 70m3/h
Power 11kw
MINGHUNG PB board Particleboard sizing system <4> Gluing
Capacity 500m3 /per day
Particleboard paving machine line <5> Forming machine
Surface forming machine 2 sets
Capacity 2 *45m3/h
Core forming machine 1 sets
Capacity 65m3/h
Forming width 1300mm
Forming thickness 30-120mm

MINGHUNG Prepress Machine for OSB Production Line <6> Continuous press
Convey speed 10-30m/min
Working height 1250mm
Belt width 1500mm
Power 75kw
Particle Board Hot Press <7> Hot press
Pressure 1200 ton
Hot plate size 2650*1680*120mm
Layers 22
Heating medium Oil
Heating temperature ≤180ºC
Closing time 10s
flaker particleboard <8> Sanding machine

Max sanding width 1300mm
Sanding thickness 3-50mm
Sanding belt size 1350*2800mm

For this production line, it can produce 30000-150000m3 one year. And we can produced as your capacity requires


FINISHED OSB PRODUCTS

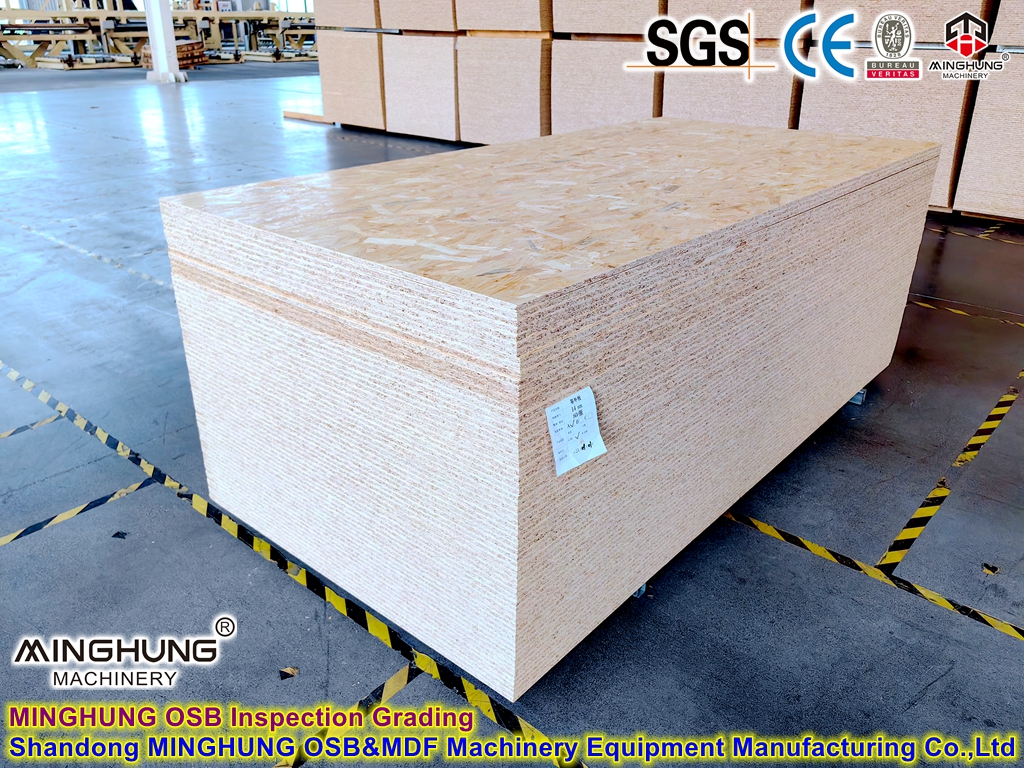

Osb Inspection Grading

Warehousing

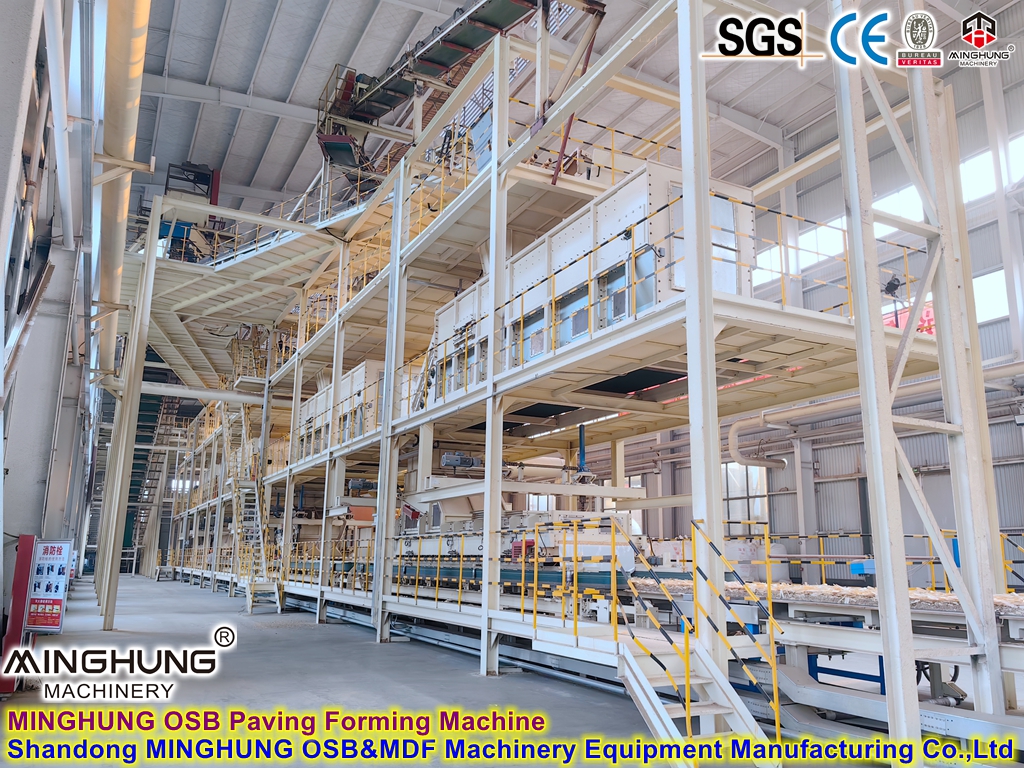

Paving Forming




Cooling Frame


EXHIBITION

minghung plywood machine in Indonesia minghung woodworking machinery minghung machine in Vietnam wood fair


WHAT WE OFFERED

1. Goods Safety Assurance: Rest assured, we use top-quality packaging materials and appropriate shipping methods to minimize any damage during transit.

2. Timely Delivery: We make every effort to ensure your goods are dispatched on time as scheduled, providing timely tracking information so you can monitor their transit status.

3. Customer Service Support: Our customer service team is available to assist you at any time. Whether it's about transit, tracking, or any other inquiries, we are committed to resolving issues and providing satisfactory solutions.

4. After-Sales Service Guarantee: We offer comprehensive after-sales service assurance. If you are dissatisfied with your goods or discover any quality issues, please contact us promptly. We are dedicated to resolving issues and providing satisfactory solutions.


Welcome contact us for more information if you are interested

WHATSAPP: +86 15805497925
EMAIL: minghungwoodmachinery@gmail.com
