Particleboard Production Line Manufacturing for Engineered Wood Products: OSB/ MDF / HDF
FULL PRODUCT PARAMETERS
<1> Drum Chipper
Inlet size
240*750mm(H*W)
Blade quantity
2pcs
Knife roll diameter
800mm
Power
132kw
<2> Ring Chipper
Wood strands thickness
0.4-1.0mm
Capacity
5000-8000kg/h
Knife length
449mm
Power
250kw
<3> Vibrating screen
Screening cloth
2
Screening area
12 m2
Screening capacity
70m3/h
Power
11kw
<4> Gluing
Capacity
500m3 /per day
<5> Forming machine
Surface forming machine
2 sets
Capacity
2 *45m3/h
Core forming machine
1 sets
Capacity
65m3/h
Forming width
1300mm
Forming thickness
30-120mm
<6> Continuous press
Convey speed
10-30m/min
Working height
1250mm
Belt width
1500mm
Power
75kw

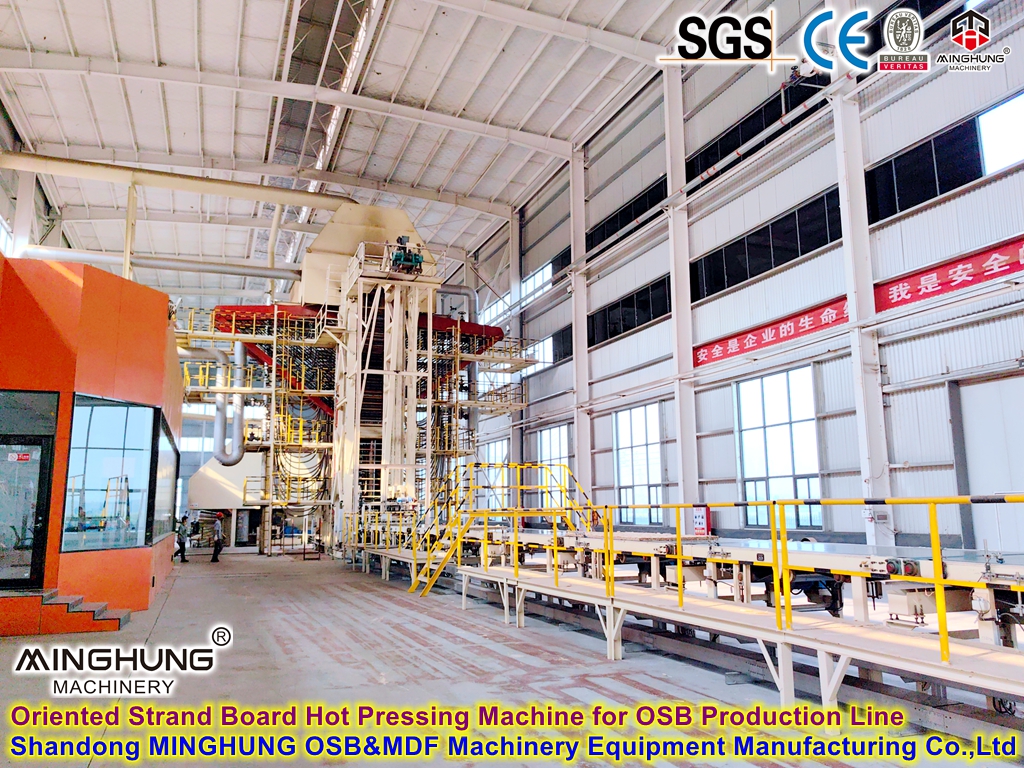

<7> Hot press
Pressure
1200 ton
Hot plate size
2650*1680*120mm
Layers
22
Heating medium
Oil
Heating temperature
≤180ºC
Closing time
10s
<8> Sanding machine
Max sanding width
1300mm
Sanding thickness
3-50mm
Sanding belt size
1350*2800mm
For this production line, it can produce 30000-150000m3 one year. And we can produced as your capacity requires
FINISHED OSB PRODUCTS
EXHIBITION
WHAT WE OFFERED
1. Goods Safety Assurance:Rest assured, we use top-quality packaging materials and appropriate shipping methods to minimize any damage during transit.
2. Timely Delivery:We make every effort to ensure your goods are dispatched on time as scheduled, providing timely tracking information so you can monitor their transit status.
3. Customer Service Support: Our customer service team is available to assist you at any time. Whether it's about transit, tracking, or any other inquiries, we are committed to resolving issues and providing satisfactory solutions.
4. After-Sales Service Guarantee:We offer comprehensive after-sales service assurance. If you are dissatisfied with your goods or discover any quality issues, please contact us promptly. We are dedicated to resolving issues and providing satisfactory solutions.
Welcome contact us for more information if you are interested
