Energy Saving Servo Motor Driven Plywood Hot Press Machine

The energy-saving servo motor driven plywood hot press is a new type of high-efficiency hydraulic hot pressing equipment that integrates a servo motor with a fixed or variable displacement pump. It is specifically designed for hot pressing plywood, ecological boards, construction formwork, and similar panels. Compared to traditional hot presses driven by standard three-phase induction motors, this machine dynamically adjusts motor speed and torque according to actual load demand, achieving significant energy savings, lower oil temperature, higher pressing precision, and improved production efficiency.

Quantity:
Availability:





Inquire Add to Basket

Model:
MH-HP
Brand:
MINGHUNG

Product Description

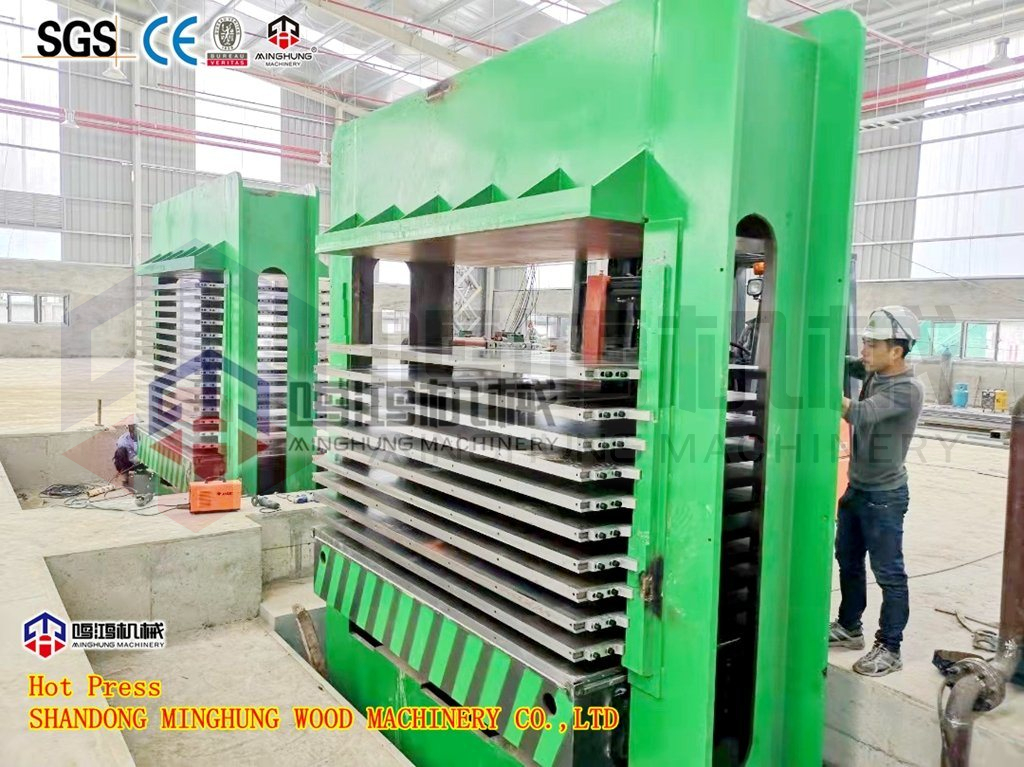

Energy Saving Servo Motor Driven Plywood Hot Press Machine

Hot press equipped with auto feeder and unfeeder

Traditional hot presses keep the motor running at rated speed with no load or light load during pressure holding, decompression, and idle periods, wasting substantial electrical energy. This product uses a servo control system that collects real-time pressure and flow signals from the hydraulic system:

Fast Closing / Pressurizing Stage: The servo motor runs at high speed, providing high flow and high pressure.

Pressure Holding Stage: Motor speed is reduced to very low or stopped, only compensating for system leakage — almost zero energy consumption.

Decompression / Return Stage: The motor outputs small flow as needed, avoiding energy waste.

Idle Stage: The motor stops completely, with zero energy consumption.

Additionally, the servo system features millisecond-level response speed and high-precision pressure and flow control, ensuring that each board layer cures under stable pressure for uniform thickness.

Main Components

1. Servo Motor: Permanent magnet synchronous servo motor, high efficiency, fast response, strong overload capability.

2. Servo Drive: Intelligently controls motor speed and torque for closed-loop regulation.

3. Hydraulic Pump: Optional fixed gear pump or variable piston pump, matched to servo characteristics.

pump for hydraulic station

4. Main Cylinder & Synchronous System: Drives hot platens with high synchronization accuracy.

cylinder

5. Hot Platens (multi-layer): Uniform heat distribution with hardened surface treatment.

hot platen for plywood hot press machine

6. Heating System: Optional thermal oil, steam, or electric heating.

7. PLC + Touch Screen Control System: Integrated servo parameter adjustment, multiple process recipe storage.

8. Pressure & Temperature Sensors: Real-time feedback for closed-loop control.

Pressure Sensor for MINGHUNG hot press machine

Key Advantages

Advantage	Description
Significant Energy Savings	30%–60% electricity savings compared to traditional machines, especially in long pressure-holding or frequent idle conditions.
Lower Oil Temperature	Reduced wasteful overflow heating extends hydraulic oil life by 2–3 times; cooler may be reduced or eliminated.
Low Noise	Extremely low noise during low-speed or stopped periods, average noise reduced by 10–15dB.
High Pressure Precision	Servo closed-loop control with pressure fluctuation ≤ ±0.5MPa, ensuring uniform board thickness.
Increased Production Efficiency	Fast response reduces filling and pressure-building time; cycle time reduced by 10%–20%.
Reduced Grid Impact	Soft start with no large current surge — power grid friendly.
Low Maintenance Cost	Reduced hydraulic oil change frequency; avoids motor damage from frequent starts/stops.

Main Specifications

Parameter	Typical Value (Customizable)
Number of Layers	5–20 layers (as required)
Total Pressure	300–1200 tons
Hot Platen Size	Customizable (e.g., 2500×1250mm)
Servo Motor Power	11–45kW (depending on tonnage and speed)
Hydraulic Pump Type	Fixed gear pump / Variable piston pump
Energy Saving Rate	30%–60%
Working Temperature	Ambient–200℃
Pressure Control Accuracy	±0.5MPa
Closing Time	≤35seconds
Noise Level	≤85dB (lower during pressure holding/idle)
Control System	PLC + Touch Screen + Servo Drive

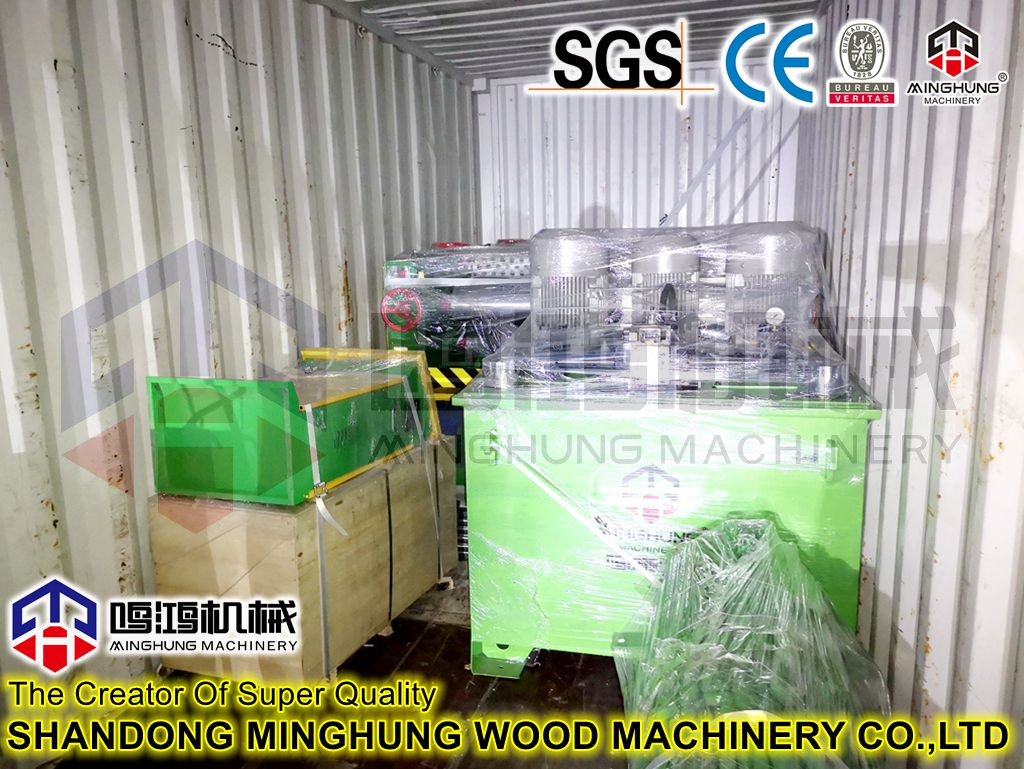

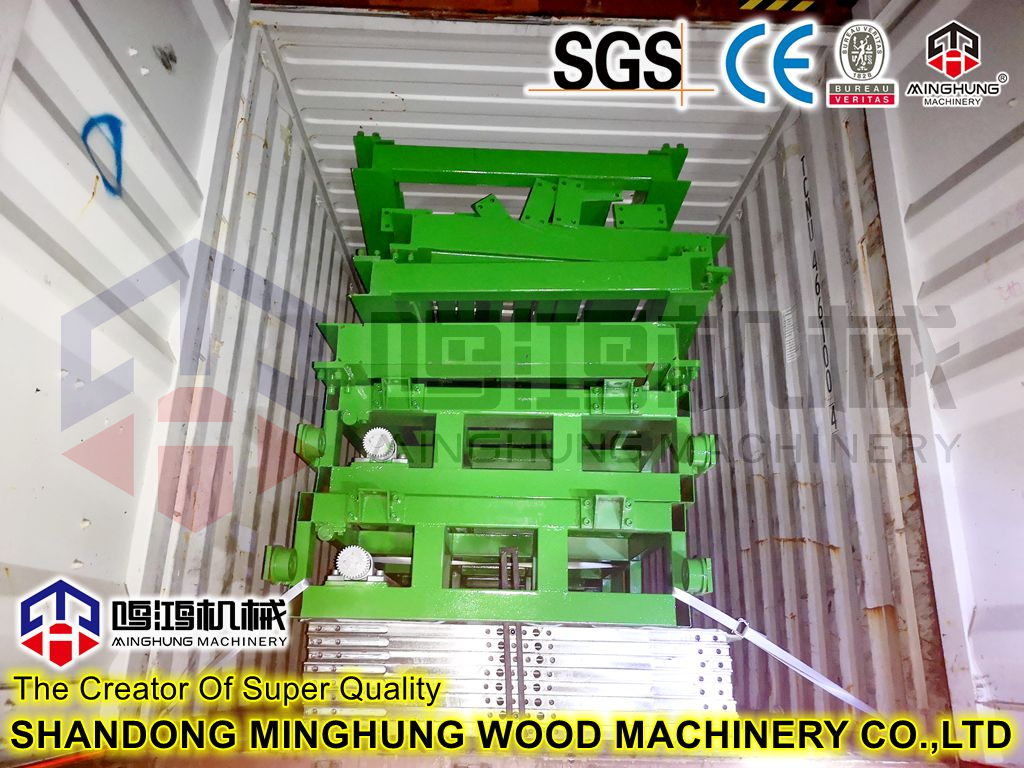

Hot press machine shipping picture

Certificate

A production equipment for drying uniform plant fiber strips into boards

Frequently Asked Questions (FAQ)

1. What production scenarios are suitable for the servo hot press?

A: It is ideal for long pressure-holding processes (e.g., construction formwork), frequent idle conditions (small-batch, multi-product), and factories in areas with high electricity costs.

2. Can an existing hot press be retrofitted with servo drive?

A: Yes. We provide servo retrofit solutions, keeping the original frame and platens, replacing the motor, pump, and control system.

3. Is servo motor maintenance complicated?

A: No. The servo motor is brushless and maintenance-free. The drive should be kept well-ventilated and cleaned periodically.

4. What are the delivery time and warranty policy?

A: Standard configuration delivery time is 45–60 days. The complete machine has a 1-year warranty; the servo motor and drive have a 2-year warranty. Lifelong technical support is provided.

Services We Provide

Customized number of layers, pressure, and platen size according to customer's boards and output requirements

Servo energy-saving retrofit service for existing hot presses

On-site installation, commissioning, and operator training

Remote technical support

Global spare parts supply with 72-hour fast dispatch
