Automatic Plywood Sanding Grinding Calibrating Machine Equipment

You are here: Home » Plywood Machine Series » Plywood Sanding Machine » Plywood Calibrating for Sanding and Polishing Plywood » Automatic Plywood Sanding Grinding Calibrating Machine Equipment

PRODUCT CATEGORY

Veneer Dryer Machine

Random Products

Veneer Production Line Wood Debarker

Spindleless Veneer Peeling Machine for Woodworking Machinery

MITSUBISHI PLC

Complete Plywood Production Line

Steam Boiler

Strong 4feet and 8feet Veneer Production Machine

Plywood Lay-out Machine Plywood Veneer Paving Machine

Rotary Core Veneer Slicing Cutting Peeling Machine for Peeling Wood Core

Film Plywood Lamination Hot Pressing Machine

Plywood Sheet Glue Spreader Machine for Woodworking Plywood Making Machine

Plywood Veneer Hot Press

Plywood Cold Press Pre-Press Woodworking Machinery

Automatic Woodworking Plywood Veneer Log Peeling Machine

800kg Hydraulic Lift Table for Loading Plywood

500t Cold Press Hydraulic Machine for Plywood

Woodworking Plywood Board Veneer Hot Press

Automatic Panel Saw for Cutting Trimming Plywood

500ton Plywood Cold Press

China Rectangular Oscillating Screen Vibrating Sieve for Particleboard Chipboard Production Line Making Machinery

OSB MDF Plywood Edge Trimming Saw Machine Chipboard Edge Trimming Saw OSB MDF Particlebboard Plywood Trimming Saw

Automatic Plywood Sanding Grinding Calibrating Machine Equipment

Automatic Plywood Sanding Grinding Calibrating Machine Equipment

Plywood sanding is to use the sanding process to meet the error range of the process requirements for different thicknesses of the plywood after hot pressing by the hot press, and then use a fine abrasive belt to fine sand or polish the plywood to improve the surface finish of the plywood.
The hot-pressed plywood is composed of multiple layers of veneers. There may be deviations in the thickness of each layer of veneer. It may happen that the veneers that make up the slab are all positive tolerances, or the veneers that make up a board are all negative tolerances. After pressing, the thickness of the two sheets of plywood is very different. The key technology of the thickness-fixed sanding machine is to sand the two sides with equal thickness. It is easier to operate with a double-sided sanding machine, and it is easier to use a single-sided sanding machine to make both sides of the plywood, etc. Thickness is more difficult.
Whatsapp: +8618769900191 +8615589105786 +8615805493072
Email: minghungmachinery@gmail.com
Website: www.plywoodmachineline.com

Quantity:
Availability:





Inquire Add to Basket

Model:
MH-BSG1213R-P
Brand:
MINGHUNG
Port:
Qingdao, China
Payment Terms:
L/C, T/T
After-sales Service:
Anytime you need us, we will always be there to help you
Automatic Grade:
full automatic
Warranty:
two years
Name:
plywood sanding machine
Function:
sanding and calibrating plywood surface

Product Description

Automatic Plywood Sanding Grinding Calibrating Machine Equipment

The hot-pressed plywood is composed of multiple layers of veneers. There may be deviations in the thickness of each layer of veneer. It may happen that the veneers that make up the slab are all positive tolerances, or the veneers that make up a board are all negative tolerances. After pressing, the thickness of the two sheets of plywood is very different. The key technology of the thickness-fixed sanding machine is to sand the two sides with equal thickness. It is easier to operate with a double-sided sanding machine, and it is easier to use a single-sided sanding machine to make both sides of the plywood, etc. Thickness is more difficult.

Whatsapp: +8618769900191 +8615589105786 +8615805493072

Email: minghungmachinery@gmail.com

Website: www.plywoodmachineline.com

The Instruction of Sanding Machine:

Sanding machine is the last step for producing plywood, for make plywood thickness more accurate and balance, surface more smooth and bright, we have different types, for example, there has 1 head, 2 heads, 3 heads, single side, double sides, light weight and heavy duty, some wants calibrating the thickness very accurate, some wants keep the surface very smooth, so we will offer you the most suitable sanding machine.

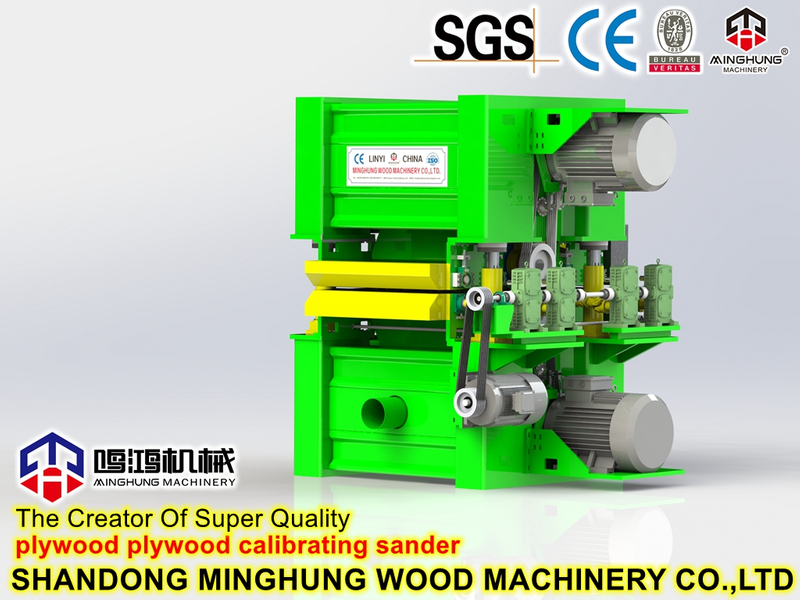

Our Sanding machine 3D drawing:

Double sides calibrating machine

Double sides plywood calibration sander

High accurate plywood sander

The real high accurate plywood sanding machine:

MINGHUNG Double head sanding polishing machine for plywood

Plywood Sanding Machine for Calibrating PlywoodMINGHUNG

This is Double sides calibrating machine:

Max Sanding board width	40-1300mm	40-1300mm
Sanding board thickness	5-150mm	5-150mm
Sanding board length	>500mm	>700mm
Abrasive belt speed	25m/min	25m/min
Abrasive belt size	1350*2800mm	1350*2800mm
Voltage	380v	380v
Frequency	50hz	50hz
Main motors power	75kw; 75kw	75kw; 75kw
Convey feeding motor power	11kw	11kw
Feeding speed	10-30m/min	10-30m/min
Lifting motor	0.75kw	0.75kw
Brushing motor	0.75kw	0.75kw*2
Total power	162.49kw	163.25kw
Working pressure of compress air	0.6mpa	0.6mpa
The capacity of dust collection	24000m³/h	24000m³/h
size	210031003050mm	220031003050mm
Weight	10000kg	14500kg

Note: if your plywood size is special, like the width is 1500mm, 1700mm or more, please tell me, we can customize sanding machine.

FACTORY:

>Machine we produce:
wood debarker, veneer peeling machine, veneer stacker, knife grinder, veneer dryer machine, glue spreader,
plywood veneer lay-out machine, core composer, plywood cold press machine, plywood hot press machine,
plywood DD saw, sanding machine, lift table.

>Principle:
through many years improvment and development, we have had our own company value, that is offer good and suitable plywood machine to every our client forever, and help their business create much value.
Because we know this, so we insist make our machine well, from the beginning, choose machine material and spare parts, our experienced purchasing manager choose the better one through company different, then our designer will discuss and design machine, then our professional workers will start produce machine, each production step will be responsible by different workers.
the whole production line will be tested at least 5 times to make sure our machine in good conditions.

>Certification:
All our plywood machine have CE, and test report.

FACTORY EXISTING SPARE PARTS of SANDING MACHINE:

Operate panel

Sanding brush

Double head sanding polishing machine for plywood MINGHUNG

Double sides rollers

whatever our sanding machine, or other plywood machinery, we all choose the good one, and after our designer finish the drawings, our workers will seriously and responsible treat each production step, different production steps will be responsible by different professional and experienced workers, make sure our machine quality is very good and stable.

DELIVERY:

plywood sanding machine

Before loading, we will test machine and send you videos.
When loading, we will share loading pictures with you.
After ship leave, we will offer container and ship information to you, and prepare all documents for your custom clearance.

RELATED MACHINE:

Single side sanding machine

Plywood overturn machine

Glue machine

RFQ:

> Production Time:
1 month after receive your deposit.

>Payment terms:
30% deposit, 70% before delivery.
100% L/C.

>Warranty:
2 years for main parts.

>MOQ:
1set

> Installation:
when machine reach your factory, our engineer go to install.

> After-sales service:
Any problem that your worker can not solve, we will reply you at the first time, help you solve it.

Plywood Sanding Machine Plywood Sander Automatic Plywood Sander for Calibrating Thickness board sander machine Productivity of plywood sander Calibrate the sander Calibrate the plywood sander Heavy Duty Calibrating Plywood Sander Wood Working Machine Sanding Machine for Sander plywood calibrating sander
