Working Principle
The hot press uses an enclosed hydraulic station to supply high-pressure hydraulic oil, driving the main cylinder to move the hot platens up and down. Thermal medium (thermal oil or steam) enters the multi-layer hot platens through the heating system, rapidly curing the adhesive under high temperature and pressure to complete the forming process. The machine is equipped with a synchronized lifting system and pressure control, ensuring uniform force and consistent thickness for each layer.
|

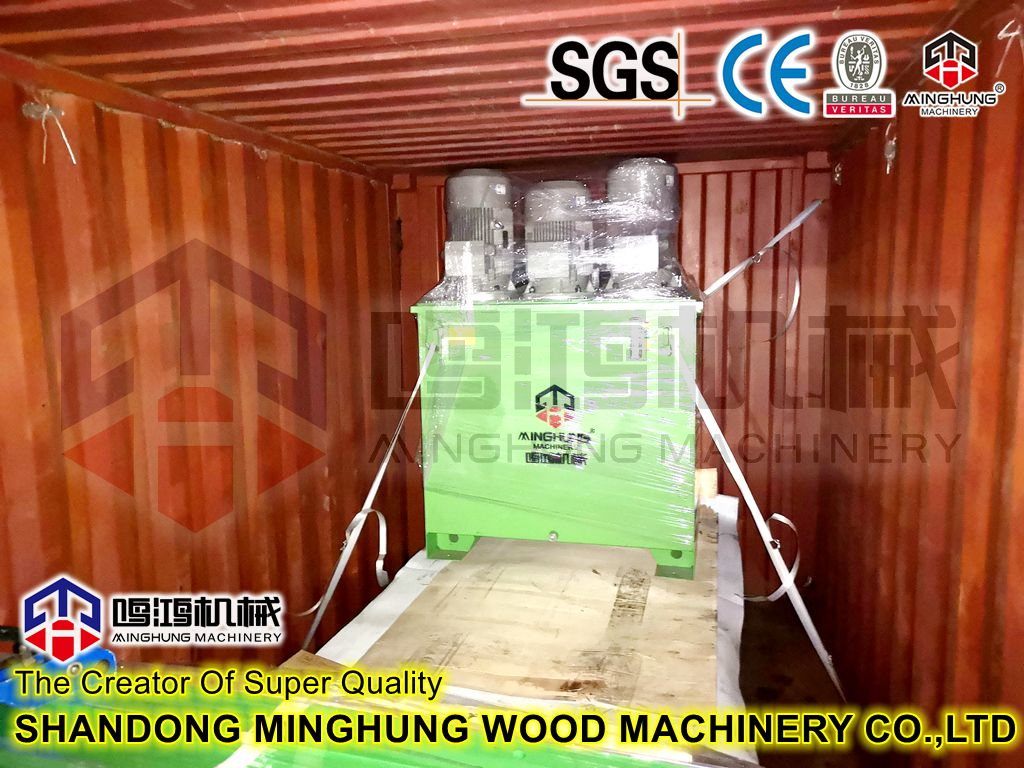

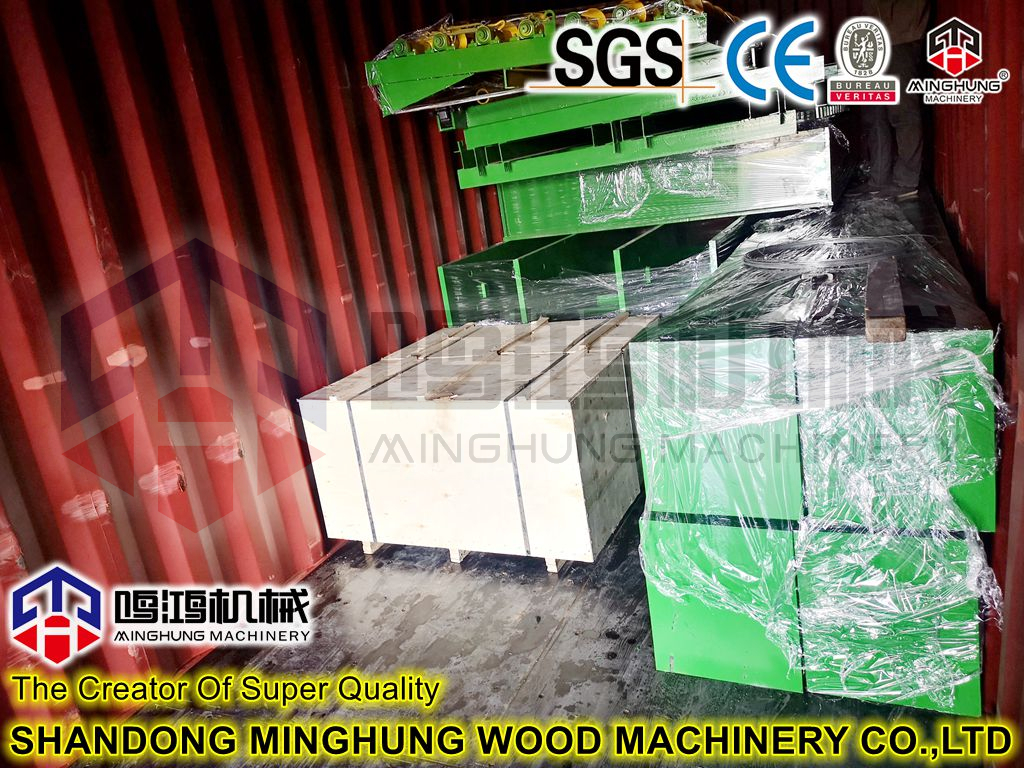

Product Packaging
|
Main Components
1. Main Frame: High-strength welded steel structure for stable load bearing.
2. Hot Platens (15 layers): Precision-machined for even heat distribution.
3. Enclosed Hydraulic Station: Low-noise, dustproof, and leak-proof.
4. Main Cylinder & Synchronous System: Ensures parallel lifting of platens.
5. Heating System: Optional thermal oil, electric, or steam heating.
6. Control System: PLC with touch screen, adjustable pressure, temperature, and time.
7. Interlayer Insulation Device: Reduces heat loss and saves energy.
|
Key Advantages
Low-Noise Operation: Enclosed hydraulic station with noise reduction technology, ≤75dB.
High Pressure Stability: Excellent hydraulic sealing with minimal pressure fluctuation.
Energy-Saving Design: Insulation and heat recovery reduce energy consumption by over 20%.
High Precision Pressing: Synchronous system ensures uniform board thickness.
Easy Operation: PLC control with one-touch process parameter setting.
Simple Maintenance: Enclosed structure reduces contamination, extending hydraulic component life.
|
Company Profile
We are Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd China factory and manufacturer of full sets of Plywood machinery and Veneer machinery.
The machinery we produce includes peeling machines, chipping machines, rotary cutting machines, drying machines, gluing mixers, laying machines, pre-pressing machines, hot pressing machines, cooling machines, longitudinal and transverse sawing machines, sanding machines, as well as auxiliary machinery such as automatic feeding and discharging systems and lifting platforms.
|
Main Specifications
Parameter | Value |
Number of Layers | 15 |
Hot Platen Size | Customizable (e.g., 2700×1370mm) |
Max. Pressure | 1200 tons (adjustable) |
Cylinder Diameter | Φ280–Φ360mm |
Hydraulic Station Power | 15–22kW |
Heating Method | Thermal oil / Steam / Electric |
Working Temperature | Ambient–200℃ |
Closing Time | ≤20 seconds |
Noise Level | ≤75dB |
Control System | PLC + Touch Screen |
|

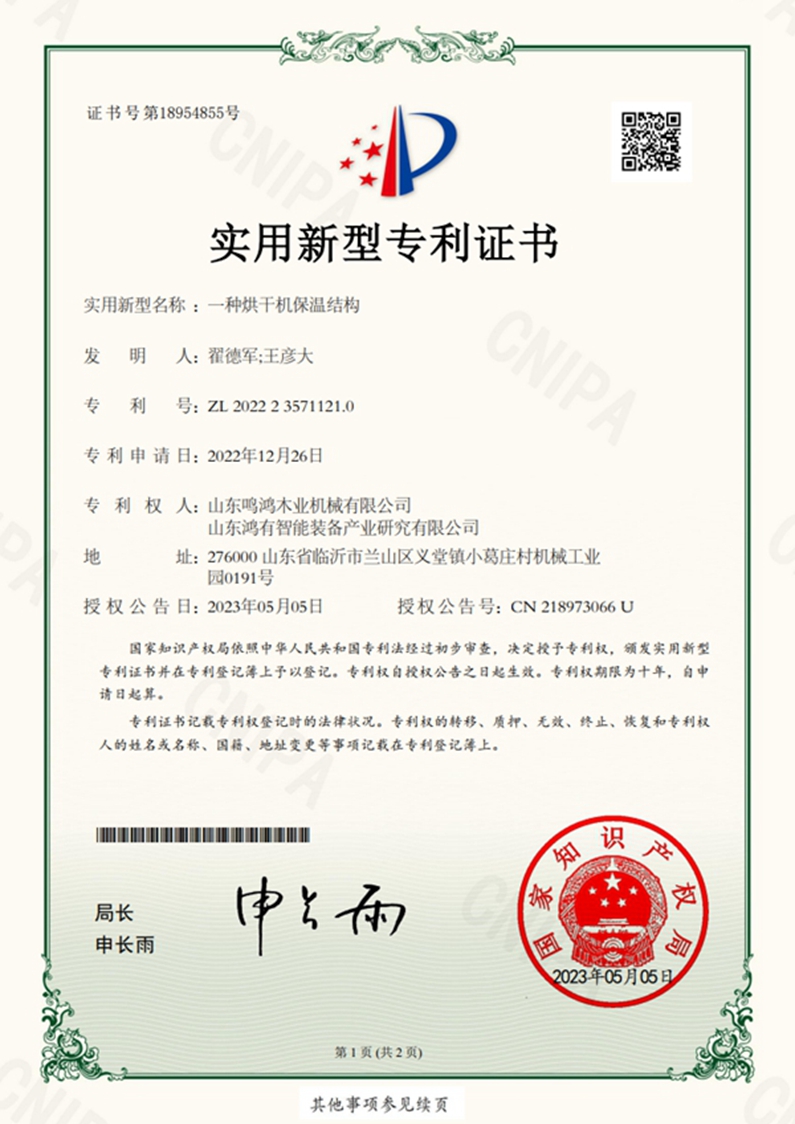

Certifications
|
workshop of plant
|
Customer photos
|
Services We Provide
Customized platen size and number of layers according to customer board specifications
On-site installation and commissioning guidance
Operator training
Customization of hydraulic station and control system
1-year warranty for the complete machine, lifelong technical support
Fast supply of spare parts
