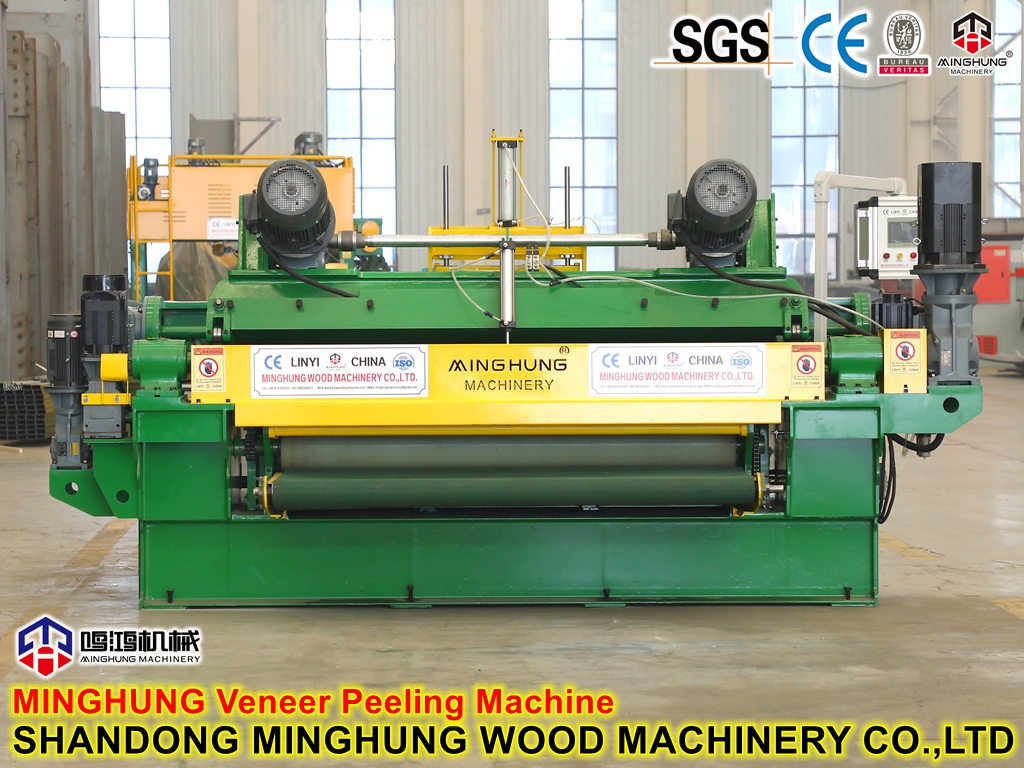

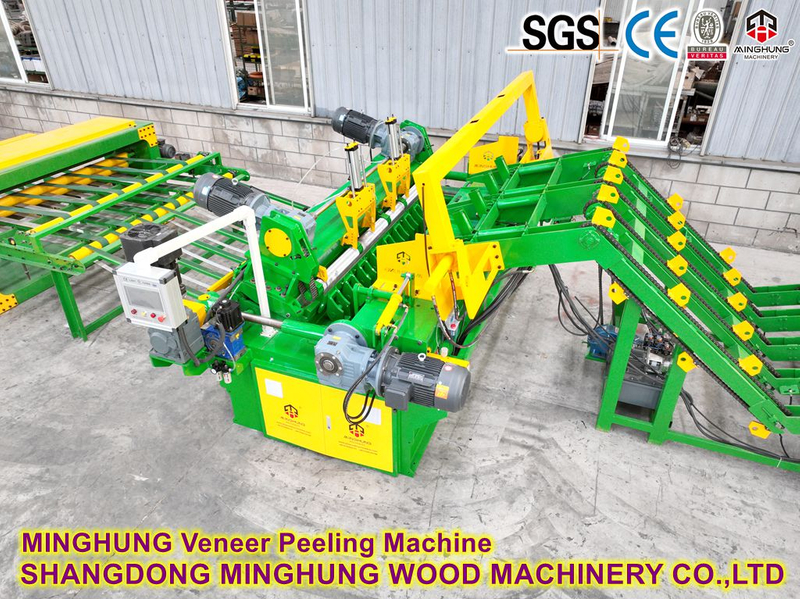

1. Reinforced main frame (high-rigidity welded structure)

2. Drive roller system (main drive roller + auxiliary roller, with chrome plating or spiked surface options)

3. Pressing roller device (hydraulic or pneumatic clamping)

4. Hydraulic knife carriage with knife gap adjustment mechanism

5. Variable frequency drive main motor

6. Feed drive system (hydraulic or servo motor)

7. Veneer discharge conveyor

8. Automatic veneer winding or stacking mechanism

9. PLC control system

10. Touch screen human-machine interface (HMI)

11. Hydraulic power unit (if hydraulic feed is adopted)

1. Fully automatic operation : PLC + HMI control, one-key start, automatically completes the entire peeling process

2. Variable frequency speed control : Automatically adjusts rotation speed according to log diameter, saving energy and extending blade life

3. No centering or drilling required : Saves labor and time, lowers operation difficulty

4. High wood yield : Minimum core diameter only 30-46mm, maximizing wood utilization

5. Good veneer quality : Uniform thickness (≤0.15mm), smooth surface

6. Wide application : Suitable for small-diameter logs, branches, and residual cores from spindle-type machines

7. Easy operation : Parameter setting via touch screen, less reliance on operator experience

8. Low maintenance cost : Relatively simple structure with fewer wear parts

9. Energy saving & environmental friendly : Frequency control reduces energy consumption and noise

10. Safe and reliable : Multiple safety protection devices with emergency stop button

Poplar

Eucalyptus

Birch

Maple

Pine

Paulownia

Residual cores from spindle-type veneer lathes

Small-diameter branches

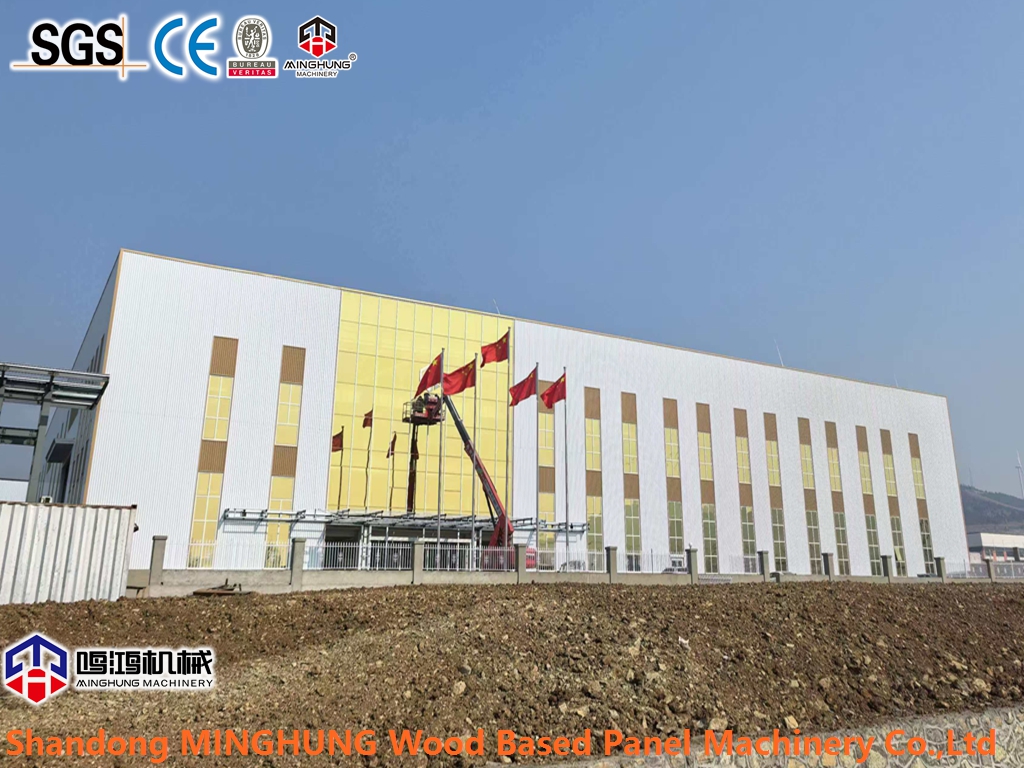

We are Shandong MINGHUNG Wood Based Panel Machinery Co.,Ltd China factory and manufacturer of full sets of Plywood machinery and Veneer machinery. With many years production experience, advanced production technology,experienced workers and professional engineers, we can offer you the suitable, good and strong machinery for you.

1. Customized configuration according to customer wood species and output requirements

2. Complete plywood or veneer production line equipment supply available

3. Optional hydraulic feed or servo feed drive systems

4. Free guidance on process parameter adjustment

5. On-site installation, commissioning, and operator training by our engineers

6. Long-term supply of wear parts including blades, bearings, and hydraulic oil

7. 12-month warranty and lifetime technical support & maintenance service

8. 24/7 online fault diagnosis and remote assistance

9. Assistance with export customs declaration, sea logistics, and documentation
