Servo-Controlled High-Precision coreless veneer peeler

This product is a high-precision coreless (roller-type) veneer lathe adopting servo control technology. The machine uses a servo motor instead of a traditional hydraulic system to drive the knife carriage feed, combined with high-precision ball screws and linear guides, achieving micron-level control of the knife gap. The complete system is equipped with a PLC and industrial-grade touch screen HMI, supporting fully automatic closed-loop control. Without requiring centering or drilling of the log, it produces high-quality veneer with uniform thickness and a smooth surface. It is especially suitable for plywood, decorative veneer, and high-end furniture panel production where high thickness accuracy is required, making it an ideal choice for veneer processing enterprises looking to upgrade their equipment.

Quantity:
Availability:





Inquire Add to Basket

Model:
MH-VPM
Brand:
MINGHUNG

Product Description

Servo-Controlled High-Precision coreless veneer peeler

Main Components

1. Heavy-duty high-rigidity main frame

2. Drive roller system (main drive roller + auxiliary drive roller)

3. Pressing roller device (pneumatic or hydraulic clamping)

4. Servo-driven knife carriage system (servo motor + ball screw + linear guide)

5. High-rigidity blade with knife gap adjustment mechanism

6. Variable frequency drive main motor (for drive rollers)

7. High-precision encoder (closed-loop feedback)

8. Veneer discharge conveyor

9. Automatic veneer winding or stacking mechanism

10. PLC central control system

11. Industrial-grade touch screen human-machine interface (HMI)

12. Electrical control cabinet

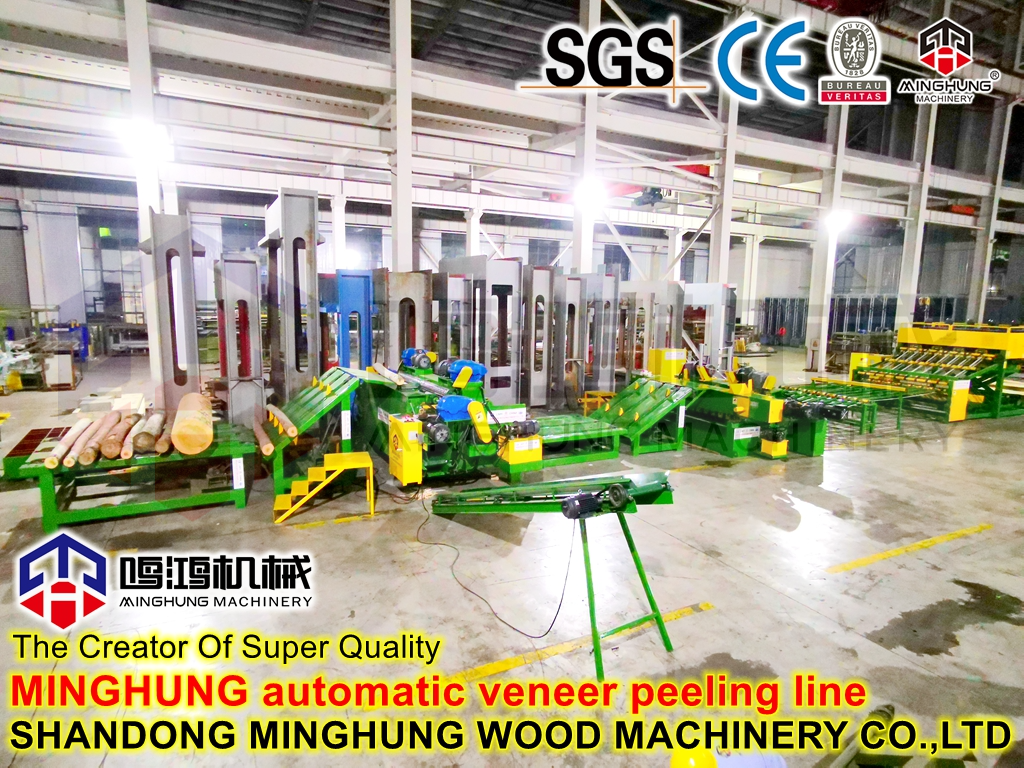

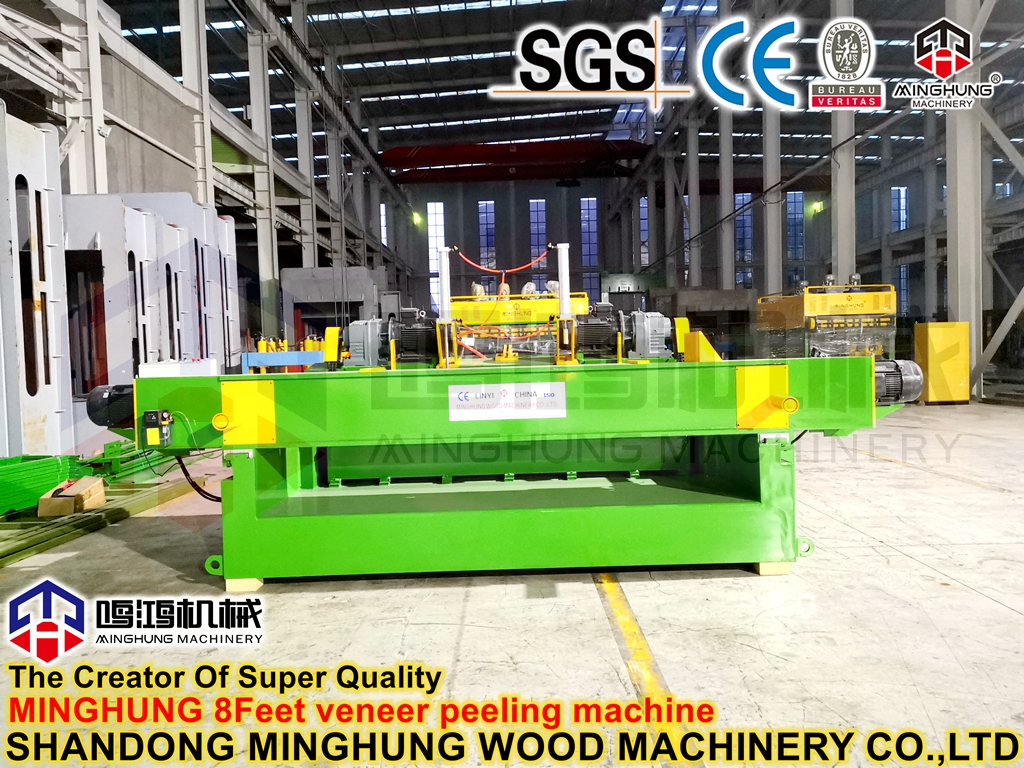

MINGHUNG Spindleless Veneer Peeling Machine

hydraulic knife system for peeling machine

hydraulic knife holder for peeling machine

Spindleless peeling machine with hydraulic knife system

Working Principle

The log requires no centering or drilling – it is directly placed between the main drive roller and the pressing roller. The pressing roller holds the log against the drive roller, and the variable frequency drive motor rotates the rollers, driving the log to rotate by friction.

Working principle of the servo control system: The operator sets the target veneer thickness on the touch screen. The PLC sends commands to the servo driver, and the servo motor rotates the ball screw, driving the knife carriage to move precisely along the linear guide, positioning the blade at the exact knife gap position. Throughout the peeling process, a high-precision encoder provides real-time feedback of the knife carriage position, forming a closed-loop control system that ensures the knife gap always matches the set thickness. As the log diameter decreases, the servo system automatically adjusts the feed amount to maintain constant veneer thickness.

The peeled veneer is discharged via the conveyor and automatically wound or stacked. When the log is peeled down to the minimum diameter, the machine automatically stops.

Core Advantages

No.	Advantage	Description
1	Ultra-high precision	Servo control + ball screw + linear guide, thickness accuracy up to ±0.05mm
2	Fast response speed	Millisecond-level response of servo motor, quick and precise knife carriage feed
3	Excellent thickness consistency	Closed-loop control with real-time compensation ensures uniform veneer thickness along the entire log
4	Energy saving	Servo system works on demand, saving 30%-50% energy compared to hydraulic systems
5	No centering or drilling required	Direct loading, saving labor and time
6	High wood yield	Minimum core diameter only 30-46mm, maximizing wood utilization
7	Easy operation	Parameter setting via touch screen, one-key recipe recall, lowering operation difficulty
8	Low maintenance cost	No hydraulic oil leakage issues, long maintenance-free period for servo system
9	Quiet operation	Servo system noise much lower than hydraulic pump station
10	High intelligence	Supports data logging, fault self-diagnosis, and remote monitoring

Common Specifications

Parameter	4ft Specification	8ft Specification
Max. peeling length	1300 mm	2600 mm
Max. log diameter	500 mm	640 mm
Min. remaining diameter	30 – 46 mm	30 – 46 mm
Veneer thickness range	0.5 – 4.0 mm	0.5 – 4.0 mm
Thickness accuracy	±0.05 mm	±0.05 mm
Drive roller speed	0 – 100 rpm (VFD adjustable)	0 – 100 rpm (VFD adjustable)
Feed method	Servo motor + ball screw	Servo motor + ball screw
Control system	PLC + industrial touch screen	PLC + industrial touch screen
Control mode	Closed-loop servo control	Closed-loop servo control
Machine weight	Approx. 8.3tons	Approx.11tons
Overall dimension (L×W×H)	4500×2300×1500 mm	6500×2300×1600 mm

Suitable Wood Types

Poplar

Eucalyptus

Birch

Maple

Pine

Paulownia

Willow

Residual cores from spindle-type veneer lathes

Poplar

Eucalyptus

Birch

Pine

Maple

Servo System vs Hydraulic System Comparison

Comparison Item	Servo Control	Hydraulic Control
Thickness accuracy	±0.05 mm	±0.10 – 0.15 mm
Response speed	Millisecond level	Hundred-millisecond level
Energy consumption	Low (on-demand)	Higher (continuous)
Noise	Low (≤70dB)	Higher (80-90dB)
Maintenance	Simple, no oil leakage	Complex, regular oil changes
Temperature rise	Low	Higher (cooling required)
Control method	Fully closed-loop digital	Open-loop or semi-closed loop
Price	Slightly higher	Medium

Services We Can Provide

1. Customized Configuration : Tailored solutions based on wood species and thickness requirements

2. Optional Parts : Chrome-plated/spiked rollers, pneumatic/hydraulic clamping available

3. Installation & Commissioning : On-site installation, commissioning, and operator training by our engineers

4. Wear Parts Supply : Long-term supply of blades, bearings, servo spare parts, etc.

5. Warranty Service : 12-month warranty and lifetime technical support

6. Remote Support : 7×24 online fault diagnosis and assistance

7. Export Assistance : One-stop service for customs clearance, sea logistics, and documentation

8. Supporting Equipment : Complete plywood/veneer production line supply
