Roller Veneer Dryer for Plywood Machine

Quantity:
Availability:





Inquire Add to Basket

Product Description

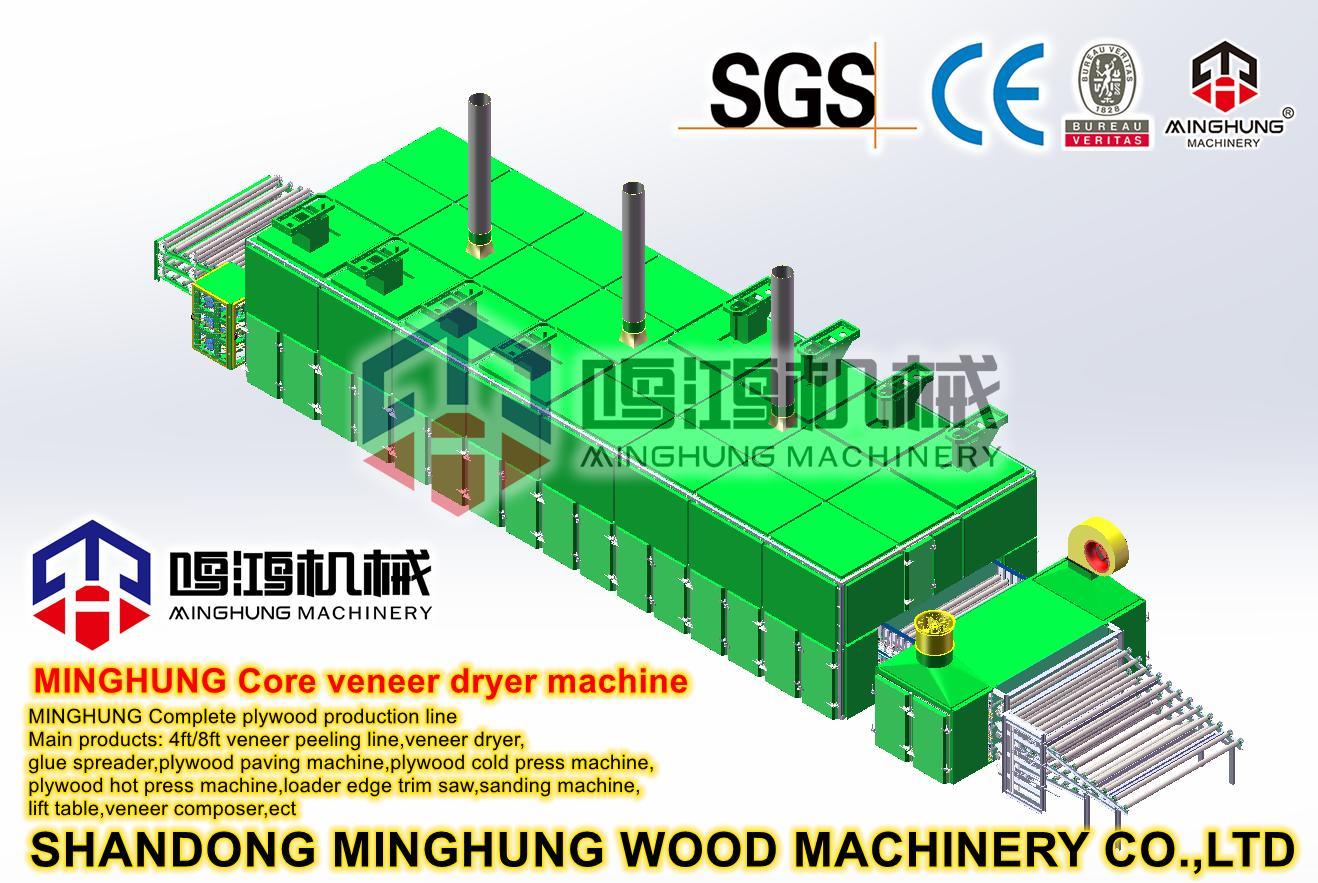

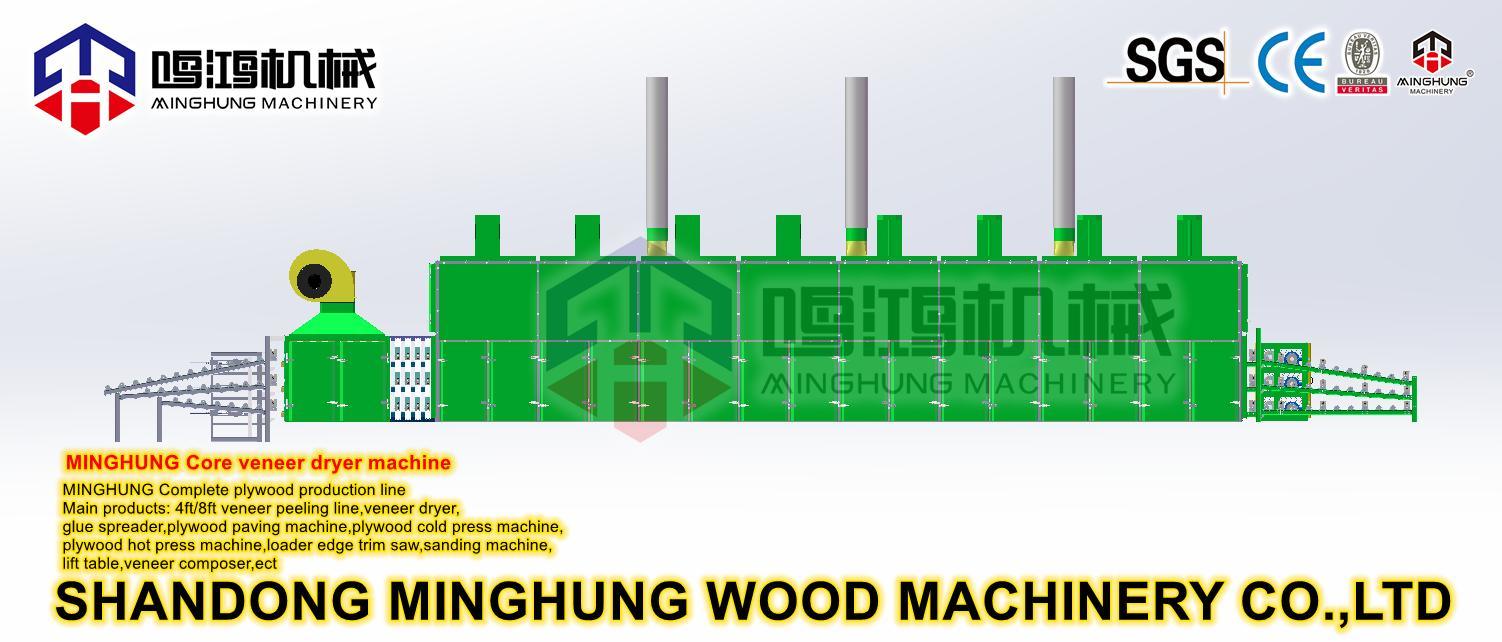

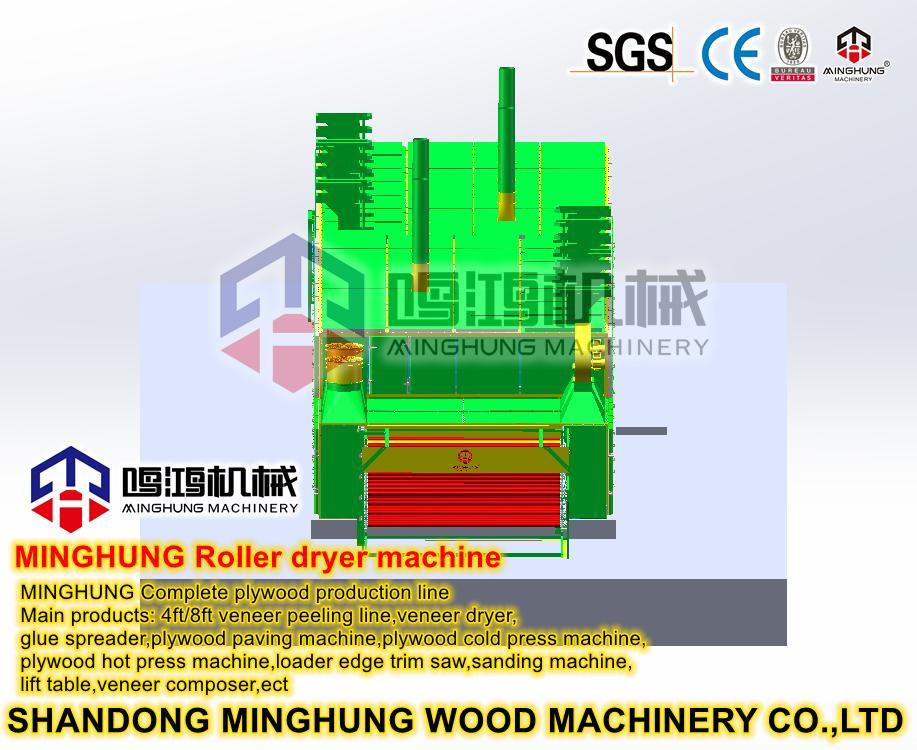

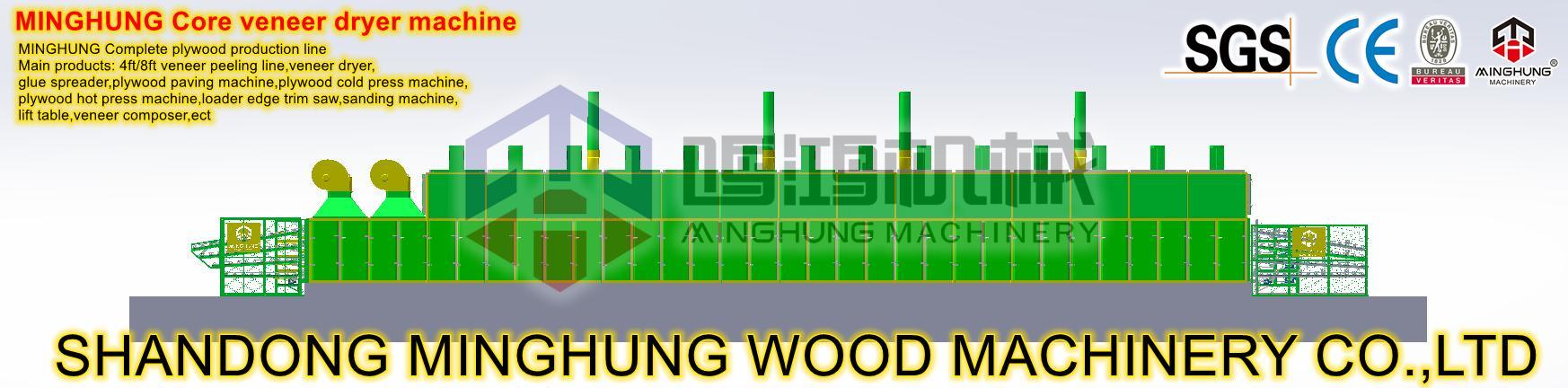

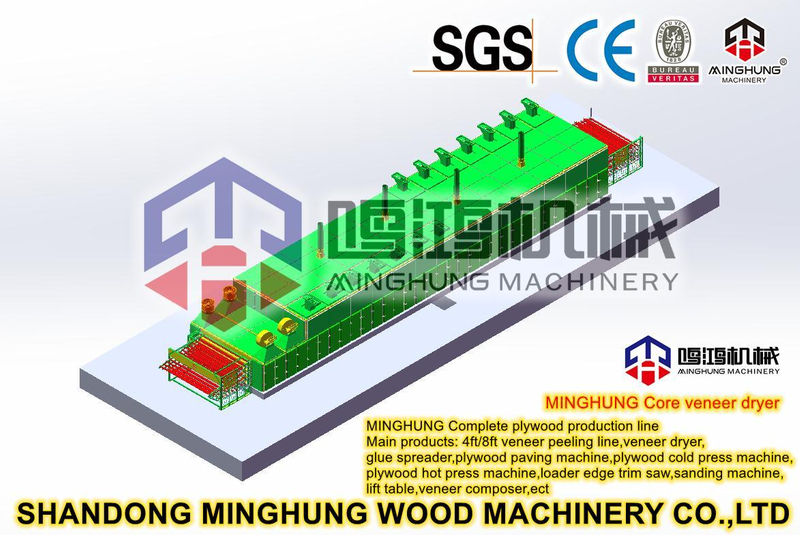

Roller Veneer Dryer for Plywood Machine

Friends, for save your precious time, please tell me your conditions, i will offer you the suitable and good machine for you.
----Lucinda/sales manager

The veneers move through the drying machine in several layers along rollers, as the machine's name indicates. The target moisture level after drying is around 6-7% which is precisely the right moisture level for gluing veneer.
A sufficient drying temperature is 145-160ºC and the veneers pass through the machine in about six minutes. Drying conditions and the moisture of the veneers are monitored continuously to make sure that the drying quality remains even.
Usually, the original moisture is 70-80%, after drying, the moisture is about 10%

>>>Parameters:
The dryer machine-Roller dryer, can be different layers, length and width, so we usually offer and produce according to your production capacity required.


Name	Roller dryer
Model	MH-RD2830L
Heating mode	Steam/Oil
Veneer thickness	1-3mm
Transport mode	Roller press mode
Speed	Speed adjustable
Number of layers	2 layers/3layers/4layers
Length of hot wind area	20m/26m/30m
Peoduction capacity	10-20m³/day, 20-30m³/day, more

>>>Main Parts:

Electric Box of Roll dryer and Mesh Dryer
With Good and upgraded Inside electric parts

Big Fan of Roller and Wire Dryer
Which will increase the dryer capacity

Rollers of Veneer Roller Dryer
Thick wall thickness of Rollers, more solid and strong

Radiator of Roller Dryer
Good structure to fast dissipate heating and increase drying capacity

<1> Resonable design and good parts make roller dryer save energy and transfer heating fast.
<2> The dryer machine uses the latest ultra-low noise centrifugal ventilator, reduce noise, good for workers.
<3> The wind speed is faster and the air volume is higher, therefore the drying speed is much quicker.
<4> Adopt variable frequency speed control, can adjust feed speed according your veneer thickness and moisture content, to get perfect drying effect.

>>>Machine In Client Factory:

Roller Veneer Dryer for Plywood Machine

The installation of veneer roller dryer is more complex and spend longer time than others, so our engineer will go to install with your workers.

>>>Delivery:

When loading, we will share loading pictures to you.
After ship leave, we will offer you container and ship information.
Offer all documents for you do custom clearance.

>>>RFQ:

Production Time:

1 month after receive your deposit.

Payment Terms:

30% deposit, 70% before delivery.
100% Letter of Credit.

Warranty:

2 years for main parts.

MOQ:

1 set

Installation:

When machine reach your factory, our engineer can go to install

After-sales service:

Any problem that your worker can not solve, tell us, we will reply you at the first time,
